RA64L-BCPQSA (1981)

Toyota Celica

Production Aug 1981 - Aug 1982
Engine 22R
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8108- )

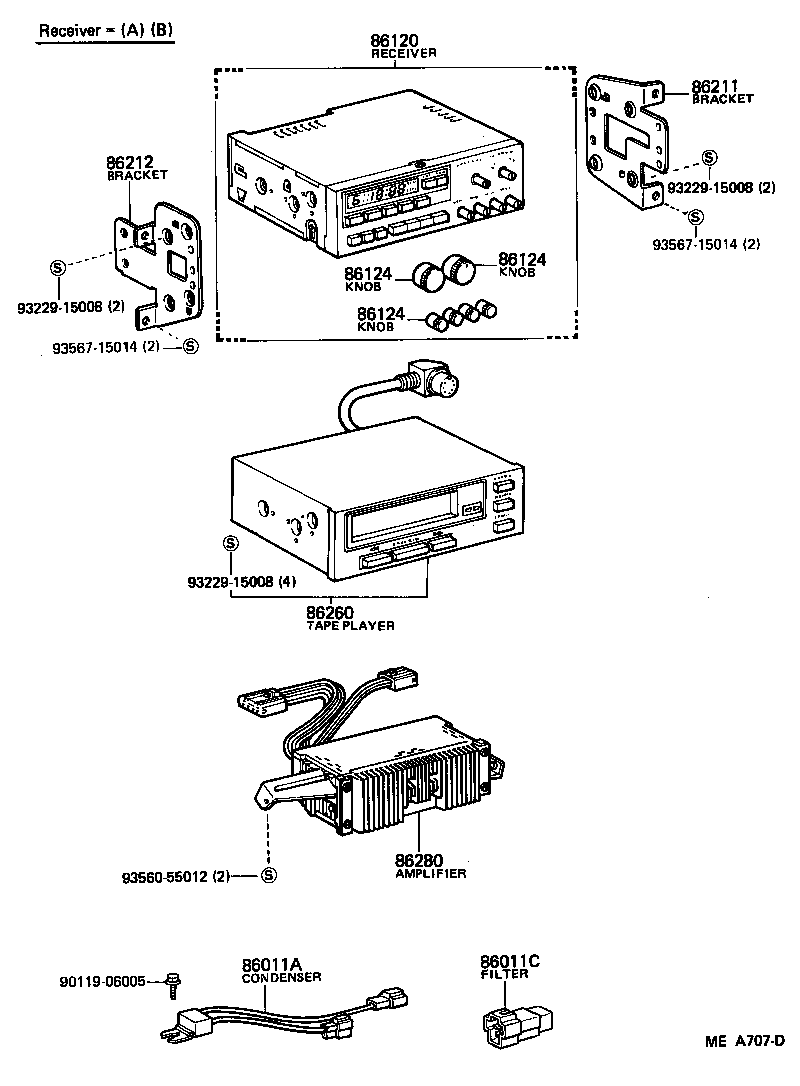

Click highlighted areas on diagram

diagram 86011A 86011C 86120 86124 86124 86124 86211 86212 86260 86280 9011906005 9322915008 9322915008 9322915008 9356055012 9356715014 9356715014
Part # Description Qty Price
86011A - CONDENSER, RADIO SETTING
90980-04036

MA61,RA6#

 1
86011C - FILTER, NOISE
90980-05073

MA61,RA6#

 1
86120 - RECEIVER ASSY, RADIO
86120-14370

MA61,RA64

(C)AM/FM/TAPE PLAYER,*ELT

 1
86120-14500

MA61,RA64

(B)AM/FM,*ELT

 1
86120-14480

RA6#..CP,LB

(A)AM/FM,6-BUTTON

 1
86124 - KNOB, RADIO RECEIVER CONTROL
86128-14280

RA6#..CP,LB

(A)..(SW/VOL)

 1
86128-14300

MA61,RA6#

(C)..(PRO/TUNE)

 1
86128-14340

MA61,RA6#

(B)(C)..(SW/VOL)

 1
86128-14440

MA61,RA6#

(C)..(BAL)(TRE)

 2
86128-14300

RA6#..CP,LB

(A)..(TUNE)

 1
86128-14420

MA61,RA6#

(C)..(BASS)(FAD)

 2
86128-14320

MA61,RA6#

(A)(B)..(BASS)(TRE)(BAL)(FAD)

 4
86128-14300

MA61,RA6#

(B)..(TUNE/SCAN)

 1
86124 - KNOB, RADIO RECEIVER CONTROL
86128-14280

RA6#..CP,LB

(A)..(SW/VOL)

 1
86128-14300

MA61,RA6#

(C)..(PRO/TUNE)

 1
86128-14340

MA61,RA6#

(B)(C)..(SW/VOL)

 1
86128-14440

MA61,RA6#

(C)..(BAL)(TRE)

 2
86128-14300

RA6#..CP,LB

(A)..(TUNE)

 1
86128-14420

MA61,RA6#

(C)..(BASS)(FAD)

 2
86128-14320

MA61,RA6#

(A)(B)..(BASS)(TRE)(BAL)(FAD)

 4
86128-14300

MA61,RA6#

(B)..(TUNE/SCAN)

 1
86124 - KNOB, RADIO RECEIVER CONTROL
86128-14280

RA6#..CP,LB

(A)..(SW/VOL)

 1
86128-14300

MA61,RA6#

(C)..(PRO/TUNE)

 1
86128-14340

MA61,RA6#

(B)(C)..(SW/VOL)

 1
86128-14440

MA61,RA6#

(C)..(BAL)(TRE)

 2
86128-14300

RA6#..CP,LB

(A)..(TUNE)

 1
86128-14420

MA61,RA6#

(C)..(BASS)(FAD)

 2
86128-14320

MA61,RA6#

(A)(B)..(BASS)(TRE)(BAL)(FAD)

 4
86128-14300

MA61,RA6#

(B)..(TUNE/SCAN)

 1
86211 - BRACKET, RADIO, NO.1
86211-14150

MA61,RA6#

 1
86212 - BRACKET, RADIO, NO.2
86212-14120

MA61,RA6#

 1
86260 - TAPE PLAYER ASSY
86260-19025

MA61,RA6#..CP,LB

 1
86280 - AMPLIFIER ASSY, STEREO COMPONENT
86280-19055

MA61,RA64

RECEIVER=(A)(B)

 1
86280-14130

MA61,RA6#

RECEIVER=(C)

 1
86280-19045

MA61,RA6#

RECEIVER=(C),*GE

 1
Common parts
90119-06005
93229-15008
93560-55012
93567-15014

(8108- )

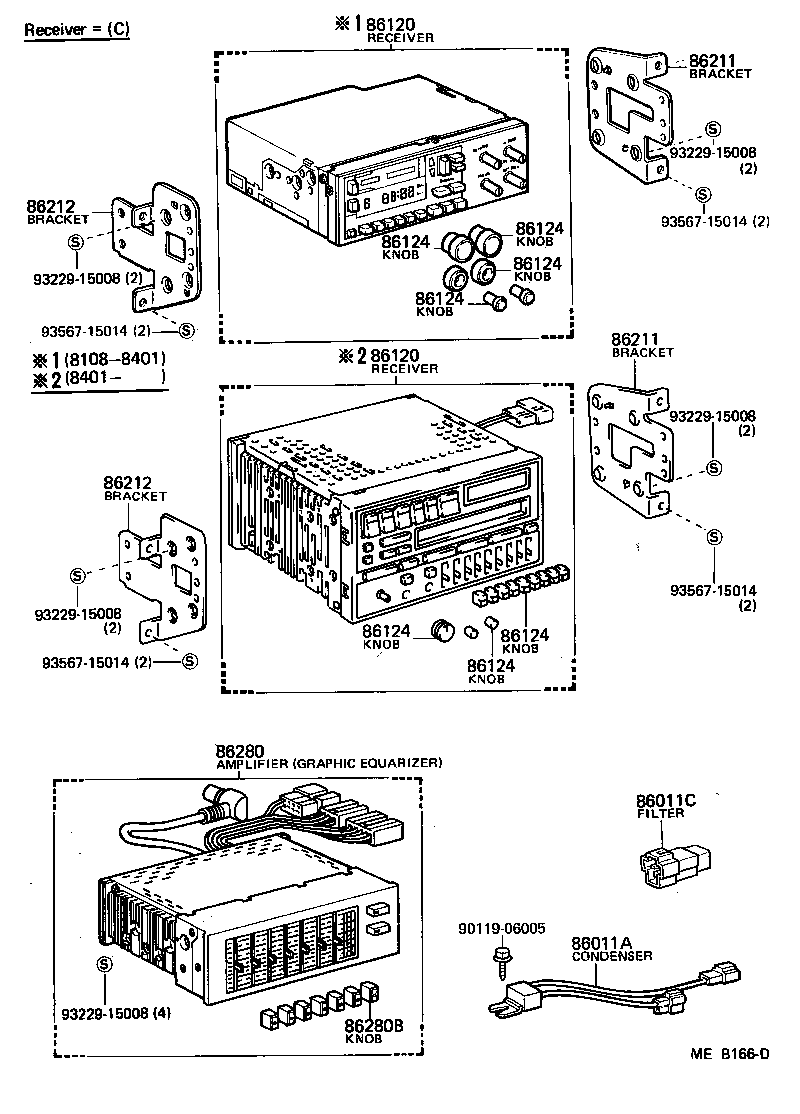

Click highlighted areas on diagram

diagram 86011A 86011C 86120 86120 86124 86124 86124 86124 86124 86124 86124 86211 86211 86212 86212 86280 86280B 9011906005 9322915008 9322915008 9322915008 9322915008 9322915008 9356715014 9356715014 9356715014 9356715014
Part # Description Qty Price
86011A - CONDENSER, RADIO SETTING
90980-04036

MA61,RA6#

 1
86011C - FILTER, NOISE
90980-05073

MA61,RA6#

 1
86120 - RECEIVER ASSY, RADIO
86120-14370

MA61,RA64

(C)AM/FM/TAPE PLAYER,*ELT

 1
86120-14500

MA61,RA64

(B)AM/FM,*ELT

 1
86120-14480

RA6#..CP,LB

(A)AM/FM,6-BUTTON

 1
86120 - RECEIVER ASSY, RADIO
86120-14370

MA61,RA64

(C)AM/FM/TAPE PLAYER,*ELT

 1
86120-14500

MA61,RA64

(B)AM/FM,*ELT

 1
86120-14480

RA6#..CP,LB

(A)AM/FM,6-BUTTON

 1
86124 - KNOB, RADIO RECEIVER CONTROL
86128-14280

RA6#..CP,LB

(A)..(SW/VOL)

 1
86128-14300

MA61,RA6#

(C)..(PRO/TUNE)

 1
86128-14340

MA61,RA6#

(B)(C)..(SW/VOL)

 1
86128-14440

MA61,RA6#

(C)..(BAL)(TRE)

 2
86128-14300

RA6#..CP,LB

(A)..(TUNE)

 1
86128-14420

MA61,RA6#

(C)..(BASS)(FAD)

 2
86128-14320

MA61,RA6#

(A)(B)..(BASS)(TRE)(BAL)(FAD)

 4
86128-14300

MA61,RA6#

(B)..(TUNE/SCAN)

 1
86124 - KNOB, RADIO RECEIVER CONTROL
86128-14280

RA6#..CP,LB

(A)..(SW/VOL)

 1
86128-14300

MA61,RA6#

(C)..(PRO/TUNE)

 1
86128-14340

MA61,RA6#

(B)(C)..(SW/VOL)

 1
86128-14440

MA61,RA6#

(C)..(BAL)(TRE)

 2
86128-14300

RA6#..CP,LB

(A)..(TUNE)

 1
86128-14420

MA61,RA6#

(C)..(BASS)(FAD)

 2
86128-14320

MA61,RA6#

(A)(B)..(BASS)(TRE)(BAL)(FAD)

 4
86128-14300

MA61,RA6#

(B)..(TUNE/SCAN)

 1
86124 - KNOB, RADIO RECEIVER CONTROL
86128-14280

RA6#..CP,LB

(A)..(SW/VOL)

 1
86128-14300

MA61,RA6#

(C)..(PRO/TUNE)

 1
86128-14340

MA61,RA6#

(B)(C)..(SW/VOL)

 1
86128-14440

MA61,RA6#

(C)..(BAL)(TRE)

 2
86128-14300

RA6#..CP,LB

(A)..(TUNE)

 1
86128-14420

MA61,RA6#

(C)..(BASS)(FAD)

 2
86128-14320

MA61,RA6#

(A)(B)..(BASS)(TRE)(BAL)(FAD)

 4
86128-14300

MA61,RA6#

(B)..(TUNE/SCAN)

 1
86124 - KNOB, RADIO RECEIVER CONTROL
86128-14280

RA6#..CP,LB

(A)..(SW/VOL)

 1
86128-14300

MA61,RA6#

(C)..(PRO/TUNE)

 1
86128-14340

MA61,RA6#

(B)(C)..(SW/VOL)

 1
86128-14440

MA61,RA6#

(C)..(BAL)(TRE)

 2
86128-14300

RA6#..CP,LB

(A)..(TUNE)

 1
86128-14420

MA61,RA6#

(C)..(BASS)(FAD)

 2
86128-14320

MA61,RA6#

(A)(B)..(BASS)(TRE)(BAL)(FAD)

 4
86128-14300

MA61,RA6#

(B)..(TUNE/SCAN)

 1
86124 - KNOB, RADIO RECEIVER CONTROL
86128-14280

RA6#..CP,LB

(A)..(SW/VOL)

 1
86128-14300

MA61,RA6#

(C)..(PRO/TUNE)

 1
86128-14340

MA61,RA6#

(B)(C)..(SW/VOL)

 1
86128-14440

MA61,RA6#

(C)..(BAL)(TRE)

 2
86128-14300

RA6#..CP,LB

(A)..(TUNE)

 1
86128-14420

MA61,RA6#

(C)..(BASS)(FAD)

 2
86128-14320

MA61,RA6#

(A)(B)..(BASS)(TRE)(BAL)(FAD)

 4
86128-14300

MA61,RA6#

(B)..(TUNE/SCAN)

 1
86124 - KNOB, RADIO RECEIVER CONTROL
86128-14280

RA6#..CP,LB

(A)..(SW/VOL)

 1
86128-14300

MA61,RA6#

(C)..(PRO/TUNE)

 1
86128-14340

MA61,RA6#

(B)(C)..(SW/VOL)

 1
86128-14440

MA61,RA6#

(C)..(BAL)(TRE)

 2
86128-14300

RA6#..CP,LB

(A)..(TUNE)

 1
86128-14420

MA61,RA6#

(C)..(BASS)(FAD)

 2
86128-14320

MA61,RA6#

(A)(B)..(BASS)(TRE)(BAL)(FAD)

 4
86128-14300

MA61,RA6#

(B)..(TUNE/SCAN)

 1
86124 - KNOB, RADIO RECEIVER CONTROL
86128-14280

RA6#..CP,LB

(A)..(SW/VOL)

 1
86128-14300

MA61,RA6#

(C)..(PRO/TUNE)

 1
86128-14340

MA61,RA6#

(B)(C)..(SW/VOL)

 1
86128-14440

MA61,RA6#

(C)..(BAL)(TRE)

 2
86128-14300

RA6#..CP,LB

(A)..(TUNE)

 1
86128-14420

MA61,RA6#

(C)..(BASS)(FAD)

 2
86128-14320

MA61,RA6#

(A)(B)..(BASS)(TRE)(BAL)(FAD)

 4
86128-14300

MA61,RA6#

(B)..(TUNE/SCAN)

 1
86211 - BRACKET, RADIO, NO.1
86211-14150

MA61,RA6#

 1
86211 - BRACKET, RADIO, NO.1
86211-14150

MA61,RA6#

 1
86212 - BRACKET, RADIO, NO.2
86212-14120

MA61,RA6#

 1
86212 - BRACKET, RADIO, NO.2
86212-14120

MA61,RA6#

 1
86280 - AMPLIFIER ASSY, STEREO COMPONENT
86280-19055

MA61,RA64

RECEIVER=(A)(B)

 1
86280-14130

MA61,RA6#

RECEIVER=(C)

 1
86280-19045

MA61,RA6#

RECEIVER=(C),*GE

 1
86280B - KNOB, AMPLIFIER GRAPHIC EQUALIZER
86128-14460

MA61,RA6#..CP,LB

 7
Common parts
90119-06005
93229-15008
93567-15014
