RA64L-BCPQSA (1981)

Toyota Celica

Production Aug 1981 - Aug 1982
Engine 22R
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8108-8308)CBR

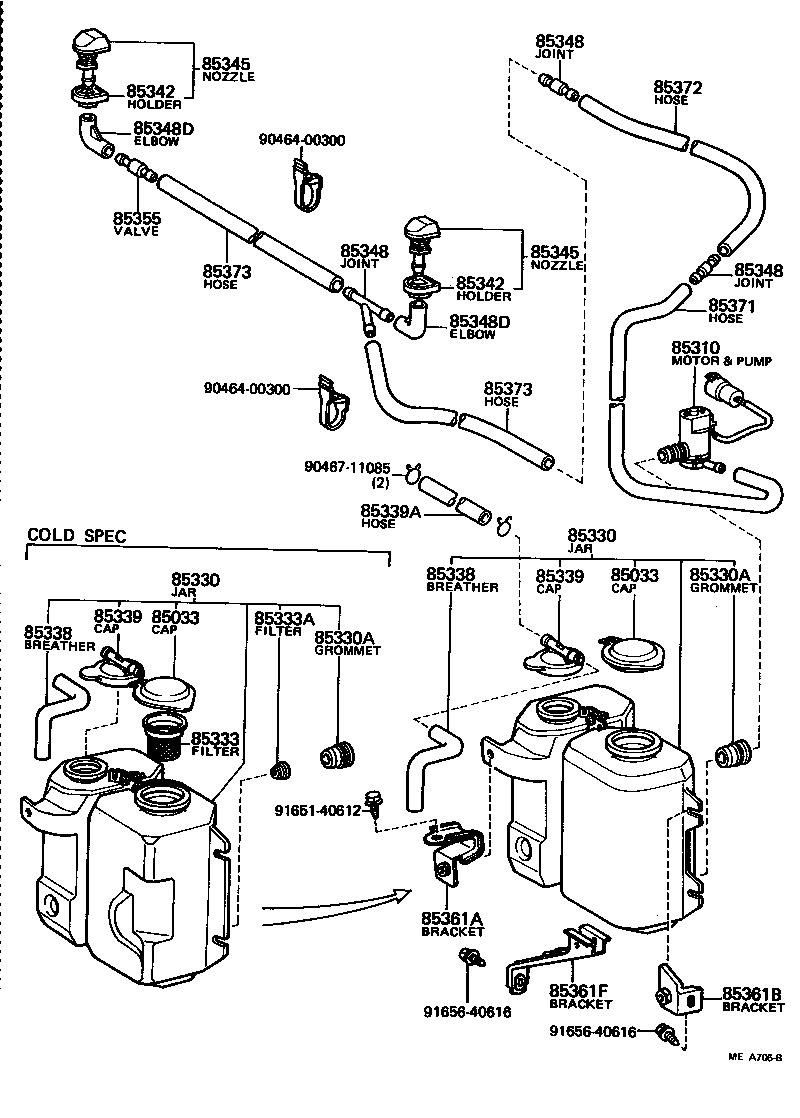

Click highlighted areas on diagram

diagram 85033 85033 85310 85330 85330 85330A 85330A 85333 85333A 85338 85338 85339 85339 85339A 85342 85342 85345 85345 85348 85348 85348 85348D 85348D 85355 85361A 85361B 85361F 85371 85372 85373 85373 9046400300 9046400300 9046711085 9165140612 9165640616 9165640616
Part # Description Qty Price
85033 - CAP ASSY, WINDSHIELD WASHER
85332-16010

RA64..CBR..USA

 1
85332-20060

RA64..CBR

COLD SPEC

 1
85033 - CAP ASSY, WINDSHIELD WASHER
85332-16010

RA64..CBR..USA

 1
85332-20060

RA64..CBR

COLD SPEC

 1
85310 - MOTOR AND PUMP ASSY, WINDSHIELD WASHER
85310-1B010

RA64..USA

 1
85310-20130

RA64..CBR

COLD SPEC

 1
85330 - JAR ASSY, WINDSHIELD WASHER
85330-20241

RA64..CBR

2.5LITERS(COLD SPEC)

 1
85330-20221

RA64..CBR..USA

1.5LITERS

 1
85330 - JAR ASSY, WINDSHIELD WASHER
85330-20241

RA64..CBR

2.5LITERS(COLD SPEC)

 1
85330-20221

RA64..CBR..USA

1.5LITERS

 1
85330A - BUSH, WINDSHIELD WASHER JAR
90099-32103

RA64..CBR

COLD SPEC

 1
90099-32089

RA64..CBR..USA

 1
85330A - BUSH, WINDSHIELD WASHER JAR
90099-32103

RA64..CBR

COLD SPEC

 1
90099-32089

RA64..CBR..USA

 1
85333 - FILTER, WINDSHIELD WASHER JAR
85333-20010

RA64..CBR

COLD SPEC

 1
85333A - FILTER, WINDSHIELD WASHER JAR, NO.2
85333-20020

RA64..CBR

COLD SPEC

 1
85338 - HOSE, BREATHER
85338-14050

RA64..CBR..USA

 1
85338 - HOSE, BREATHER
85338-14050

RA64..CBR..USA

 1
85339 - CAP SUB-ASSY, RESERVE TANK
85339-14010

RA64..CBR..USA

 1
85339 - CAP SUB-ASSY, RESERVE TANK
85339-14010

RA64..CBR..USA

 1
85339A - HOSE (FOR RADIATOR RESERVE TANK)
90445-12043

RA64..CBR..USA

 1
85342 - HOLDER, WASHER NOZZLE
85342-14010

MA61,RA6#

 2
85342 - HOLDER, WASHER NOZZLE
85342-14010

MA61,RA6#

 2
85345 - NOZZLE, WINDSHIELD WASHER
85035-19015

MA61,RA6#

 2
85345 - NOZZLE, WINDSHIELD WASHER
85035-19015

MA61,RA6#

 2
85348 - JOINT, WINDSHIELD WASHER HOSE, NO.1
85355-87201

RA64..CBR..USA

 2
85348-40010

RA64..CBR

3-WAY,COLD SPEC

 1
85355-14010

RA64..CBR..USA

3-WAY

 1
85349-20010

RA64..CBR

COLD SPEC

 2
85348 - JOINT, WINDSHIELD WASHER HOSE, NO.1
85355-87201

RA64..CBR..USA

 2
85348-40010

RA64..CBR

3-WAY,COLD SPEC

 1
85355-14010

RA64..CBR..USA

3-WAY

 1
85349-20010

RA64..CBR

COLD SPEC

 2
85348 - JOINT, WINDSHIELD WASHER HOSE, NO.1
85355-87201

RA64..CBR..USA

 2
85348-40010

RA64..CBR

3-WAY,COLD SPEC

 1
85355-14010

RA64..CBR..USA

3-WAY

 1
85349-20010

RA64..CBR

COLD SPEC

 2
85348D - JOINT, WINDSHIELD WASHER ELBOW, NO.1
85355-20070

MA61,RA6#

 2
85348D - JOINT, WINDSHIELD WASHER ELBOW, NO.1
85355-20070

MA61,RA6#

 2
85355 - VALVE, WINDSHIELD WASHER HOSE
85031-14080

MA61,RA6#

 1
85361A - BRACKET, WINDSHIELD WASHER, NO.1
85361-14340

RA64..CBR

 1
85361B - BRACKET, WINDSHIELD WASHER, NO.2
85361-14350

RA64..CBR

 1
85361F - BRACKET, WINDSHIELD WASHER, NO.3
85361-14400

RA64..CBR

 1
85371 - HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)
90099-33332

RA64..CBR

COLD SPEC

 1
90446-06013

RA64..CBR..USA

L=450

 1
85372 - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1
90446-08006

RA64..CBR

L=1090,COLD SPEC

 1
90446-07001

RA64..CBR..USA

 1
85373 - HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)
90099-33299

RA64..CBR..USA

L=1000

 2
90099-33299

RA64..CBR

*H,L=550,COLD SPEC

 1
90099-33332

RA64..CBR

COLD SPEC,*H,L=450

 1
85373 - HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)
90099-33299

RA64..CBR..USA

L=1000

 2
90099-33299

RA64..CBR

*H,L=550,COLD SPEC

 1
90099-33332

RA64..CBR

COLD SPEC,*H,L=450

 1
Common parts
90464-00300
90467-11085
91651-40612
91656-40616
