RA64L-BCPQSA (1981)

Toyota Celica

Production Aug 1981 - Aug 1982
Engine 22R
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8108- )

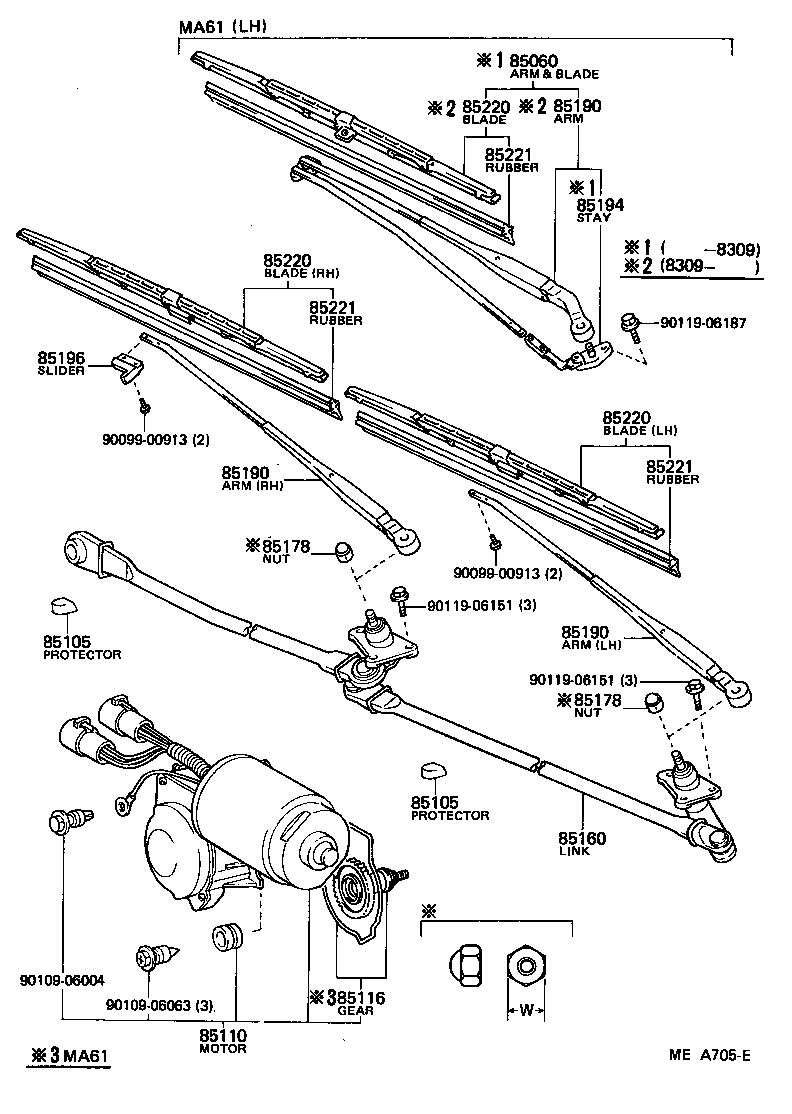

Click highlighted areas on diagram

diagram 85060 85105 85105 85110 85116 85160 85178 85178 85190 85190 85190 85194 85196 85220 85220 85220 85221 85221 85221 9009900913 9009900913 9010906004 9010906063 9011906151 9011906151 9011906187
Part # Description Qty Price
85110 - MOTOR ASSY, WINDSHIELD WIPER
85110-14220

RA6#

 1
85160 - LINK ASSY, WINDSHIELD WIPER
85160-14270

RA6#

 1
85178 - NUT (FOR FRONT WIPER ARM SETTING)
90176-08013

MA61,RA64

W=14

 2
90176-08029

MA61,RA6#

W=12

 2
85178 - NUT (FOR FRONT WIPER ARM SETTING)
90176-08013

MA61,RA64

W=14

 2
90176-08029

MA61,RA6#

W=12

 2
85190 - ARM ASSY, WINDSHIELD WIPER
85210-14110

RA6#

RH

 1
85190-14370

RA6#

LH

 1
85190 - ARM ASSY, WINDSHIELD WIPER
85210-14110

RA6#

RH

 1
85190-14370

RA6#

LH

 1
85190 - ARM ASSY, WINDSHIELD WIPER
85210-14110

RA6#

RH

 1
85190-14370

RA6#

LH

 1
85220 - BLADE ASSY, WINDSHIELD WIPER
85220-14320

RA6#

LH

 1
85220-14370

RA6#

RH

 1
85220 - BLADE ASSY, WINDSHIELD WIPER
85220-14320

RA6#

LH

 1
85220-14370

RA6#

RH

 1
85220 - BLADE ASSY, WINDSHIELD WIPER
85220-14320

RA6#

LH

 1
85220-14370

RA6#

RH

 1
85221 - BLADE, WINDSHIELD WIPER
85221-12120

RA6#

 2
85221 - BLADE, WINDSHIELD WIPER
85221-12120

RA6#

 2
85221 - BLADE, WINDSHIELD WIPER
85221-12120

RA6#

 2
Common parts
90099-00913
90109-06004
90109-06063
90119-06151
90119-06187
