RA64L-BCPQSA (1981)

Toyota Celica

Production Aug 1981 - Aug 1982
Engine 22R
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8108- )

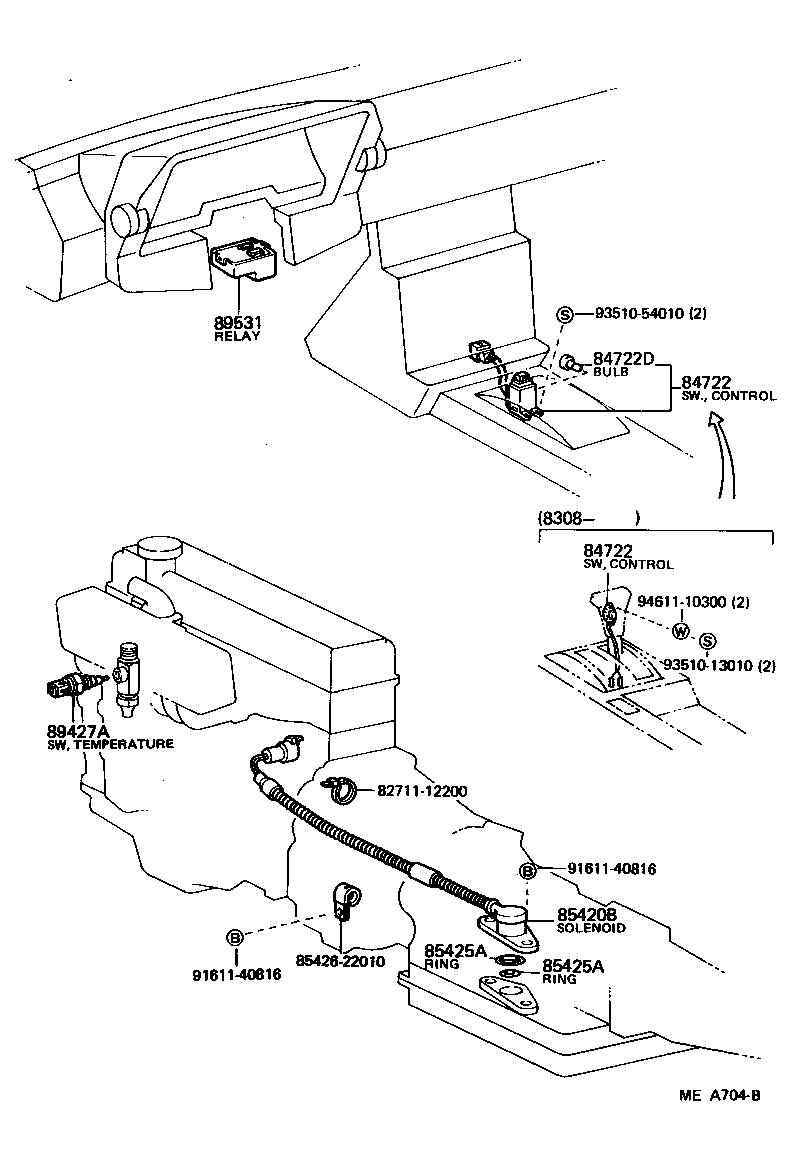

Click highlighted areas on diagram

diagram 8271112200 84722 84722 84722D 85420B 85425A 85425A 8542622010 89427A 89531 9161140816 9161140816 9351013010 9351054010 9461110300
Part # Description Qty Price
84722 - SWITCH, TRANSMISSION CONTROL
84722-14060

MA61,RA64..4FC

 1
84722 - SWITCH, TRANSMISSION CONTROL
84722-14060

MA61,RA64..4FC

 1
84722D - BULB, TRANSMISSION CONTROL SWITCH
90981-11024

MA61,RA64..4FC

12V 1.4W

 1
85420B - SOLENOID ASSY, TRANSMISSION
85420-20050

MA61,RA64..4FC

 1
85425A - RING, O (FOR OVERDRIVE SOLENOID)
90301-11001

MA61,RA64..4FC

ID=11

 1
90301-23001

MA61,RA64..4FC

ID=23

 1
85425A - RING, O (FOR OVERDRIVE SOLENOID)
90301-11001

MA61,RA64..4FC

ID=11

 1
90301-23001

MA61,RA64..4FC

ID=23

 1
89531 - RELAY, TRANSMISSION CONTROL
89531-14040

RA64..4FC

 1
Common parts
82711-12200
85426-22010
91611-40816
93510-13010
93510-54010
94611-10300
