RA64L-BCPQSA (1981)

Toyota Celica

Production Aug 1981 - Aug 1982
Engine 22R
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8108- )

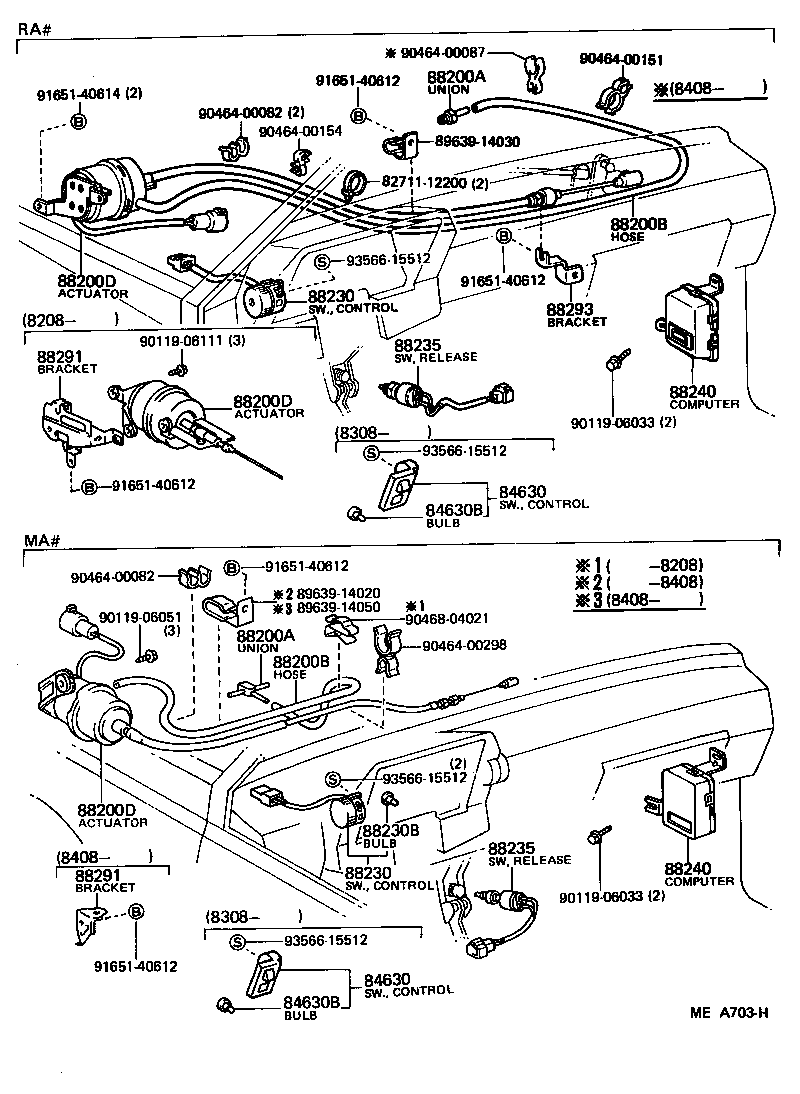

Click highlighted areas on diagram

diagram 8271112200 84630 84630 84630B 84630B 88200A 88200A 88200B 88200B 88200D 88200D 88200D 88230 88230 88230B 88235 88235 88240 88240 88291 88291 88293 8963914020 8963914030 8963914050 9011906033 9011906033 9011906051 9011906111 9046400082 9046400082 9046400087 9046400151 9046400154 9046400298 9046804021 9165140612 9165140612 9165140612 9165140612 9165140612 9165140614 9356615512 9356615512 9356615512 9356615512
Part # Description Qty Price
88200A - UNION OR WAY, CRUISE CONTROL VACUUM
90404-51093

RA64

 1
88200A - UNION OR WAY, CRUISE CONTROL VACUUM
90404-51093

RA64

 1
88200B - HOSE, CRUISE CONTROL VACUUM
90445-08218

RA64

*H,L=1650

 1
88200B - HOSE, CRUISE CONTROL VACUUM
90445-08218

RA64

*H,L=1650

 1
88200D - ACTUATOR ASSY, CRUISE CONTROL
88200-14050

RA64

 1
88200D - ACTUATOR ASSY, CRUISE CONTROL
88200-14050

RA64

 1
88200D - ACTUATOR ASSY, CRUISE CONTROL
88200-14050

RA64

 1
88230 - SWITCH ASSY, CRUISE CONTROL(AUTO DRIVE) CONTROL
88230-14060

RA64

 1
88230 - SWITCH ASSY, CRUISE CONTROL(AUTO DRIVE) CONTROL
88230-14060

RA64

 1
88230B - BULB, CRUISE CONTROL(AUTO DRIVE) CONTROL SWITCH
90981-11024

RA6#

12V 1.4W

 2
88240 - COMPUTER ASSY, CRUISE CONTROL
88240-14040

MA61,RA64

 1
88240 - COMPUTER ASSY, CRUISE CONTROL
88240-14040

MA61,RA64

 1
88293 - BRACKET, CRUISE CONTROL ACCELERATOR WIRE SUPPORT
88293-14020

RA64

 1
Common parts
82711-12200
89639-14020
89639-14030
89639-14050
90119-06033
90119-06051
90119-06111
90464-00082
90464-00087
90464-00151
90464-00154
90464-00298
90468-04021
91651-40612
91651-40614
93566-15512
