RA64L-BCPQSA (1981)

Toyota Celica

Production Aug 1981 - Aug 1982
Engine 22R
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8108- )

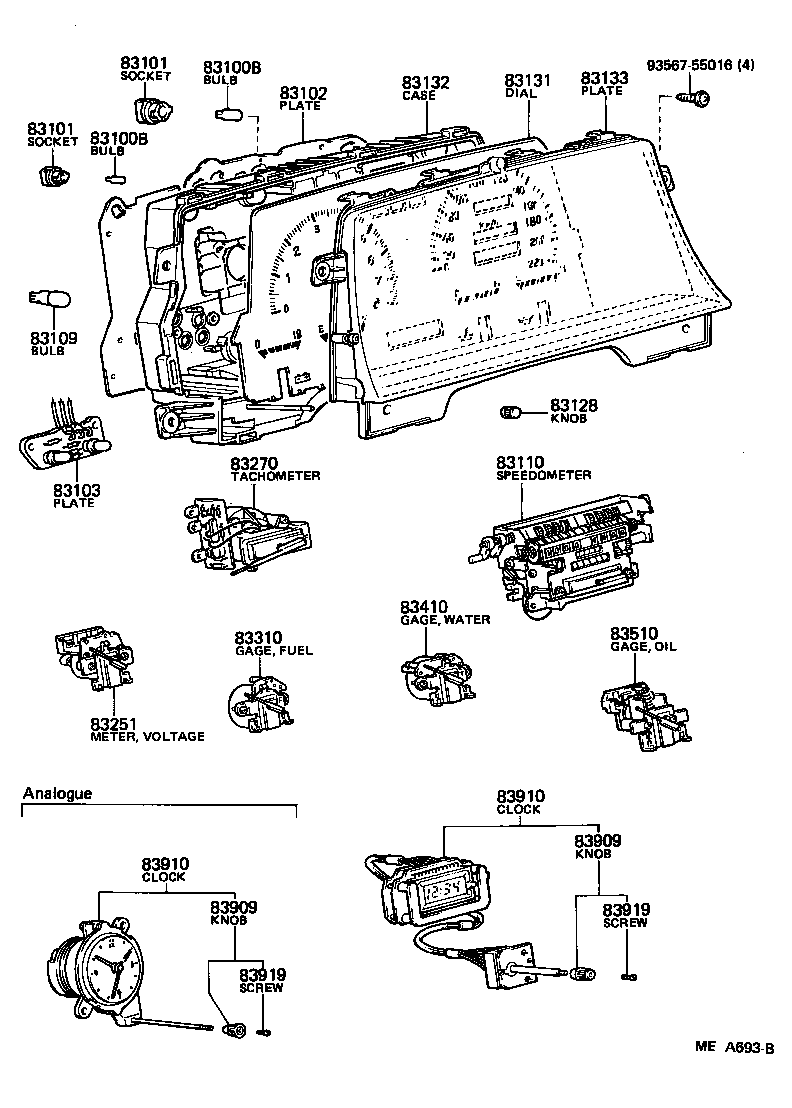

Click highlighted areas on diagram

diagram 83100B 83100B 83101 83101 83102 83103 83109 83110 83128 83131 83132 83133 83251 83270 83310 83410 83510 83909 83909 83910 83910 83919 83919 9356755016
Part # Description Qty Price
83100B - BULB, COMBINATION METER, NO.1
99132-12034

MA61,RA6#

12V 3.4W,12V 3.4W

 10
90981-11018

MA61,RA6#

12V 1.2W W/O SOCKET,12V 1.4W

 12
83100B - BULB, COMBINATION METER, NO.1
99132-12034

MA61,RA6#

12V 3.4W,12V 3.4W

 10
90981-11018

MA61,RA6#

12V 1.2W W/O SOCKET,12V 1.4W

 12
83101 - SOCKET SUB-ASSY, COMBINATION METER BULB
83101-14030

MA61,RA6#

12V 3.4W

 10
83101-14040

MA61,RA6#

12V 1.4W

 12
83101 - SOCKET SUB-ASSY, COMBINATION METER BULB
83101-14030

MA61,RA6#

12V 3.4W

 10
83101-14040

MA61,RA6#

12V 1.4W

 12
83102 - PLATE SUB-ASSY, COMBINATION METER CIRCUIT, NO.1
83247-1B330

MA61,RA64..GT,SPR

 1
83110 - SPEEDOMETER ASSY
83110-14430

MA61,RA6#..USA

 1
83128 - KNOB, TRIP COUNTER
83128-14510

MA61,RA6#

 1
83131 - DIAL, METER, NO.1
83131-1B110

RA64..GT..USA

 1
83132 - CASE, COMBINATION METER
83132-14830

MA61,RA64..GT,SPR

 1
83133 - PLATE, COMBINATION METER, NO.1
83133-14610

MA61,RA64..GT,SPR

 1
83251 - METER, VOLTAGE
83251-14510

MA61,RA64..GT,SPR

 1
83270 - TACHOMETER ASSY, ENGINE
83242-14550

RA6#

 1
83310 - GAGE ASSY, FUEL RECEIVER
83243-14510

MA61,RA6#

 1
83410 - GAGE ASSY, WATER TEMPERATURE RECEIVER
83244-14510

MA61,RA64

 1
83510 - GAGE ASSY, OIL PRESSURE RECEIVER
83246-14510

MA61,RA64..GT,SPR

 1
83909 - KNOB, CLOCK
83909-22180

MA61,RA64..GT,SPR

 1
83909 - KNOB, CLOCK
83909-22180

MA61,RA64..GT,SPR

 1
83910 - CLOCK ASSY
83910-14300

MA61,RA64..GT,SPR

 1
83910 - CLOCK ASSY
83910-14300

MA61,RA64..GT,SPR

 1
83919 - SCREW, CLOCK
83919-12230

MA61,RA64..GT,SPR

 1
83919 - SCREW, CLOCK
83919-12230

MA61,RA64..GT,SPR

 1
Common parts
93567-55016

(8108- )

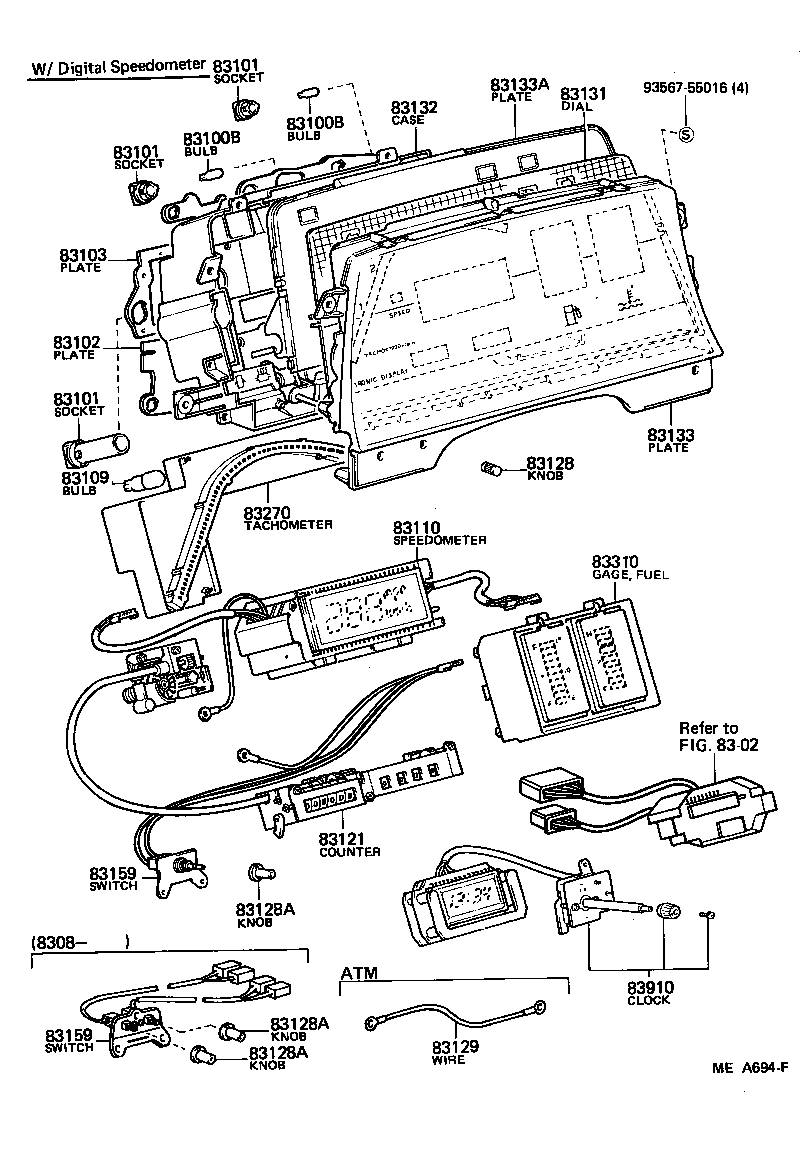

Click highlighted areas on diagram

diagram 8302 83100B 83100B 83101 83101 83101 83102 83103 83109 83110 83121 83128 83128A 83128A 83128A 83129 83131 83132 83133 83133A 83159 83159 83270 83310 83910 9356755016
Part # Description Qty Price
83100B - BULB, COMBINATION METER, NO.1
99132-12034

MA61,RA6#

12V 3.4W,12V 3.4W

 10
90981-11018

MA61,RA6#

12V 1.2W W/O SOCKET,12V 1.4W

 12
83100B - BULB, COMBINATION METER, NO.1
99132-12034

MA61,RA6#

12V 3.4W,12V 3.4W

 10
90981-11018

MA61,RA6#

12V 1.2W W/O SOCKET,12V 1.4W

 12
83101 - SOCKET SUB-ASSY, COMBINATION METER BULB
83101-14030

MA61,RA6#

12V 3.4W

 10
83101-14040

MA61,RA6#

12V 1.4W

 12
83101 - SOCKET SUB-ASSY, COMBINATION METER BULB
83101-14030

MA61,RA6#

12V 3.4W

 10
83101-14040

MA61,RA6#

12V 1.4W

 12
83101 - SOCKET SUB-ASSY, COMBINATION METER BULB
83101-14030

MA61,RA6#

12V 3.4W

 10
83101-14040

MA61,RA6#

12V 1.4W

 12
83102 - PLATE SUB-ASSY, COMBINATION METER CIRCUIT, NO.1
83247-1B330

MA61,RA64..GT,SPR

 1
83110 - SPEEDOMETER ASSY
83110-14430

MA61,RA6#..USA

 1
83128 - KNOB, TRIP COUNTER
83128-14510

MA61,RA6#

 1
83131 - DIAL, METER, NO.1
83131-1B110

RA64..GT..USA

 1
83132 - CASE, COMBINATION METER
83132-14830

MA61,RA64..GT,SPR

 1
83133 - PLATE, COMBINATION METER, NO.1
83133-14610

MA61,RA64..GT,SPR

 1
83270 - TACHOMETER ASSY, ENGINE
83242-14550

RA6#

 1
83310 - GAGE ASSY, FUEL RECEIVER
83243-14510

MA61,RA6#

 1
83910 - CLOCK ASSY
83910-14300

MA61,RA64..GT,SPR

 1
Common parts
93567-55016
Linked diagrams
8302

(8108- )

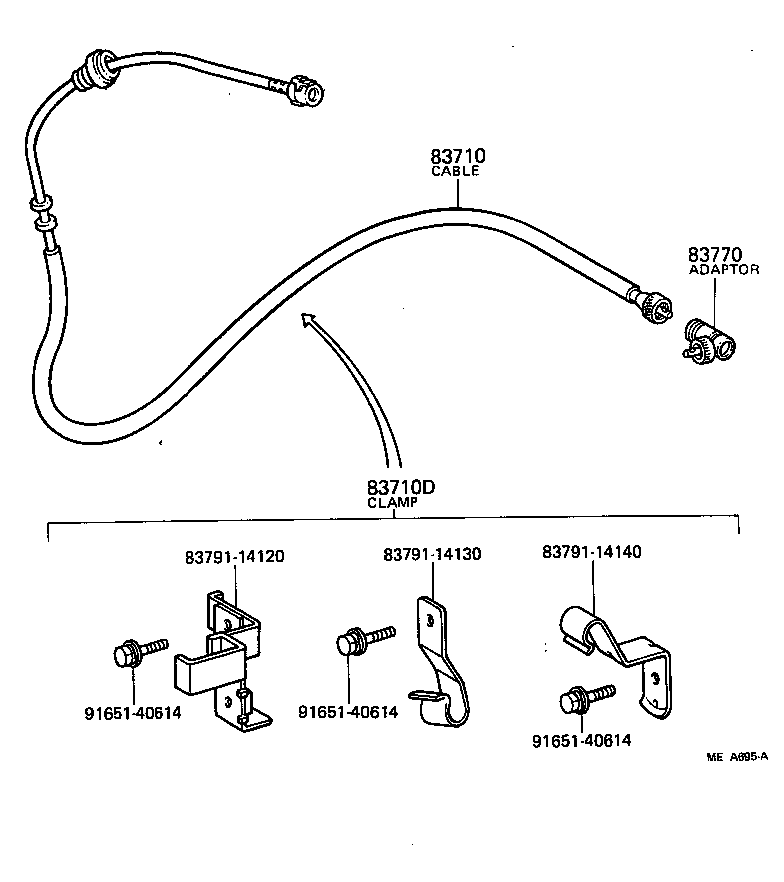

Click highlighted areas on diagram

diagram 83710 83710D 83770 8379114120 8379114130 8379114140 9165140614 9165140614 9165140614
Part # Description Qty Price
83710 - CABLE ASSY, SPEEDOMETER DRIVE, NO.1
83710-14350

RA64..4FC..USA

 1
83710-14350

RA64..4FC

 1
83710-14350

RA64..4FC..USA

 1
83710D - CLAMP (FOR SPEEDOMETER CABLE)
83791-14120

RA6#

 1
83791-14140

RA6#

 1
Common parts
83791-14120
83791-14130
83791-14140
91651-40614
