RA64L-BCPQSA (1981)

Toyota Celica

Production Aug 1981 - Aug 1982
Engine 22R
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8108- )

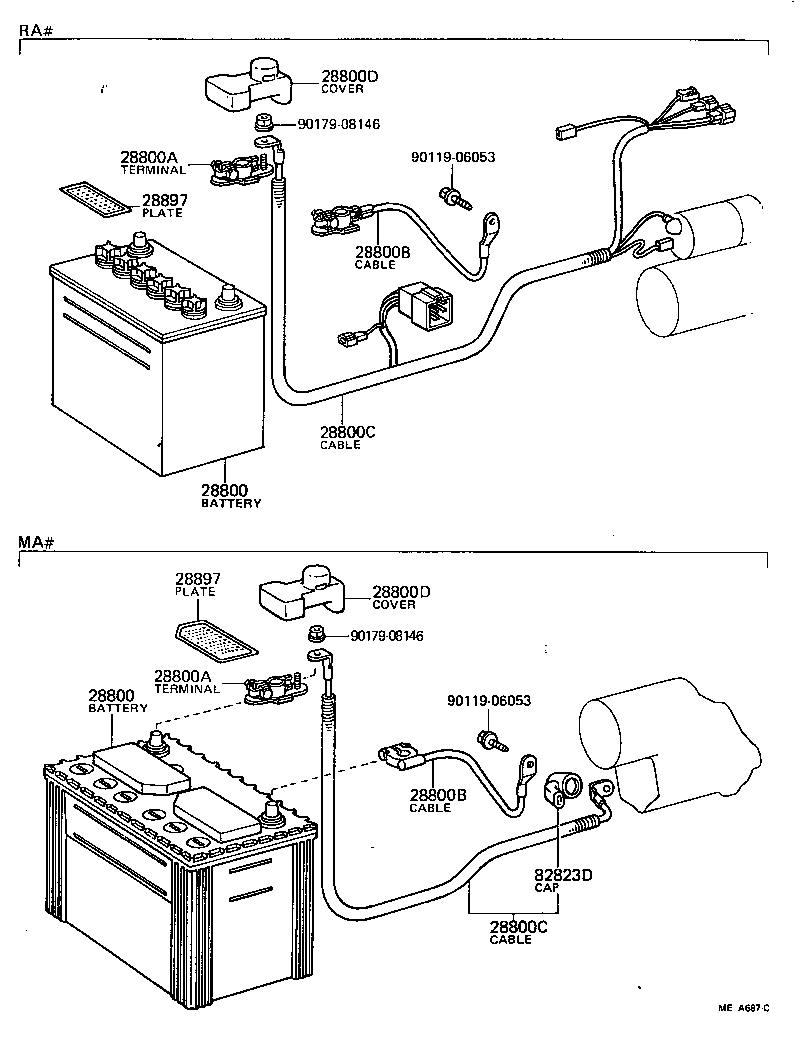

Click highlighted areas on diagram

diagram 28800 28800 28800A 28800A 28800B 28800B 28800C 28800C 28800D 28800D 28897 28897 82823D 9011906053 9011906053 9017908146 9017908146
Part # Description Qty Price
28800 - BATTERY
28800-15010

22R..RA64

55D23R,55D23R-MF(12V 60AH-20HR)

 1
28800-14030

22R..RA64..USA

50D20R,50D20R-MF(12V 50AH-20HR)

 1
28800-33071

22R..RA64..USA

32C24R,N40(12V 40AH-20HR)

 1
28800 - BATTERY
28800-15010

22R..RA64

55D23R,55D23R-MF(12V 60AH-20HR)

 1
28800-14030

22R..RA64..USA

50D20R,50D20R-MF(12V 50AH-20HR)

 1
28800-33071

22R..RA64..USA

32C24R,N40(12V 40AH-20HR)

 1
28800A - TERMINAL, BATTERY POSITIVE
90982-05030

22R#,5MGE..MA61,RA6#

 1
28800A - TERMINAL, BATTERY POSITIVE
90982-05030

22R#,5MGE..MA61,RA6#

 1
28800B - CABLE, BATTERY TO GROUND
90982-02224

22R#..RA6#

 1
28800B - CABLE, BATTERY TO GROUND
90982-02224

22R#..RA6#

 1
28800C - CABLE, BATTERY TO STARTER(FOR BATTERY TO MAIN SWITCH)
82122-14091

22R..RA64..4FC

 1
28800C - CABLE, BATTERY TO STARTER(FOR BATTERY TO MAIN SWITCH)
82122-14091

22R..RA64..4FC

 1
28800D - COVER, CONNECTOR(FOR BATTERY TERMINAL)
82821-24010

22R#,5MGE..MA61,RA6#

 1
28800D - COVER, CONNECTOR(FOR BATTERY TERMINAL)
82821-24010

22R#,5MGE..MA61,RA6#

 1
28897 - PLATE, BATTERY CAUTION
28897-26010

22R#..RA6#..USA

N40

 1
28897 - PLATE, BATTERY CAUTION
28897-26010

22R#..RA6#..USA

N40

 1
Common parts
90119-06053
90179-08146
