RA64L-BCPQSA (1981)

Toyota Celica

Production Aug 1981 - Aug 1982
Engine 22R
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8108- )

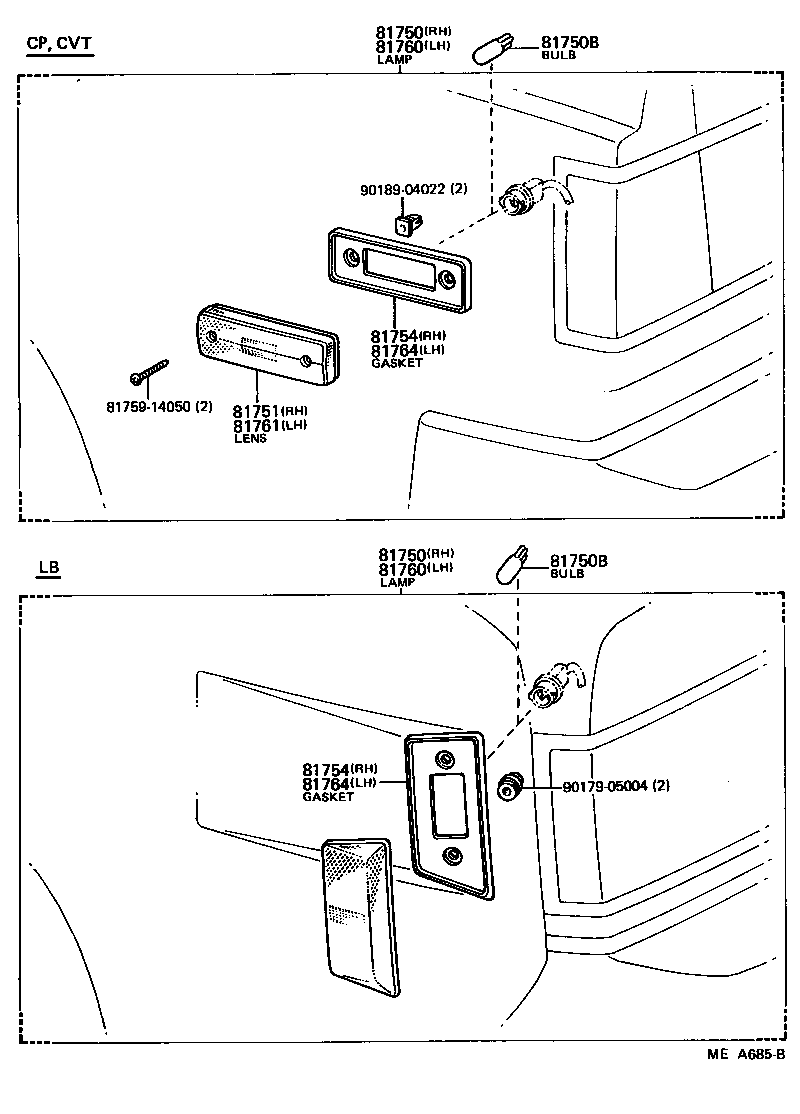

Click highlighted areas on diagram

diagram 81750 81750 81750B 81750B 81751 81754 81754 8175914050 81760 81760 81761 81764 81764 9017905004 9018904022
Part # Description Qty Price
81750 - LAMP ASSY, REAR SIDE MARKER, RH
81750-19185

RA6#..CP,CVT

 1
81750 - LAMP ASSY, REAR SIDE MARKER, RH
81750-19185

RA6#..CP,CVT

 1
81750B - BULB, REAR SIDE MARKER LAMP
90981-11020

MA61,RA6#

12V 3.8W,12V 3.8W

 2
81750B - BULB, REAR SIDE MARKER LAMP
90981-11020

MA61,RA6#

12V 3.8W,12V 3.8W

 2
81751 - LENS, REAR SIDE MARKER LAMP, RH
81751-14030

RA6#..CP,CVT

 1
81754 - GASKET, REAR SIDE MARKER LAMP BODY, RH
81752-14030

RA6#..CP,CVT

 1
81754 - GASKET, REAR SIDE MARKER LAMP BODY, RH
81752-14030

RA6#..CP,CVT

 1
81760 - LAMP ASSY, REAR SIDE MARKER, LH
81750-19185

RA6#..CP,CVT

 1
81760 - LAMP ASSY, REAR SIDE MARKER, LH
81750-19185

RA6#..CP,CVT

 1
81761 - LENS, REAR SIDE MARKER LAMP, LH
81751-14030

RA6#..CP,CVT

 1
81764 - GASKET, REAR SIDE MARKER LAMP BODY, LH
81752-14030

RA6#..CP,CVT

 1
81764 - GASKET, REAR SIDE MARKER LAMP BODY, LH
81752-14030

RA6#..CP,CVT

 1
Common parts
81759-14050
90179-05004
90189-04022
