RA64L-BCPQSA (1981)

Toyota Celica

Production Aug 1981 - Aug 1982
Engine 22R
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8108-8507)CP,CVT

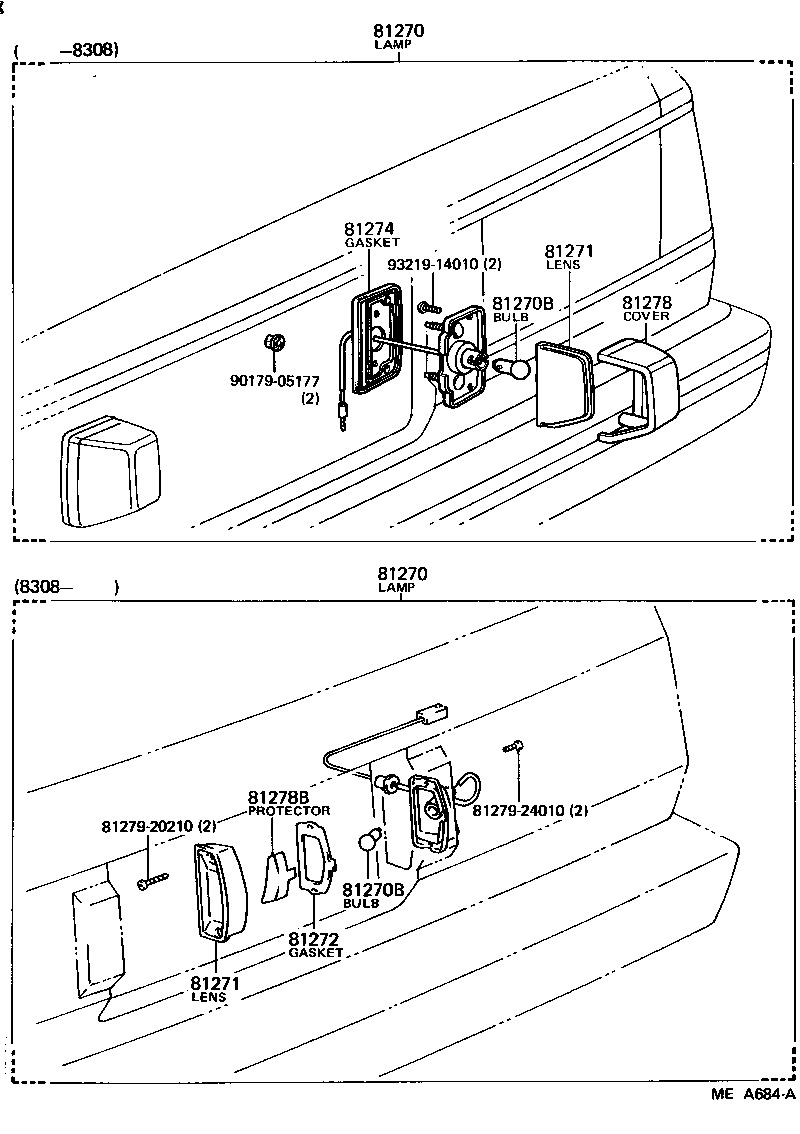

Click highlighted areas on diagram

diagram 81270 81270 81270B 81270B 81271 81271 81272 81274 81278 81278B 8127920210 8127924010 9017905177 9321914010
Part # Description Qty Price
81270 - LAMP ASSY, LICENSE PLATE
81690-29105

RA6#..CP

LH

 1
81270-29475

RA6#..CP

RH

 1
81270 - LAMP ASSY, LICENSE PLATE
81690-29105

RA6#..CP

LH

 1
81270-29475

RA6#..CP

RH

 1
81270B - BULB (FOR LICENSE PLATE LAMP)
99132-11075

RA6#

12V 7.5W,12V 7.5W

 2
81270B - BULB (FOR LICENSE PLATE LAMP)
99132-11075

RA6#

12V 7.5W,12V 7.5W

 2
81271 - LENS, LICENSE PLATE LAMP
81691-20030

RA6#..CP

LH

 1
81271-20110

RA6#..CP

RH

 1
81271 - LENS, LICENSE PLATE LAMP
81691-20030

RA6#..CP

LH

 1
81271-20110

RA6#..CP

RH

 1
81274 - GASKET, LICENSE PLATE LAMP BODY
81694-20030

RA6#..CP

LH

 1
81274-20110

RA6#..CP

RH

 1
81278 - COVER, LICENSE PLATE LAMP
81276-20110

RA6#..CP

RH

 1
81696-20030

RA6#..CP

LH

 1
Common parts
81279-20210
81279-24010
90179-05177
93219-14010
