RA64L-BCPQSA (1981)

Toyota Celica

Production Aug 1981 - Aug 1982
Engine 22R
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8108-8308)CP

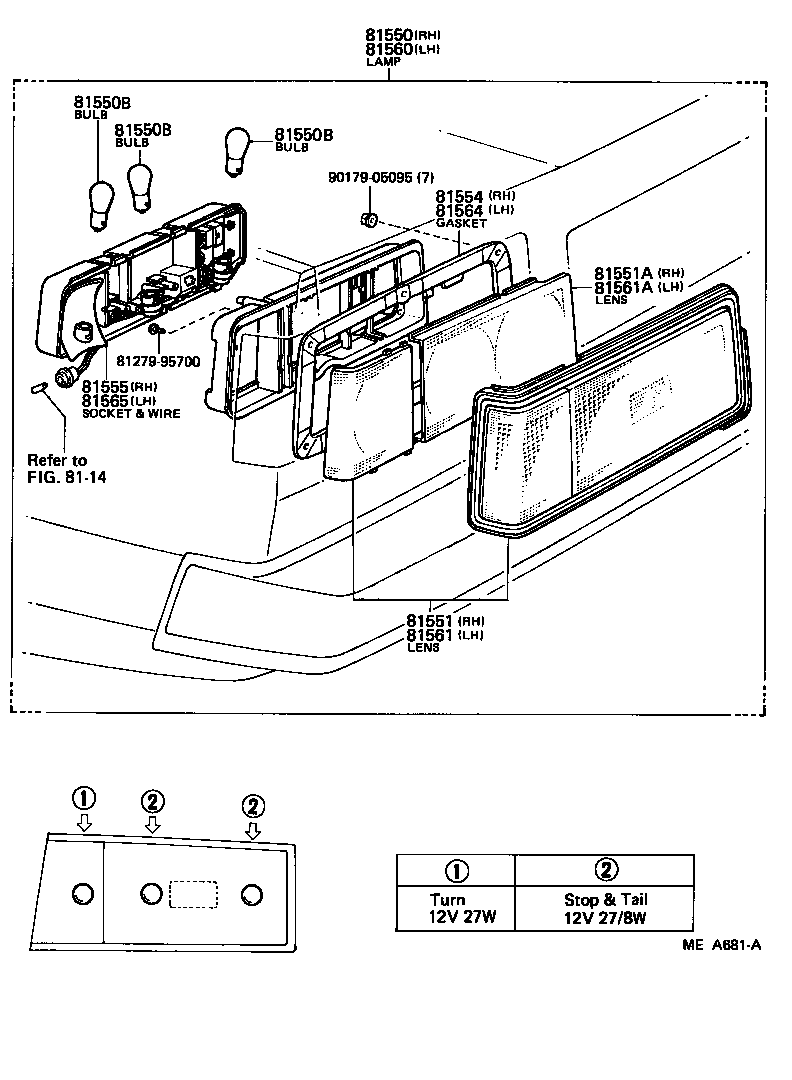

Click highlighted areas on diagram

diagram 8114 8127995700 81550 81550B 81550B 81550B 81551 81551A 81554 81555 81560 81561 81561A 81564 81565 9017905095
Part # Description Qty Price
81550 - LAMP ASSY, REAR COMBINATION, RH
81550-80101

RA64..CP

 1
81550B - BULB(FOR REAR COMBINATION LAMP)
99132-11270

MA61,RA6#

12V 27W,12V 27W

 4
99132-21270

MA61,RA6#

12V 27/8W,12V 27/8W

 4
81550B - BULB(FOR REAR COMBINATION LAMP)
99132-11270

MA61,RA6#

12V 27W,12V 27W

 4
99132-21270

MA61,RA6#

12V 27/8W,12V 27/8W

 4
81550B - BULB(FOR REAR COMBINATION LAMP)
99132-11270

MA61,RA6#

12V 27W,12V 27W

 4
99132-21270

MA61,RA6#

12V 27/8W,12V 27/8W

 4
81551 - LENS, REAR COMBINATION LAMP, RH
81551-14430

RA6#..CP

 1
81551A - LENS, REAR COMBINATION LAMP, RH
81552-14430

RA64..CP

 1
81554 - GASKET, REAR COMBINATION LAMP BODY, RH
81554-14430

RA6#..CP

 1
81555 - SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, RH
81555-14460

RA64..CP

 1
81560 - LAMP ASSY, REAR COMBINATION, LH
81560-80105

RA64..CP

 1
81561 - LENS, REAR COMBINATION LAMP, LH
81561-14430

RA6#..CP

 1
81561A - LENS, REAR COMBINATION LAMP, LH
81562-14430

RA64..CP

 1
81564 - GASKET, REAR COMBINATION LAMP BODY, LH
81554-14430

RA6#..CP

 1
81565 - SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, LH
81565-14460

RA64..CP

 1
Common parts
81279-95700
90179-05095
Linked diagrams
8114
