RA64L-BCPQSA (1981)

Toyota Celica

Production Aug 1981 - Aug 1982
Engine 22R
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8108- )

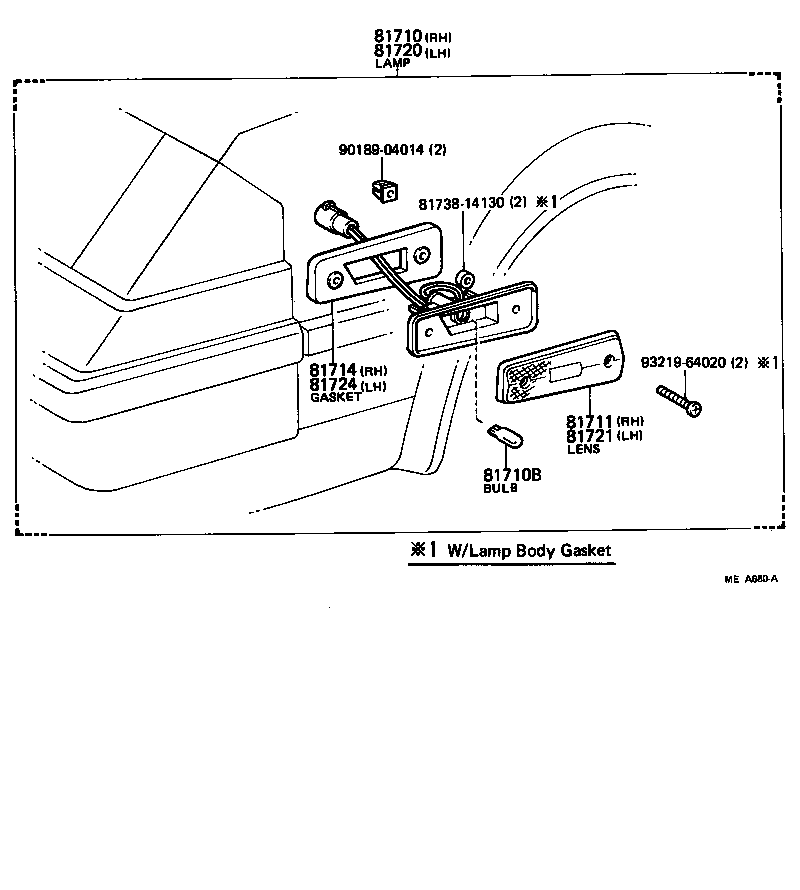

Click highlighted areas on diagram

diagram 81710 81710B 81711 81714 81720 81721 81724 8173814130 9018904014 9321964020
Part # Description Qty Price
81710 - LAMP ASSY, FRONT MARKER, RH
81730-19306

MA61,RA6#

 1
81710B - BULB, FRONT MARKER LAMP
90981-11020

MA61,RA6#

12V 3.8W,12V 3.8W

 2
81711 - LENS, FRONT MARKER LAMP, RH
81731-14110

MA61,RA6#

 1
81720 - LAMP ASSY, FRONT MARKER, LH
81740-19286

MA61,RA6#

 1
81721 - LENS, FRONT MARKER LAMP, LH
81741-14110

MA61,RA6#

 1
Common parts
81738-14130
90189-04014
93219-64020
