RA64L-BCPQSA (1981)

Toyota Celica

Production Aug 1981 - Aug 1982
Engine 22R
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8108-8308)RA6#

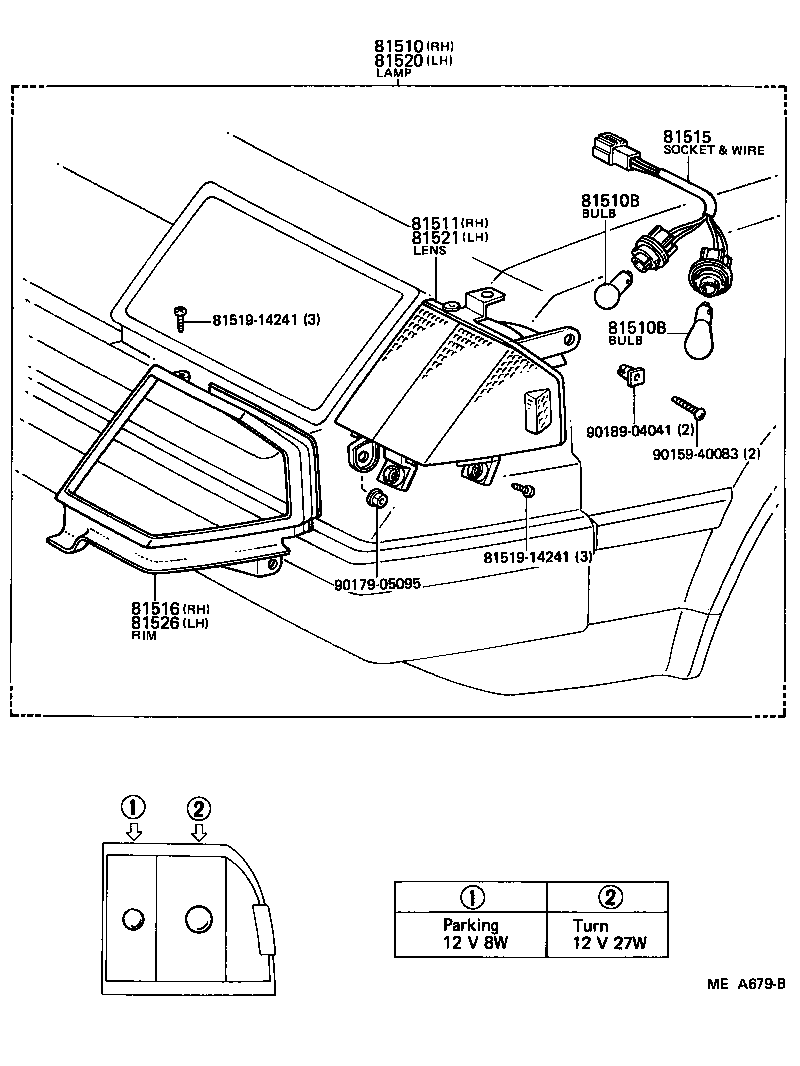

Click highlighted areas on diagram

diagram 81510 81510B 81510B 81511 81515 81516 8151914241 8151914241 81520 81521 81526 9015940083 9017905095 9018904041
Part # Description Qty Price
81510 - LAMP ASSY, FRONT TURN SIGNAL, RH
81510-19695

RA6#

 1
81510B - BULB (FOR FRONT TURN SIGNAL LAMP)
99132-11270

MA61,RA6#

12V 27W,12V 27W

 2
99132-12080

RA6#

12V 8W,12V 8W

 2
81510B - BULB (FOR FRONT TURN SIGNAL LAMP)
99132-11270

MA61,RA6#

12V 27W,12V 27W

 2
99132-12080

RA6#

12V 8W,12V 8W

 2
81511 - LENS, FRONT TURN SIGNAL LAMP, RH
81511-14260

RA6#

 1
81515 - WIRE SUB-ASSY, FRONT TURN SIGNAL LAMP BODY
81515-14260

RA6#

 2
81516 - RIM, FRONT TURN SIGNAL LAMP, RH
81516-14240

RA6#

 1
81520 - LAMP ASSY, FRONT TURN SIGNAL, LH
81520-19695

RA6#

 1
81521 - LENS, FRONT TURN SIGNAL LAMP, LH
81521-14260

RA6#

 1
81526 - RIM, FRONT TURN SIGNAL LAMP, LH
81526-14240

RA6#

 1
Common parts
81519-14241
90159-40083
90179-05095
90189-04041
