RA64L-BCPQSA (1981)

Toyota Celica

Production Aug 1981 - Aug 1982
Engine 22R
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8108- )

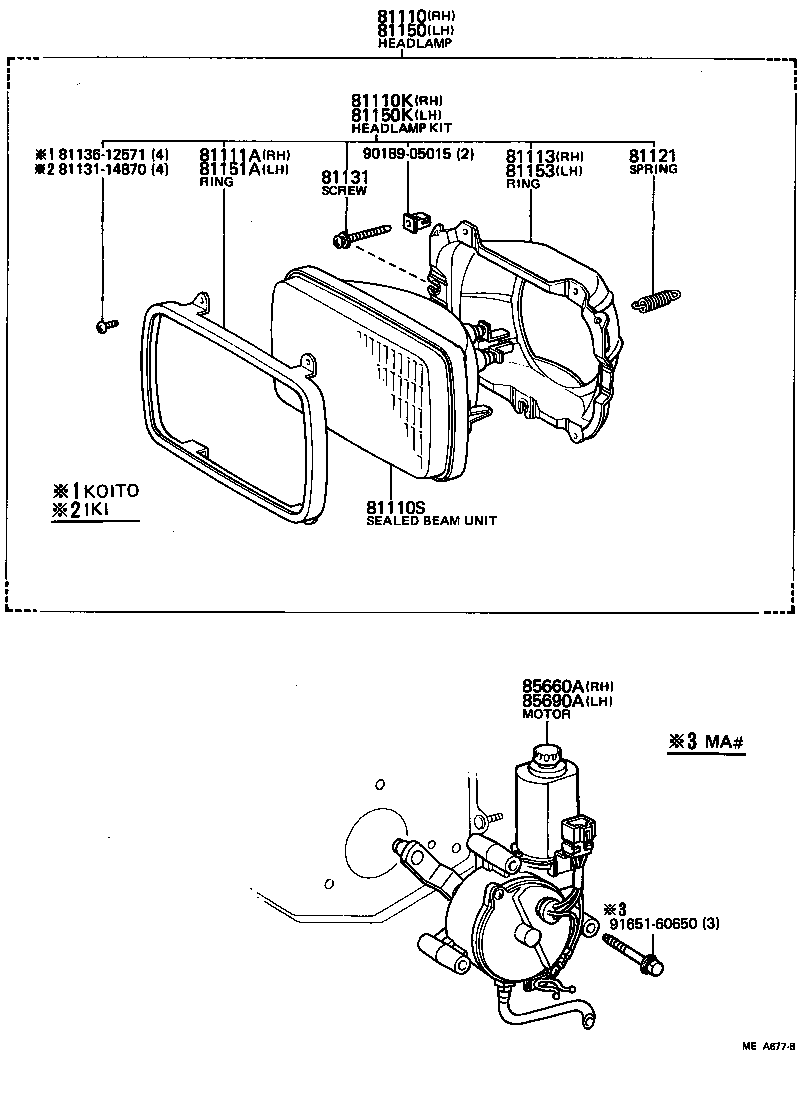

Click highlighted areas on diagram

diagram 81110 81110K 81110S 81111A 81113 81121 81131 8113114870 8113612571 81150 81150K 81151A 81153 85660A 85690A 9018905015 9165160650
Part # Description Qty Price
81110 - HEADLAMP ASSY, RH
81110-80138

RA64

HALOGEN

 1
81110K - HEADLAMP KIT, W/O SEALED BEAM, RH
81110-80148

RA6#

 1
81110S - SEALED BEAM UNIT, NO.1
90981-04016

MA61,RA64

12V 65/55W,*WB,*HAL,12V 65/55W,HALOGEN

 2
81111A - RING, SEALED BEAM RETAINING, NO.1 RH
81111-16020

MA61,RA6#

KOITO

 1
81113 - RING, SEALED BEAM MOUNTING, NO.1 RH
81113-14670

RA6#

KOITO

 1
81121 - SPRING, HEADLAMP TENSION
81121-14670

MA61,RA6#

KOITO

 2
81131 - SCREW, HEADLAMP ADJUSTING
81131-14670

MA61,RA6#

KOITO

 4
81150 - HEADLAMP ASSY, LH
81150-80135

RA64

HALOGEN

 1
81150K - HEADLAMP KIT, W/O SEALED BEAM, LH
81150-80145

RA6#

 1
81151A - RING, SEALED BEAM RETAINING, NO.1 LH
81111-16020

MA61,RA6#

KOITO

 1
81153 - RING, SEALED BEAM MOUNTING, NO.1 LH
81153-14670

RA6#

KOITO

 1
85660A - MOTOR ASSY, LIGHT RETRACTOR, RH
85660-14010

RA6#

 1
85690A - MOTOR ASSY, LIGHT RETRACTOR, LH
85690-14010

RA6#

 1
Common parts
81131-14870
81136-12571
90189-05015
91651-60650
