RA64L-BCPQSA (1981)

Toyota Celica

Production Aug 1981 - Aug 1982
Engine 22R
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

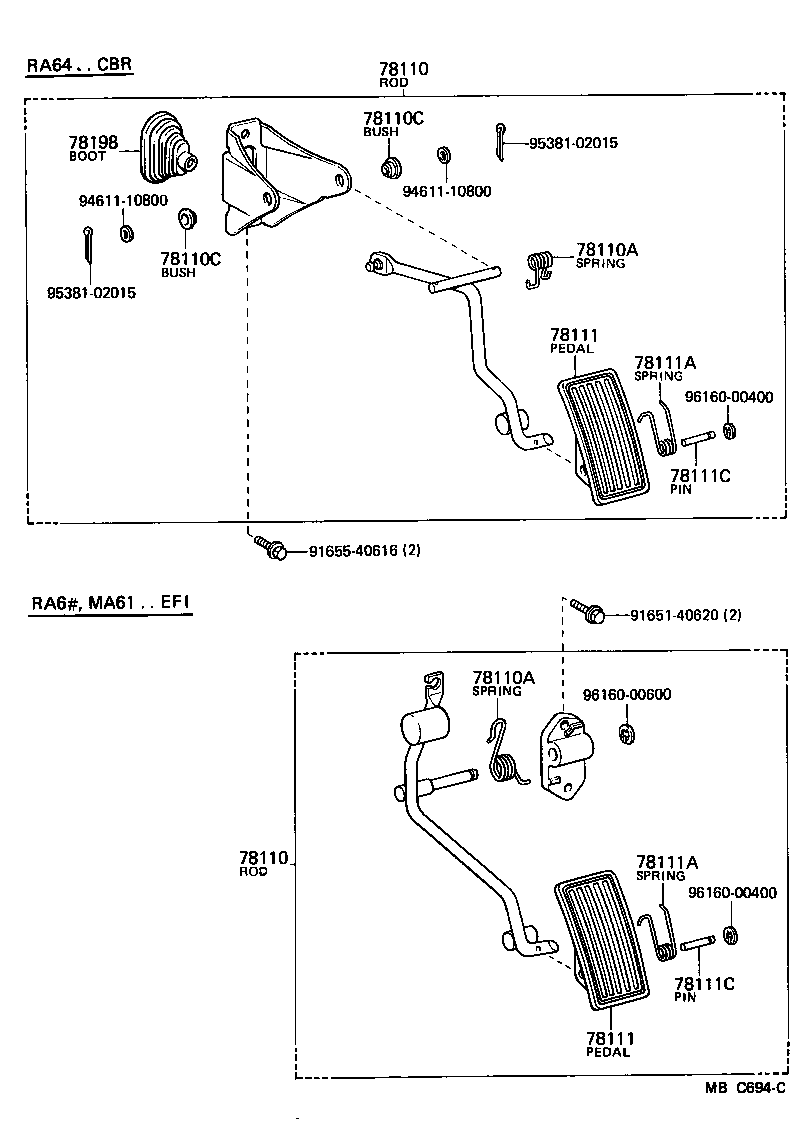

(8108- )

Click highlighted areas on diagram

diagram 78110 78110 78110A 78110A 78110C 78110C 78111 78111 78111A 78111A 78111C 78111C 78198 9165140620 9165540616 9461110800 9461110800 9538102015 9538102015 9616000400 9616000400 9616000600
Part # Description Qty Price
78110 - ROD ASSY, ACCELERATOR PEDAL
78120-14330

RA64..4FC

 1
78110 - ROD ASSY, ACCELERATOR PEDAL
78120-14330

RA64..4FC

 1
78110A - SPRING (FOR ACCELERATOR PEDAL ROD)
90508-18024

RA64..4FC

 1
78110A - SPRING (FOR ACCELERATOR PEDAL ROD)
90508-18024

RA64..4FC

 1
78110C - BUSH (FOR ACCELERATOR PEDAL ROD)
90386-08021

RA64..CBR

 2
78110C - BUSH (FOR ACCELERATOR PEDAL ROD)
90386-08021

RA64..CBR

 2
78111 - PEDAL, ACCELERATOR
78111-12100

MA61,RA6#

 1
78111 - PEDAL, ACCELERATOR
78111-12100

MA61,RA6#

 1
78111A - SPRING (FOR ACCELERATOR PEDAL)
90508-23003

MA61,RA6#

 1
78111A - SPRING (FOR ACCELERATOR PEDAL)
90508-23003

MA61,RA6#

 1
78111C - PIN (FOR ACCELERATOR PEDAL)
90249-05001

MA61,RA6#

 1
78111C - PIN (FOR ACCELERATOR PEDAL)
90249-05001

MA61,RA6#

 1
78198 - BOOT, ACCELERATOR CONNECTING ROD
78199-14020

RA64..CBR

 1
Common parts
91651-40620
91655-40616
94611-10800
95381-02015
96160-00400
96160-00600

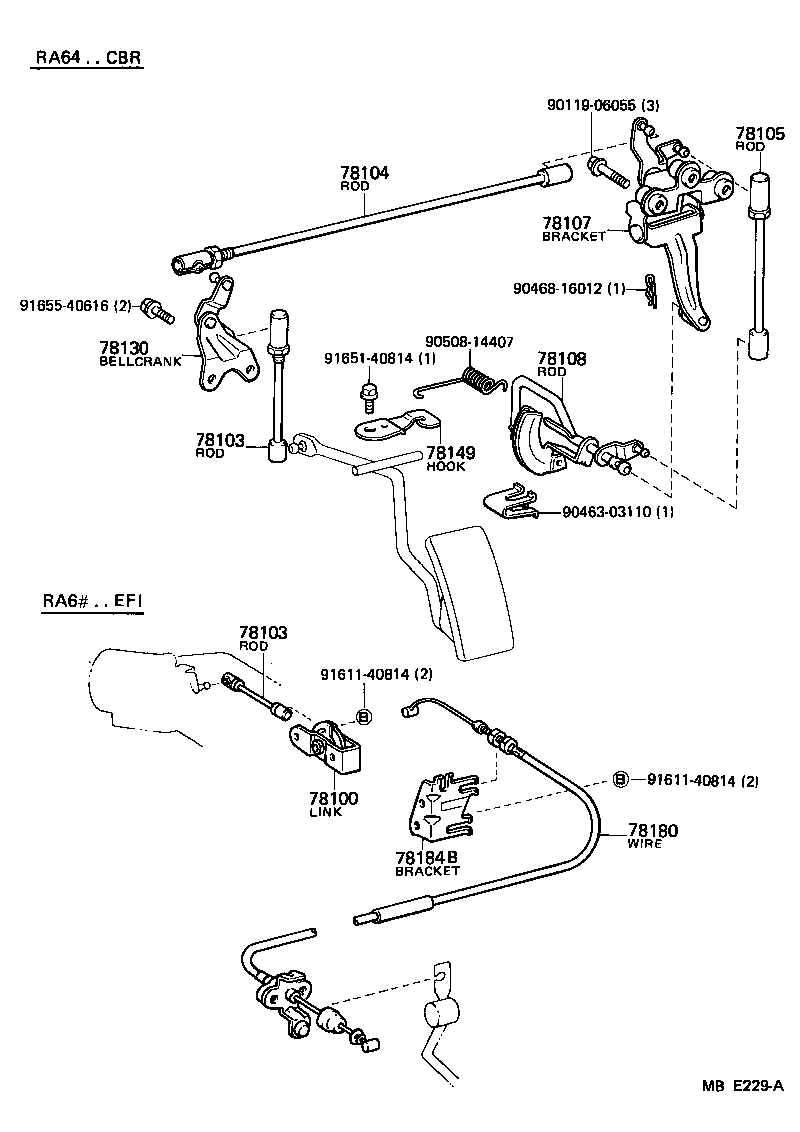

(8108-8507)RA6#

Click highlighted areas on diagram

diagram 78100 78103 78103 78104 78105 78107 78108 78130 78149 78180 78184B 9011906055 9046303110 9046816012 9050814407 9161140814 9161140814 9165140814 9165540616
Part # Description Qty Price
78103 - ROD SUB-ASSY, ACCELERATOR CONNECTING, NO.1
78103-14170

RA64..CBR

 1
78103 - ROD SUB-ASSY, ACCELERATOR CONNECTING, NO.1
78103-14170

RA64..CBR

 1
78104 - ROD SUB-ASSY, ACCELERATOR CONNECTING, NO.2
78104-14180

RA64..CBR

 1
78105 - ROD SUB-ASSY, ACCELERATOR CONNECTING, NO.3
78105-14280

RA64..CBR

 1
78107 - BRACKET SUB-ASSY, ACCELERATOR TORQUE ROD
78170-14170

RA64..CBR

W/AUTO DRIVE

 1
78170-14160

RA64..CBR

 1
78108 - ROD SUB-ASSY, ACCELERATOR CONNECTING, NO.4
78106-14240

RA64..4FC

 1
78130 - BELLCRANK ASSY, ACCELERATOR
78015-14100

RA64..4FC

 1
78149 - HOOK, ACCELERATOR TORQUE ROD SPRING
78149-20060

RA64..CBR

 1
Common parts
90119-06055
90463-03110
90468-16012
90508-14407
91611-40814
91651-40814
91655-40616
