RA64L-BCPQSA (1981)
Toyota Celica
Production
Aug 1981
-
Aug 1982
Engine
22R
Transmission
4FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(8108- )

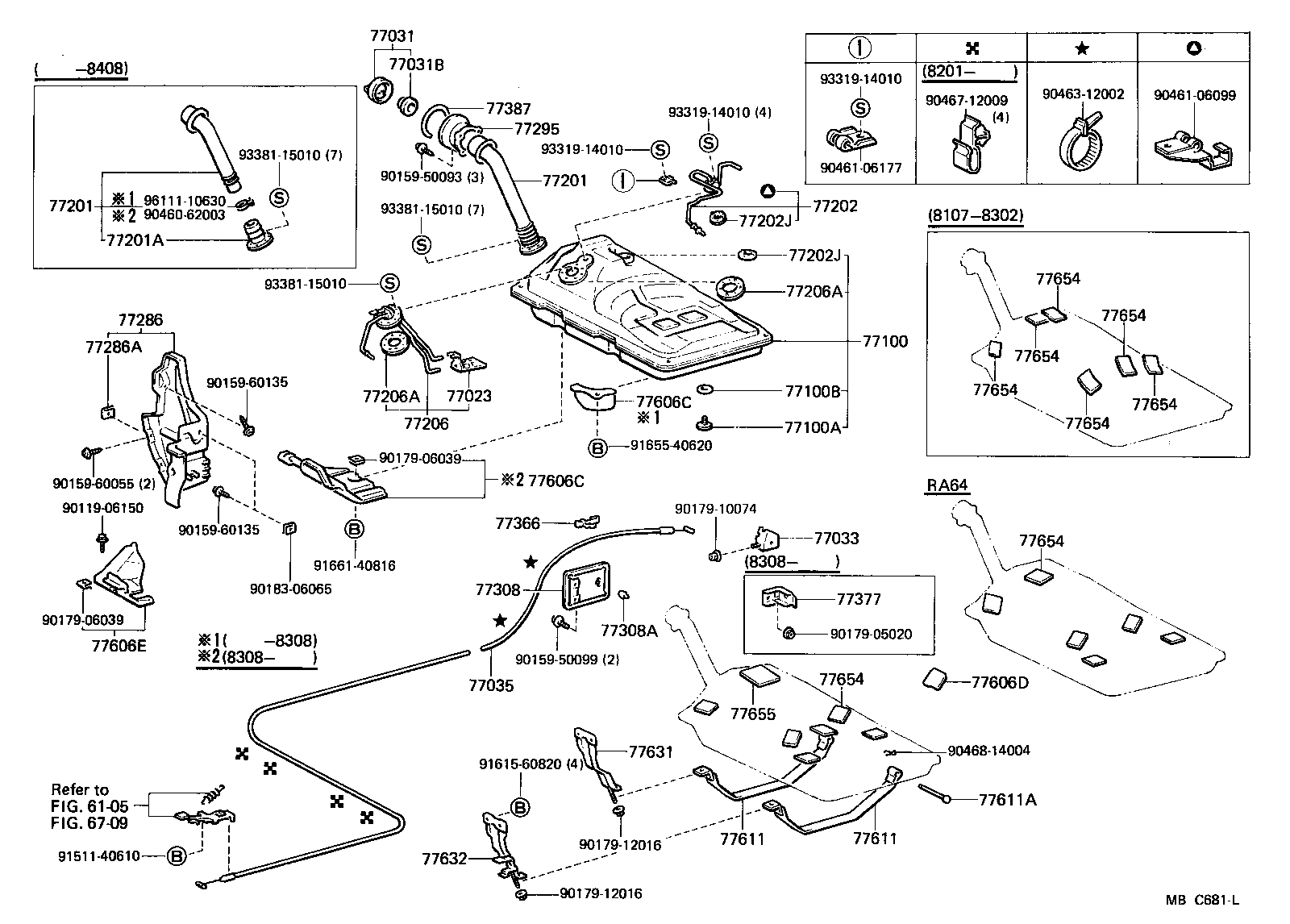

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 77023 - FILTER SUB-ASSY, FUEL SUCTION TUBE | ||||
| 77023-12050 |
RA64..CBR |
1 | ||
| 77031 - CAP ASSY, FUEL TANK | ||||
| 77310-12100 |
MA61,RA6# |
1 | ||
| 77031B - GASKET (FOR FUEL TANK CAP) | ||||
| 77316-12050 |
MA61,RA6# |
1 | ||
| 77033 - LOCK SUB-ASSY, FUEL TANK CAP | ||||
| 77037-24010 |
MA61,RA64 |
1 | ||
| 77035 - CABLE SUB-ASSY, FUEL LID LOCK CONTROL | ||||
| 77035-14070 |
RA64..CP |
1 | ||
| 77100 - TANK ASSY, FUEL | ||||
| 77001-19095 |
RA64..CBR |
1 | ||
| 77100A - PLUG(FOR FUEL TANK) | ||||
| 90341-24036 |
MA61,RA64 OD=24 |
1 | ||
| 77100B - GASKET(FOR FUEL TANK) | ||||
| 90430-24047 |
MA61,RA64 ID=24 |
1 | ||
| 77201 - PIPE SUB-ASSY, FUEL TANK INLET | ||||
| 77201-14210 |
RA64 |
1 | ||
| 77201 - PIPE SUB-ASSY, FUEL TANK INLET | ||||
| 77201-14210 |
RA64 |
1 | ||
| 77201A - HOSE, FUEL, NO.1(FOR FUEL TANK INLET PIPE) | ||||
| 77213-14090 |
MA61,RA6# |
1 | ||
| 77202 - TUBE SUB-ASSY, BREATHER | ||||
| 77012-14022 |
RA64..CBR |
1 | ||
| 77202J - GASKET (FOR BREATHER TUBE) | ||||
| 77179-14030 |
MA61,RA6# |
1 | ||
| 77202J - GASKET (FOR BREATHER TUBE) | ||||
| 77179-14030 |
MA61,RA6# |
1 | ||
| 77206 - TUBE SUB-ASSY, FUEL TANK SUCTION | ||||
| 77203-14041 |
RA64..CBR |
1 | ||
| 77206A - GASKET (FOR FUEL TANK SUCTION TUBE) | ||||
| 77169-14020 |
RA64..CBR |
1 | ||
| 77206A - GASKET (FOR FUEL TANK SUCTION TUBE) | ||||
| 77169-14020 |
RA64..CBR |
1 | ||
| 77286 - PROTECTOR, FUEL TANK INLET PIPE | ||||
| 77277-14090 |
RA64 |
1 | ||
| 77286A - RETAINER, FUEL FILLER PIPE PROTECTOR | ||||
| 90183-06006 |
MA61,RA6# |
2 | ||
| 77295 - SHIELD, FUEL FILLER PIPE | ||||
| 77034-14010 |
MA61,RA6# |
1 | ||
| 77308 - COVER SUB-ASSY, FUEL INLET BOX | ||||
| 77350-14040 |
MA61,RA6# |
1 | ||
| 77308A - CUSHION(FOR FUEL INLET BOX COVER) | ||||
| 90541-05009 |
MA61,RA6# |
2 | ||
| 77366 - SPRING, FUEL FILLER OPENING LID HINGE | ||||
| 77360-24010 |
MA61,RA6# |
1 | ||
| 77387 - RING, FUEL INLET BOX | ||||
| 77391-14020 |
MA61,RA6# |
1 | ||
| 77606C - PROTECTOR, FUEL TANK, NO.2 | ||||
| 77642-14020 |
RA64 |
1 | ||
| 77606C - PROTECTOR, FUEL TANK, NO.2 | ||||
| 77642-14020 |
RA64 |
1 | ||
| 77606E - PROTECTOR, FUEL TANK, NO.4 | ||||
| 77641-14080 |
MA61,RA6# |
1 | ||
| 77611 - BAND, FUEL TANK | ||||
| 77601-14060 |
RA64 |
2 | ||
| 77611 - BAND, FUEL TANK | ||||
| 77601-14060 |
RA64 |
2 | ||
| 77611A - PIN (FOR FUEL TANK BAND) | ||||
| 90240-08020 |
MA61,RA6# |
2 | ||
| 77631 - BRACKET, FUEL TANK, NO.1 | ||||
| 77613-14021 |
RA64 |
1 | ||
| 77632 - BRACKET, FUEL TANK, NO.2 | ||||
| 77614-14021 |
RA64 |
1 | ||
| 77654 - CUSHION, FUEL TANK, NO.2 | ||||
| 77652-20010 |
MA61,RA6# 120X120 |
4 | ||
| 77652-14060 |
MA61,RA6# 120X70 |
2 | ||
| 77654 - CUSHION, FUEL TANK, NO.2 | ||||
| 77652-20010 |
MA61,RA6# 120X120 |
4 | ||
| 77652-14060 |
MA61,RA6# 120X70 |
2 | ||
| 77654 - CUSHION, FUEL TANK, NO.2 | ||||
| 77652-20010 |
MA61,RA6# 120X120 |
4 | ||
| 77652-14060 |
MA61,RA6# 120X70 |
2 | ||
| 77654 - CUSHION, FUEL TANK, NO.2 | ||||
| 77652-20010 |
MA61,RA6# 120X120 |
4 | ||
| 77652-14060 |
MA61,RA6# 120X70 |
2 | ||
| 77654 - CUSHION, FUEL TANK, NO.2 | ||||
| 77652-20010 |
MA61,RA6# 120X120 |
4 | ||
| 77652-14060 |
MA61,RA6# 120X70 |
2 | ||
| 77654 - CUSHION, FUEL TANK, NO.2 | ||||
| 77652-20010 |
MA61,RA6# 120X120 |
4 | ||
| 77652-14060 |
MA61,RA6# 120X70 |
2 | ||
| 77654 - CUSHION, FUEL TANK, NO.2 | ||||
| 77652-20010 |
MA61,RA6# 120X120 |
4 | ||
| 77652-14060 |
MA61,RA6# 120X70 |
2 | ||
| 77654 - CUSHION, FUEL TANK, NO.2 | ||||
| 77652-20010 |
MA61,RA6# 120X120 |
4 | ||
| 77652-14060 |
MA61,RA6# 120X70 |
2 | ||
| Common parts | ||||
| 90119-06150 | ||||
| 90159-50093 | ||||
| 90159-50099 | ||||
| 90159-60055 | ||||
| 90159-60135 | ||||
| 90179-05020 | ||||
| 90179-06039 | ||||
| 90179-10074 | ||||
| 90179-12016 | ||||
| 90183-06065 | ||||
| 90460-62003 | ||||
| 90461-06099 | ||||
| 90461-06177 | ||||
| 90463-12002 | ||||
| 90467-12009 | ||||
| 90468-14004 | ||||
| 91511-40610 | ||||
| 91615-60820 | ||||
| 91655-40620 | ||||
| 91661-40816 | ||||
| 93319-14010 | ||||
| 93381-15010 | ||||
| 96111-10630 | ||||
| Linked diagrams | ||||
| 6105 | ||||
| 6709 | ||||

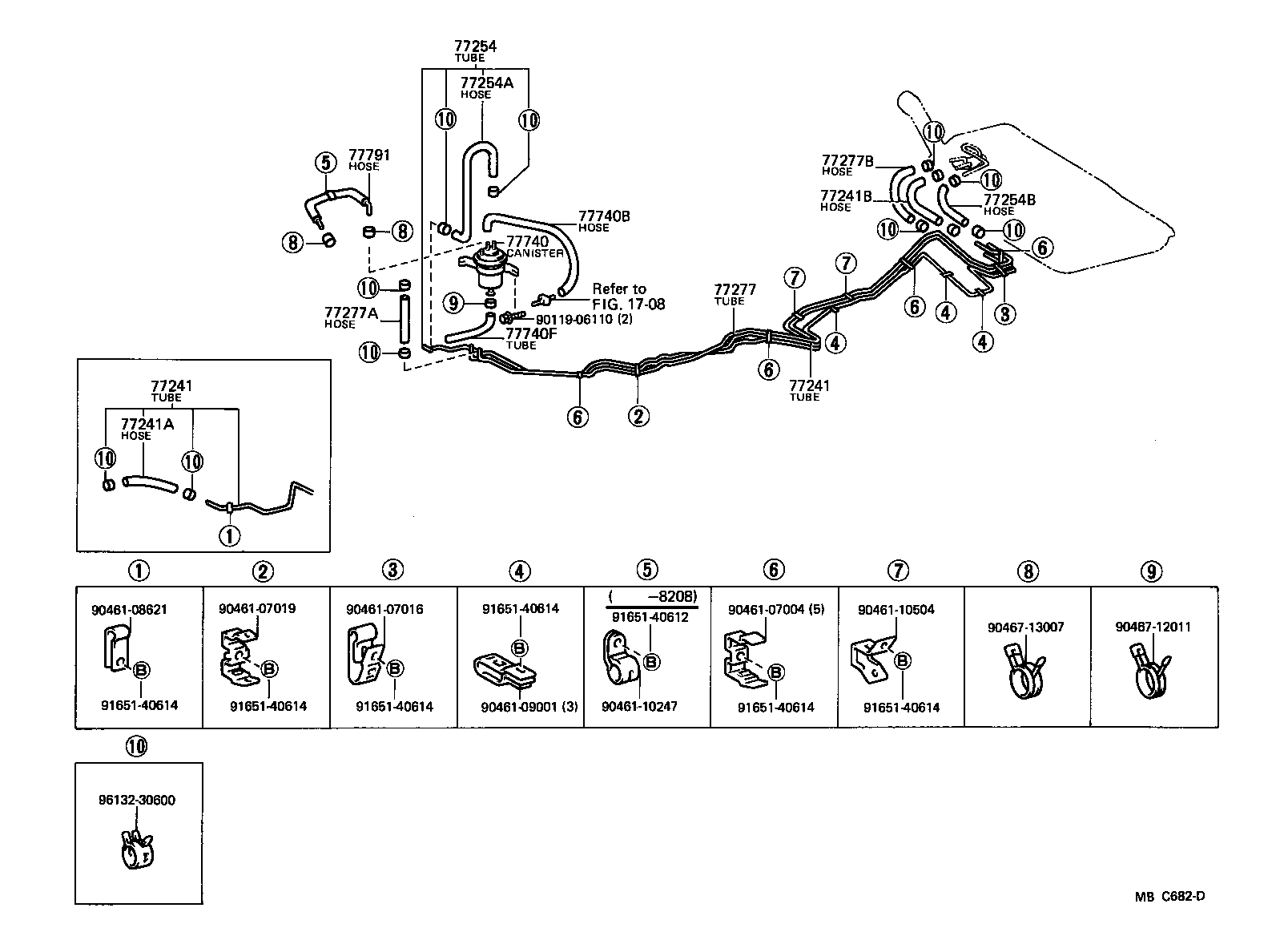

(8108-8308)CBR
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 77241 - TUBE, FUEL MAIN, NO.1 | ||||
| 77251-14230 |
RA64..CBR |
1 | ||
| 77241 - TUBE, FUEL MAIN, NO.1 | ||||
| 77251-14230 |
RA64..CBR |
1 | ||
| 77241A - HOSE, FUEL, NO.1 (FOR MAIN TUBE, NO.1) | ||||
| 77019-14060 |
RA64..CBR L=300 |
1 | ||
| 77241B - HOSE, FUEL, NO.2 (FOR MAIN TUBE, NO.1) | ||||
| 95332-06030 |
RA64..CBR *H,L=300 |
1 | ||
| 77254 - TUBE, FUEL EMISSION, NO.1 | ||||
| 77261-14140 |
RA64..CBR |
1 | ||
| 77254A - HOSE, FUEL, NO.1 (FOR EMISSION TUBE, NO.1) | ||||
| 77019-14060 |
RA64 L=300 |
1 | ||
| 77254B - HOSE, FUEL, NO.2 (FOR EMISSION TUBE, NO.1) | ||||
| 95332-06030 |
RA64..CBR *H,L=300 |
1 | ||
| 77277 - TUBE, FUEL RETURN, NO.1 | ||||
| 77255-14220 |
RA64..CBR |
1 | ||
| 77277A - HOSE, FUEL, NO.1(FOR RETURN TUBE, NO.1) | ||||
| 95332-06030 |
RA64..CBR *H,L=240 |
1 | ||
| 77277B - HOSE, FUEL, NO.2(FOR RETURN TUBE, NO.1) | ||||
| 95332-06030 |
RA64..CBR *H,L=300 |
1 | ||
| 77740 - CANISTER ASSY, CHARCOAL | ||||
| 77740-14310 |
RA64 |
1 | ||
| 77740B - HOSE, FUEL, NO.2(FOR CHARCOAL CANISTER) | ||||
| 95411-19960 |
RA64 *H,L=390,MARK=#* |
1 | ||
| 77740F - TUBE, FUEL, NO.1(FOR CHARCOAL CANISTER) | ||||
| 95332-08020 |
RA64 *H,L=190 |
1 | ||
| 77791 - HOSE, OUTER VENT VALVE TO CARBURETOR | ||||
| 77791-14020 |
RA64..CBR |
1 | ||
| Common parts | ||||
| 90119-06110 | ||||
| 90461-07004 | ||||
| 90461-07016 | ||||
| 90461-07019 | ||||
| 90461-08621 | ||||
| 90461-09001 | ||||
| 90461-10247 | ||||
| 90461-10504 | ||||
| 90467-12011 | ||||
| 90467-13007 | ||||
| 91651-40612 | ||||
| 91651-40614 | ||||
| 96132-30600 | ||||
| Linked diagrams | ||||
| 1708 | ||||
