RA64L-BCPQSA (1981)
Toyota Celica
Production
Aug 1981
-
Aug 1982
Engine
22R
Transmission
4FC ATM
Displacement
2500cc
Power
168 HP (125 kW)

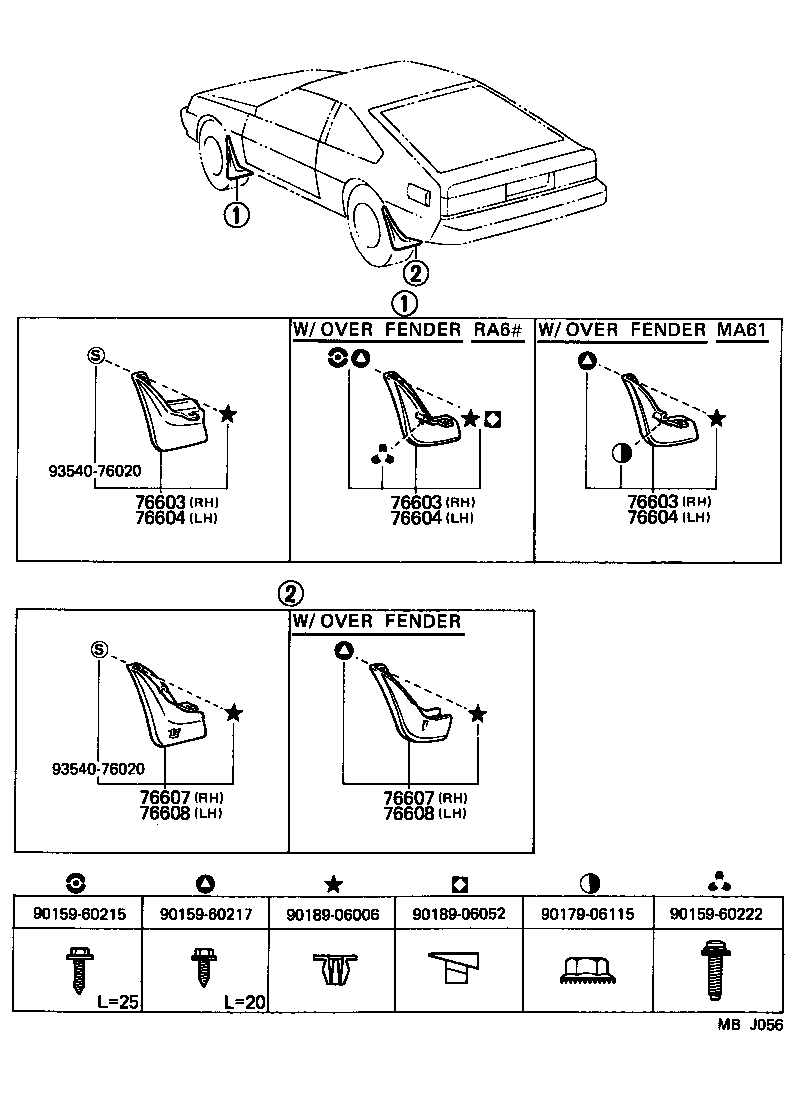

(8108- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 76603 - MUDGUARD SUB-ASSY, FRONT FENDER, RH | ||||
| 76603-19065 |
RA64 |
1 | ||
| 76603 - MUDGUARD SUB-ASSY, FRONT FENDER, RH | ||||
| 76603-19065 |
RA64 |
1 | ||
| 76603 - MUDGUARD SUB-ASSY, FRONT FENDER, RH | ||||
| 76603-19065 |
RA64 |
1 | ||
| 76604 - MUDGUARD SUB-ASSY, FRONT FENDER, LH | ||||
| 76604-19065 |
RA64 |
1 | ||
| 76604 - MUDGUARD SUB-ASSY, FRONT FENDER, LH | ||||
| 76604-19065 |
RA64 |
1 | ||
| 76604 - MUDGUARD SUB-ASSY, FRONT FENDER, LH | ||||
| 76604-19065 |
RA64 |
1 | ||
| 76607 - MUDGUARD SUB-ASSY, QUARTER PANEL, REAR RH | ||||
| 76607-19125 |
MA61,RA64 |
1 | ||
| 76607 - MUDGUARD SUB-ASSY, QUARTER PANEL, REAR RH | ||||
| 76607-19125 |
MA61,RA64 |
1 | ||
| 76608 - MUDGUARD SUB-ASSY, QUARTER PANEL, REAR LH | ||||
| 76608-19125 |
MA61,RA64 |
1 | ||
| 76608 - MUDGUARD SUB-ASSY, QUARTER PANEL, REAR LH | ||||
| 76608-19125 |
MA61,RA64 |
1 | ||
| Common parts | ||||
| 90159-60215 | ||||
| 90159-60217 | ||||
| 90159-60222 | ||||
| 90179-06115 | ||||
| 90189-06006 | ||||
| 90189-06052 | ||||
| 93540-76020 | ||||

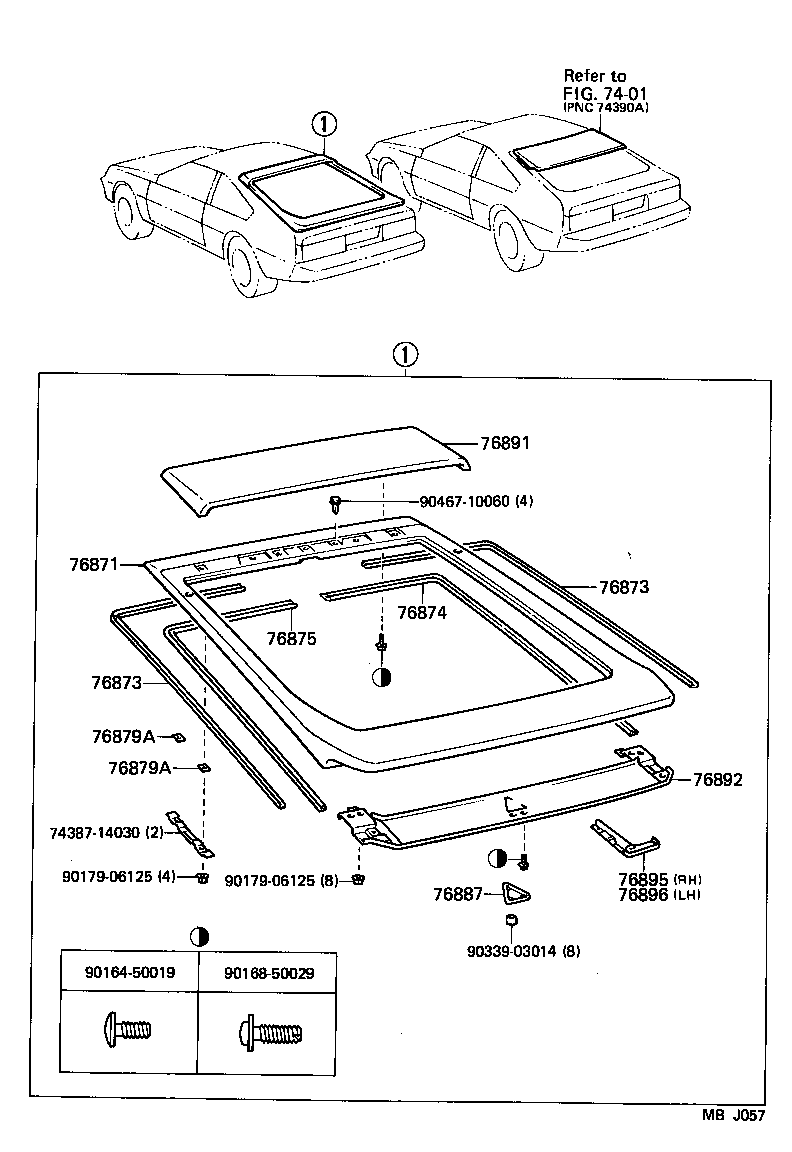

(8108-8508)
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 74387-14030 | ||||
| 90164-50019 | ||||
| 90168-50029 | ||||
| 90179-06125 | ||||
| 90339-03014 | ||||
| 90467-10060 | ||||
| Linked diagrams | ||||
| 7401 | ||||
