RA64L-BCPQSA (1981)

Toyota Celica

Production Aug 1981 - Aug 1982
Engine 22R
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8108-8507)CP,CVT

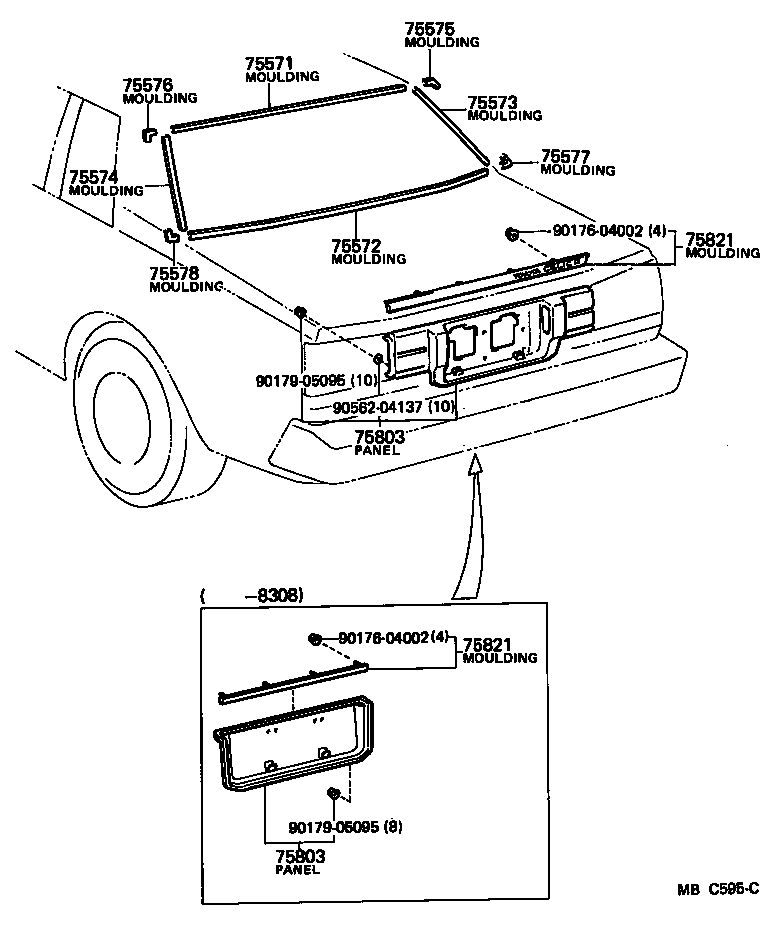

Click highlighted areas on diagram

diagram 75571 75572 75573 75574 75575 75576 75577 75578 75803 75803 75821 75821 9017604002 9017904002 9017905095 9017905095 9056204137
Part # Description Qty Price
75571 - MOULDING, BACK WINDOW, OUTSIDE UPPER
75571-14180

RA6#..CP

 1
75572 - MOULDING, BACK WINDOW, LOWER
75575-14160

RA6#..CP

 1
75573 - MOULDING, BACK WINDOW SIDE, RH
75573-14190

RA6#..CP

 1
75574 - MOULDING, BACK WINDOW SIDE, LH
75574-14160

RA6#..CP

 1
75575 - MOULDING, BACK WINDOW CORNER, UPPER RH
75581-14130

RA6#..CP

 1
75576 - MOULDING, BACK WINDOW CORNER, UPPER LH
75581-14130

RA6#..CP

 1
75577 - MOULDING, BACK WINDOW CORNER, LOWER RH
75583-14100

RA6#..CP

 1
75578 - MOULDING, BACK WINDOW CORNER, LOWER LH
75584-14050

RA6#..CP

 1
75803 - PANEL SUB-ASSY, BODY LOWER BACK FINISH CENTER
75082-19195

RA6#..CP

 1
75803 - PANEL SUB-ASSY, BODY LOWER BACK FINISH CENTER
75082-19195

RA6#..CP

 1
75821 - MOULDING, LUGGAGE COMPARTMENT DOOR BACK
75801-19095

RA6#..CP

 1
75821 - MOULDING, LUGGAGE COMPARTMENT DOOR BACK
75801-19095

RA6#..CP

 1
Common parts
90176-04002
90179-04002
90179-05095
90562-04137
