RA64L-BCPQSA (1981)
Toyota Celica
Production
Aug 1981
-
Aug 1982
Engine
22R
Transmission
4FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(8108- )

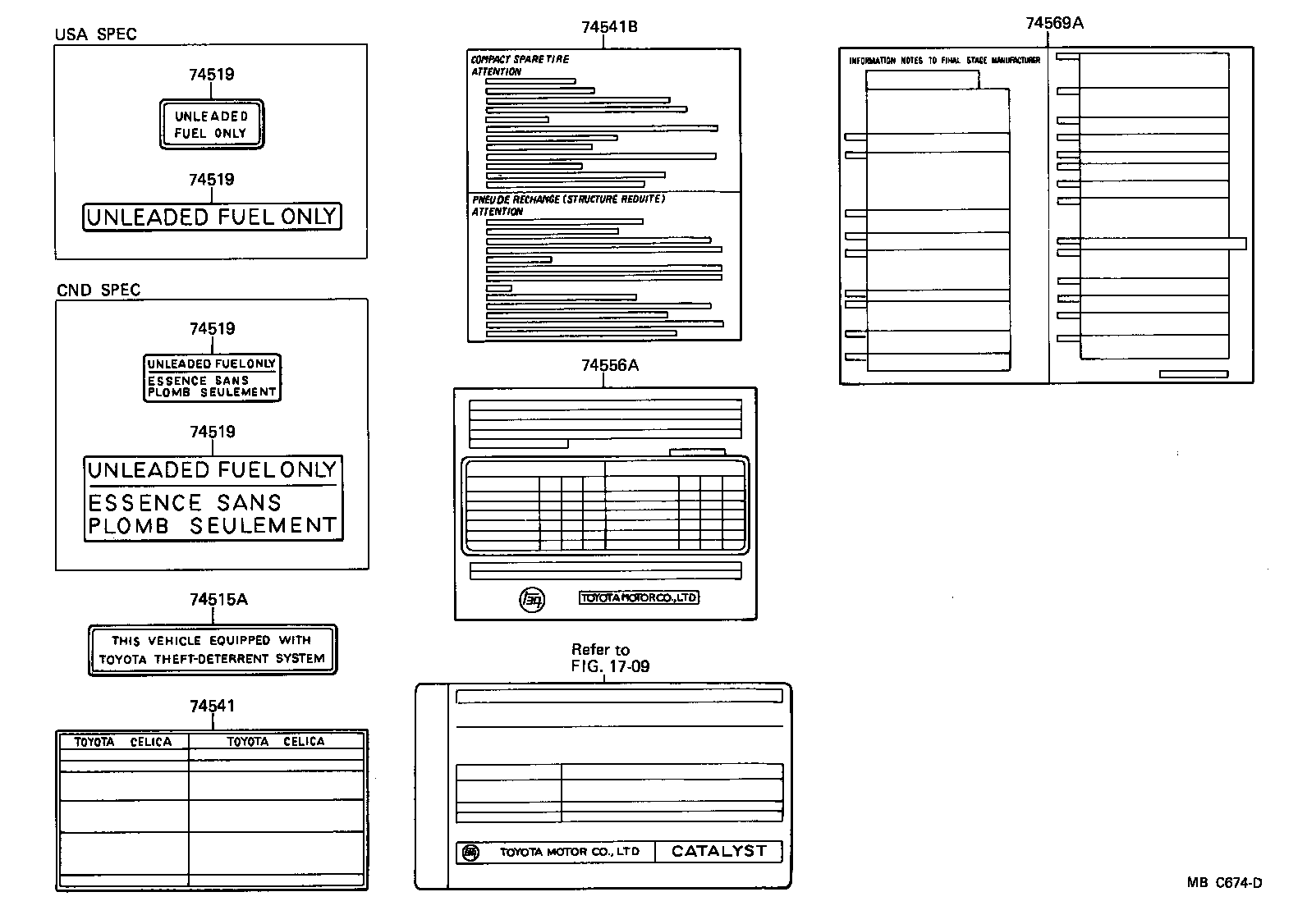

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 74519 - PLATE, FUEL CAUTION | ||||
| 74559-20090 |
MA61,RA6#..USA QUARTER PANEL |
1 | ||
| 74559-20030 |
MA61,RA64..USA INSTRUMENT PANEL |
1 | ||
| 74519 - PLATE, FUEL CAUTION | ||||
| 74559-20090 |
MA61,RA6#..USA QUARTER PANEL |
1 | ||
| 74559-20030 |
MA61,RA64..USA INSTRUMENT PANEL |
1 | ||
| 74519 - PLATE, FUEL CAUTION | ||||
| 74559-20090 |
MA61,RA6#..USA QUARTER PANEL |
1 | ||
| 74559-20030 |
MA61,RA64..USA INSTRUMENT PANEL |
1 | ||
| 74519 - PLATE, FUEL CAUTION | ||||
| 74559-20090 |
MA61,RA6#..USA QUARTER PANEL |
1 | ||
| 74559-20030 |
MA61,RA64..USA INSTRUMENT PANEL |
1 | ||
| 74541 - PLATE, TIRE PRESSURE CAUTION | ||||
| 42661-14240 |
MA61,RA64 |
1 | ||
| 42661-14280 |
MA61,RA64..GT,SPR W/OVER FENDER |
1 | ||
| 74541B - PLATE, COMPACT SPARE TIRE CAUTION | ||||
| 42668-14020 |
MA61,RA64..GT,SPR W/OVER FENDER |
1 | ||
| 42668-14010 |
MA61,RA64 |
1 | ||
| 74556A - PLATE, EXHAUST EMISSION DATA | ||||
| 74556-12116 |
MA61,RA64..USA CALIFORNIA SPEC |
1 | ||
| Linked diagrams | ||||
| 1709 | ||||
