RA64L-BCPQSA (1981)

Toyota Celica

Production Aug 1981 - Aug 1982
Engine 22R
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8108- )

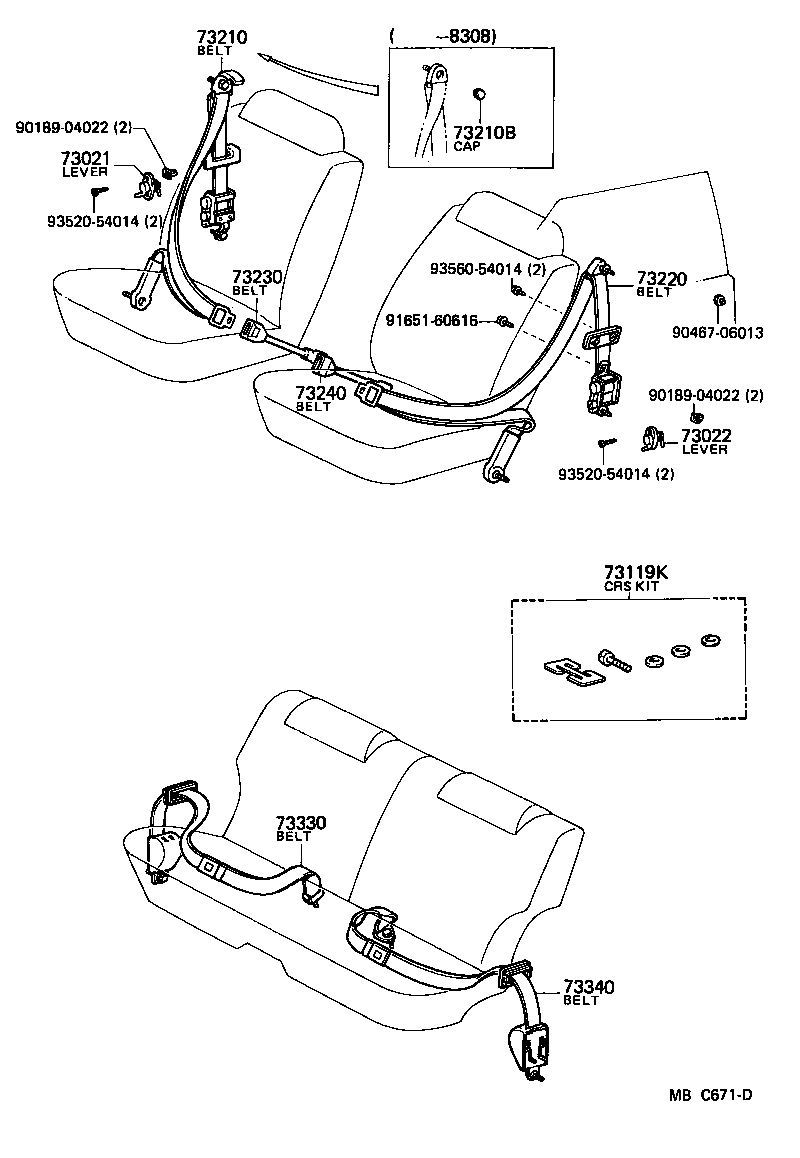

Click highlighted areas on diagram

diagram 73021 73022 73119K 73210 73210B 73220 73230 73240 73330 73340 9018904022 9018904022 9046706013 9165160616 9352054014 9352054014 9356054014
Part # Description Qty Price
73021 - LEVER SUB-ASSY, SEAT BELT COMFORT, RH
73021-14010

MA61,RA6#..CP,LB

 1
73022 - LEVER SUB-ASSY, SEAT BELT COMFORT, LH
73022-14010

MA61,RA6#..CP,LB

 1
73119K - SEAT KIT, CHILD RESTRAINT
04731-22010

MA61,RA6#

 1
73210 - BELT ASSY, FRONT SEAT OUTER, RH
73210-1424001

RA6#

BLACK,BLACK

 1
73210-1424006

RA6#

DARK BROWN,BROWN

 1
73210-1424004

RA6#

BLUE,BLUE

 1
73210B - CAP (FOR FRONT SEAT OUTER BELT)
73178-1201011

MA61,RA6#

BLACK,BLACK

 2
73178-1201026

RA6#

DARK BROWN,BROWN

 2
73178-1201014

MA61,RA6#

BLUE,BLUE

 2
73220 - BELT ASSY, FRONT SEAT OUTER, LH
73220-1418001

RA6#

BLACK,BLACK

 1
73220-1418004

RA6#

BLUE,BLUE

 1
73220-1418006

RA6#

DARK BROWN,BROWN

 1
73230 - BELT ASSY, FRONT SEAT INNER, RH
73230-1423001

RA6#

BLACK,BLACK

 1
73230-1423006

RA6#

DARK BROWN,BROWN

 1
73230-1423004

RA6#

BLUE,BLUE

 1
73240 - BELT ASSY, FRONT SEAT INNER, LH
73240-1404001

RA6#

BLACK,BLACK

 1
73240-1404004

RA6#

BLUE,BLUE

 1
73240-1404006

RA6#

DARK BROWN,BROWN

 1
73330 - BELT ASSY, REAR SEAT LAP TYPE, RH
73330-1412004

MA61,RA6#

BLUE,BLUE

 1
73330-1412001

MA61,RA6#

BLACK,BLACK

 1
73330-1412006

RA6#

DARK BROWN,BROWN

 1
73340 - BELT ASSY, REAR SEAT LAP TYPE, LH
73330-1412001

MA61,RA6#

BLACK,BLACK

 1
73330-1412004

MA61,RA6#

BLUE,BLUE

 1
73330-1412006

RA6#

DARK BROWN,BROWN

 1
Common parts
90189-04022
90467-06013
91651-60616
93520-54014
93560-54014
