RA64L-BCPQSA (1981)
Toyota Celica
(8108- )MA61,RA64
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71071S - COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71071-1B58003 |
RA64..GT FB,GRAY,GRAY |
1 | ||
| 71071-1B58004 |
RA64..GT FB,BLUE,BLUE |
1 | ||
| 71071-1B58005 |
RA64..GT FB,BEIGE,BEIGE |
1 | ||
| 71071-1B70004 |
MA61,RA64..GT,SPR *SPS,FB,BLUE,BLUE |
1 | ||
| 71071-1B70001 |
MA61,RA64..GT,SPR *SPS,FB,BLACK,BLACK |
1 | ||
| 71071-1B70006 |
RA64..GT *SPS,FB,DARK BROWN,BROWN |
1 | ||
| 71071-1B29005 |
RA64..GT..USA K-TY,BEIGE,BEIGE |
1 | ||
| 71071-1B29008 |
RA64..GT..USA K-TY,IVORY,IVORY |
1 | ||
| 71071W - WIRE, FRONT SEAT CUSHION COVER | ||||
| 90580-20041 |
MA61,RA6# L=220 |
2 | ||
| 90580-20007 |
MA61,RA6# L=1200 |
2 | ||
| 71071W - WIRE, FRONT SEAT CUSHION COVER | ||||
| 90580-20041 |
MA61,RA6# L=220 |
2 | ||
| 90580-20007 |
MA61,RA6# L=1200 |
2 | ||
| 71072S - COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) | ||||
| 71072-1B43004 |
MA61,RA64..GT,SPR *SPS,FB,BLUE,BLUE |
1 | ||
| 71072-1B43001 |
MA61,RA64..GT,SPR *SPS,FB,BLACK,BLACK |
1 | ||
| 71072-1B29005 |
RA64..GT..USA K-TY,BEIGE,BEIGE |
1 | ||
| 71072-1B56005 |
RA64..GT FB,BEIGE,BEIGE |
1 | ||
| 71072-1B43006 |
RA64..GT *SPS,FB,DARK BROWN,BROWN |
1 | ||
| 71072-1B56003 |
RA64..GT FB,GRAY,GRAY |
1 | ||
| 71072-1B29008 |
RA64..GT..USA K-TY,IVORY,IVORY |
1 | ||
| 71072-1B56004 |
RA64..GT FB,BLUE,BLUE |
1 | ||
| 71073S - COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71073-1B18001 |
MA61,RA64..GT,SPR *SPS,FB,BLACK,BLACK |
1 | ||
| 71073-1B18004 |
MA61,RA64..GT,SPR *SPS,FB,BLUE,BLUE |
1 | ||
| 71073-1B27003 |
RA64..GT FB,GRAY,GRAY |
1 | ||
| 71073-1B18006 |
RA64..GT *SPS,FB,DARK BROWN,BROWN |
1 | ||
| 71073-1B27005 |
RA64..GT FB,BEIGE,BEIGE |
1 | ||
| 71073-1B17008 |
RA64..GT..USA K-TY,IVORY,IVORY |
1 | ||
| 71073-1B17005 |
RA64..GT..USA K-TY,BEIGE,BEIGE |
1 | ||
| 71073-1B27004 |
RA64..GT FB,BLUE,BLUE |
1 | ||
| 71073S - COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71073-1B18001 |
MA61,RA64..GT,SPR *SPS,FB,BLACK,BLACK |
1 | ||
| 71073-1B18004 |
MA61,RA64..GT,SPR *SPS,FB,BLUE,BLUE |
1 | ||
| 71073-1B27003 |
RA64..GT FB,GRAY,GRAY |
1 | ||
| 71073-1B18006 |
RA64..GT *SPS,FB,DARK BROWN,BROWN |
1 | ||
| 71073-1B27005 |
RA64..GT FB,BEIGE,BEIGE |
1 | ||
| 71073-1B17008 |
RA64..GT..USA K-TY,IVORY,IVORY |
1 | ||
| 71073-1B17005 |
RA64..GT..USA K-TY,BEIGE,BEIGE |
1 | ||
| 71073-1B27004 |
RA64..GT FB,BLUE,BLUE |
1 | ||
| 71073W - WIRE, FRONT SEAT BACK COVER | ||||
| 90580-20020 |
MA61,RA6# L=420 |
4 | ||
| 71073W - WIRE, FRONT SEAT BACK COVER | ||||
| 90580-20020 |
MA61,RA6# L=420 |
4 | ||
| 71074S - COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71073-1B18006 |
RA64..GT *SPS,FB,DARK BROWN,BROWN |
1 | ||
| 71073-1B18004 |
MA61,RA64..GT,SPR *SPS,FB,BLUE,BLUE |
1 | ||
| 71074-1438005 |
RA64..GT FB,BEIGE,BEIGE |
1 | ||
| 71074-1430005 |
RA64..GT..USA K-TY,BEIGE,BEIGE |
1 | ||
| 71073-1B18001 |
MA61,RA64..GT,SPR *SPS,FB,BLACK,BLACK |
1 | ||
| 71074-1438003 |
RA64..GT FB,GRAY,GRAY |
1 | ||
| 71074-1438004 |
RA64..GT FB,BLUE,BLUE |
1 | ||
| 71074-1430008 |
RA64..GT..USA K-TY,IVORY,IVORY |
1 | ||
| 71074S - COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71073-1B18006 |
RA64..GT *SPS,FB,DARK BROWN,BROWN |
1 | ||
| 71073-1B18004 |
MA61,RA64..GT,SPR *SPS,FB,BLUE,BLUE |
1 | ||
| 71074-1438005 |
RA64..GT FB,BEIGE,BEIGE |
1 | ||
| 71074-1430005 |
RA64..GT..USA K-TY,BEIGE,BEIGE |
1 | ||
| 71073-1B18001 |
MA61,RA64..GT,SPR *SPS,FB,BLACK,BLACK |
1 | ||
| 71074-1438003 |
RA64..GT FB,GRAY,GRAY |
1 | ||
| 71074-1438004 |
RA64..GT FB,BLUE,BLUE |
1 | ||
| 71074-1430008 |
RA64..GT..USA K-TY,IVORY,IVORY |
1 | ||
| 71311B - BUSH (FOR FRONT SEAT HINGE PIN) | ||||
| 90386-12018 |
MA61,RA6# |
2 | ||
| 71410S - CUSHION ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE) | ||||
| 71410-1B31005 |
RA64..GT FB,(CHATAM) BEIGE,BEIGE |
1 | ||
| 71410-1B32005 |
RA64..GT..USA K-TY,BEIGE,BEIGE |
1 | ||
| 71410-1B32008 |
RA64..GT..USA K-TY,IVORY,IVORY |
1 | ||
| 71410-1B31003 |
RA64..GT FB,(CHATAM) GRAY,GRAY |
1 | ||
| 71410-1B47001 |
MA61,RA64..GT,SPR *SPS,BLACK,BLACK |
1 | ||
| 71410-1B31004 |
RA64..GT FB,(CHATAM) BLUE,BLUE |
1 | ||
| 71410-1B47004 |
MA61,RA64..GT,SPR *SPS,BLUE,BLUE |
1 | ||
| 71410-1B47006 |
RA64..GT *SPS,DARK BROWN,BROWN |
1 | ||
| 71410-1B63003 |
RA64..GT FB,GRAY,GRAY |
1 | ||
| 71410-1B63005 |
RA64..GT FB,BEIGE,BEIGE |
1 | ||
| 71410-1B63004 |
RA64..GT FB,BLUE,BLUE |
1 | ||
| 71420S - CUSHION ASSY, FRONT SEAT, LH (FOR SEPARATE TYPE) | ||||
| 71420-1B30005 |
RA64..GT FB,(CHATAM) BEIGE,BEIGE |
1 | ||
| 71420-1B30003 |
RA64..GT FB,(CHATAM) GRAY,GRAY |
1 | ||
| 71420-1B62004 |
RA64..GT FB,BLUE,BLUE |
1 | ||
| 71420-1B31005 |
RA64..GT..USA K-TY,BEIGE,BEIGE |
1 | ||
| 71420-1B30004 |
RA64..GT FB,(CHATAM) BLUE,BLUE |
1 | ||
| 71420-1B62005 |
RA64..GT FB,BEIGE,BEIGE |
1 | ||
| 71420-1B70004 |
MA61,RA64..GT,SPR *SPS,BLUE,BLUE |
1 | ||
| 71420-1B31008 |
RA64..GT..USA K-TY,IVORY,IVORY |
1 | ||
| 71420-1B70001 |
MA61,RA64..GT,SPR *SPS,BLACK,BLACK |
1 | ||
| 71420-1B70006 |
RA64..GT *SPS,DARK BROWN,BROWN |
1 | ||
| 71420-1B62003 |
RA64..GT FB,GRAY,GRAY |
1 | ||
| 71430S - BACK ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE) | ||||
| 71430-1B26003 |
RA64..GT FB,(CHATAM) GRAY,GRAY |
1 | ||
| 71430-1B26004 |
RA64..GT FB,(CHATAM) BLUE,BLUE |
1 | ||
| 71430-1B38006 |
RA64..GT *SPS,DARK BROWN,BROWN |
1 | ||
| 71430-1B38004 |
MA61,RA64..GT,SPR *SPS,BLUE,BLUE |
1 | ||
| 71430-1B26005 |
RA64..GT FB,(CHATAM) BEIGE,BEIGE |
1 | ||
| 71430-1B27005 |
RA64..GT..USA K-TY,BEIGE,BEIGE |
1 | ||
| 71430-1B27008 |
RA64..GT..USA K-TY,IVORY,IVORY |
1 | ||
| 71430-1B51005 |
RA64..GT FB,BEIGE,BEIGE |
1 | ||
| 71430-1B51003 |
RA64..GT FB,GRAY,GRAY |
1 | ||
| 71430-1B38001 |
MA61,RA64..GT,SPR *SPS,BLACK,BLACK |
1 | ||
| 71430-1B51004 |
RA64..GT FB,BLUE,BLUE |
1 | ||
| 71440S - BACK ASSY, FRONT SEAT, LH(FOR SEPARATE TYPE) | ||||
| 71440-1B23003 |
RA64..GT FB,(CHATAM) GRAY,GRAY |
1 | ||
| 71440-1B23005 |
RA64..GT FB,(CHATAM) BEIGE,BEIGE |
1 | ||
| 71440-1B46005 |
RA64..GT FB,BEIGE,BEIGE |
1 | ||
| 71440-1B46003 |
RA64..GT FB,GRAY,GRAY |
1 | ||
| 71440-1B23004 |
RA64..GT FB,(CHATAM) BLUE,BLUE |
1 | ||
| 71440-1B49001 |
MA61,RA64..GT,SPR *SPS,BLACK,BLACK |
1 | ||
| 71440-1B46004 |
RA64..GT FB,BLUE,BLUE |
1 | ||
| 71440-1B24008 |
RA64..GT..USA K-TY,IVORY,IVORY |
1 | ||
| 71440-1B49006 |
RA64..GT *SPS,DARK BROWN,BROWN |
1 | ||
| 71440-1B24005 |
RA64..GT..USA K-TY,BEIGE,BEIGE |
1 | ||
| 71440-1B49004 |
MA61,RA64..GT,SPR *SPS,BLUE,BLUE |
1 | ||
| 71511S - PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71511-14160 |
MA61,RA64..GT,SPR *SPS |
1 | ||
| 71511-14140 |
RA64 |
1 | ||
| 71512S - PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE) | ||||
| 71511-14140 |
RA64 |
1 | ||
| 71511-14160 |
MA61,RA64..GT,SPR *SPS |
1 | ||
| 71551S - PAD, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71551-14140 |
RA64 |
1 | ||
| 71551-14160 |
MA61,RA64..GT,SPR *SPS |
1 | ||
| 71552S - PAD, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71552-14020 |
MA61,RA64..GT,SPR *SPS |
1 | ||
| 71551-14140 |
RA64 |
1 | ||
| 71553B - PAD, FRONT SEAT BACK, B | ||||
| 71553-14020 |
MA61,RA64 |
2 | ||
| 71553B - PAD, FRONT SEAT BACK, B | ||||
| 71553-14020 |
MA61,RA64 |
2 | ||
| 71564 - PAD, FRONT SEAT BACK, SIDE | ||||
| 71563-14060 |
MA61,RA64..GT,SPR *SPS,RH |
2 | ||
| 71564-14030 |
MA61,RA64 LH |
2 | ||
| 71563-14040 |
MA61,RA64 RH |
2 | ||
| 71564-14050 |
MA61,RA64..GT,SPR *SPS,LH |
2 | ||
| 71564 - PAD, FRONT SEAT BACK, SIDE | ||||
| 71563-14060 |
MA61,RA64..GT,SPR *SPS,RH |
2 | ||
| 71564-14030 |
MA61,RA64 LH |
2 | ||
| 71563-14040 |
MA61,RA64 RH |
2 | ||
| 71564-14050 |
MA61,RA64..GT,SPR *SPS,LH |
2 | ||
| 71564 - PAD, FRONT SEAT BACK, SIDE | ||||
| 71563-14060 |
MA61,RA64..GT,SPR *SPS,RH |
2 | ||
| 71564-14030 |
MA61,RA64 LH |
2 | ||
| 71563-14040 |
MA61,RA64 RH |
2 | ||
| 71564-14050 |
MA61,RA64..GT,SPR *SPS,LH |
2 | ||
| 71564 - PAD, FRONT SEAT BACK, SIDE | ||||
| 71563-14060 |
MA61,RA64..GT,SPR *SPS,RH |
2 | ||
| 71564-14030 |
MA61,RA64 LH |
2 | ||
| 71563-14040 |
MA61,RA64 RH |
2 | ||
| 71564-14050 |
MA61,RA64..GT,SPR *SPS,LH |
2 | ||
| 71581 - PAD, FRONT SEAT BACK SILENCER | ||||
| 71571-24010 |
MA61,RA64 |
2 | ||
| 71581 - PAD, FRONT SEAT BACK SILENCER | ||||
| 71571-24010 |
MA61,RA64 |
2 | ||
| 71610S - SPRING ASSY, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71610-14180 |
MA61,RA64..GT,SPR *SPS |
1 | ||
| 71610-14060 |
MA61,RA64 |
1 | ||
| 71620S - SPRING ASSY, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) | ||||
| 71620-14130 |
MA61,RA64..GT,SPR |
1 | ||
| 71620-14150 |
MA61,RA64..GT,SPR *SPS |
1 | ||
| 71630S - SPRING ASSY, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71630-14140 |
MA61,RA64..GT,SPR *SPS |
1 | ||
| 71630-14141 |
MA61,RA64..GT,SPR *SPS |
1 | ||
| 71630-14110 |
MA61,RA64 |
1 | ||
| 71640S - SPRING ASSY, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71640-14140 |
MA61,RA64..GT,SPR *SPS |
1 | ||
| 71640-14141 |
MA61,RA64..GT,SPR *SPS |
1 | ||
| 71640-14120 |
MA61,RA64..GT,SPR |
1 | ||
| 71811D - SHIELD, FRONT SEAT CUSHION, RH | ||||
| 71811-1406006 |
RA6#..CP,LB DARK BROWN,BROWN |
1 | ||
| 71811-1406001 |
MA61,RA6# BLACK,BLACK |
1 | ||
| 71811-1406004 |
MA61,RA6#..CP,LB BLUE,BLUE |
1 | ||
| 71812A - RING, HOG, SMALL (FOR FRONT SEAT) | ||||
| 90468-18071 |
MA61,RA6# |
1 | ||
| 71812A - RING, HOG, SMALL (FOR FRONT SEAT) | ||||
| 90468-18071 |
MA61,RA6# |
1 | ||
| 71812A - RING, HOG, SMALL (FOR FRONT SEAT) | ||||
| 90468-18071 |
MA61,RA6# |
1 | ||
| 71812A - RING, HOG, SMALL (FOR FRONT SEAT) | ||||
| 90468-18071 |
MA61,RA6# |
1 | ||
| 71812D - SHIELD, FRONT SEAT CUSHION, LH | ||||
| 71812-1408001 |
MA61,RA6#..GT,GTS,SPR BLACK,BLACK |
1 | ||
| 71812-1408004 |
MA61,RA6#..(CP,LB)..(GT,GTS,SPR) BLUE,BLUE |
1 | ||
| 71812-1408006 |
RA6#..(CP,LB)..(GT,GTS) DARK BROWN,BROWN |
1 | ||
| 71950 - HEADREST ASSY, FRONT SEAT | ||||
| 71910-1442001 |
MA61,RA64..GT,SPR *SPS,BLACK,BLACK |
2 | ||
| 71910-1442004 |
MA61,RA64..GT,SPR *SPS,BLUE,BLUE |
2 | ||
| 71910-1436004 |
RA64 BLUE,BLUE |
2 | ||
| 71910-1436006 |
RA64 DARK BROWN,BROWN |
2 | ||
| 71910-1442006 |
RA64..GT *SPS,DARK BROWN,BROWN |
2 | ||
| 71910-1436008 |
RA64 IVORY,IVORY |
2 | ||
| 71910-1436001 |
RA64 BLACK,BLACK |
2 | ||
| 71956A - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-1408001 |
MA61,RA64..GT,SPR W(LOCK),W/LOCK,*SPS,BLACK,BLACK |
2 | ||
| 71931-1401001 |
MA61,RA64..GT,SPR W/O(LOCK),W/O LOCK,*SPS,BLACK,BLACK |
2 | ||
| 71931-1401004 |
MA61,RA64..GT,SPR W/O(LOCK),W/O LOCK,*SPS,BLUE,BLUE |
2 | ||
| 71931-1001016 |
RA64 W/O(LOCK),W/O LOCK,DARK BROWN,SABLE |
2 | ||
| 71930-1006001 |
MA61,RA64 W(LOCK),W/LOCK,BLACK,BLACK |
2 | ||
| 71931-1401006 |
RA64..GT W/O(LOCK),W/O LOCK,*SPS,DARK BROWN,SABLE |
2 | ||
| 71930-1006016 |
RA64 W(LOCK),W/LOCK,DARK BROWN,SABLE |
2 | ||
| 71930-1408006 |
RA64..GT W(LOCK),W/LOCK,*SPS,DARK BROWN,SABLE |
2 | ||
| 71930-1006004 |
MA61,RA64 W(LOCK),W/LOCK,BLUE,BLUE |
2 | ||
| 71931-1001001 |
MA61,RA64 W/O(LOCK),W/O LOCK,BLACK,BLACK |
2 | ||
| 71930-1408004 |
MA61,RA64..GT,SPR W(LOCK),W/LOCK,*SPS,BLUE,BLUE |
2 | ||
| 71931-1001004 |
MA61,RA64 W/O(LOCK),W/O LOCK,BLUE,BLUE |
2 | ||
| 71956A - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-1408001 |
MA61,RA64..GT,SPR W(LOCK),W/LOCK,*SPS,BLACK,BLACK |
2 | ||
| 71931-1401001 |
MA61,RA64..GT,SPR W/O(LOCK),W/O LOCK,*SPS,BLACK,BLACK |
2 | ||
| 71931-1401004 |
MA61,RA64..GT,SPR W/O(LOCK),W/O LOCK,*SPS,BLUE,BLUE |
2 | ||
| 71931-1001016 |
RA64 W/O(LOCK),W/O LOCK,DARK BROWN,SABLE |
2 | ||
| 71930-1006001 |
MA61,RA64 W(LOCK),W/LOCK,BLACK,BLACK |
2 | ||
| 71931-1401006 |
RA64..GT W/O(LOCK),W/O LOCK,*SPS,DARK BROWN,SABLE |
2 | ||
| 71930-1006016 |
RA64 W(LOCK),W/LOCK,DARK BROWN,SABLE |
2 | ||
| 71930-1408006 |
RA64..GT W(LOCK),W/LOCK,*SPS,DARK BROWN,SABLE |
2 | ||
| 71930-1006004 |
MA61,RA64 W(LOCK),W/LOCK,BLUE,BLUE |
2 | ||
| 71931-1001001 |
MA61,RA64 W/O(LOCK),W/O LOCK,BLACK,BLACK |
2 | ||
| 71930-1408004 |
MA61,RA64..GT,SPR W(LOCK),W/LOCK,*SPS,BLUE,BLUE |
2 | ||
| 71931-1001004 |
MA61,RA64 W/O(LOCK),W/O LOCK,BLUE,BLUE |
2 | ||
| 72011 - ADJUSTER SUB-ASSY, FRONT SEAT, OUTER RH | ||||
| 72010-14290 |
MA61,RA64..GT,SPR W/*SPS |
1 | ||
| 72010-14280 |
MA61,RA64 |
1 | ||
| 72011A - SPRING, TENSION (FOR FRONT SEAT ADJUSTER OUTER) | ||||
| 90506-18015 |
MA61,RA6# |
2 | ||
| 72011A - SPRING, TENSION (FOR FRONT SEAT ADJUSTER OUTER) | ||||
| 90506-18015 |
MA61,RA6# |
2 | ||
| 72012 - ADJUSTER SUB-ASSY, FRONT SEAT, OUTER LH | ||||
| 72020-14300 |
MA61,RA64..GT,SPR |
1 | ||
| 72020-14310 |
MA61,RA64..GT,SPR W/*SPS |
1 | ||
| 72210 - CABLE ASSY, SEAT TRACK CONTROL | ||||
| 72210-14090 |
MA61,RA6# |
1 | ||
| 72457A - KNOB, SEAT ADJUSTER | ||||
| 72457-1403006 |
RA64..GT DARK BROWN,D=58,BROWN |
4 | ||
| 72457-1403001 |
MA61,RA64..GT,SPR BLACK,D=58,BLACK |
4 | ||
| 72457-1403004 |
MA61,RA64..GT,SPR BLUE,D=58,BLUE |
4 | ||
| 72524 - HANDLE, RECLINING ADJUSTER RELEASE | ||||
| 72525-1401016 |
RA6#..CP,LB RH,DARK BROWN,BROWN |
1 | ||
| 72525-1401001 |
MA61,RA6# RH,BLACK,BLACK |
1 | ||
| 72526-1401016 |
RA6#..CP,LB LH,DARK BROWN,BROWN |
1 | ||
| 72525-1401014 |
MA61,RA6#..CP,LB RH,BLUE,BLUE |
1 | ||
| 72526-1401001 |
MA61,RA6# LH,BLACK,BLACK |
1 | ||
| 72526-1401014 |
MA61,RA6#..CP,LB LH,BLUE,BLUE |
1 | ||
| 72524 - HANDLE, RECLINING ADJUSTER RELEASE | ||||
| 72525-1401016 |
RA6#..CP,LB RH,DARK BROWN,BROWN |
1 | ||
| 72525-1401001 |
MA61,RA6# RH,BLACK,BLACK |
1 | ||
| 72526-1401016 |
RA6#..CP,LB LH,DARK BROWN,BROWN |
1 | ||
| 72525-1401014 |
MA61,RA6#..CP,LB RH,BLUE,BLUE |
1 | ||
| 72526-1401001 |
MA61,RA6# LH,BLACK,BLACK |
1 | ||
| 72526-1401014 |
MA61,RA6#..CP,LB LH,BLUE,BLUE |
1 | ||
| 72553 - COVER, RECLINING PEDAL | ||||
| 72553-12030 |
MA61,RA6# |
1 | ||
| 72770 - ADJUSTER ASSY, LUMBAR SUPPORT, LH | ||||
| 72760-14050 |
MA61,RA64..GT,SPR |
1 | ||
| 72760-14040 |
MA61,RA64..GT,SPR W/*SPS |
1 | ||
| 72791 - LEVER, LUMBAR SUPPORT | ||||
| 72791-2202001 |
MA61,RA64..GT,SPR BLACK,BLACK |
1 | ||
| 72791-2202004 |
MA61,RA64..GT,SPR BLUE,BLUE |
1 | ||
| 72791-2202006 |
RA64..GT DARK BROWN,BROWN |
1 | ||
| Common parts | ||||
| 90119-08080 | ||||
| 90119-10037 | ||||
| 90119-10048 | ||||
| 90154-80002 | ||||
| 90168-40011 | ||||
| 90179-08073 | ||||
| 90386-12018 | ||||
| 90468-04010 | ||||
| 90520-01002 | ||||
| 90523-08001 | ||||
| 93385-16016 | ||||
| 93560-55014 | ||||

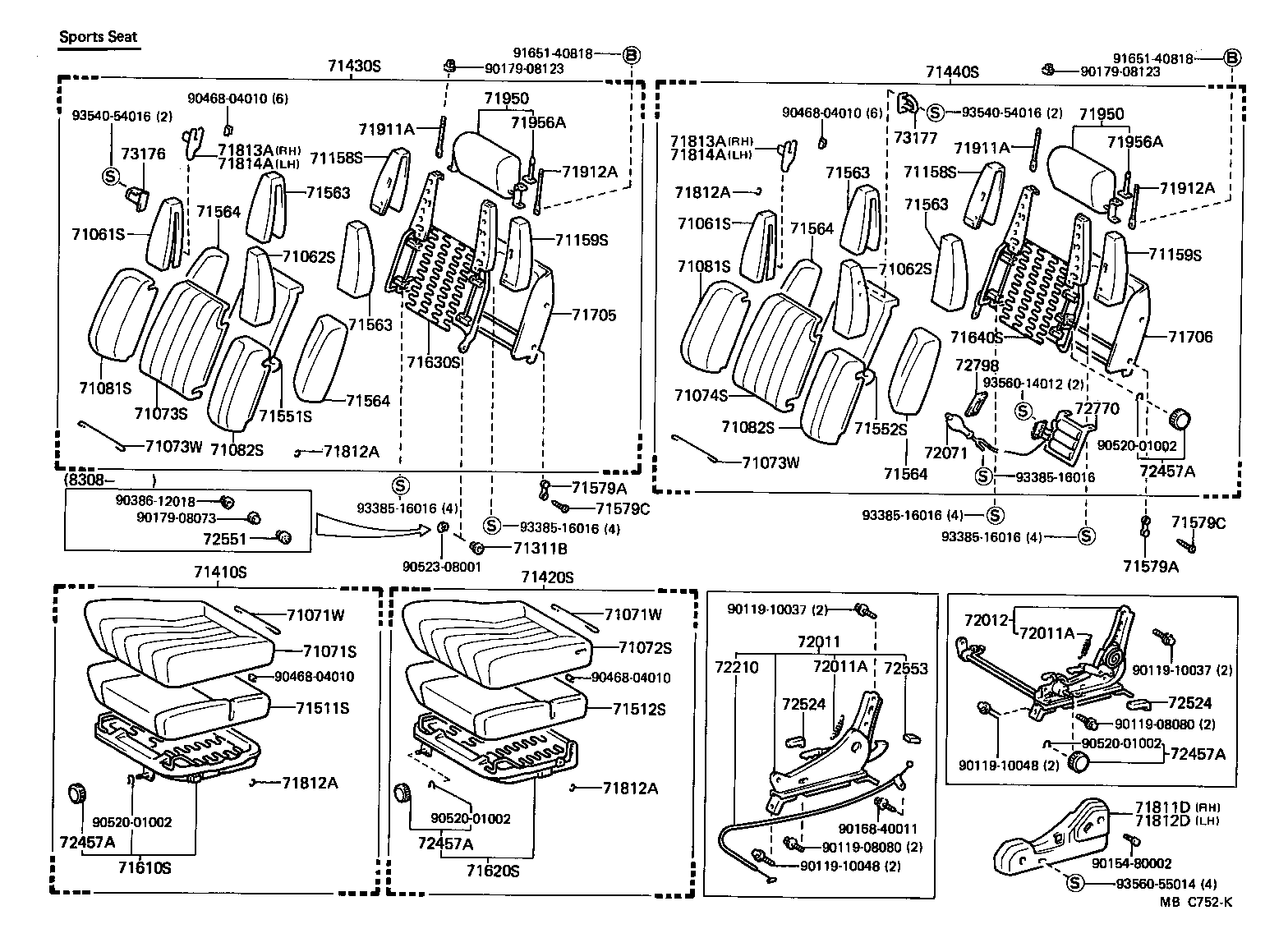

(8108- )GT,GTS,SPR
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71061S - COVER SUB-ASSY, FRONT SEAT BACK, UPPER RH | ||||
| 71061-1401001 |
MA61,RA64..GT,SPR *SPS,FB,BLACK,BLACK |
2 | ||
| 71061-1401004 |
MA61,RA64..GT,SPR *SPS,FB,BLUE,BLUE |
2 | ||
| 71061-1401006 |
RA64..GT *SPS,FB,DARK BROWN,BROWN |
2 | ||
| 71061S - COVER SUB-ASSY, FRONT SEAT BACK, UPPER RH | ||||
| 71061-1401001 |
MA61,RA64..GT,SPR *SPS,FB,BLACK,BLACK |
2 | ||
| 71061-1401004 |
MA61,RA64..GT,SPR *SPS,FB,BLUE,BLUE |
2 | ||
| 71061-1401006 |
RA64..GT *SPS,FB,DARK BROWN,BROWN |
2 | ||
| 71062S - COVER SUB-ASSY, FRONT SEAT BACK, UPPER LH | ||||
| 71062-1401001 |
MA61,RA64..GT,SPR *SPS,FB,BLACK,BLACK |
2 | ||
| 71062-1401006 |
RA64..GT *SPS,FB,DARK BROWN,BROWN |
2 | ||
| 71062-1401004 |
MA61,RA64..GT,SPR *SPS,FB,BLUE,BLUE |
2 | ||
| 71062S - COVER SUB-ASSY, FRONT SEAT BACK, UPPER LH | ||||
| 71062-1401001 |
MA61,RA64..GT,SPR *SPS,FB,BLACK,BLACK |
2 | ||
| 71062-1401006 |
RA64..GT *SPS,FB,DARK BROWN,BROWN |
2 | ||
| 71062-1401004 |
MA61,RA64..GT,SPR *SPS,FB,BLUE,BLUE |
2 | ||
| 71071S - COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71071-1B58003 |
RA64..GT FB,GRAY,GRAY |
1 | ||
| 71071-1B58004 |
RA64..GT FB,BLUE,BLUE |
1 | ||
| 71071-1B58005 |
RA64..GT FB,BEIGE,BEIGE |
1 | ||
| 71071-1B70004 |
MA61,RA64..GT,SPR *SPS,FB,BLUE,BLUE |
1 | ||
| 71071-1B70001 |
MA61,RA64..GT,SPR *SPS,FB,BLACK,BLACK |
1 | ||
| 71071-1B70006 |
RA64..GT *SPS,FB,DARK BROWN,BROWN |
1 | ||
| 71071-1B29005 |
RA64..GT..USA K-TY,BEIGE,BEIGE |
1 | ||
| 71071-1B29008 |
RA64..GT..USA K-TY,IVORY,IVORY |
1 | ||
| 71071W - WIRE, FRONT SEAT CUSHION COVER | ||||
| 90580-20041 |
MA61,RA6# L=220 |
2 | ||
| 90580-20007 |
MA61,RA6# L=1200 |
2 | ||
| 71071W - WIRE, FRONT SEAT CUSHION COVER | ||||
| 90580-20041 |
MA61,RA6# L=220 |
2 | ||
| 90580-20007 |
MA61,RA6# L=1200 |
2 | ||
| 71072S - COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) | ||||
| 71072-1B43004 |
MA61,RA64..GT,SPR *SPS,FB,BLUE,BLUE |
1 | ||
| 71072-1B43001 |
MA61,RA64..GT,SPR *SPS,FB,BLACK,BLACK |
1 | ||
| 71072-1B29005 |
RA64..GT..USA K-TY,BEIGE,BEIGE |
1 | ||
| 71072-1B56005 |
RA64..GT FB,BEIGE,BEIGE |
1 | ||
| 71072-1B43006 |
RA64..GT *SPS,FB,DARK BROWN,BROWN |
1 | ||
| 71072-1B56003 |
RA64..GT FB,GRAY,GRAY |
1 | ||
| 71072-1B29008 |
RA64..GT..USA K-TY,IVORY,IVORY |
1 | ||
| 71072-1B56004 |
RA64..GT FB,BLUE,BLUE |
1 | ||
| 71073S - COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71073-1B18001 |
MA61,RA64..GT,SPR *SPS,FB,BLACK,BLACK |
1 | ||
| 71073-1B18004 |
MA61,RA64..GT,SPR *SPS,FB,BLUE,BLUE |
1 | ||
| 71073-1B27003 |
RA64..GT FB,GRAY,GRAY |
1 | ||
| 71073-1B18006 |
RA64..GT *SPS,FB,DARK BROWN,BROWN |
1 | ||
| 71073-1B27005 |
RA64..GT FB,BEIGE,BEIGE |
1 | ||
| 71073-1B17008 |
RA64..GT..USA K-TY,IVORY,IVORY |
1 | ||
| 71073-1B17005 |
RA64..GT..USA K-TY,BEIGE,BEIGE |
1 | ||
| 71073-1B27004 |
RA64..GT FB,BLUE,BLUE |
1 | ||
| 71073W - WIRE, FRONT SEAT BACK COVER | ||||
| 90580-20020 |
MA61,RA6# L=420 |
4 | ||
| 71073W - WIRE, FRONT SEAT BACK COVER | ||||
| 90580-20020 |
MA61,RA6# L=420 |
4 | ||
| 71074S - COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71073-1B18006 |
RA64..GT *SPS,FB,DARK BROWN,BROWN |
1 | ||
| 71073-1B18004 |
MA61,RA64..GT,SPR *SPS,FB,BLUE,BLUE |
1 | ||
| 71074-1438005 |
RA64..GT FB,BEIGE,BEIGE |
1 | ||
| 71074-1430005 |
RA64..GT..USA K-TY,BEIGE,BEIGE |
1 | ||
| 71073-1B18001 |
MA61,RA64..GT,SPR *SPS,FB,BLACK,BLACK |
1 | ||
| 71074-1438003 |
RA64..GT FB,GRAY,GRAY |
1 | ||
| 71074-1438004 |
RA64..GT FB,BLUE,BLUE |
1 | ||
| 71074-1430008 |
RA64..GT..USA K-TY,IVORY,IVORY |
1 | ||
| 71081S - COVER SUB-ASSY, FRONT SEAT BACK SIDE, RH | ||||
| 71081-1401004 |
MA61,RA64..GT,SPR *SPS,FB,BLUE,BLUE |
2 | ||
| 71081-1401006 |
RA64..GT *SPS,FB,DARK BROWN,BROWN |
2 | ||
| 71081-1401001 |
MA61,RA64..GT,SPR *SPS,FB,BLACK,BLACK |
2 | ||
| 71081S - COVER SUB-ASSY, FRONT SEAT BACK SIDE, RH | ||||
| 71081-1401004 |
MA61,RA64..GT,SPR *SPS,FB,BLUE,BLUE |
2 | ||
| 71081-1401006 |
RA64..GT *SPS,FB,DARK BROWN,BROWN |
2 | ||
| 71081-1401001 |
MA61,RA64..GT,SPR *SPS,FB,BLACK,BLACK |
2 | ||
| 71082S - COVER SUB-ASSY, FRONT SEAT BACK SIDE, LH | ||||
| 71082-1401001 |
MA61,RA64..GT,SPR *SPS,FB,BLACK,BLACK |
2 | ||
| 71082-1401006 |
RA64..GT *SPS,FB,DARK BROWN,BROWN |
2 | ||
| 71082-1401004 |
MA61,RA64..GT,SPR *SPS,FB,BLUE,BLUE |
2 | ||
| 71082S - COVER SUB-ASSY, FRONT SEAT BACK SIDE, LH | ||||
| 71082-1401001 |
MA61,RA64..GT,SPR *SPS,FB,BLACK,BLACK |
2 | ||
| 71082-1401006 |
RA64..GT *SPS,FB,DARK BROWN,BROWN |
2 | ||
| 71082-1401004 |
MA61,RA64..GT,SPR *SPS,FB,BLUE,BLUE |
2 | ||
| 71158S - FRAME, FRONT SEAT BACK, UPPER RH | ||||
| 71158-14030 |
MA61,RA64..GT,SPR *SPS |
2 | ||
| 71158S - FRAME, FRONT SEAT BACK, UPPER RH | ||||
| 71158-14030 |
MA61,RA64..GT,SPR *SPS |
2 | ||
| 71159S - FRAME, FRONT SEAT BACK, UPPER LH | ||||
| 71159-14020 |
MA61,RA64..GT,SPR *SPS |
2 | ||
| 71159S - FRAME, FRONT SEAT BACK, UPPER LH | ||||
| 71159-14020 |
MA61,RA64..GT,SPR *SPS |
2 | ||
| 71311B - BUSH (FOR FRONT SEAT HINGE PIN) | ||||
| 90386-12018 |
MA61,RA6# |
2 | ||
| 71410S - CUSHION ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE) | ||||
| 71410-1B31005 |
RA64..GT FB,(CHATAM) BEIGE,BEIGE |
1 | ||
| 71410-1B32005 |
RA64..GT..USA K-TY,BEIGE,BEIGE |
1 | ||
| 71410-1B32008 |
RA64..GT..USA K-TY,IVORY,IVORY |
1 | ||
| 71410-1B31003 |
RA64..GT FB,(CHATAM) GRAY,GRAY |
1 | ||
| 71410-1B47001 |
MA61,RA64..GT,SPR *SPS,BLACK,BLACK |
1 | ||
| 71410-1B31004 |
RA64..GT FB,(CHATAM) BLUE,BLUE |
1 | ||
| 71410-1B47004 |
MA61,RA64..GT,SPR *SPS,BLUE,BLUE |
1 | ||
| 71410-1B47006 |
RA64..GT *SPS,DARK BROWN,BROWN |
1 | ||
| 71410-1B63003 |
RA64..GT FB,GRAY,GRAY |
1 | ||
| 71410-1B63005 |
RA64..GT FB,BEIGE,BEIGE |
1 | ||
| 71410-1B63004 |
RA64..GT FB,BLUE,BLUE |
1 | ||
| 71420S - CUSHION ASSY, FRONT SEAT, LH (FOR SEPARATE TYPE) | ||||
| 71420-1B30005 |
RA64..GT FB,(CHATAM) BEIGE,BEIGE |
1 | ||
| 71420-1B30003 |
RA64..GT FB,(CHATAM) GRAY,GRAY |
1 | ||
| 71420-1B62004 |
RA64..GT FB,BLUE,BLUE |
1 | ||
| 71420-1B31005 |
RA64..GT..USA K-TY,BEIGE,BEIGE |
1 | ||
| 71420-1B30004 |
RA64..GT FB,(CHATAM) BLUE,BLUE |
1 | ||
| 71420-1B62005 |
RA64..GT FB,BEIGE,BEIGE |
1 | ||
| 71420-1B70004 |
MA61,RA64..GT,SPR *SPS,BLUE,BLUE |
1 | ||
| 71420-1B31008 |
RA64..GT..USA K-TY,IVORY,IVORY |
1 | ||
| 71420-1B70001 |
MA61,RA64..GT,SPR *SPS,BLACK,BLACK |
1 | ||
| 71420-1B70006 |
RA64..GT *SPS,DARK BROWN,BROWN |
1 | ||
| 71420-1B62003 |
RA64..GT FB,GRAY,GRAY |
1 | ||

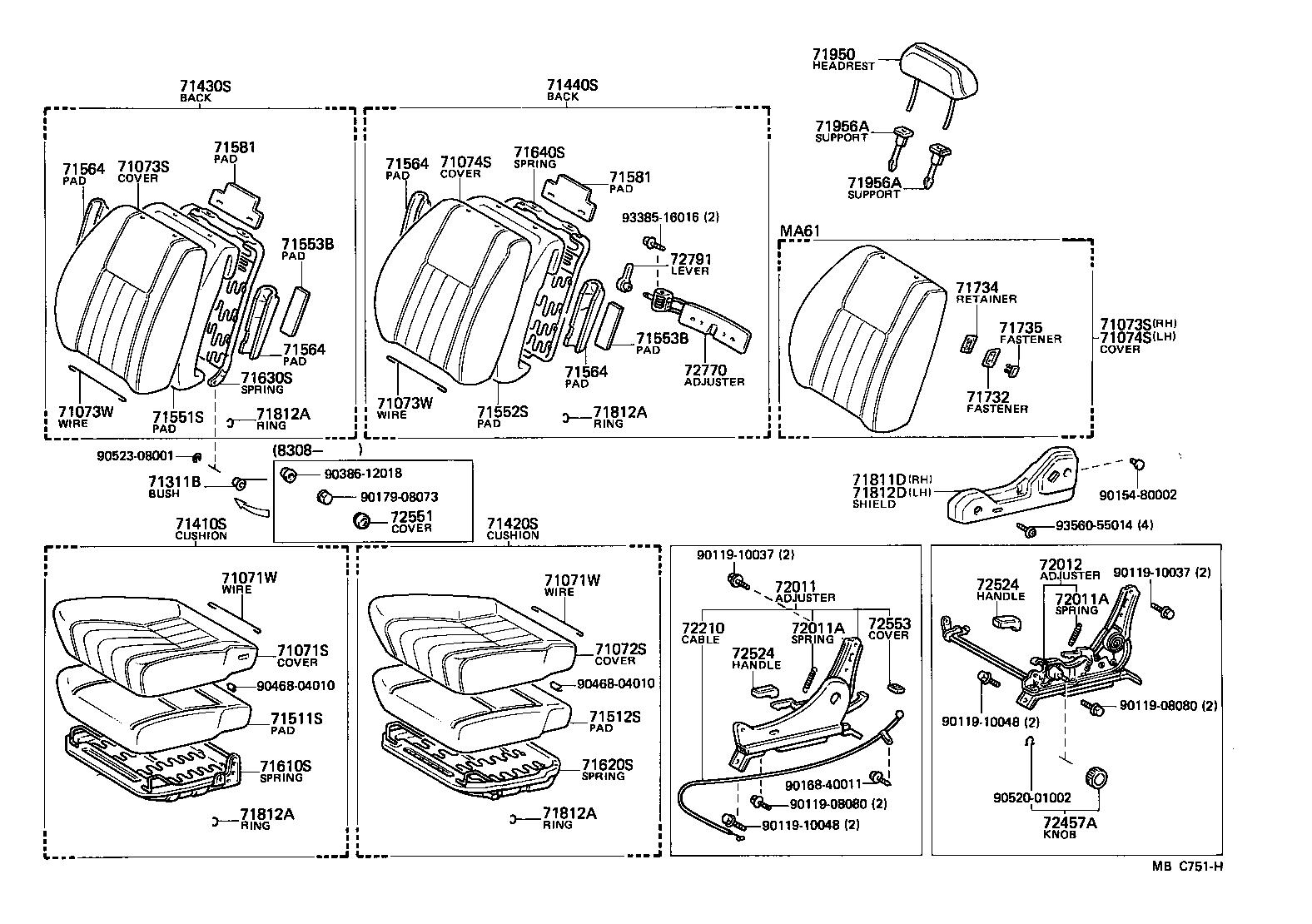

| 71430S - BACK ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE) | ||||
| 71430-1B26003 |
RA64..GT FB,(CHATAM) GRAY,GRAY |
1 | ||
| 71430-1B26004 |
RA64..GT FB,(CHATAM) BLUE,BLUE |
1 | ||
| 71430-1B38006 |
RA64..GT *SPS,DARK BROWN,BROWN |
1 | ||
| 71430-1B38004 |
MA61,RA64..GT,SPR *SPS,BLUE,BLUE |
1 | ||
| 71430-1B26005 |
RA64..GT FB,(CHATAM) BEIGE,BEIGE |
1 | ||
| 71430-1B27005 |
RA64..GT..USA K-TY,BEIGE,BEIGE |
1 | ||
| 71430-1B27008 |
RA64..GT..USA K-TY,IVORY,IVORY |
1 | ||
| 71430-1B51005 |
RA64..GT FB,BEIGE,BEIGE |
1 | ||
| 71430-1B51003 |
RA64..GT FB,GRAY,GRAY |
1 | ||
| 71430-1B38001 |
MA61,RA64..GT,SPR *SPS,BLACK,BLACK |
1 | ||
| 71430-1B51004 |
RA64..GT FB,BLUE,BLUE |
1 | ||
| 71440S - BACK ASSY, FRONT SEAT, LH(FOR SEPARATE TYPE) | ||||
| 71440-1B23003 |
RA64..GT FB,(CHATAM) GRAY,GRAY |
1 | ||
| 71440-1B23005 |
RA64..GT FB,(CHATAM) BEIGE,BEIGE |
1 | ||
| 71440-1B46005 |
RA64..GT FB,BEIGE,BEIGE |
1 | ||
| 71440-1B46003 |
RA64..GT FB,GRAY,GRAY |
1 | ||
| 71440-1B23004 |
RA64..GT FB,(CHATAM) BLUE,BLUE |
1 | ||
| 71440-1B49001 |
MA61,RA64..GT,SPR *SPS,BLACK,BLACK |
1 | ||
| 71440-1B46004 |
RA64..GT FB,BLUE,BLUE |
1 | ||
| 71440-1B24008 |
RA64..GT..USA K-TY,IVORY,IVORY |
1 | ||
| 71440-1B49006 |
RA64..GT *SPS,DARK BROWN,BROWN |
1 | ||
| 71440-1B24005 |
RA64..GT..USA K-TY,BEIGE,BEIGE |
1 | ||
| 71440-1B49004 |
MA61,RA64..GT,SPR *SPS,BLUE,BLUE |
1 | ||
| 71511S - PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71511-14160 |
MA61,RA64..GT,SPR *SPS |
1 | ||
| 71511-14140 |
RA64 |
1 | ||
| 71512S - PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE) | ||||
| 71511-14140 |
RA64 |
1 | ||
| 71511-14160 |
MA61,RA64..GT,SPR *SPS |
1 | ||
| 71551S - PAD, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71551-14140 |
RA64 |
1 | ||
| 71551-14160 |
MA61,RA64..GT,SPR *SPS |
1 | ||
| 71552S - PAD, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71552-14020 |
MA61,RA64..GT,SPR *SPS |
1 | ||
| 71551-14140 |
RA64 |
1 | ||
| 71563 - PAD, FRONT SEAT BACK, UPPER | ||||
| 71561-14200 |
MA61,RA64..GT,SPR *SPS,RH |
2 | ||
| 71562-14040 |
MA61,RA64..GT,SPR *SPS,LH |
2 | ||
| 71563 - PAD, FRONT SEAT BACK, UPPER | ||||
| 71561-14200 |
MA61,RA64..GT,SPR *SPS,RH |
2 | ||
| 71562-14040 |
MA61,RA64..GT,SPR *SPS,LH |
2 | ||
| 71563 - PAD, FRONT SEAT BACK, UPPER | ||||
| 71561-14200 |
MA61,RA64..GT,SPR *SPS,RH |
2 | ||
| 71562-14040 |
MA61,RA64..GT,SPR *SPS,LH |
2 | ||
| 71563 - PAD, FRONT SEAT BACK, UPPER | ||||
| 71561-14200 |
MA61,RA64..GT,SPR *SPS,RH |
2 | ||
| 71562-14040 |
MA61,RA64..GT,SPR *SPS,LH |
2 | ||
| 71564 - PAD, FRONT SEAT BACK, SIDE | ||||
| 71563-14060 |
MA61,RA64..GT,SPR *SPS,RH |
2 | ||
| 71564-14030 |
MA61,RA64 LH |
2 | ||
| 71563-14040 |
MA61,RA64 RH |
2 | ||
| 71564-14050 |
MA61,RA64..GT,SPR *SPS,LH |
2 | ||
| 71564 - PAD, FRONT SEAT BACK, SIDE | ||||
| 71563-14060 |
MA61,RA64..GT,SPR *SPS,RH |
2 | ||
| 71564-14030 |
MA61,RA64 LH |
2 | ||
| 71563-14040 |
MA61,RA64 RH |
2 | ||
| 71564-14050 |
MA61,RA64..GT,SPR *SPS,LH |
2 | ||
| 71564 - PAD, FRONT SEAT BACK, SIDE | ||||
| 71563-14060 |
MA61,RA64..GT,SPR *SPS,RH |
2 | ||
| 71564-14030 |
MA61,RA64 LH |
2 | ||
| 71563-14040 |
MA61,RA64 RH |
2 | ||
| 71564-14050 |
MA61,RA64..GT,SPR *SPS,LH |
2 | ||
| 71564 - PAD, FRONT SEAT BACK, SIDE | ||||
| 71563-14060 |
MA61,RA64..GT,SPR *SPS,RH |
2 | ||
| 71564-14030 |
MA61,RA64 LH |
2 | ||
| 71563-14040 |
MA61,RA64 RH |
2 | ||
| 71564-14050 |
MA61,RA64..GT,SPR *SPS,LH |
2 | ||
| 71579A - WASHER, FRONT SEAT BACK BOARD SETTING | ||||
| 71788-2201014 |
MA61,RA64..GT,SPR *SPS,BLUE,BLUE |
8 | ||
| 71788-2201006 |
RA64..GT *SPS,DARK BROWN,BROWN |
8 | ||
| 71788-2201001 |
MA61,RA64..GT,SPR *SPS,BLACK,BLACK |
8 | ||
| 71579A - WASHER, FRONT SEAT BACK BOARD SETTING | ||||
| 71788-2201014 |
MA61,RA64..GT,SPR *SPS,BLUE,BLUE |
8 | ||
| 71788-2201006 |
RA64..GT *SPS,DARK BROWN,BROWN |
8 | ||
| 71788-2201001 |
MA61,RA64..GT,SPR *SPS,BLACK,BLACK |
8 | ||
| 71579C - SCREW, FRONT SEAT BACK BOARD SETTING | ||||
| 90159-6015606 |
RA64..GT *SPS,DARK BROWN,BROWN |
8 | ||
| 90159-6015604 |
MA61,RA64..GT,SPR *SPS,BLUE,BLUE |
8 | ||
| 93520-14020 |
MA61,RA64..GT,SPR *SPS |
8 | ||
| 90159-6015601 |
MA61,RA64..GT,SPR *SPS,BLACK,BLACK |
8 | ||
| 71579C - SCREW, FRONT SEAT BACK BOARD SETTING | ||||
| 90159-6015606 |
RA64..GT *SPS,DARK BROWN,BROWN |
8 | ||
| 90159-6015604 |
MA61,RA64..GT,SPR *SPS,BLUE,BLUE |
8 | ||
| 93520-14020 |
MA61,RA64..GT,SPR *SPS |
8 | ||
| 90159-6015601 |
MA61,RA64..GT,SPR *SPS,BLACK,BLACK |
8 | ||
| 71610S - SPRING ASSY, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71610-14180 |
MA61,RA64..GT,SPR *SPS |
1 | ||
| 71610-14060 |
MA61,RA64 |
1 | ||
| 71620S - SPRING ASSY, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) | ||||
| 71620-14130 |
MA61,RA64..GT,SPR |
1 | ||
| 71620-14150 |
MA61,RA64..GT,SPR *SPS |
1 | ||
| 71630S - SPRING ASSY, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71630-14140 |
MA61,RA64..GT,SPR *SPS |
1 | ||
| 71630-14141 |
MA61,RA64..GT,SPR *SPS |
1 | ||
| 71630-14110 |
MA61,RA64 |
1 | ||
| 71640S - SPRING ASSY, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71640-14140 |
MA61,RA64..GT,SPR *SPS |
1 | ||
| 71640-14141 |
MA61,RA64..GT,SPR *SPS |
1 | ||
| 71640-14120 |
MA61,RA64..GT,SPR |
1 | ||
| 71705 - BOARD SUB-ASSY, FRONT SEAT BACK, RH | ||||
| 71705-1402004 |
MA61,RA64..GT,SPR *SPS,BLUE,BLUE |
1 | ||
| 71705-1402104 |
MA61,RA64..GT,SPR *SPS,BLUE,BLUE |
1 | ||
| 71705-1402101 |
MA61,RA64..GT,SPR *SPS,BLACK,BLACK |
1 | ||
| 71705-1402106 |
RA64..GT *SPS,DARK BROWN,BROWN |
1 | ||
| 71705-1402001 |
MA61,RA64..GT,SPR *SPS,BLACK,BLACK |
1 | ||
| 71705-1402006 |
RA64..GT *SPS,DARK BROWN,BROWN |
1 | ||
| 71706 - BOARD SUB-ASSY, FRONT SEAT BACK, LH | ||||
| 71706-1402006 |
RA64..GT *SPS,DARK BROWN,BROWN |
1 | ||
| 71706-1402004 |
MA61,RA64..GT,SPR *SPS,BLUE,BLUE |
1 | ||
| 71706-1402106 |
RA64..GT *SPS,DARK BROWN,BROWN |
1 | ||
| 71706-1402104 |
MA61,RA64..GT,SPR *SPS,BLUE,BLUE |
1 | ||
| 71706-1402001 |
MA61,RA64..GT,SPR *SPS,BLACK,BLACK |
1 | ||
| 71706-1402101 |
MA61,RA64..GT,SPR *SPS,BLACK,BLACK |
1 | ||
| 71811D - SHIELD, FRONT SEAT CUSHION, RH | ||||
| 71811-1406006 |
RA6#..CP,LB DARK BROWN,BROWN |
1 | ||
| 71811-1406001 |
MA61,RA6# BLACK,BLACK |
1 | ||
| 71811-1406004 |
MA61,RA6#..CP,LB BLUE,BLUE |
1 | ||
| 71812A - RING, HOG, SMALL (FOR FRONT SEAT) | ||||
| 90468-18071 |
MA61,RA6# |
1 | ||
| 71812A - RING, HOG, SMALL (FOR FRONT SEAT) | ||||
| 90468-18071 |
MA61,RA6# |
1 | ||
| 71812A - RING, HOG, SMALL (FOR FRONT SEAT) | ||||
| 90468-18071 |
MA61,RA6# |
1 | ||
| 71812A - RING, HOG, SMALL (FOR FRONT SEAT) | ||||
| 90468-18071 |
MA61,RA6# |
1 | ||
| 71812D - SHIELD, FRONT SEAT CUSHION, LH | ||||
| 71812-1408001 |
MA61,RA6#..GT,GTS,SPR BLACK,BLACK |
1 | ||
| 71812-1408004 |
MA61,RA6#..(CP,LB)..(GT,GTS,SPR) BLUE,BLUE |
1 | ||
| 71812-1408006 |
RA6#..(CP,LB)..(GT,GTS) DARK BROWN,BROWN |
1 | ||
| 71813A - SHIELD, FRONT SEAT BACK, RH | ||||
| 71813-1403001 |
MA61,RA64..GT,SPR *SPS,BLACK,BLACK |
2 | ||
| 71813-1403006 |
RA64..GT *SPS,DARK BROWN,BROWN |
2 | ||
| 71813-1403004 |
MA61,RA64..GT,SPR *SPS,BLUE,BLUE |
2 | ||
| 71813A - SHIELD, FRONT SEAT BACK, RH | ||||
| 71813-1403001 |
MA61,RA64..GT,SPR *SPS,BLACK,BLACK |
2 | ||
| 71813-1403006 |
RA64..GT *SPS,DARK BROWN,BROWN |
2 | ||
| 71813-1403004 |
MA61,RA64..GT,SPR *SPS,BLUE,BLUE |
2 | ||
| 71814A - SHIELD, FRONT SEAT BACK, LH | ||||
| 71814-1401006 |
RA64..GT *SPS,DARK BROWN,BROWN |
2 | ||
| 71814-1401004 |
MA61,RA64..GT,SPR *SPS,BLUE,BLUE |
2 | ||
| 71814-1401001 |
MA61,RA64..GT,SPR *SPS,BLACK,BLACK |
2 | ||
| 71814A - SHIELD, FRONT SEAT BACK, LH | ||||
| 71814-1401006 |
RA64..GT *SPS,DARK BROWN,BROWN |
2 | ||
| 71814-1401004 |
MA61,RA64..GT,SPR *SPS,BLUE,BLUE |
2 | ||
| 71814-1401001 |
MA61,RA64..GT,SPR *SPS,BLACK,BLACK |
2 | ||
| 71911A - STAY, FRONT SEAT HEADREST, RH | ||||
| 71911-14050 |
MA61,RA64..GT,SPR *SPS |
2 | ||
| 71911A - STAY, FRONT SEAT HEADREST, RH | ||||
| 71911-14050 |
MA61,RA64..GT,SPR *SPS |
2 | ||
| 71912A - STAY, FRONT SEAT HEADREST, LH | ||||
| 71912-14040 |
MA61,RA64..GT,SPR *SPS |
2 | ||
| 71912A - STAY, FRONT SEAT HEADREST, LH | ||||
| 71912-14040 |
MA61,RA64..GT,SPR *SPS |
2 | ||
| 71950 - HEADREST ASSY, FRONT SEAT | ||||
| 71910-1442001 |
MA61,RA64..GT,SPR *SPS,BLACK,BLACK |
2 | ||
| 71910-1442004 |
MA61,RA64..GT,SPR *SPS,BLUE,BLUE |
2 | ||
| 71910-1436004 |
RA64 BLUE,BLUE |
2 | ||
| 71910-1436006 |
RA64 DARK BROWN,BROWN |
2 | ||
| 71910-1442006 |
RA64..GT *SPS,DARK BROWN,BROWN |
2 | ||
| 71910-1436008 |
RA64 IVORY,IVORY |
2 | ||
| 71910-1436001 |
RA64 BLACK,BLACK |
2 | ||
| 71950 - HEADREST ASSY, FRONT SEAT | ||||
| 71910-1442001 |
MA61,RA64..GT,SPR *SPS,BLACK,BLACK |
2 | ||
| 71910-1442004 |
MA61,RA64..GT,SPR *SPS,BLUE,BLUE |
2 | ||
| 71910-1436004 |
RA64 BLUE,BLUE |
2 | ||
| 71910-1436006 |
RA64 DARK BROWN,BROWN |
2 | ||
| 71910-1442006 |
RA64..GT *SPS,DARK BROWN,BROWN |
2 | ||
| 71910-1436008 |
RA64 IVORY,IVORY |
2 | ||
| 71910-1436001 |
RA64 BLACK,BLACK |
2 | ||
| 71956A - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-1408001 |
MA61,RA64..GT,SPR W(LOCK),W/LOCK,*SPS,BLACK,BLACK |
2 | ||
| 71931-1401001 |
MA61,RA64..GT,SPR W/O(LOCK),W/O LOCK,*SPS,BLACK,BLACK |
2 | ||
| 71931-1401004 |
MA61,RA64..GT,SPR W/O(LOCK),W/O LOCK,*SPS,BLUE,BLUE |
2 | ||
| 71931-1001016 |
RA64 W/O(LOCK),W/O LOCK,DARK BROWN,SABLE |
2 | ||
| 71930-1006001 |
MA61,RA64 W(LOCK),W/LOCK,BLACK,BLACK |
2 | ||
| 71931-1401006 |
RA64..GT W/O(LOCK),W/O LOCK,*SPS,DARK BROWN,SABLE |
2 | ||
| 71930-1006016 |
RA64 W(LOCK),W/LOCK,DARK BROWN,SABLE |
2 | ||
| 71930-1408006 |
RA64..GT W(LOCK),W/LOCK,*SPS,DARK BROWN,SABLE |
2 | ||
| 71930-1006004 |
MA61,RA64 W(LOCK),W/LOCK,BLUE,BLUE |
2 | ||
| 71931-1001001 |
MA61,RA64 W/O(LOCK),W/O LOCK,BLACK,BLACK |
2 | ||
| 71930-1408004 |
MA61,RA64..GT,SPR W(LOCK),W/LOCK,*SPS,BLUE,BLUE |
2 | ||
| 71931-1001004 |
MA61,RA64 W/O(LOCK),W/O LOCK,BLUE,BLUE |
2 | ||
| 71956A - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-1408001 |
MA61,RA64..GT,SPR W(LOCK),W/LOCK,*SPS,BLACK,BLACK |
2 | ||
| 71931-1401001 |
MA61,RA64..GT,SPR W/O(LOCK),W/O LOCK,*SPS,BLACK,BLACK |
2 | ||
| 71931-1401004 |
MA61,RA64..GT,SPR W/O(LOCK),W/O LOCK,*SPS,BLUE,BLUE |
2 | ||
| 71931-1001016 |
RA64 W/O(LOCK),W/O LOCK,DARK BROWN,SABLE |
2 | ||
| 71930-1006001 |
MA61,RA64 W(LOCK),W/LOCK,BLACK,BLACK |
2 | ||
| 71931-1401006 |
RA64..GT W/O(LOCK),W/O LOCK,*SPS,DARK BROWN,SABLE |
2 | ||
| 71930-1006016 |
RA64 W(LOCK),W/LOCK,DARK BROWN,SABLE |
2 | ||
| 71930-1408006 |
RA64..GT W(LOCK),W/LOCK,*SPS,DARK BROWN,SABLE |
2 | ||
| 71930-1006004 |
MA61,RA64 W(LOCK),W/LOCK,BLUE,BLUE |
2 | ||
| 71931-1001001 |
MA61,RA64 W/O(LOCK),W/O LOCK,BLACK,BLACK |
2 | ||
| 71930-1408004 |
MA61,RA64..GT,SPR W(LOCK),W/LOCK,*SPS,BLUE,BLUE |
2 | ||
| 71931-1001004 |
MA61,RA64 W/O(LOCK),W/O LOCK,BLUE,BLUE |
2 | ||
| 72011 - ADJUSTER SUB-ASSY, FRONT SEAT, OUTER RH | ||||
| 72010-14290 |
MA61,RA64..GT,SPR W/*SPS |
1 | ||
| 72010-14280 |
MA61,RA64 |
1 | ||
| 72011A - SPRING, TENSION (FOR FRONT SEAT ADJUSTER OUTER) | ||||
| 90506-18015 |
MA61,RA6# |
2 | ||
| 72011A - SPRING, TENSION (FOR FRONT SEAT ADJUSTER OUTER) | ||||
| 90506-18015 |
MA61,RA6# |
2 | ||
| 72012 - ADJUSTER SUB-ASSY, FRONT SEAT, OUTER LH | ||||
| 72020-14300 |
MA61,RA64..GT,SPR |
1 | ||
| 72020-14310 |
MA61,RA64..GT,SPR W/*SPS |
1 | ||
| 72071 - PUMP SUB-ASSY, LUMBER SUPPORT | ||||
| 72072-1401004 |
MA61,RA6#..(CP,LB)..(GT,GTS,SPR) BLUE,BLUE |
1 | ||
| 72072-1401001 |
MA61,RA6#..GT,GTS,SPR BLACK,BLACK |
1 | ||
| 72072-1401006 |
RA6#..(CP,LB)..(GT,GTS) DARK BROWN,BROWN |
1 | ||
| 72210 - CABLE ASSY, SEAT TRACK CONTROL | ||||
| 72210-14090 |
MA61,RA6# |
1 | ||
| 72457A - KNOB, SEAT ADJUSTER | ||||
| 72457-1403006 |
RA64..GT DARK BROWN,D=58,BROWN |
4 | ||
| 72457-1403001 |
MA61,RA64..GT,SPR BLACK,D=58,BLACK |
4 | ||
| 72457-1403004 |
MA61,RA64..GT,SPR BLUE,D=58,BLUE |
4 | ||
| 72457A - KNOB, SEAT ADJUSTER | ||||
| 72457-1403006 |
RA64..GT DARK BROWN,D=58,BROWN |
4 | ||
| 72457-1403001 |
MA61,RA64..GT,SPR BLACK,D=58,BLACK |
4 | ||
| 72457-1403004 |
MA61,RA64..GT,SPR BLUE,D=58,BLUE |
4 | ||
| 72457A - KNOB, SEAT ADJUSTER | ||||
| 72457-1403006 |
RA64..GT DARK BROWN,D=58,BROWN |
4 | ||
| 72457-1403001 |
MA61,RA64..GT,SPR BLACK,D=58,BLACK |
4 | ||
| 72457-1403004 |
MA61,RA64..GT,SPR BLUE,D=58,BLUE |
4 | ||
| 72457A - KNOB, SEAT ADJUSTER | ||||
| 72457-1403006 |
RA64..GT DARK BROWN,D=58,BROWN |
4 | ||
| 72457-1403001 |
MA61,RA64..GT,SPR BLACK,D=58,BLACK |
4 | ||
| 72457-1403004 |
MA61,RA64..GT,SPR BLUE,D=58,BLUE |
4 | ||
| 72524 - HANDLE, RECLINING ADJUSTER RELEASE | ||||
| 72525-1401016 |
RA6#..CP,LB RH,DARK BROWN,BROWN |
1 | ||
| 72525-1401001 |
MA61,RA6# RH,BLACK,BLACK |
1 | ||
| 72526-1401016 |
RA6#..CP,LB LH,DARK BROWN,BROWN |
1 | ||
| 72525-1401014 |
MA61,RA6#..CP,LB RH,BLUE,BLUE |
1 | ||
| 72526-1401001 |
MA61,RA6# LH,BLACK,BLACK |
1 | ||
| 72526-1401014 |
MA61,RA6#..CP,LB LH,BLUE,BLUE |
1 | ||
| 72524 - HANDLE, RECLINING ADJUSTER RELEASE | ||||
| 72525-1401016 |
RA6#..CP,LB RH,DARK BROWN,BROWN |
1 | ||
| 72525-1401001 |
MA61,RA6# RH,BLACK,BLACK |
1 | ||
| 72526-1401016 |
RA6#..CP,LB LH,DARK BROWN,BROWN |
1 | ||
| 72525-1401014 |
MA61,RA6#..CP,LB RH,BLUE,BLUE |
1 | ||
| 72526-1401001 |
MA61,RA6# LH,BLACK,BLACK |
1 | ||
| 72526-1401014 |
MA61,RA6#..CP,LB LH,BLUE,BLUE |
1 | ||
| 72553 - COVER, RECLINING PEDAL | ||||
| 72553-12030 |
MA61,RA6# |
1 | ||
| 72770 - ADJUSTER ASSY, LUMBAR SUPPORT, LH | ||||
| 72760-14050 |
MA61,RA64..GT,SPR |
1 | ||
| 72760-14040 |
MA61,RA64..GT,SPR W/*SPS |
1 | ||
| 72798 - COVER, LUMBAR SUPPORT SWITCH | ||||
| 72798-1401001 |
MA61,RA64..GT,SPR W/*SPS,BLACK,BLACK |
1 | ||
| 72798-1401006 |
RA64..GT W/*SPS,DARK BROWN,BROWN |
1 | ||
| 72798-1401004 |
MA61,RA64..GT,SPR W/*SPS,BLUE,BLUE |
1 | ||
| Common parts | ||||
| 90119-08080 | ||||
| 90119-10037 | ||||
| 90119-10048 | ||||
| 90154-80002 | ||||
| 90168-40011 | ||||
| 90179-08073 | ||||
| 90179-08123 | ||||
| 90386-12018 | ||||
| 90468-04010 | ||||
| 90520-01002 | ||||
| 90523-08001 | ||||
| 91651-40818 | ||||
| 93385-16016 | ||||
| 93540-54016 | ||||
| 93560-14012 | ||||
| 93560-55014 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
