RA64L-BCPQSA (1981)

Toyota Celica

Production Aug 1981 - Aug 1982
Engine 22R
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8108- )

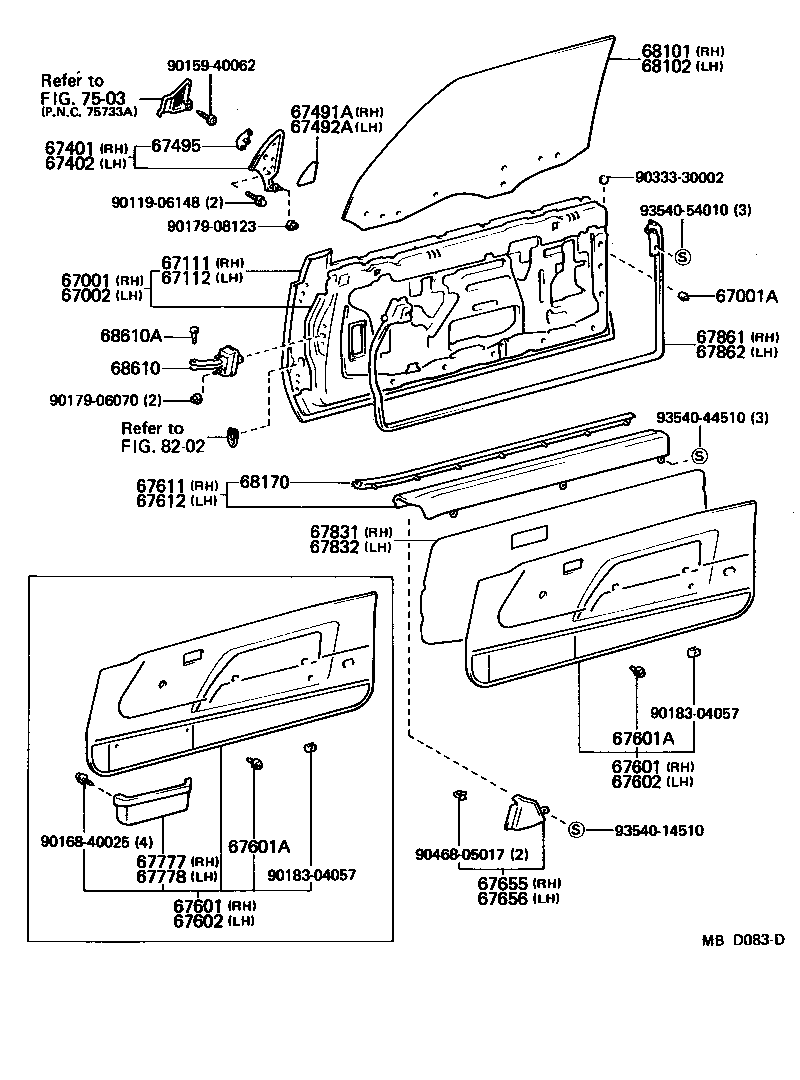

Click highlighted areas on diagram

diagram 67001 67001A 67002 67111 67112 67401 67402 67491A 67492A 67495 67601 67601 67601A 67601A 67602 67602 67611 67612 67655 67656 67777 67778 67831 67832 67861 67862 68101 68102 68170 68610 68610A 7503 8202 9011906148 9015940062 9016840025 9017906070 9017908123 9018304057 9018304057 9033330002 9046805017 9354014510 9354044510 9354054010
Part # Description Qty Price
67001 - PANEL SUB-ASSY, FRONT DOOR, RH
67001-14240

MA61,RA6#

 1
67001A - CUSHION, FRONT DOOR PANEL
90541-09006

MA61,RA6#

 2
67002 - PANEL SUB-ASSY, FRONT DOOR, LH
67002-14270

MA61,RA6#

 1
67111 - PANEL, FRONT DOOR, OUTER RH
67111-14180

MA61,RA6#

 1
67112 - PANEL, FRONT DOOR, OUTER LH
67112-14190

MA61,RA6#

 1
67401 - BAR SUB-ASSY, FRONT DOOR WINDOW, FRONT RH
67401-14170

MA61,RA6#

W/*RCM

 1
67402 - BAR SUB-ASSY, FRONT DOOR WINDOW, FRONT LH
67402-14170

MA61,RA6#

 1
67491A - GARNISH, FRONT DOOR LOWER FRAME BRACKET, RH
67491-14070

MA61,RA6#

 1
67492A - GARNISH, FRONT DOOR LOWER FRAME BRACKET, LH
67492-14070

MA61,RA6#

 1
67601 - BOARD SUB-ASSY, FRONT DOOR TRIM, RH
67610-1B53001

RA64..GT

BLACK,BLACK

 1
67610-1B53004

RA64..GT

BLUE,BLUE

 1
67610-1B60001

RA64..GT

W/SPORTS SEAT,BLACK,BLACK

 1
67610-1B60004

RA64..GT

W/SPORTS SEAT,BLUE,BLUE

 1
67610-1B53006

RA64..GT

DARK BROWN,BROWN

 1
67610-1B60006

RA64..GT

W/SPORTS SEAT,DARK BROWN,BROWN

 1
67610-1B66006

RA64..GT..USA

K-TY,DARK BROWN,BROWN

 1
67610-1B66008

RA64..GT..USA

K-TY,IVORY,IVORY

 1
67601 - BOARD SUB-ASSY, FRONT DOOR TRIM, RH
67610-1B53001

RA64..GT

BLACK,BLACK

 1
67610-1B53004

RA64..GT

BLUE,BLUE

 1
67610-1B60001

RA64..GT

W/SPORTS SEAT,BLACK,BLACK

 1
67610-1B60004

RA64..GT

W/SPORTS SEAT,BLUE,BLUE

 1
67610-1B53006

RA64..GT

DARK BROWN,BROWN

 1
67610-1B60006

RA64..GT

W/SPORTS SEAT,DARK BROWN,BROWN

 1
67610-1B66006

RA64..GT..USA

K-TY,DARK BROWN,BROWN

 1
67610-1B66008

RA64..GT..USA

K-TY,IVORY,IVORY

 1
67601A - RETAINER(FOR FRONT DOOR TRIM BOARD)
67771-12010

MA61,RA6#

 22
67601A - RETAINER(FOR FRONT DOOR TRIM BOARD)
67771-12010

MA61,RA6#

 22
67602 - BOARD SUB-ASSY, FRONT DOOR TRIM, LH
67620-1B33001

RA64..GT

W/SPORTS SEAT,BLACK,BLACK

 1
67620-1B34001

RA64..GT

BLACK,BLACK

 1
67620-1B33006

RA64..GT

W/SPORTS SEAT,DARK BROWN,BROWN

 1
67620-1B33004

RA64..GT

W/SPORTS SEAT,BLUE,BLUE

 1
67620-1B34004

RA64..GT

BLUE,BLUE

 1
67620-1B34006

RA64..GT

DARK BROWN,BROWN

 1
67620-1B79008

RA64..GT..USA

K-TY,IVORY,IVORY

 1
67620-1B79006

RA64..GT..USA

K-TY,DARK BROWN,BROWN

 1
67602 - BOARD SUB-ASSY, FRONT DOOR TRIM, LH
67620-1B33001

RA64..GT

W/SPORTS SEAT,BLACK,BLACK

 1
67620-1B34001

RA64..GT

BLACK,BLACK

 1
67620-1B33006

RA64..GT

W/SPORTS SEAT,DARK BROWN,BROWN

 1
67620-1B33004

RA64..GT

W/SPORTS SEAT,BLUE,BLUE

 1
67620-1B34004

RA64..GT

BLUE,BLUE

 1
67620-1B34006

RA64..GT

DARK BROWN,BROWN

 1
67620-1B79008

RA64..GT..USA

K-TY,IVORY,IVORY

 1
67620-1B79006

RA64..GT..USA

K-TY,DARK BROWN,BROWN

 1
67611 - BOARD, FRONT DOOR TRIM, UPPER RH
67610-1B77006

RA6#..CP,LB

DARK BROWN,BROWN

 1
67610-1B77004

MA61,RA6#..CP,LB

BLUE,BLUE

 1
67610-1B77001

MA61,RA6#

BLACK,BLACK

 1
67612 - BOARD, FRONT DOOR TRIM, UPPER LH
67620-1B46006

RA6#..CP,LB

DARK BROWN,BROWN

 1
67620-1B46004

MA61,RA6#..CP,LB

BLUE,BLUE

 1
67620-1B46001

MA61,RA6#

BLACK,BLACK

 1
67655 - GARNISH, FRONT DOOR TRIM, RH
67655-1401006

RA6#..CP,LB

DARK BROWN,BROWN

 1
67655-1401004

MA61,RA6#..CP,LB

BLUE,BLUE

 1
67655-1401001

MA61,RA6#

BLACK,BLACK

 1
67656 - GARNISH, DOOR TRIM, LH
67656-1401006

RA6#..CP,LB

DARK BROWN,BROWN

 1
67656-1401004

MA61,RA6#..CP,LB

BLUE,BLUE

 1
67656-1401001

MA61,RA6#

BLACK,BLACK

 1
67831 - COVER, FRONT DOOR SERVICE HOLE, RH
67831-14140

MA61,RA6#

 1
67832 - COVER, FRONT DOOR SERVICE HOLE, LH
67832-14060

MA61,RA6#

 1
67861 - WEATHERSTRIP, FRONT DOOR, RH
67861-14250

MA61,RA6#..CP,LB

 1
67862 - WEATHERSTRIP, FRONT DOOR, LH
67862-14250

MA61,RA6#..CP,LB

 1
68101 - GLASS SUB-ASSY, FRONT DOOR, RH
68111-14270

MA61,RA6#

T=5.0,*TT

 1
68102 - GLASS SUB-ASSY, FRONT DOOR, LH
68112-14280

MA61,RA6#

T=5.0,*TT

 1
68170 - WEATHERSTRIP ASSY, FRONT DOOR GLASS, INNER
68220-14130

MA61,RA6#

LH

 1
68170-14160

MA61,RA6#

RH

 1
68610 - CHECK ASSY, FRONT DOOR
68610-14040

MA61,RA6#

 2
68610A - PIN(FOR FRONT DOOR CHECK)
68617-30010

MA61,RA6#

 2
Common parts
90119-06148
90159-40062
90168-40025
90179-06070
90179-08123
90183-04057
90333-30002
90468-05017
93540-14510
93540-44510
93540-54010
Linked diagrams
7503
8202
