RA64L-BCPQSA (1981)

Toyota Celica

Production Aug 1981 - Aug 1982
Engine 22R
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8108-8507)CP,CVT

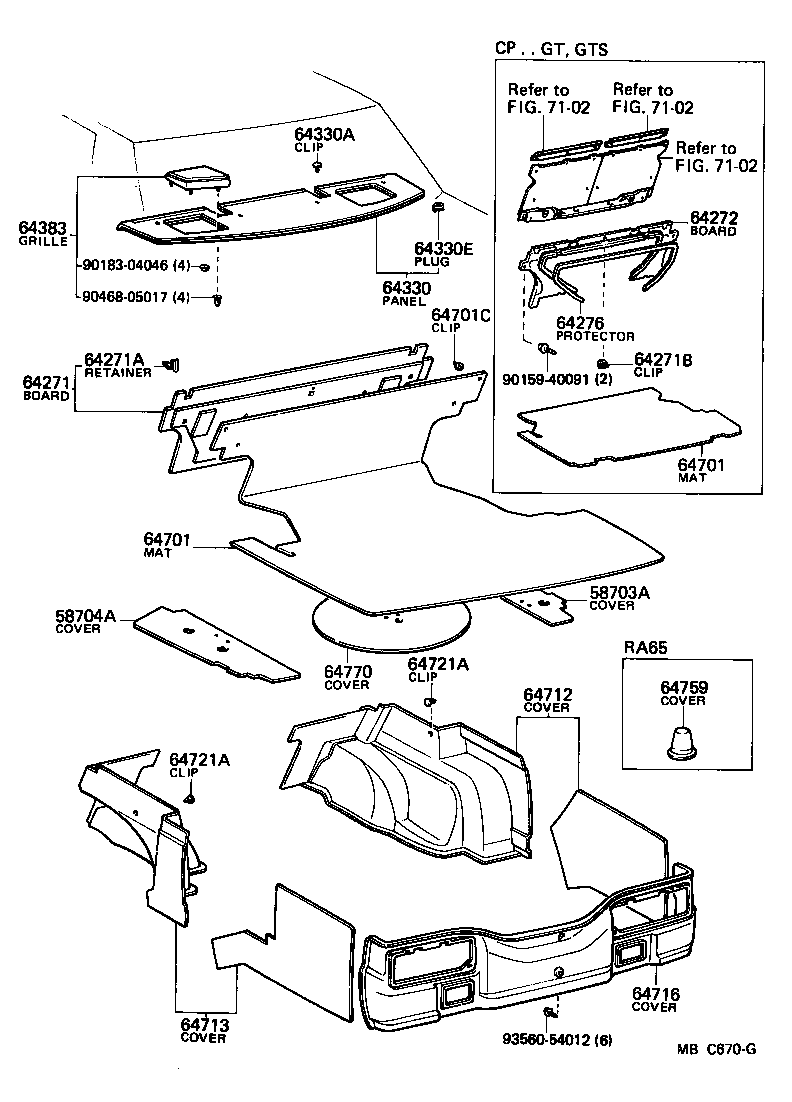

Click highlighted areas on diagram

diagram 58703A 58704A 64271 64271A 64271B 64272 64276 64330 64330A 64330E 64383 64701 64701 64701C 64712 64713 64716 64721A 64721A 64759 64770 7102 7102 7102 9015940091 9018304046 9046805017 9356054012
Part # Description Qty Price
58703A - COVER SUB-ASSY, LUGGAGE COMPARTMENT SIDE, RH
58703-14030

RA6#..CP,CVT

 1
58704A - COVER SUB-ASSY, LUGGAGE COMPARTMENT SIDE, LH
58704-14050

RA6#..CP,CVT

 1
64271B - CLIP(FOR ROOM PARTITION BOARD)
90467-1000626

RA6#..CP..(GT,GTS)

DARK BROWN,BROWN

 1
90467-1000624

RA6#..CP..(GT,GTS)

BLUE,BLUE

 1
90467-1000601

RA6#..CP..(GT,GTS)

BLACK,BLACK

 1
64272 - BOARD, ROOM PARTITION, NO.2
64207-1401001

RA64..CP..GT

BLACK,BLACK

 1
64207-1401006

RA64..CP..GT

DARK BROWN,BROWN

 1
64207-1401004

RA64..CP..GT

BLUE,BLUE

 1
64276 - PROTECTOR, ROOM PARTITION DOOR OPENING
64279-1401004

RA64..CP..GT

BLUE,BLUE

 1
64279-1401006

RA64..CP..GT

DARK BROWN,BROWN

 1
64279-1401001

RA64..CP..GT

BLACK,BLACK

 1
64330 - PANEL ASSY, PACKAGE TRAY TRIM
64330-1437006

RA64..CP..GT

W/SPEAKER GRILLE,DARK BROWN,BROWN

 1
64330-1437004

RA64..CP..GT

W/SPEAKER GRILLE,BLUE,BLUE

 1
64330-1443006

RA6#..CP..(GT,GTS)

DARK BROWN,BROWN

 1
64330-1437001

RA64..CP..GT

W/SPEAKER GRILLE,BLACK,BLACK

 1
64330-1443004

RA6#..CP..(GT,GTS)

BLUE,BLUE

 1
64330-1443001

RA6#..CP..(GT,GTS)

BLACK,BLACK

 1
64330A - CLIP(FOR PACKAGE TRAY TRIM PANEL)
90467-0914401

RA6#..CP

BLACK,BLACK

 4
90467-0914416

RA6#..CP

DARK BROWN,BROWN

 4
90467-0914414

RA6#..CP

BLUE,BLUE

 4
64330E - PLUG(FOR PACKAGE TRAY TRIM PANEL)
90950-0119814

RA6#..CP

BLUE,BLUE

 2
90950-0119826

RA6#..CP

DARK BROWN,BROWN

 2
90950-0119801

RA6#..CP

BLACK,BLACK

 2
64383 - GRILLE, SPEAKER, REAR
64033-1404006

RA6#..CP

RH,DARK BROWN,BROWN

 1
64034-1403006

RA6#..CP

LH,DARK BROWN,BROWN

 1
64034-1403001

RA6#..CP

LH,BLACK,BLACK

 1
64033-1404004

RA6#..CP

RH,BLUE,BLUE

 1
64033-1404001

RA6#..CP

RH,BLACK,BLACK

 1
64034-1403004

RA6#..CP

LH,BLUE,BLUE

 1
64701 - MAT SUB-ASSY, LUGGAGE COMPARTMENT
64711-14220

RA64..CP..GT

 1
64701 - MAT SUB-ASSY, LUGGAGE COMPARTMENT
64711-14220

RA64..CP..GT

 1
64712 - COVER, LUGGAGE COMPARTMENT TRIM, RH
64071-14090

RA64..CP..GT

 1
64713 - COVER, LUGGAGE COMPARTMENT TRIM, LH
64072-14020

RA64..CP..GT

 1
64716 - COVER, LUGGAGE COMPARTMENT, REAR CENTER
64716-14090

RA6#..CP..(GT,GTS)

 1
64721A - CLIP(FOR LUGGAGE COMPARTMENT TRIM INNER COVER)
90467-0715803

RA6#..CP

GRAY,GRAY

 2
64721A - CLIP(FOR LUGGAGE COMPARTMENT TRIM INNER COVER)
90467-0715803

RA6#..CP

GRAY,GRAY

 2
64770 - COVER ASSY, SPARE WHEEL
64771-14030

RA6#..CP

 1
64770-14010

RA6#..CP..(GT,GTS)

W/SPORTS SEAT

 1
Common parts
90159-40091
90183-04046
90468-05017
93560-54012
Linked diagrams
7102
