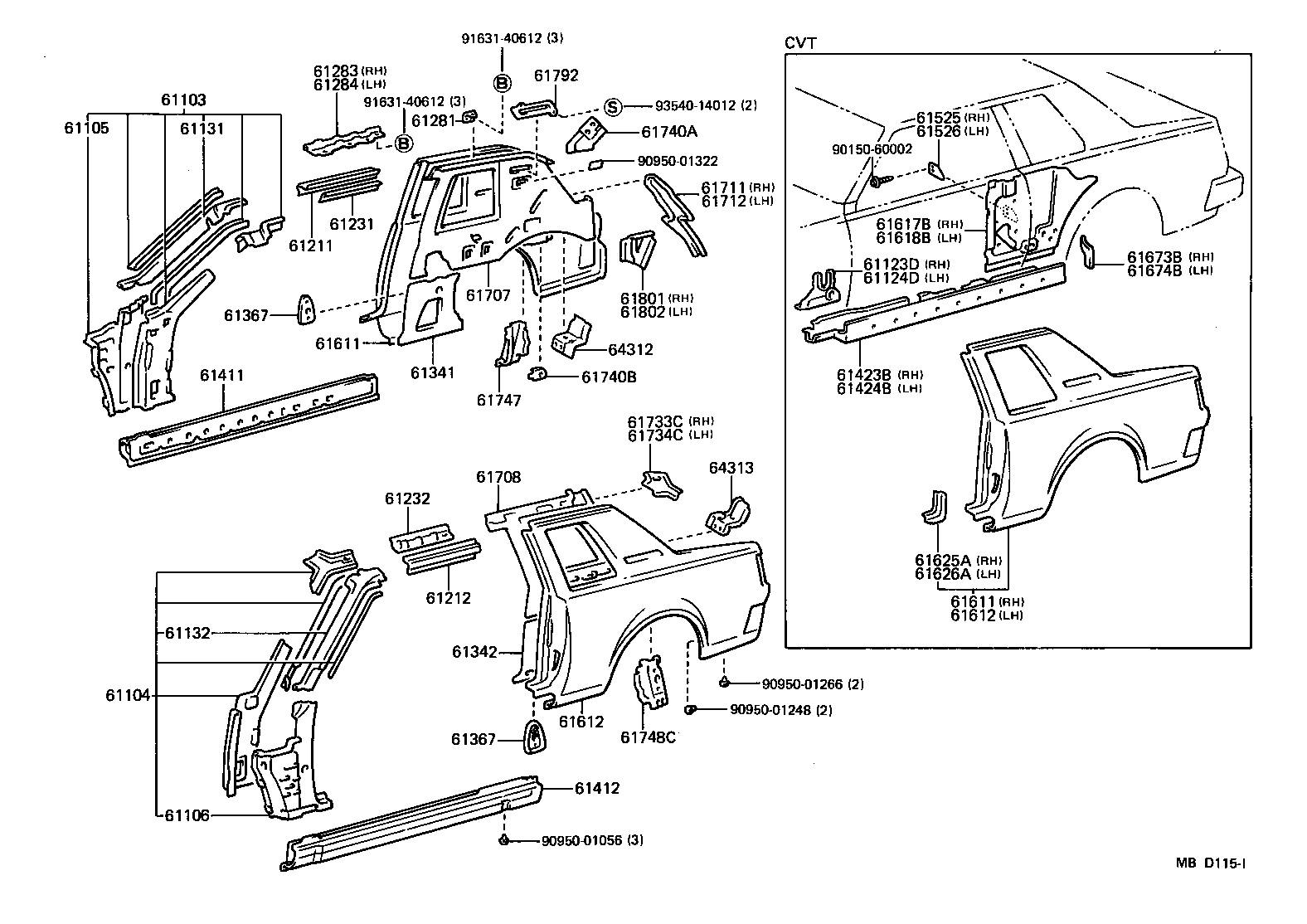

RA64L-BCPQSA (1981)
Toyota Celica
(8108-8507)CP,CVT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 61103 - PILLAR SUB-ASSY, FRONT BODY, RH | ||||
| 61021-14210 |
RA6# |
1 | ||
| 61104 - PILLAR SUB-ASSY, FRONT BODY, LH | ||||
| 61022-14240 |
RA6# |
1 | ||
| 61105 - PILLAR SUB-ASSY, FRONT BODY LOWER OUTER, RH | ||||
| 61025-14050 |
MA61,RA6# |
1 | ||
| 61106 - PILLAR SUB-ASSY, FRONT BODY LOWER OUTER, LH | ||||
| 61026-14050 |
MA61,RA6# |
1 | ||
| 61131 - PILLAR, FRONT BODY, UPPER OUTER RH | ||||
| 61131-14170 |
MA61,RA6# |
1 | ||
| 61132 - PILLAR, FRONT BODY, UPPER OUTER LH | ||||
| 61132-14140 |
MA61,RA6# |
1 | ||
| 61211 - RAIL, ROOF SIDE, OUTER RH | ||||
| 61211-14902 |
RA6#..CP,CVT |
1 | ||
| 61212 - RAIL, ROOF SIDE, OUTER LH | ||||
| 61212-14902 |
RA6#..CP,CVT |
1 | ||
| 61231 - RAIL, ROOF SIDE, INNER RH | ||||
| 61231-14150 |
MA61,RA6#..CP,LB W/SUN ROOF |
1 | ||
| 61231-14130 |
MA61,RA6# |
1 | ||
| 61232 - RAIL, ROOF SIDE, INNER LH | ||||
| 61232-14150 |
MA61,RA6#..CP,LB W/SUN ROOF |
1 | ||
| 61232-14130 |
MA61,RA6# |
1 | ||
| 61281 - BRACKET, SLIDING ROOF HOUSING MOUNTING, NO.1 | ||||
| 61281-14030 |
MA61,RA6#..CP,LB |
2 | ||
| 61283 - BRACKET, SLIDING ROOF HOUSING MOUNTING, NO.3 RH | ||||
| 61283-14030 |
MA61,RA6#..CP,LB |
1 | ||
| 61284 - BRACKET, SLIDING ROOF HOUSING MOUNTING, NO.3 LH | ||||
| 61284-14030 |
MA61,RA6#..CP,LB |
1 | ||
| 61341 - PILLAR, CENTER BODY, INNER LOWER RH | ||||
| 61345-14010 |
MA61,RA6# |
1 | ||
| 61342 - PILLAR, CENTER BODY, INNER LOWER LH | ||||
| 61346-14010 |
MA61,RA6# |
1 | ||
| 61367 - REINFORCEMENT, BELT ANCHOR TO CENTER PILLAR, LOWER | ||||
| 61367-24010 |
MA61,RA6# |
2 | ||
| 61367 - REINFORCEMENT, BELT ANCHOR TO CENTER PILLAR, LOWER | ||||
| 61367-24010 |
MA61,RA6# |
2 | ||
| 61411 - PANEL, ROCKER, OUTER RH | ||||
| 61401-14050 |
MA61,RA6#..CP,LB |
1 | ||
| 61412 - PANEL, ROCKER, OUTER LH | ||||
| 61402-14050 |
MA61,RA6#..CP,LB |
1 | ||
| 61611 - PANEL, QUARTER, RH | ||||
| 61601-14880 |
RA64..CP..GT W/OVER FENDER |
1 | ||
| 61601-14830 |
RA64..CP |
1 | ||
| 61601-14890 |
RA64..CP W/LID OPENER |
1 | ||
| 61611 - PANEL, QUARTER, RH | ||||
| 61601-14880 |
RA64..CP..GT W/OVER FENDER |
1 | ||
| 61601-14830 |
RA64..CP |
1 | ||
| 61601-14890 |
RA64..CP W/LID OPENER |
1 | ||
| 61612 - PANEL, QUARTER, LH | ||||
| 61602-14720 |
RA64..CP..GT W/OVER FENDER |
1 | ||
| 61602-14700 |
RA64..CP |
1 | ||
| 61612 - PANEL, QUARTER, LH | ||||
| 61602-14720 |
RA64..CP..GT W/OVER FENDER |
1 | ||
| 61602-14700 |
RA64..CP |
1 | ||
| 61707 - PANEL SUB-ASSY, QUARTER, INNER RH | ||||
| 61703-14901 |
RA6#..CP,CVT |
1 | ||
| 61708 - PANEL SUB-ASSY, QUARTER, INNER LH | ||||
| 61704-14901 |
RA6#..CP,CVT |
1 | ||
| 61711 - PANEL, ROOF SIDE, OUTER RH | ||||
| 61711-14060 |
RA6#..CP,CVT |
1 | ||
| 61712 - PANEL, ROOF SIDE, OUTER LH | ||||
| 61712-14060 |
RA6#..CP,CVT |
1 | ||
| 61740A - REINFORCEMENT, BELT ANCHOR TO ROOF SIDE, INNER REAR | ||||
| 61768-14010 |
RA6#..CP,CVT RH |
1 | ||
| 61769-14010 |
RA6#..CP,CVT LH |
1 | ||
| 61740B - REINFORCEMENT, SEAT BELT ANCHOR TO ROOF SIDE, INNER | ||||
| 61766-14060 |
MA61,RA6# UPR |
2 | ||
| 61677-14020 |
MA61,RA6# LWR,RH |
1 | ||
| 61678-14020 |
MA61,RA6# LWR,LH |
1 | ||
| 61747 - BRACE, ROOF SIDE INNER TO WHEEL HOUSE, RH | ||||
| 61747-14020 |
RA6#..CP,CVT |
1 | ||
| 61748C - BRACE, ROOF SIDE INNER TO WHEEL HOUSE, LH | ||||
| 61748-14030 |
RA6#..CP,CVT |
1 | ||
| 61792 - COVER, ROOF SIDE INNER SERVICE HOLE | ||||
| 61792-14030 |
RA6#..CP LH |
1 | ||
| 61791-14030 |
RA6#..CP RH |
1 | ||
| 61801 - PANEL, QUARTER INSIDE, REAR RH | ||||
| 61617-14040 |
RA6#..CP,CVT |
1 | ||
| 61802 - PANEL, QUARTER INSIDE, REAR LH | ||||
| 61618-14050 |
RA6#..CP,CVT |
1 | ||
| 64312 - BRACKET, PACKAGE TRAY, RH | ||||
| 64312-14090 |
RA6#..CP,CVT |
1 | ||
| 64313 - BRACKET, PACKAGE TRAY, LH | ||||
| 64313-14090 |
RA6#..CP,CVT |
1 | ||
| Common parts | ||||
| 90150-60002 | ||||
| 90950-01056 | ||||
| 90950-01248 | ||||
| 90950-01266 | ||||
| 90950-01322 | ||||
| 91631-40612 | ||||
| 93540-14012 | ||||

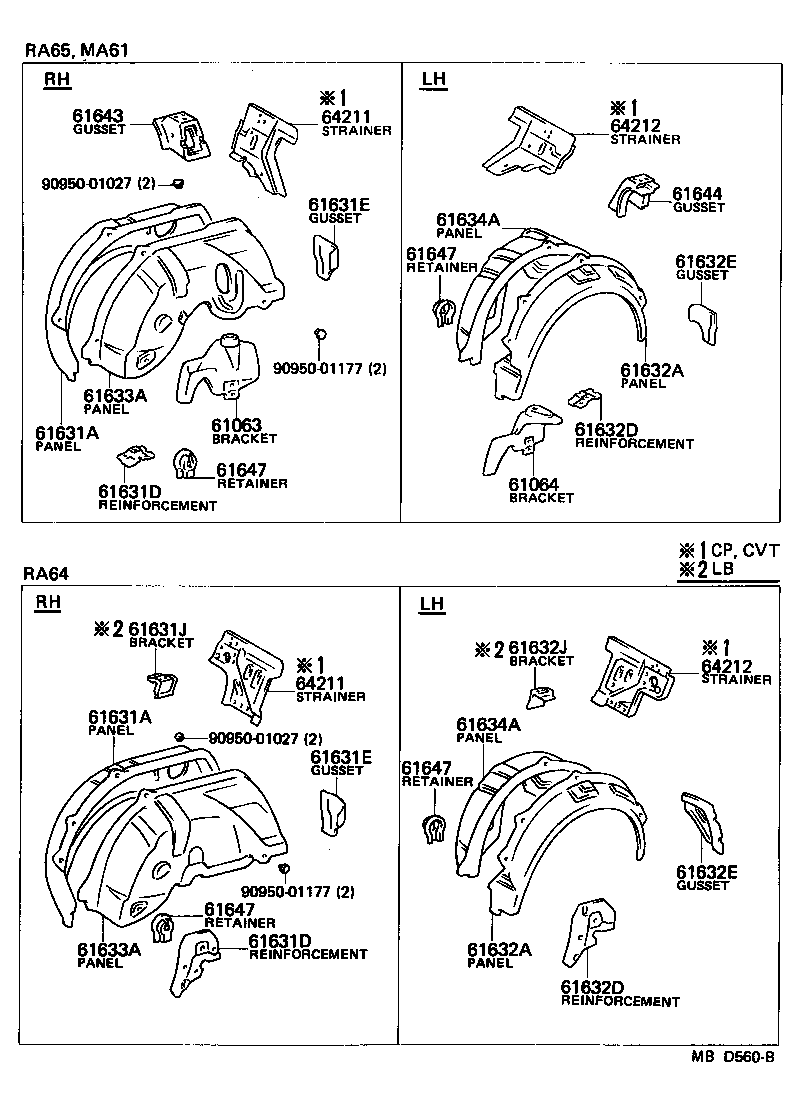

(8108- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 61631A - PANEL, QUARTER WHEEL HOUSE, OUTER RH | ||||
| 61605-14030 |
MA61,RA64 |
1 | ||
| 61605-14050 |
MA61,RA64..GT,SPR W/OVER FENDER |
1 | ||
| 61631A - PANEL, QUARTER WHEEL HOUSE, OUTER RH | ||||
| 61605-14030 |
MA61,RA64 |
1 | ||
| 61605-14050 |
MA61,RA64..GT,SPR W/OVER FENDER |
1 | ||
| 61631D - REINFORCEMENT, QUARTER WHEEL HOUSE, RH | ||||
| 61675-14030 |
RA64 |
1 | ||
| 61631D - REINFORCEMENT, QUARTER WHEEL HOUSE, RH | ||||
| 61675-14030 |
RA64 |
1 | ||
| 61631E - GUSSET, QUARTER WHEEL HOUSE, REAR RH | ||||
| 61645-14040 |
MA61,RA6# |
1 | ||
| 61631E - GUSSET, QUARTER WHEEL HOUSE, REAR RH | ||||
| 61645-14040 |
MA61,RA6# |
1 | ||
| 61632A - PANEL, QUARTER WHEEL HOUSE, OUTER LH | ||||
| 61632-14160 |
MA61,RA64..GT,SPR W/OVER FENDER |
1 | ||
| 61632-14140 |
MA61,RA64 |
1 | ||
| 61632A - PANEL, QUARTER WHEEL HOUSE, OUTER LH | ||||
| 61632-14160 |
MA61,RA64..GT,SPR W/OVER FENDER |
1 | ||
| 61632-14140 |
MA61,RA64 |
1 | ||
| 61632D - REINFORCEMENT, QUARTER WHEEL HOUSE, LH | ||||
| 61676-14020 |
RA64 |
1 | ||
| 61632D - REINFORCEMENT, QUARTER WHEEL HOUSE, LH | ||||
| 61676-14020 |
RA64 |
1 | ||
| 61632E - GUSSET, QUARTER WHEEL HOUSE, REAR LH | ||||
| 61646-14050 |
MA61,RA6# |
1 | ||
| 61632E - GUSSET, QUARTER WHEEL HOUSE, REAR LH | ||||
| 61646-14050 |
MA61,RA6# |
1 | ||
| 61633A - PANEL, QUARTER WHEEL HOUSE, INNER RH | ||||
| 61633-14160 |
RA64 |
1 | ||
| 61633A - PANEL, QUARTER WHEEL HOUSE, INNER RH | ||||
| 61633-14160 |
RA64 |
1 | ||
| 61634A - PANEL, QUARTER WHEEL HOUSE, INNER LH | ||||
| 61634-14130 |
RA64 |
1 | ||
| 61634A - PANEL, QUARTER WHEEL HOUSE, INNER LH | ||||
| 61634-14130 |
RA64 |
1 | ||
| 61647 - RETAINER, REAR SEAT BACK PIVOT, LOWER | ||||
| 61647-14040 |
RA64..LB;MA61,RA65;RA64..CP..GT |
2 | ||
| 61647 - RETAINER, REAR SEAT BACK PIVOT, LOWER | ||||
| 61647-14040 |
RA64..LB;MA61,RA65;RA64..CP..GT |
2 | ||
| 61647 - RETAINER, REAR SEAT BACK PIVOT, LOWER | ||||
| 61647-14040 |
RA64..LB;MA61,RA65;RA64..CP..GT |
2 | ||
| 61647 - RETAINER, REAR SEAT BACK PIVOT, LOWER | ||||
| 61647-14040 |
RA64..LB;MA61,RA65;RA64..CP..GT |
2 | ||
| 64211 - STRAINER, PACKAGE TRAY TO FLOOR, RH | ||||
| 64211-14110 |
RA64..CP |
1 | ||
| 64211 - STRAINER, PACKAGE TRAY TO FLOOR, RH | ||||
| 64211-14110 |
RA64..CP |
1 | ||
| 64212 - STRAINER, PACKAGE TRAY TO FLOOR, LH | ||||
| 64212-14110 |
RA64..CP |
1 | ||
| 64212 - STRAINER, PACKAGE TRAY TO FLOOR, LH | ||||
| 64212-14110 |
RA64..CP |
1 | ||
| Common parts | ||||
| 90950-01027 | ||||
| 90950-01177 | ||||

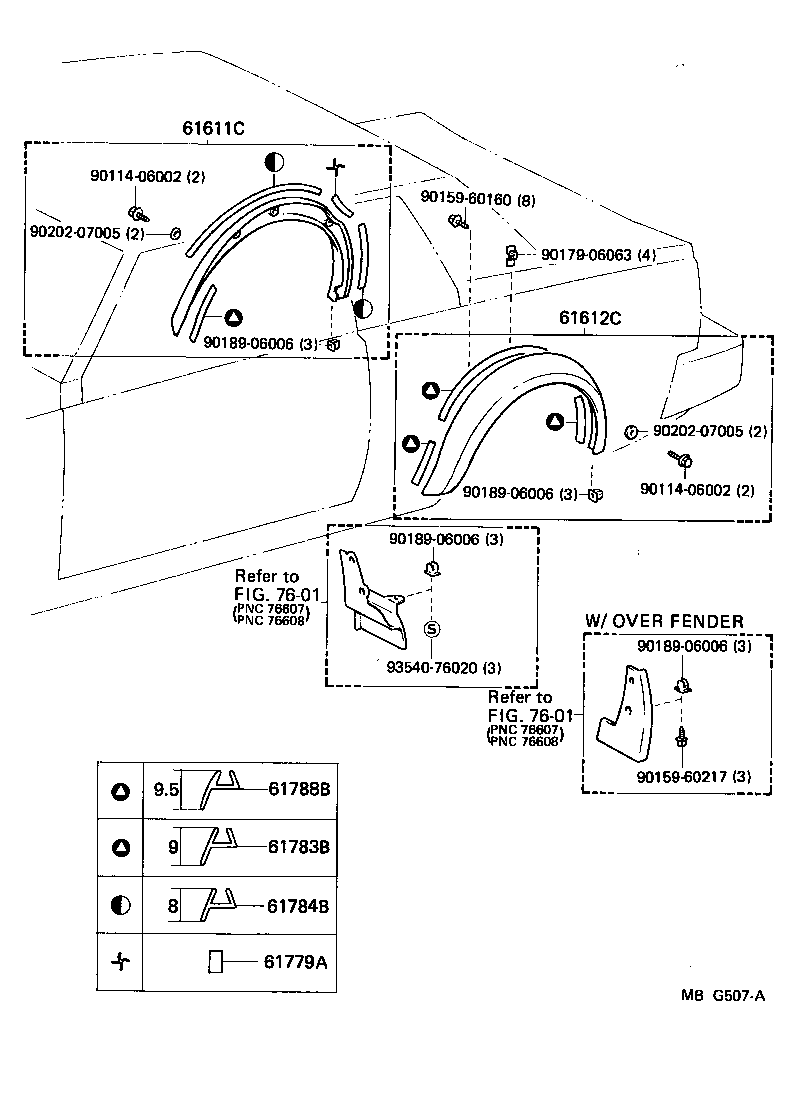

(8108- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 61611C - EXTENSION, QUARTER PANEL, RH | ||||
| 61681-14010 |
MA61,RA64..GT,SPR |
1 | ||
| 61612C - EXTENSION, QUARTER PANEL, LH | ||||
| 61682-14040 |
MA61,RA64..GT,SPR |
1 | ||
| 61779A - CUSHION, REAR WHEEL OPENING EXTENSION | ||||
| 61779-14020 |
MA61,RA6#..GT,GTS,SPR |
1 | ||
| 61783B - PAD, REAR WHEEL OPENING EXTENSION, NO.1 | ||||
| 53852-14020 |
MA61,RA6#..GT,GTS,SPR L=972 |
1 | ||
| 61784B - PAD,REAR WHEEL OPENING EXTENSION, NO.2 | ||||
| 61784-14030 |
MA61,RA6#..GT,GTS,SPR L=820 |
1 | ||
| Common parts | ||||
| 90114-06002 | ||||
| 90159-60160 | ||||
| 90159-60217 | ||||
| 90179-06063 | ||||
| 90189-06006 | ||||
| 90202-07005 | ||||
| 93540-76020 | ||||
| Linked diagrams | ||||
| 7601 | ||||
