RA64L-BCPQSA (1981)

Toyota Celica

Production Aug 1981 - Aug 1982
Engine 22R
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8108- )

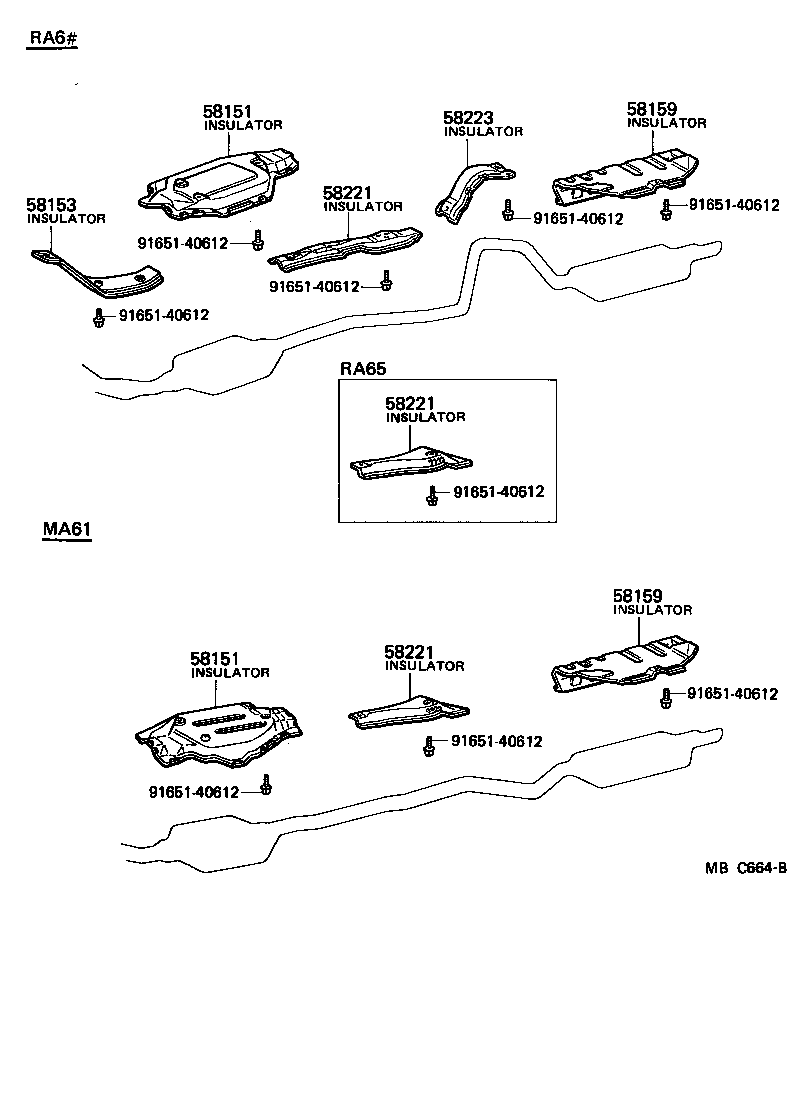

Click highlighted areas on diagram

diagram 58151 58151 58153 58159 58159 58221 58221 58221 58223 9165140612 9165140612 9165140612 9165140612 9165140612 9165140612 9165140612 9165140612 9165140612
Part # Description Qty Price
58151 - INSULATOR, FRONT FLOOR HEAT, NO.1
58041-14070

RA6#

 1
58151 - INSULATOR, FRONT FLOOR HEAT, NO.1
58041-14070

RA6#

 1
58153 - INSULATOR, FRONT FLOOR HEAT, NO.2
58153-14030

RA6#

 1
58159 - INSULATOR, MAIN MAFFLAR HEAT
58327-14020

MA61,RA6#

 1
58159 - INSULATOR, MAIN MAFFLAR HEAT
58327-14020

MA61,RA6#

 1
58221 - INSULATOR, CENTER FLOOR HEAT, NO.1
58221-14040

RA64

 1
58221 - INSULATOR, CENTER FLOOR HEAT, NO.1
58221-14040

RA64

 1
58221 - INSULATOR, CENTER FLOOR HEAT, NO.1
58221-14040

RA64

 1
58223 - INSULATOR, CENTER FLOOR HEAT, NO.2
58223-14030

RA6#

 1
Common parts
91651-40612
