RA64L-BCPQSA (1981)
Toyota Celica
Production
Aug 1981
-
Aug 1982
Engine
22R
Transmission
4FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(8108- )

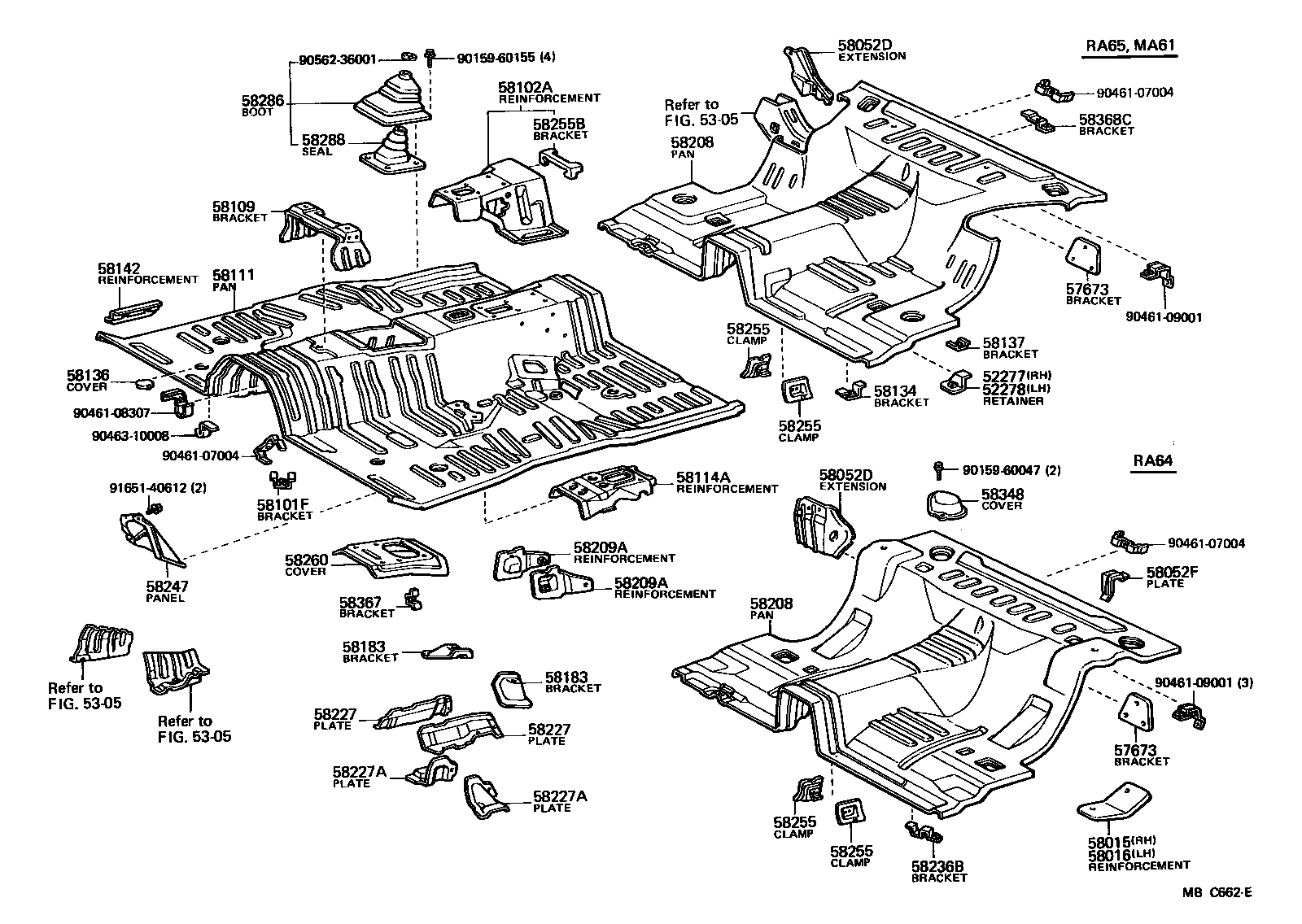

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 57673 - BRACKET, REAR SEAT BACK HINGE MOUNTING | ||||
| 57673-14010 |
RA6#..(CP,CVT)..(GT,GTS) |
1 | ||
| 57673 - BRACKET, REAR SEAT BACK HINGE MOUNTING | ||||
| 57673-14010 |
RA6#..(CP,CVT)..(GT,GTS) |
1 | ||
| 58015 - REINFORCEMENT, BELT ANCHOR TO FLOOR PAN, RH | ||||
| 58015-14030 |
RA64 |
1 | ||
| 58016 - REINFORCEMENT, BELT ANCHOR TO FLOOR PAN, LH | ||||
| 58016-14030 |
RA64 |
1 | ||
| 58052D - EXTENSION, CENTER FLOOR TO PACKAGE TRAY | ||||
| 64218-14070 |
RA64..CP LH |
1 | ||
| 64217-14080 |
RA64..CP RH |
1 | ||
| 58052D - EXTENSION, CENTER FLOOR TO PACKAGE TRAY | ||||
| 64218-14070 |
RA64..CP LH |
1 | ||
| 64217-14080 |
RA64..CP RH |
1 | ||
| 58052F - PLATE, LUGGAGE HOLD BELT ANCHOR | ||||
| 58422-14040 |
RA64..CP..GT |
2 | ||
| 58101F - BRACKET, MOUNTING, FLOOR, NO.1 | ||||
| 58131-12020 |
MA61,RA6# |
7 | ||
| 58102A - REINFORCEMENT SUB-ASSY, FRONT FLOOR | ||||
| 58102-14010 |
MA61,RA6# |
1 | ||
| 58109 - BRACKET SUB-ASSY, INSTRUMENT PANEL BRACE MOUNTING | ||||
| 58193-24010 |
MA61,RA6# |
1 | ||
| 58111 - PAN, FRONT FLOOR | ||||
| 58111-14050 |
MA61,RA6# |
1 | ||
| 58114A - REINFORCEMENT, FRONT FLOOR PANEL | ||||
| 58114-14010 |
MA61,RA6# |
1 | ||
| 58136 - COVER, FRONT FLOOR HOLE | ||||
| 58136-24010 |
MA61,RA6# |
2 | ||
| 58142 - REINFORCEMENT, FLOOR SIDE MEMBER TO FLOOR PAN | ||||
| 58141-24010 |
MA61,RA6# |
2 | ||
| 58183 - BRACKET, FRONT SEAT MOUNTING, INNER | ||||
| 58183-24010 |
MA61,RA6# RH |
1 | ||
| 58184-24010 |
MA61,RA6# LH |
1 | ||
| 58183 - BRACKET, FRONT SEAT MOUNTING, INNER | ||||
| 58183-24010 |
MA61,RA6# RH |
1 | ||
| 58184-24010 |
MA61,RA6# LH |
1 | ||
| 58208 - PAN, CENTER FLOOR | ||||
| 58211-14090 |
RA64..CP..GT |
1 | ||
| 58208 - PAN, CENTER FLOOR | ||||
| 58211-14090 |
RA64..CP..GT |
1 | ||
| 58209A - REINFORCEMENT SUB-ASSY, DRIVE SHAFT CENTER SUPPORT | ||||
| 58278-14040 |
MA61,RA6# LH |
1 | ||
| 58277-14040 |
MA61,RA6# RH |
1 | ||
| 58209A - REINFORCEMENT SUB-ASSY, DRIVE SHAFT CENTER SUPPORT | ||||
| 58278-14040 |
MA61,RA6# LH |
1 | ||
| 58277-14040 |
MA61,RA6# RH |
1 | ||
| 58227 - PLATE, AIR GUIDE, OUTSIDE | ||||
| 58226-24010 |
MA61,RA6# RH |
1 | ||
| 58227-24010 |
MA61,RA6# LH |
1 | ||
| 58227 - PLATE, AIR GUIDE, OUTSIDE | ||||
| 58226-24010 |
MA61,RA6# RH |
1 | ||
| 58227-24010 |
MA61,RA6# LH |
1 | ||
| 58227A - PLATE, AIR GUIDE | ||||
| 58229-24010 |
MA61,RA6# LH |
1 | ||
| 58228-24010 |
MA61,RA6# RH |
1 | ||
| 58227A - PLATE, AIR GUIDE | ||||
| 58229-24010 |
MA61,RA6# LH |
1 | ||
| 58228-24010 |
MA61,RA6# RH |
1 | ||
| 58236B - BRACKET, CENTER FLOOR HEAT INSULATOR | ||||
| 58234-14011 |
RA64 |
1 | ||
| 58247 - PANEL, FOOTREST, INSIDE | ||||
| 58192-14020 |
MA61,RA6# |
1 | ||
| 58255 - CLAMP, PARKING BRAKE CABLE, NO.1 | ||||
| 58208-14020 |
RA64 LH |
1 | ||
| 58207-14020 |
RA64 RH |
1 | ||
| 58255 - CLAMP, PARKING BRAKE CABLE, NO.1 | ||||
| 58208-14020 |
RA64 LH |
1 | ||
| 58207-14020 |
RA64 RH |
1 | ||
| 58255 - CLAMP, PARKING BRAKE CABLE, NO.1 | ||||
| 58208-14020 |
RA64 LH |
1 | ||
| 58207-14020 |
RA64 RH |
1 | ||
| 58255 - CLAMP, PARKING BRAKE CABLE, NO.1 | ||||
| 58208-14020 |
RA64 LH |
1 | ||
| 58207-14020 |
RA64 RH |
1 | ||
| 58255B - BRACKET, PARKING BRAKE CABLE GUIDE, NO.1 | ||||
| 58264-14010 |
MA61,RA6# |
1 | ||
| 58260 - COVER ASSY, TRANSMISSION, FRONT | ||||
| 58281-14120 |
MA61,RA64..4FC |
1 | ||
| 58348 - COVER, REAR ABSORBER SERVICE HOLE | ||||
| 58349-14010 |
RA64 LH |
1 | ||
| 58348-14010 |
RA64 RH |
1 | ||
| 58367 - BRACKET, FUEL TUBE CLAMP | ||||
| 58266-14040 |
MA61,RA6# |
2 | ||
| Common parts | ||||
| 90159-60047 | ||||
| 90159-60155 | ||||
| 90461-07004 | ||||
| 90461-08307 | ||||
| 90461-09001 | ||||
| 90463-10008 | ||||
| 90562-36001 | ||||
| 91651-40612 | ||||
| Linked diagrams | ||||
| 5305 | ||||
(8108- )

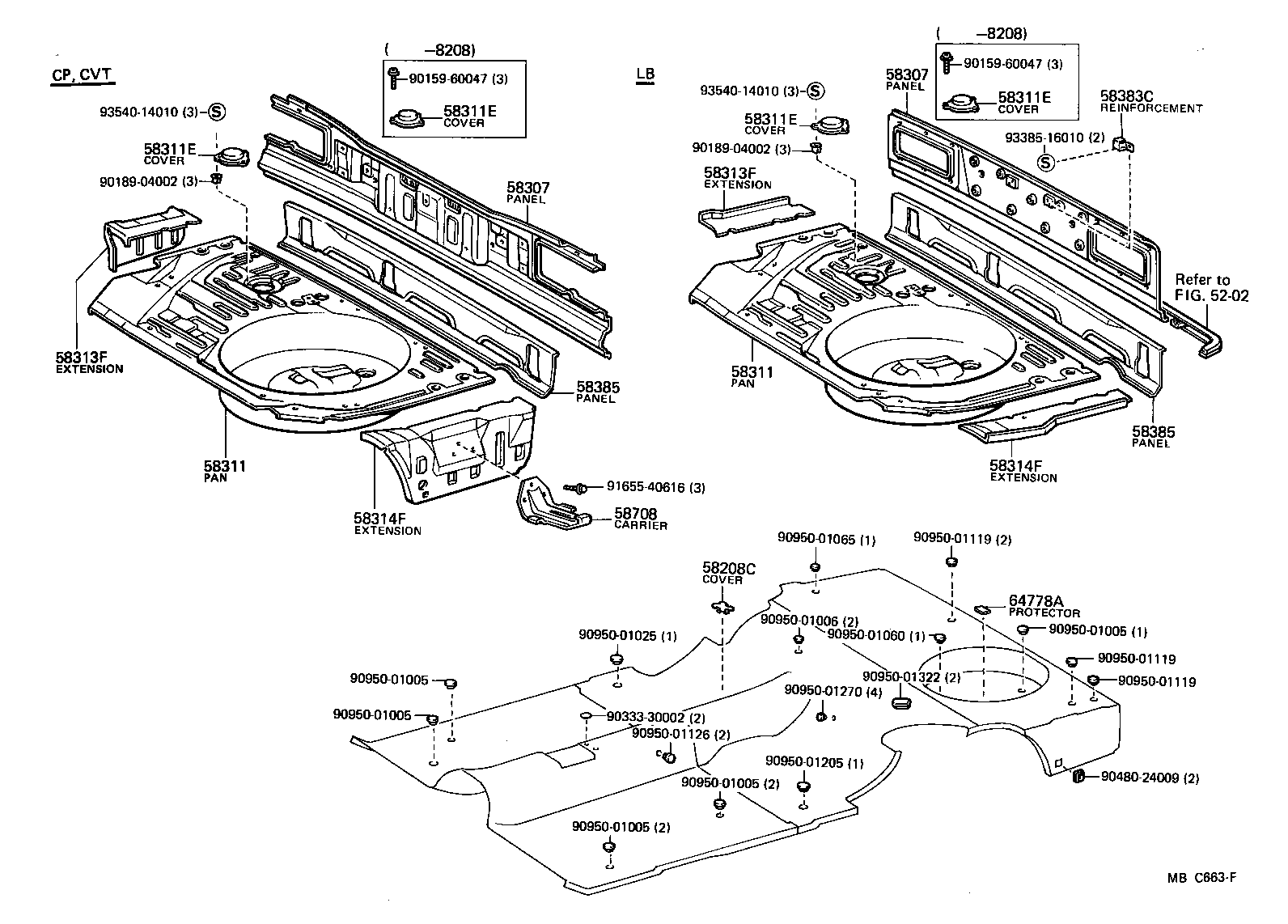

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 58208C - COVER, CENTER FLOOR HOLE | ||||
| 58285-14010 |
MA61,RA6# |
2 | ||
| 58307 - PANEL SUB-ASSY, BODY LOWER BACK | ||||
| 58307-14390 |
RA6#..CP |
1 | ||
| 58307 - PANEL SUB-ASSY, BODY LOWER BACK | ||||
| 58307-14390 |
RA6#..CP |
1 | ||
| 58311 - PAN, REAR FLOOR | ||||
| 58301-14926 |
RA64..CP |
1 | ||
| 58311 - PAN, REAR FLOOR | ||||
| 58301-14926 |
RA64..CP |
1 | ||
| 58311E - COVER, REAR FLOOR SERVICE HOLE | ||||
| 58325-14020 |
MA61,RA6# |
1 | ||
| 58311E - COVER, REAR FLOOR SERVICE HOLE | ||||
| 58325-14020 |
MA61,RA6# |
1 | ||
| 58311E - COVER, REAR FLOOR SERVICE HOLE | ||||
| 58325-14020 |
MA61,RA6# |
1 | ||
| 58311E - COVER, REAR FLOOR SERVICE HOLE | ||||
| 58325-14020 |
MA61,RA6# |
1 | ||
| 58313F - EXTENSION, REAR FLOOR PAN TO QUARTER PANEL, RH | ||||
| 58313-14130 |
RA64..CP |
1 | ||
| 58313F - EXTENSION, REAR FLOOR PAN TO QUARTER PANEL, RH | ||||
| 58313-14130 |
RA64..CP |
1 | ||
| 58314F - EXTENSION, REAR FLOOR PAN TO QUARTER PANEL, LH | ||||
| 58306-14060 |
RA6#..CP,CVT |
1 | ||
| 58314F - EXTENSION, REAR FLOOR PAN TO QUARTER PANEL, LH | ||||
| 58306-14060 |
RA6#..CP,CVT |
1 | ||
| 58385 - PANEL, REAR VALANCE | ||||
| 58381-14050 |
RA6#..CP,CVT |
1 | ||
| 58385 - PANEL, REAR VALANCE | ||||
| 58381-14050 |
RA6#..CP,CVT |
1 | ||
| 58708 - CARRIER SUB-ASSY, JACK | ||||
| 58791-12050 |
RA6#..CP,CVT |
1 | ||
| 64778A - PROTECTOR, SPARE WHEEL | ||||
| 64778-14020 |
MA61,RA6# |
3 | ||
| Common parts | ||||
| 90159-60047 | ||||
| 90189-04002 | ||||
| 90333-30002 | ||||
| 90480-24009 | ||||
| 90950-01005 | ||||
| 90950-01006 | ||||
| 90950-01025 | ||||
| 90950-01060 | ||||
| 90950-01065 | ||||
| 90950-01119 | ||||
| 90950-01126 | ||||
| 90950-01205 | ||||
| 90950-01270 | ||||
| 90950-01322 | ||||
| 91655-40616 | ||||
| 93385-16010 | ||||
| 93540-14010 | ||||
| Linked diagrams | ||||
| 5202 | ||||
