RA64L-BCPQSA (1981)

Toyota Celica

Production Aug 1981 - Aug 1982
Engine 22R
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8108- )

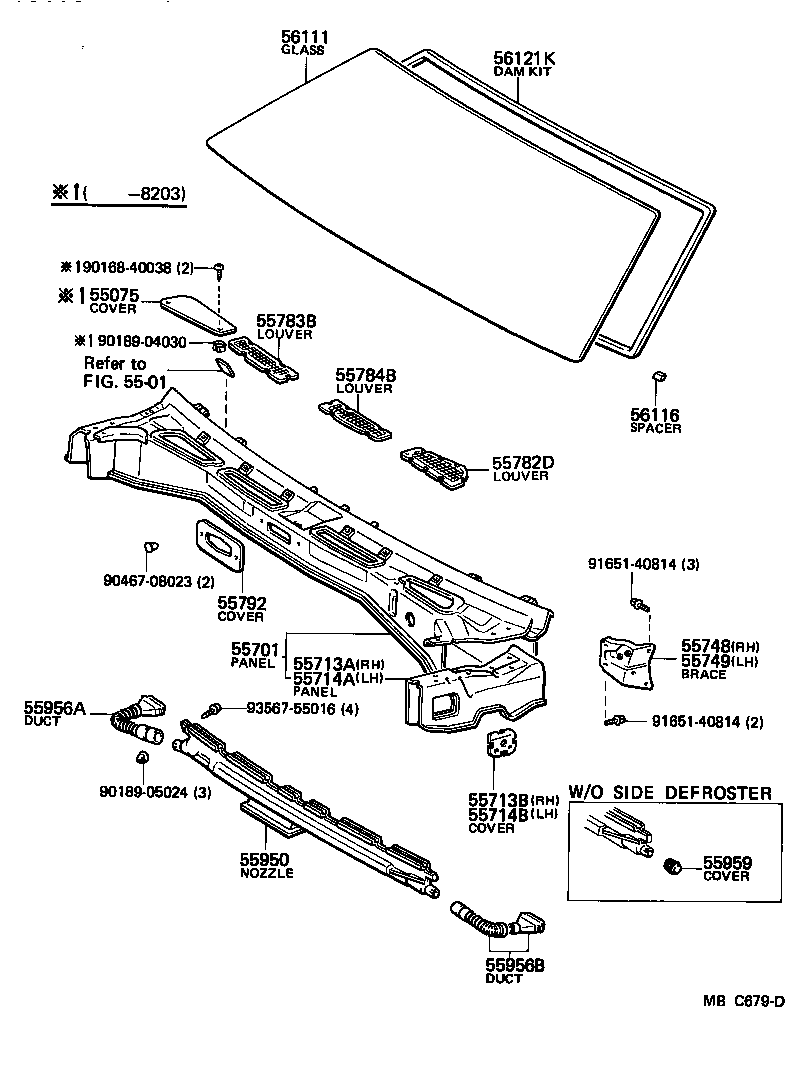

Click highlighted areas on diagram

diagram 5501 55075 55701 55713A 55713B 55714A 55714B 55748 55749 55782D 55783B 55784B 55792 55950 55956A 55956B 55959 56111 56116 56121K 9016840038 9018904030 9018905024 9046708023 9165140814 9165140814 9356755016
Part # Description Qty Price
55075 - COVER SUB-ASSY, HEATER AIR DUCT HOLE
55791-14031

MA61,RA64

 1
55701 - PANEL SUB-ASSY, COWL
55700-14470

RA64..4FC

 1
55700-14540

RA64..4FC

W/AUTO DRIVE

 1
55713A - PANEL, COWL TOP SIDE, RH
55713-14080

RA6#

 1
55713B - COVER, COWL SIDE PANEL HOLE, RH
62161-14010

MA61,RA6#

 1
55714A - PANEL, COWL TOP SIDE, LH
55714-14080

RA6#

 1
55714B - COVER, COWL SIDE PANEL HOLE, LH
62162-14010

MA61,RA6#

 1
55748 - BRACE, COWL TOP TO PILLAR, RH
55748-14030

MA61,RA6#

 1
55749 - BRACE, COWL TOP TO PILLAR, LH
55749-14070

MA61,RA6#

 1
55782D - LOUVER, COWL TOP VENTILATOR, LH
55782-14040

MA61,RA6#

 1
55783B - LOUVER, COWL TOP VENTILATOR, CENTER NO.1
55783-14080

MA61,RA6#

 1
55784B - LOUVER, COWL TOP VENTILATOR, CENTER NO.2
55784-14080

MA61,RA6#

 1
55792 - COVER, WIPER MOTOR SERVICE HOLE
55793-24010

MA61,RA6#

 1
55950 - NOZZLE ASSY, DEFROSTER
55950-14100

MA61,RA6#

 1
55956A - DUCT, SIDE DEFROSTER NOZZLE, NO.1
55971-14030

MA61,RA6#

 1
55956B - DUCT, SIDE DEFROSTER NOZZLE, NO.2
55971-14030

MA61,RA6#

 1
55959 - COVER, DEFROSTER NOZZLE OPENING, NO.1
55959-14010

RA6#..(CP,LB)..USA

W/O SIDE DEFROSTER

 2
56111 - GLASS, WINDSHIELD
56111-14360

MA61,RA64

*TL,W/SUN SHADE & ANTENA CORD

 1
56116 - SPACER, WINDSHIELD GLASS
56116-14040

MA61,RA6#

SIDE,20 X 8 X 9.2

 1
56116-14020

MA61,RA6#

LWR,20 X 7.5 X 11.5

 2
56121K - DAM KIT, WINDSHIELD GLASS
04562-14010

MA61,RA6#

 1
Common parts
90168-40038
90189-04030
90189-05024
90467-08023
91651-40814
93567-55016
Linked diagrams
5501
