RA64L-BCPQSA (1981)

Toyota Celica

Production Aug 1981 - Aug 1982
Engine 22R
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8108-8507)RA64

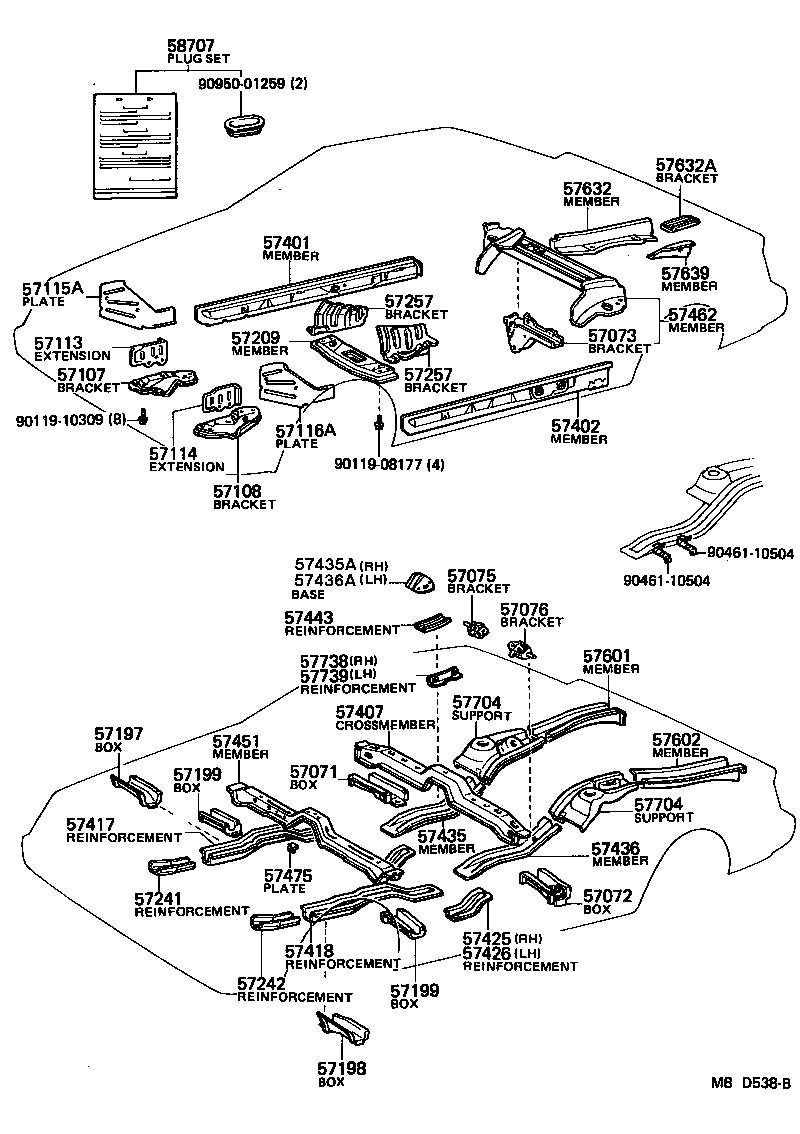

Click highlighted areas on diagram

diagram 57071 57072 57073 57075 57076 57107 57108 57113 57114 57115A 57116A 57197 57198 57199 57199 57209 57241 57242 57257 57257 57401 57402 57407 57417 57418 57425 57426 57435 57435A 57436 57436A 57443 57451 57462 57475 57601 57602 57632 57632A 57639 57704 57704 57738 57739 58707 9011908177 9011910309 9046110504 9046110504 9095001259
Part # Description Qty Price
57071 - BOX SUB-ASSY, TORQUE, REAR RH
57071-14020

RA64

 1
57072 - BOX SUB-ASSY, TORQUE, REAR LH
57072-14020

RA64

 1
57073 - BRACKET SUB-ASSY, LATERAL ROD
57073-14040

RA64

 1
57075 - BRACKET SUB-ASSY, UPPER CONTROL LINK, RH
57075-14030

RA64

 1
57076 - BRACKET SUB-ASSY, UPPER CONTROL LINK, LH
57076-14030

RA64

 1
57107 - BRACKET SUB-ASSY, STRUT BAR, RH
57107-14080

RA6#

 1
57108 - BRACKET SUB-ASSY, STRUT BAR, LH
57108-14080

RA6#

 1
57113 - EXTENSION, FRONT SIDE MEMBER, RH
57113-14090

RA6#

 1
57114 - EXTENSION, FRONT SIDE MEMBER, LH
57114-14050

RA6#

 1
57115A - PLATE, FRONT SIDE MEMBER, OUTER RH
57115-14090

RA6#

 1
57116A - PLATE, FRONT SIDE MEMBER, OUTER LH
57116-14090

RA6#

 1
57197 - BOX, TORQUE, FRONT RH
57197-14010

RA6#

PLANT.A41,A42

 1
57197-24010

MA61,RA6#

PLANT.A51-A54

 1
57198 - BOX, TORQUE, FRONT LH
57198-14010

RA6#

PLANT.A41,A42

 1
57198-24010

MA61,RA6#

PLANT.A51-A54

 1
57199 - BOX, TORQUE, FRONT, NO.2
58173-14010

MA61,RA6#

 2
57199 - BOX, TORQUE, FRONT, NO.2
58173-14010

MA61,RA6#

 2
57209 - MEMBER SUB-ASSY, ENGINE REAR SUPPORT
57209-14190

RA6#

 1
57241 - REINFORCEMENT, FRONT SIDE MEMBER, NO.5 RH
57241-14020

MA61,RA6#

 1
57242 - REINFORCEMENT, FRONT SIDE MEMBER, NO.5 LH
57242-14010

MA61,RA6#

 1
57257 - BRACKET, ENGINE REAR SUPPORT MEMBER
57257-14050

RA6#

RH

 1
57258-24010

MA61,RA6#

LH

 1
57257 - BRACKET, ENGINE REAR SUPPORT MEMBER
57257-14050

RA6#

RH

 1
57258-24010

MA61,RA6#

LH

 1
57401 - MEMBER SUB-ASSY, MAIN FLOOR SIDE, RH
57401-14160

RA64

 1
57402 - MEMBER SUB-ASSY, MAIN FLOOR SIDE, LH
57402-14160

RA64

 1
57407 - CROSS MEMBER SUB-ASSY, CENTER FLOOR, NO.1
57407-14010

MA61,RA6#

 1
57417 - REINFORCEMENT, FRONT FLOOR UNDER, RH
57417-24010

MA61,RA6#

 1
57418 - REINFORCEMENT, FRONT FLOOR UNDER, LH
57418-24010

MA61,RA6#

 1
57425 - REINFORCEMENT, FRONT FLOOR, NO.2 RH
57425-24010

MA61,RA6#

 1
57426 - REINFORCEMENT, FRONT FLOOR, NO.2 LH
57426-24010

MA61,RA6#

 1
57435 - MEMBER, CENTER FLOOR SIDE, RH
57435-14010

RA64

 1
57435A - BASE, BELT ANCHOR TO FLOOR PAN, NO.3 RH
58282-14010

RA64

 1
57436 - MEMBER, CENTER FLOOR SIDE, LH
57436-14010

RA64

 1
57436A - BASE, BELT ANCHOR TO FLOOR PAN, NO.3 LH
58283-14010

RA64

 1
57443 - REINFORCEMENT, CENTER FLOOR SIDE MEMBER
57443-14010

RA64

 2
57451 - MEMBER, FRONT FLOOR CROSS
57451-24010

MA61,RA6#

 1
57462 - MEMBER, CENTER FLOOR CROSS, NO.2
57405-14090

RA64

 1
57475 - PLATE, FRONT FLOOR CROSSMEMBER
57475-24010

MA61,RA6#

 4
57601 - MEMBER SUB-ASSY, REAR FLOOR SIDE, RH
57601-14120

RA64

 1
57602 - MEMBER SUB-ASSY, REAR FLOOR SIDE, LH
57602-14110

RA64

 1
57632 - MEMBER, REAR FLOOR, CENTER NO.1
57632-14020

RA64

 1
57632A - BRACKET, REAR BUMPER ARM SUPPORT, CENTER
57616-14060

MA61,RA6#

 1
57639 - MEMBER, REAR FLOOR, CENTER NO.2
57639-14020

RA64

 1
57704 - SUPPORT SUB-ASSY, REAR SUSPENSION SPRING
57704-14050

RA64

LH

 1
57701-14040

RA64

RH

 1
57704 - SUPPORT SUB-ASSY, REAR SUSPENSION SPRING
57704-14050

RA64

LH

 1
57701-14040

RA64

RH

 1
57738 - REINFORCEMENT, REAR STABILIZER BRACKET, RH
57738-14020

RA64

 1
57739 - REINFORCEMENT, REAR STABILIZER BRACKET, LH
57739-14010

RA64

 1
58707 - PLUG SET, HOLE
58707-14010

MA61,RA6#

 1
Common parts
90119-08177
90119-10309
90461-10504
90950-01259
