RA64L-BCPQSA (1981)

Toyota Celica

Production Aug 1981 - Aug 1982
Engine 22R
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8108-8507)RA6#

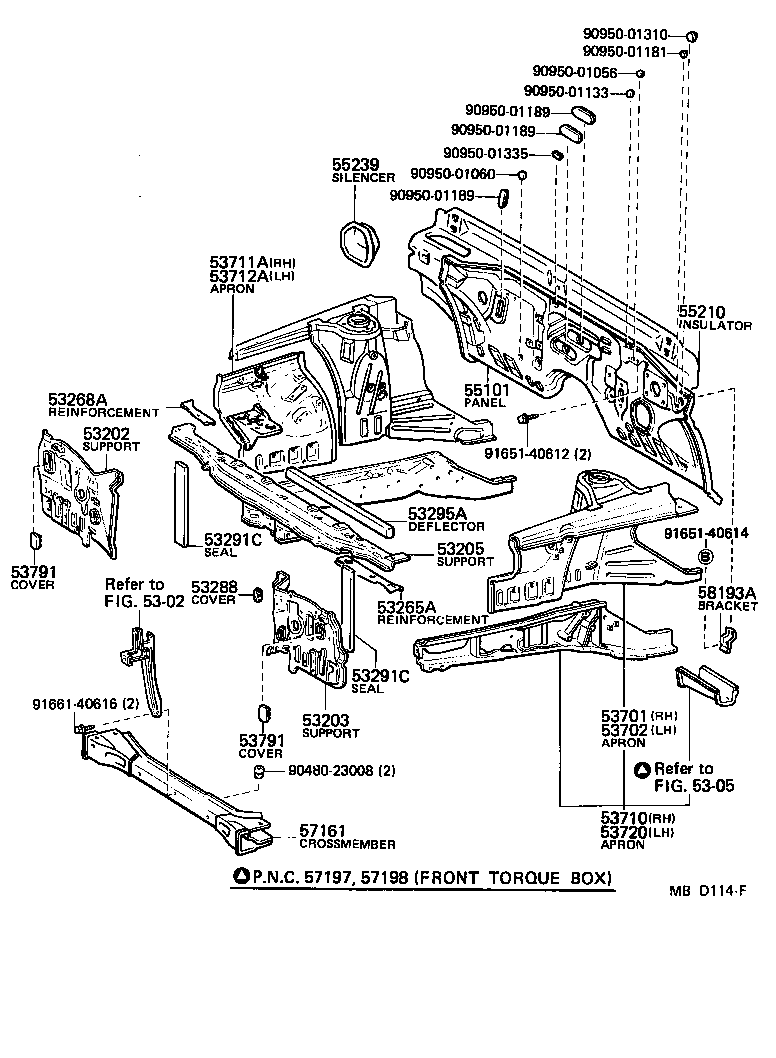

Click highlighted areas on diagram

diagram 5302 5305 53202 53203 53205 53265A 53268A 53288 53291C 53291C 53295A 53701 53702 53710 53711A 53712A 53720 53791 53791 55101 55210 55239 57161 58193A 9048023008 9095001056 9095001060 9095001133 9095001181 9095001189 9095001189 9095001189 9095001310 9095001335 9165140612 9165140614 9166140616
Part # Description Qty Price
53202 - SUPPORT SUB-ASSY, RADIATOR, RH
53202-14150

RA6#

 1
53203 - SUPPORT SUB-ASSY, RADIATOR, LH
53203-14210

RA64..CBR

 1
53205 - SUPPORT SUB-ASSY, RADIATOR, UPPER
53205-14080

RA6#

 1
53288 - COVER, POWER STEERING PIPE HOLE
53288-14050

RA64..CBR

 1
53291C - SEAL, RADIATOR SUPPORT TO FRAME
53291-14020

RA6#

 2
53291C - SEAL, RADIATOR SUPPORT TO FRAME
53291-14020

RA6#

 2
53295A - DEFLECTOR, RADIATOR UPPER AIR
53293-14050

RA6#

 1
53701 - APRON SUB-ASSY, FRONT FENDER, RH
53701-14917

RA64..CBR

 1
53702 - APRON SUB-ASSY, FRONT FENDER, LH
53702-14916

RA64..CBR

 1
53710 - APRON ASSY, W/FRONT SIDE MEMBER, RH
53710-14906

RA64..CBR

 1
53711A - APRON, FRONT FENDER, W/SUPPORT, FRONT RH
53711-14900

RA64..CBR

 1
53712A - APRON, FRONT FENDER, W/SUPPORT, FRONT LH
53712-14900

RA64..CBR

 1
53720 - APRON ASSY, W/FRONT SIDE MEMBER, LH
53720-14905

RA64..CBR

 1
53791 - COVER, COOL AIR INTAKE HOLE
53791-14010

RA6#

 2
53791 - COVER, COOL AIR INTAKE HOLE
53791-14010

RA6#

 2
55101 - PANEL SUB-ASSY, DASH
55101-14912

RA64..CBR

 1
55210 - INSULATOR ASSY, DASH PANEL
55210-14230

RA64..CBR

 1
55239 - SILENCER, STEERING COLUMN HOLE COVER
55212-14060

MA61,RA6#

 1
57161 - CROSSMEMBER, FRONT
57104-14060

RA6#

 1
Common parts
90480-23008
90950-01056
90950-01060
90950-01133
90950-01181
90950-01189
90950-01310
90950-01335
91651-40612
91651-40614
91661-40616
