RA64L-BCPQSA (1981)

Toyota Celica

Production Aug 1981 - Aug 1982
Engine 22R
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8108-8308)RA6#

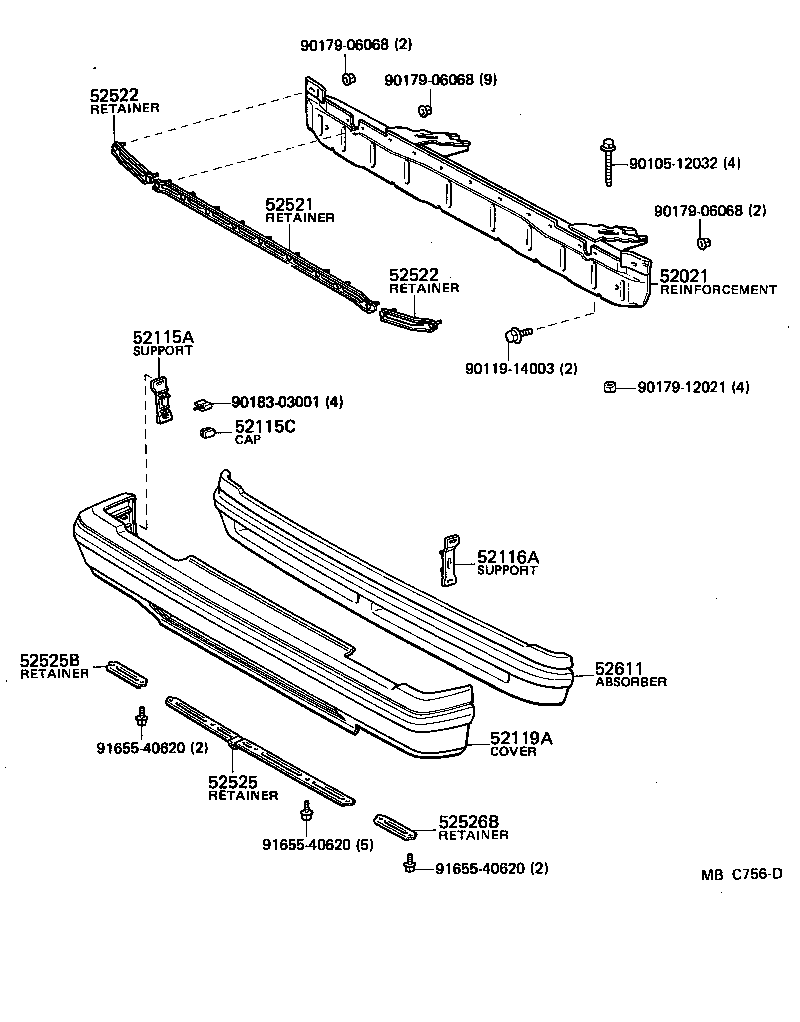

Click highlighted areas on diagram

diagram 52021 52115A 52115C 52116A 52119A 52521 52522 52522 52525 52525B 52526B 52611 9010512032 9011914003 9017906068 9017906068 9017906068 9017912021 9018303001 9165540620 9165540620 9165540620
Part # Description Qty Price
52021 - REINFORCEMENT SUB-ASSY, FRONT BUMPER
52021-14090

RA6#

 1
52115A - SUPPORT, FRONT BUMPER SIDE, RH
52115-14080

RA6#

 1
52115C - CAP, FRONT BUMPER, SIDE SUPPORT
90386-07007

RA6#

 4
52116A - SUPPORT, FRONT BUMPER SIDE, LH
52116-14060

RA6#

 1
52119A - COVER, FRONT BUMPER
52119-14902

RA6#

 1
52521 - RETAINER, FRONT BUMPER, UPPER CENTER
52521-14050

RA6#

 1
52522 - RETAINER, FRONT BUMPER UPPER SIDE
52522-14030

RA6#

 2
52522 - RETAINER, FRONT BUMPER UPPER SIDE
52522-14030

RA6#

 2
52525 - RETAINER, FRONT BUMPER, LOWER CENTER
52506-14010

RA64

 1
52525B - RETAINER, FRONT BUMPER, LOWER SIDE RH
52526-14030

RA6#

 1
52526B - RETAINER, FRONT BUMPER, LOWER SIDE LH
52526-14030

RA6#

 1
52611 - ABSORBER, FRONT BUMPER ENERGY
52611-14060

RA6#

 1
Common parts
90105-12032
90119-14003
90179-06068
90179-12021
90183-03001
91655-40620
