RA64L-BCPQSA (1981)

Toyota Celica

Production Aug 1981 - Aug 1982
Engine 22R
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8108- )

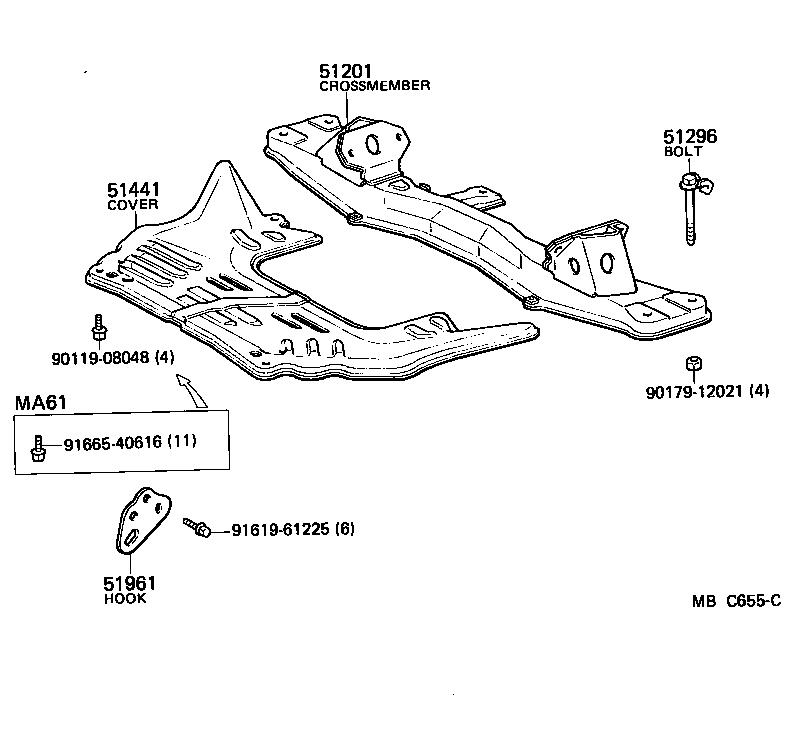

Click highlighted areas on diagram

diagram 51201 51296 51441 51961 9011908048 9017912021 9161961225 9166540616
Part # Description Qty Price
51201 - CROSSMEMBER SUB-ASSY, FRONT SUSPENSION
51201-14210

RA6#

 1
51296 - BOLT, FRONT SUSPENSION MEMBER MOUNTING
51296-24010

MA61,RA6#

 4
51441 - COVER, ENGINE UNDER, NO.1
51441-14050

RA6#

 1
51961 - HOOK, NO.1
51963-14070

MA61,RA6#

 2
Common parts
90119-08048
90179-12021
91619-61225
91665-40616
