RA64L-BCPQSA (1981)

Toyota Celica

Production Aug 1981 - Aug 1982
Engine 22R
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8108- )

Click highlighted areas on diagram

diagram 48131 48132 48157 48331 48471 48660 48670 48674 48674A 48674A 48674B 48680 48680A 48680D 48684 48811 48815 48817 48817 48817 48817 48817A 48817A 48817A 48817A 48817B 48817D 48824 9017010191 9017016183 9017910016 9161160825 9418210800 9418210800 9451201600 9453101000
Part # Description Qty Price
48131 - SPRING, FRONT COIL, RH
48131-1B090

RA64

 1
48131-1B110

RA64..USA

W/COOLER

 1
48131-1B110

RA64

W/PS & *SNR

 1
48131-1B130

RA64..USA

W/PS,*SNR & COOLER;W/PS & COOLER,W/*SNR & COOLER

 1
48132 - SPRING, FRONT COIL, LH
48131-1B110

RA64

 1
48131-1B130

RA64

W/PS & *SNR

 1
48131-1B150

RA64..USA

W/PS,SNR&COOLER;W/PS & COOLER,W/*SNR & COOLER

 1
48131-1B130

RA64..USA

W/COOLER

 1
48157 - INSULATOR, FRONT COIL SPRING, UPPER
48157-14010

RA6#

 2
48331 - BUMPER, FRONT SPRING, NO.1
48331-14020

MA61,RA6#

 2
48471 - SEAT, FRONT SPRING, UPPER
48044-14030

RA6#

 2
48660 - BAR ASSY, STRUT, RH
48660-19135

RA6#

 1
48670 - BAR ASSY, STRUT, LH
48670-19115

RA6#

 1
48674 - CUSHION, STRUT BAR
48674-19085

RA6#

RH

 1
48674-19058

MA61,RA6#

LH

 1
48674A - RETAINER, CUSHION(FOR STRUT BAR CUSHION)
90948-02036

MA61,RA6#

 4
48674A - RETAINER, CUSHION(FOR STRUT BAR CUSHION)
90948-02036

MA61,RA6#

 4
48674B - COLLAR(FOR STRUT BAR CUSHION)
90387-16108

MA61,RA6#

 2
48680 - SUPPORT ASSY, FRONT SUSPENSION
48609-14040

RA6#

 2
48680A - NUT(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER)
94182-11400

MA61,RA6#

 2
48680D - SEAL, DUST(FOR FRONT SUSPENSION SUPPORT)
90303-22049

MA61,RA6#

 2
48684 - COVER, BEARING DUST
48684-12020

RA64

 2
48811 - BAR, STABILIZER, FRONT
48811-14230

RA64

OD=22

 1
48811-14250

RA6#

OD=24,W/PS

 1
48815 - BUSH, FRONT STABILIZER BAR, NO.1
48815-14150

RA64

 2
48815-24020

RA6#

W/PS

 2
48817 - CUSHION, FRONT STABILIZER
48817-20020

RA6#

 8
48817 - CUSHION, FRONT STABILIZER
48817-20020

RA6#

 8
48817 - CUSHION, FRONT STABILIZER
48817-20020

RA6#

 8
48817 - CUSHION, FRONT STABILIZER
48817-20020

RA6#

 8
48817A - RETAINER, CUSHION, NO.1(FOR FRONT STABILIZER BAR)
90948-02038

RA6#

 8
48817A - RETAINER, CUSHION, NO.1(FOR FRONT STABILIZER BAR)
90948-02038

RA6#

 8
48817A - RETAINER, CUSHION, NO.1(FOR FRONT STABILIZER BAR)
90948-02038

RA6#

 8
48817A - RETAINER, CUSHION, NO.1(FOR FRONT STABILIZER BAR)
90948-02038

RA6#

 8
48817B - RETAINER, CUSHION, NO.2(FOR FRONT STABILIZER BAR)
90948-02037

RA6#

 2
48817D - BOLT(FOR FRONT STABILIZER)
48819-20010

RA6#

 2
48824 - BRACKET, STABILIZER, FRONT
48824-24010

MA61,RA6#

 2
Common parts
90170-10191
90170-16183
90179-10016
91611-60825
94182-10800
94512-01600
94531-01000

(8108- )

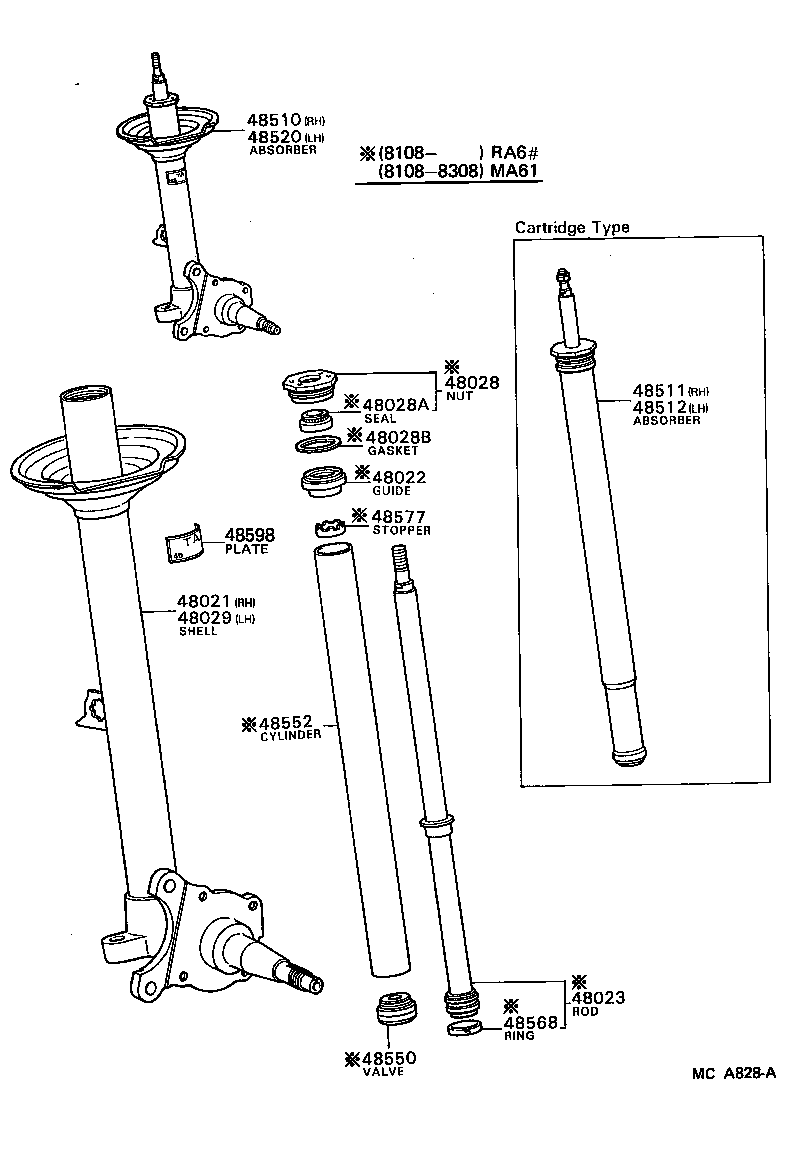

Click highlighted areas on diagram

diagram 48021 48022 48023 48028 48028A 48028B 48029 48510 48511 48512 48520 48550 48552 48568 48577 48598
Part # Description Qty Price
48021 - SHELL SUB-ASSY, W/STEERING KNUCKLE, RH
48021-14070

RA6#

 1
48022 - GUIDE SUB-ASSY, SHOCK ABSORBER ROD
48022-14010

MA61,RA6#

 2
48023 - ROD SUB-ASSY, SHOCK ABSORBER PISTON (FOR FRONT)
48023-14130

RA64

 2
48028 - NUT SUB-ASSY, SHOCK ABSORBER RING
48028-14011

MA61,RA6#

 2
48028A - SEAL, OIL(FOR SHOCK ABSORBER RING NUT)
90316-22001

MA61,RA6#

 2
48028B - GASKET(FOR SHOCK ABSORBER RING NUT)
90430-43206

MA61,RA6#

 2
48029 - SHELL SUB-ASSY, W/STEERING KNUCKLE, LH
48029-14020

RA6#

 1
48510 - ABSORBER ASSY, SHOCK, FRONT RH
48510-14190

RA64

 1
48511 - ABSORBER, SHOCK FRONT, RH(FOR CARTRIDGE TYPE)
48511-14160

RA64

 1
48512 - ABSORBER, SHOCK FRONT, LH(FOR CARTRIDGE TYPE)
48511-14160

RA64

 1
48520 - ABSORBER ASSY, SHOCK, FRONT LH
48520-14050

RA64

 1
48550 - VALVE ASSY, SHOCK ABSORBER BASE
48550-14060

RA64

 2
48552 - CYLINDER, SHOCK ABSORBER(FOR FRONT)
48552-14021

RA6#

 2
48568 - RING, SHOCK ABSORBER PISTON
48568-22020

MA61,RA6#

 2
48577 - STOPPER, SHOCK ABSORBER REBOUND
48579-14011

MA61,RA6#

 2
