RA64L-BCPQSA (1981)

Toyota Celica

Production Aug 1981 - Aug 1982
Engine 22R
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8108-8507)RA64

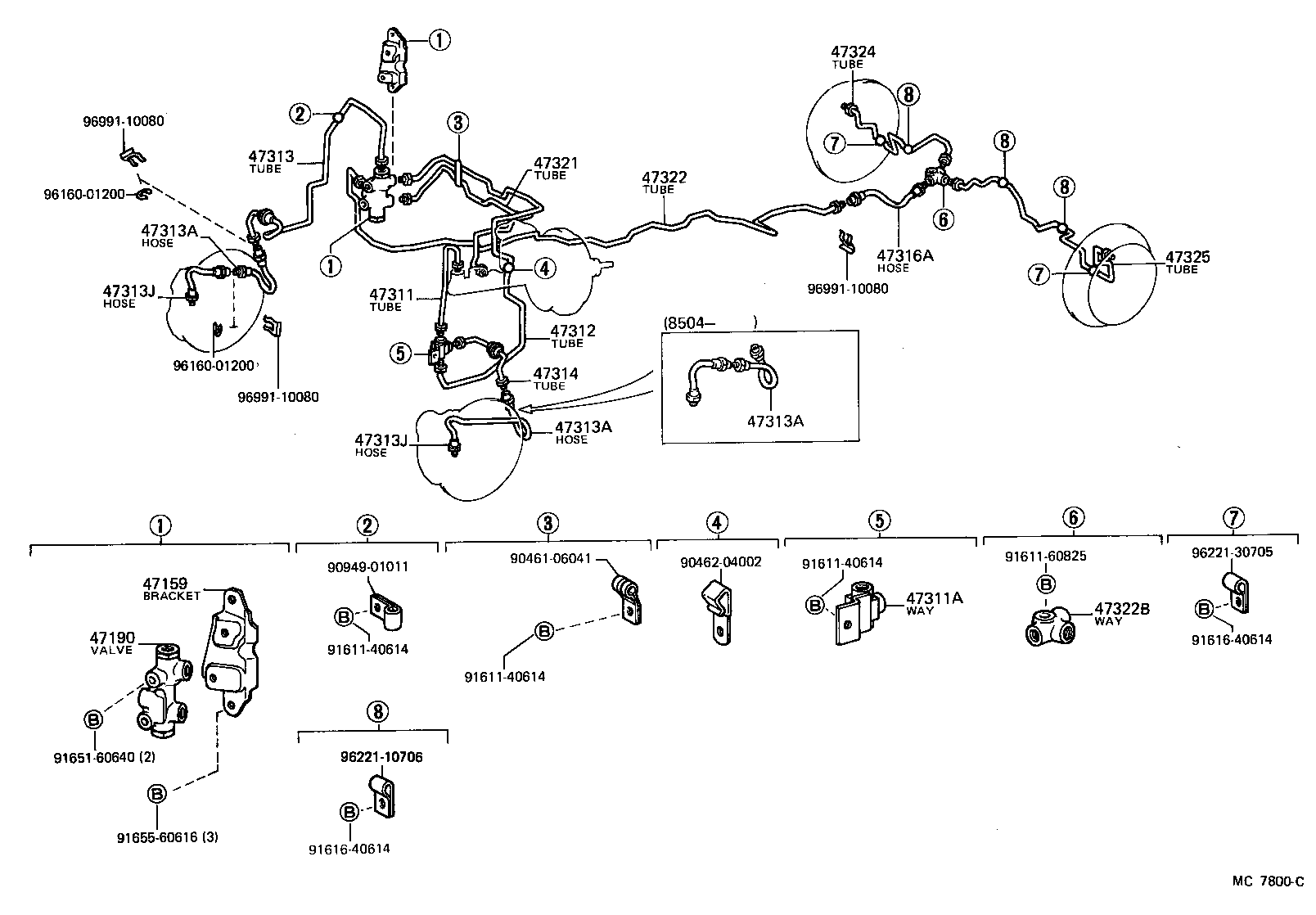

Click highlighted areas on diagram

diagram 47159 47190 47311 47311A 47312 47313 47313A 47313A 47313A 47313J 47313J 47314 47316A 47321 47322 47322B 47324 47325 9046106041 9046204002 9094901011 9161140614 9161140614 9161140614 9161160825 9161640614 9161640614 9165160640 9165560616 9616001200 9616001200 9622110706 9622130705 9699110080 9699110080 9699110080
Part # Description Qty Price
47159 - BRACKET, PROPORTIONING VALVE
47159-14040

RA6#

 1
47190 - VALVE ASSY, PROPORTIONING & BY-PASS
47190-14020

RA6#

 1
47311 - TUBE, FRONT BRAKE, NO.1
47311-14220

RA6#

 1
47311A - WAY(FOR FRONT BRAKE TUBE)
90413-10004

RA6#

 1
47312 - TUBE, FRONT BRAKE, NO.2
47312-14120

RA6#

 1
47313 - TUBE, FRONT BRAKE, NO.3
47313-14120

RA6#

 1
47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT)
90947-02427

RA6#

 2
47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT)
90947-02427

RA6#

 2
47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT)
90947-02427

RA6#

 2
47313J - HOSE, FLEXIBLE, NO.2(FOR FRONT)
96960-32455

RA6#

 2
47313J - HOSE, FLEXIBLE, NO.2(FOR FRONT)
96960-32455

RA6#

 2
47314 - TUBE, FRONT BRAKE, NO.4
47314-14090

RA6#

 1
47316A - HOSE, FLEXIBLE(FOR REAR BRAKE TUBE)
96940-32855

RA64

 1
47321 - TUBE, REAR BRAKE, NO.1
47321-14110

RA6#

 1
47322 - TUBE, REAR BRAKE, NO.2
47322-14160

RA64

 1
47322B - WAY, NO.2(FOR REAR BRAKE TUBE)
90413-10098

RA64

 1
47324 - TUBE, REAR BRAKE, NO.4
47323-14042

RA64

 1
47325 - TUBE, REAR BRAKE, NO.5
47324-14052

RA64..LB;RA64..CP..GT

 1
Common parts
90461-06041
90462-04002
90949-01011
91611-40614
91611-60825
91616-40614
91651-60640
91655-60616
96160-01200
96221-10706
96221-30705
96991-10080
