RA64L-BCPQSA (1981)
Toyota Celica
Production
Aug 1981
-
Aug 1982
Engine
22R
Transmission
4FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(8108- )

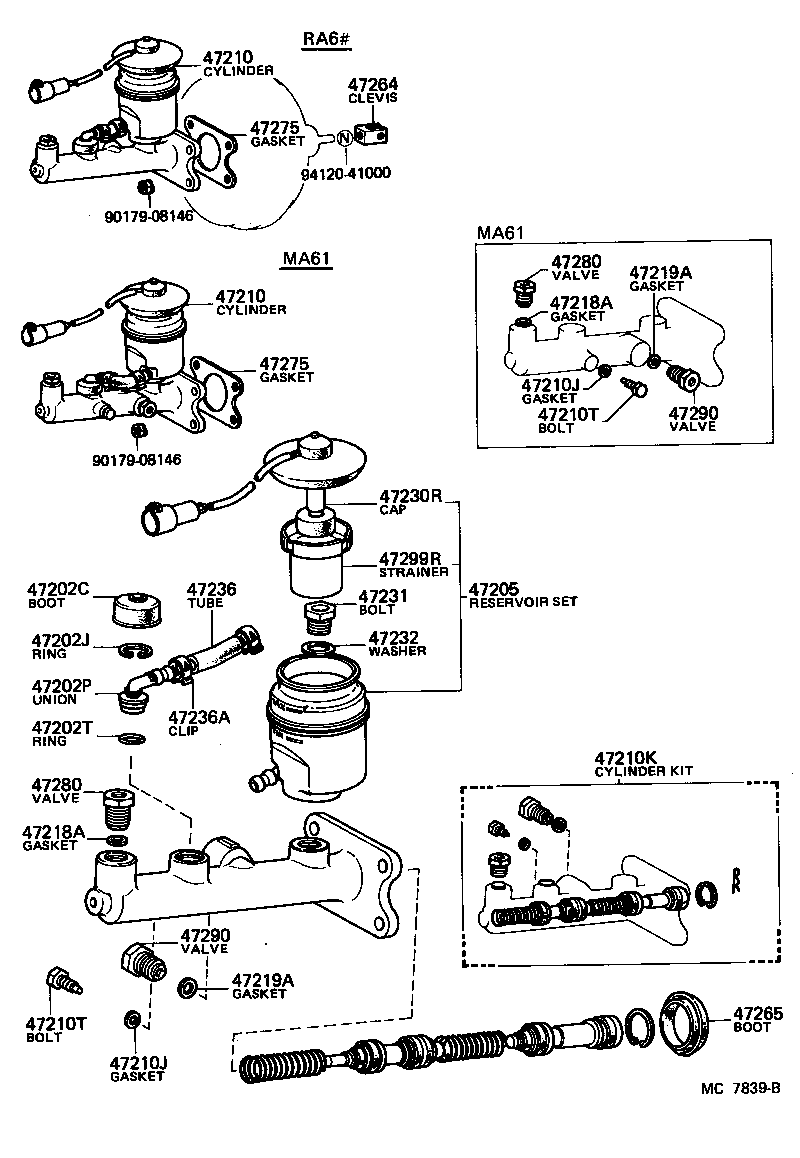

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 47202C - BOOT, RESERVOIR, NO.1(FOR BRAKE MASTER CYLINDER SIDE) | ||||
| 47265-20060 |
MA61,RA6# |
1 | ||
| 47202J - RING, SNAP(FOR BRAKE MASTER CYLINDER SIDE) | ||||
| 96151-02000 |
MA61,RA6# |
1 | ||
| 47202P - UNION, RESERVOIR(FOR BRAKE MASTER CYLINDER SIDE) | ||||
| 90407-10003 |
MA61,RA6# |
1 | ||
| 47202T - RING(FOR BRAKE MASTER CYLINDER RESERVOIR, NO.1) | ||||
| 90301-14001 |
MA61,RA6# |
1 | ||
| 47205 - RESERVOIR SET, BRAKE MASTER CYLINDER(FOR REAR SIDE) | ||||
| 47202-14240 |
RA6# |
1 | ||
| 47210 - CYLINDER ASSY, MASTER, W/O BOOSTER | ||||
| 47201-14400 |
RA6# |
1 | ||
| 47210 - CYLINDER ASSY, MASTER, W/O BOOSTER | ||||
| 47201-14400 |
RA6# |
1 | ||
| 47210J - GASKET(FOR MASTER CYLINDER) | ||||
| 90430-06104 |
MA61,RA6# |
1 | ||
| 47210J - GASKET(FOR MASTER CYLINDER) | ||||
| 90430-06104 |
MA61,RA6# |
1 | ||
| 47210K - CYLINDER KIT, BRAKE MASTER | ||||
| 04493-24010 |
MA61,RA6# |
1 | ||
| 47210T - BOLT(FOR BRAKE MASTER CYLINDER) | ||||
| 90109-06008 |
MA61,RA6# |
1 | ||
| 47210T - BOLT(FOR BRAKE MASTER CYLINDER) | ||||
| 90109-06008 |
MA61,RA6# |
1 | ||
| 47218A - GASKET(FOR FLUID OUTLET PLUG) | ||||
| 90430-09253 |
MA61,RA6# |
1 | ||
| 47218A - GASKET(FOR FLUID OUTLET PLUG) | ||||
| 90430-09253 |
MA61,RA6# |
1 | ||
| 47219A - GASKET(FOR FLUID OUTLET PLUG REAR SIDE) | ||||
| 90430-09253 |
MA61,RA6# |
1 | ||
| 47219A - GASKET(FOR FLUID OUTLET PLUG REAR SIDE) | ||||
| 90430-09253 |
MA61,RA6# |
1 | ||
| 47230R - CAP ASSY, RESERVOIR, NO.2(FOR REAR SIDE) | ||||
| 84460-14032 |
MA61,RA6# |
1 | ||
| 47231 - BOLT, BRAKE MASTER CYLINDER RESERVOIR SET | ||||
| 47231-30010 |
MA61,RA6# |
1 | ||
| 47232 - WASHER, BRAKE RESERVOIR SET BOLT | ||||
| 47232-30010 |
MA61,RA6# |
1 | ||
| 47236 - TUBE, RESERVOIR BRAKE | ||||
| 47234-14010 |
MA61,RA6# |
1 | ||
| 47236A - CLIP(FOR RESERVOIR TUBE) | ||||
| 90467-16001 |
MA61,RA6# |
2 | ||
| 47264 - CLEVIS, MASTER CYLINDER PUSH ROD | ||||
| 47264-22010 |
MA61,RA6# |
1 | ||
| 47265 - BOOT, MASTER CYLINDER | ||||
| 47265-20050 |
MA61,RA6# |
1 | ||
| 47275 - GASKET, BRAKE MASTER CYLINDER | ||||
| 47275-24010 |
MA61,RA6# |
1 | ||
| 47275 - GASKET, BRAKE MASTER CYLINDER | ||||
| 47275-24010 |
MA61,RA6# |
1 | ||
| 47280 - VALVE ASSY, BRAKE MASTER CYLINDER OUTLET CHECK | ||||
| 47280-30030 |
MA61,RA6# |
1 | ||
| 47280 - VALVE ASSY, BRAKE MASTER CYLINDER OUTLET CHECK | ||||
| 47280-30030 |
MA61,RA6# |
1 | ||
| 47290 - VALVE ASSY, MASTER CYLINDER OUTLET(FOR REAR SIDE) | ||||
| 47280-30030 |
MA61,RA6# |
1 | ||
| 47290 - VALVE ASSY, MASTER CYLINDER OUTLET(FOR REAR SIDE) | ||||
| 47280-30030 |
MA61,RA6# |
1 | ||
| 47299R - STRAINER, MASTER CYLINDER RESERVOIR, REAR | ||||
| 47299-14010 |
MA61,RA6# |
1 | ||
| Common parts | ||||
| 90179-08146 | ||||
| 94120-41000 | ||||
