RA64L-BCPQSA (1981)

Toyota Celica

Production Aug 1981 - Aug 1982
Engine 22R
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8108-8308)CBR

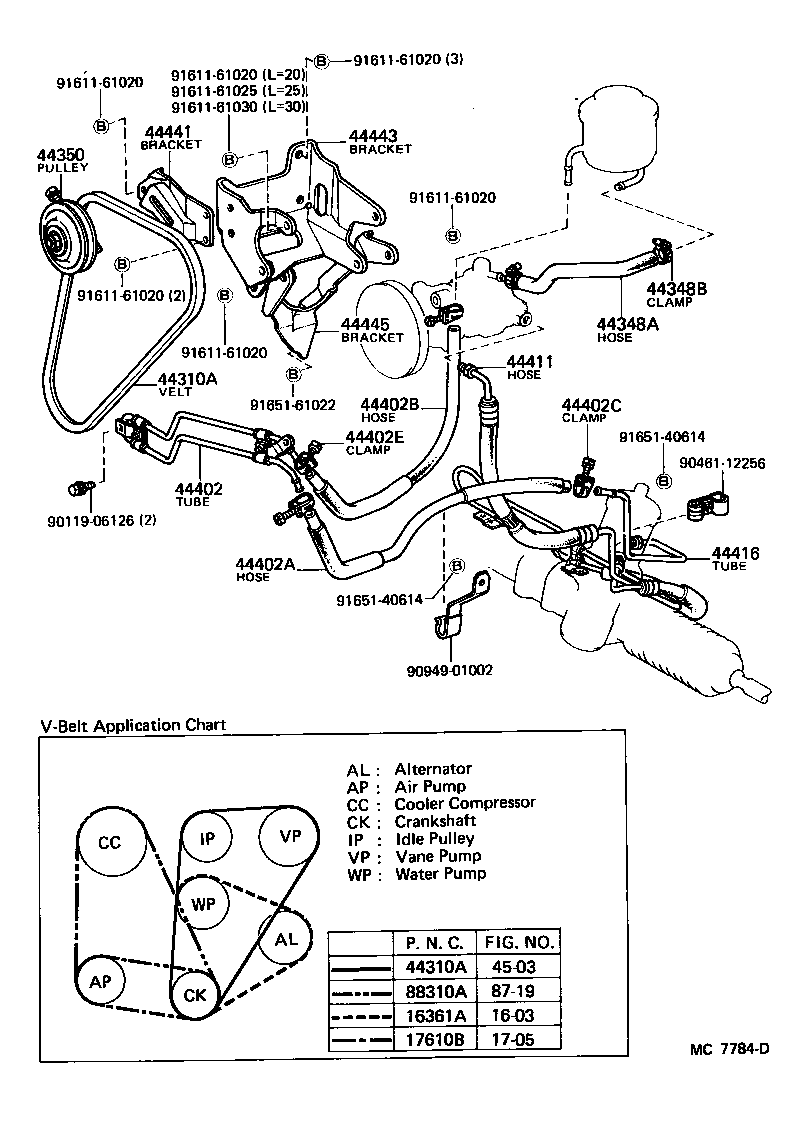

Click highlighted areas on diagram

diagram 1603 16361A 1705 17610B 44310A 44310A 44348A 44348B 44350 44402 44402A 44402B 44402C 44402E 44411 44416 44441 44443 44445 4503 8719 88310A 9011906126 9046112256 9094901002 9161161020 9161161020 9161161020 9161161020 9161161020 9161161020 9161161025 9161161030 9165140614 9165140614 9165161022
Part # Description Qty Price
16361A - BELT, V(FOR FAN & ALTERNATOR)
99331-10880

22R#..RA6#

L=880

 1
17610B - BELT, V(FOR AIR PUMP)
99332-10820

22R..RA64..USA

L=820

 1
99332-10820

22R..RA64..USA

 1
44310A - BELT, V(FOR VANE PUMP)
99332-11135

RA6#

 1
44310A - BELT, V(FOR VANE PUMP)
99332-11135

RA6#

 1
44348A - HOSE, OIL RESERVOIR TO PUMP, NO.1
44348-14020

RA6#

 1
44348B - CLAMP(FOR OIL RESERVOIR TO PUMP HOSE)
90460-26001

RA6#

 2
44350 - PULLEY ASSY, POWER STEERING IDLE
44350-20020

RA6#

 1
44402 - COOLER SUB-ASSY, POWER STEERING OIL, NO.1
44402-14060

RA64..CBR

 1
44402A - HOSE, POWER STEERING OIL COOLER INLET
44412-14050

RA64..CBR

 1
44402B - HOSE, POWER STEERING OIL COOLER OUTLET
44412-14040

RA64

 1
44402C - CLAMP, POWER STEERING OIL COOLER INLET HOSE
90460-01001

MA61,RA6#

 2
44402E - CLAMP, POWER STEERING OIL COOLER OUTLET HOSE
90460-01001

MA61,RA6#

 2
44411 - HOSE, PRESSURE FEED
44410-14050

RA6#

 1
44416 - TUBE, RETURN(FOR STEERING GEAR OUTLET)
44416-14110

RA6#

 1
44441 - BRACKET, PUMP, FRONT
44441-20010

RA6#

 1
44443 - BRACKET, PUMP
44443-20031

RA6#

 1
44445 - BRACKET, PUMP, LOWER
44445-20010

RA6#

 1
88310A - BELT, V (COOLER COMPRESSOR TO CRANKSHAFT PULLEY), NO.1
99332-11120

RA64..CBR..USA

 1
Common parts
90119-06126
90461-12256
90949-01002
91611-61020
91611-61025
91611-61030
91651-40614
91651-61022
Linked diagrams
1603
1705
4503
8719
