RA64L-BCPQSA (1981)
Toyota Celica
(8108-8308)RA64 ; (8308-8507)RA64..USA

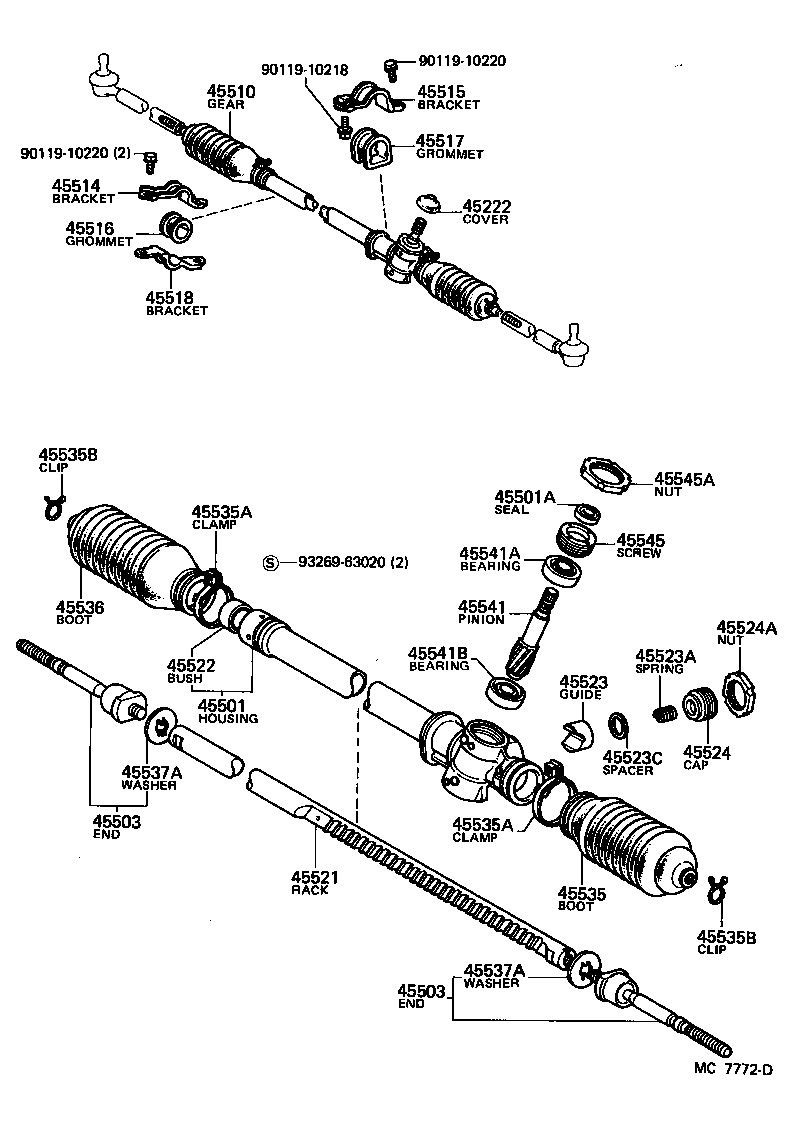

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 45222 - COVER, STEERING GEAR DUST | ||||
| 45222-22030 |
RA64 |
1 | ||
| 45501 - HOUSING SUB-ASSY, STEERING RACK | ||||
| 45501-14031 |
RA64 |
1 | ||
| 45501A - SEAL, TYPE T OIL(FOR STEERING RACK HOUSING) | ||||
| 90311-15001 |
RA64 |
1 | ||
| 45503 - END SUB-ASSY, STEERING RACK | ||||
| 45503-29015 |
RA64 |
2 | ||
| 45503 - END SUB-ASSY, STEERING RACK | ||||
| 45503-29015 |
RA64 |
2 | ||
| 45510 - GEAR ASSY, STEERING | ||||
| 45510-14040 |
RA64 |
1 | ||
| 45514 - BRACKET, STEERING RACK HOUSING, NO.1 | ||||
| 45515-14020 |
RA6# W/POWER STEERING |
1 | ||
| 45515-14040 |
RA64 |
1 | ||
| 45515 - BRACKET, STEERING RACK HOUSING, NO.2 | ||||
| 45514-14012 |
RA64 |
1 | ||
| 45514-14020 |
RA6# W/POWER STEERING |
1 | ||
| 45516 - GROMMET, STEERING RACK HOUSING, NO.1 | ||||
| 45517-14010 |
RA6# W/POWER STEERING |
1 | ||
| 45517-14020 |
RA64 |
1 | ||
| 45517 - GROMMET, STEERING RACK HOUSING, NO.2 | ||||
| 45516-24010 |
MA61,RA6# |
1 | ||
| 45518 - BRACKET, STEERING RACK HOUSING, NO.3 | ||||
| 45518-14010 |
RA64 |
1 | ||
| 45521 - RACK, STEERING | ||||
| 45521-14041 |
RA64 |
1 | ||
| 45522 - BUSH, STEERING RACK | ||||
| 45522-22010 |
RA64 |
1 | ||
| 45523 - GUIDE, RACK(FOR STEERING GEAR) | ||||
| 45523-16011 |
RA64 |
1 | ||
| 45523A - SPRING(FOR STEERING GEAR RACK GUIDE) | ||||
| 90501-23007 |
RA64 |
1 | ||
| 45523C - SPACER(FOR RACK GUIDE) | ||||
| 90560-23003 |
RA64 |
1 | ||
| 45524 - CAP, STEERING RACK GUIDE SPRING | ||||
| 45524-16010 |
RA64 |
1 | ||
| 45524A - NUT(FOR STEERING RACK GUIDE SPRING CAP) | ||||
| 90179-36002 |
RA64 |
1 | ||
| 45535 - BOOT, STEERING RACK, NO.1 | ||||
| 45536-14020 |
RA64 |
1 | ||
| 45535A - CLAMP(FOR STEERING RACK BOOT) | ||||
| 90461-10524 |
RA64 ID=61.5 |
1 | ||
| 90461-10273 |
RA64 ID=41.5 |
1 | ||
| 45535A - CLAMP(FOR STEERING RACK BOOT) | ||||
| 90461-10524 |
RA64 ID=61.5 |
1 | ||
| 90461-10273 |
RA64 ID=41.5 |
1 | ||
| 45535B - CLIP(FOR STEERING RACK BOOT) | ||||
| 90467-18003 |
RA64 |
2 | ||
| 45535B - CLIP(FOR STEERING RACK BOOT) | ||||
| 90467-18003 |
RA64 |
2 | ||
| 45536 - BOOT, STEERING RACK, NO.2 | ||||
| 45535-22010 |
RA64 |
1 | ||
| 45537A - WASHER, CLAW(FOR STEERING RACK END LOCK) | ||||
| 90214-14003 |
RA64 |
2 | ||
| 45537A - WASHER, CLAW(FOR STEERING RACK END LOCK) | ||||
| 90214-14003 |
RA64 |
2 | ||
| 45541 - PINION, STEERING | ||||
| 45541-22020 |
RA64 |
1 | ||
| 45541A - BEARING, RADIAL BALL(FOR STEERING PINION UPPER) | ||||
| 90363-15006 |
RA64 |
1 | ||
| 45541B - BEARING, RADIAL BALL(FOR STEERING PINION LOWER) | ||||
| 90363-15005 |
RA64 |
1 | ||
| 45545 - SCREW, PINION BEARING ADJUSTING | ||||
| 45545-22010 |
RA64 |
1 | ||
| 45545A - NUT(FOR PINION BEARING ADJUSTING SCREW) | ||||
| 90179-42001 |
RA64 |
1 | ||
| Common parts | ||||
| 90119-10218 | ||||
| 90119-10220 | ||||
| 93269-63020 | ||||
(8108- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44147 - SEAT, SPOOL VALVE SPRING | ||||
| 44147-24020 |
MA61,RA6# |
1 | ||
| 44204 - RACK SUB-ASSY, POWER STEERING | ||||
| 44204-14020 |
RA6# |
1 | ||
| 44204A - RING(FOR RACK STEERING PISTON) | ||||
| 90562-37001 |
MA61,RA6# OUTER |
1 | ||
| 90301-33003 |
MA61,RA6# INNER |
1 | ||
| 44204A - RING(FOR RACK STEERING PISTON) | ||||
| 90562-37001 |
MA61,RA6# OUTER |
1 | ||
| 90301-33003 |
MA61,RA6# INNER |
1 | ||
| 44205 - STOPPER SUB-ASSY, CYLINDER END | ||||
| 44205-24010 |
MA61,RA6# |
1 | ||
| 44205A - RING, O(FOR CYLINDER END STOPPER) | ||||
| 90301-49004 |
MA61,RA6# |
1 | ||
| 44205B - SEAL, OIL(FOR CYLINDER END STOPPER) | ||||
| 90311-25008 |
MA61,RA6# NOK |
1 | ||
| 44207 - CAP SUB-ASSY, VALVE | ||||
| 44207-24010 |
MA61,RA6# |
1 | ||
| 44207A - RING, O(FOR VALVE CAP SUB-ASSY) | ||||
| 90301-37001 |
MA61,RA6# OD=42.6,T=2.4 |
1 | ||
| 90301-41001 |
MA61,RA6# OD=45,T=1.9 |
1 | ||
| 44207A - RING, O(FOR VALVE CAP SUB-ASSY) | ||||
| 90301-37001 |
MA61,RA6# OD=42.6,T=2.4 |
1 | ||
| 90301-41001 |
MA61,RA6# OD=45,T=1.9 |
1 | ||
| 44207B - RING, SNAP(FOR VALVE CAP SUB-ASSY) | ||||
| 96151-04500 |
MA61,RA6# |
1 | ||
| 44207C - SEAL, OIL(FOR VALVE CAP SUB-ASSY) | ||||
| 90311-19006 |
MA61,RA6# |
1 | ||
| 44207D - BEARING(FOR VALVE CAP SUB-ASSY) | ||||
| 90363-19002 |
MA61,RA6# |
1 | ||
| 44207E - RING, SNAP(FOR VALVE CAP SUB-ASSY) | ||||
| 96151-03500 |
MA61,RA6# |
1 | ||
| 44207F - SPRING, CONICAL(FOR VALVE CAP SUB-ASSY) | ||||
| 90502-15001 |
MA61,RA6# |
1 | ||
| 44209 - HOUSING SUB-ASSY, POWER STEERING CYLINDER | ||||
| 44209-14020 |
RA6# |
1 | ||
| 44209A - SEAL(FOR POWER STEERING CYLINDER HOUSING) | ||||
| 90311-25006 |
MA61,RA6# NOK |
1 | ||
| 44209B - SPACER(FOR POWER STEERING CYLINDER HOUSING) | ||||
| 90560-26004 |
MA61,RA6# |
1 | ||
| 44210 - VALVE ASSY, POWER STEERING CONTROL | ||||
| 44210-14011 |
RA64 |
1 | ||
| 44210B - SEAT, UNION(FOR POWER STEERING CONTROL VALVE) | ||||
| 90410-06002 |
MA61,RA6# |
2 | ||
| 44210C - RING, O(FOR POWER STEERING CONTROL VALVE) | ||||
| 96710-02060 |
MA61,RA64 |
1 | ||
| 44222A - COVER, DUST(FOR POWER STEERING GEAR) | ||||
| 45222-24010 |
MA61,RA6# |
1 | ||
| 44252B - BEARING(FOR POWER STEERING PINION) | ||||
| 90363-13002 |
MA61,RA6# |
1 | ||
| 44252C - CAP(FOR POWER STEERING PINION) | ||||
| 45524-16010 |
MA61,RA6# |
1 | ||
| 44252D - NUT(FOR POWER STEERING PINION CAP) | ||||
| 90179-36002 |
MA61,RA6# |
1 | ||
| 44253 - HOUSING, POWER STEERING RACK | ||||
| 44253-14021 |
RA64 |
1 | ||
| 44253A - SEAL, OIL(FOR POWER STEERING RACK HOUSING) | ||||
| 90310-30002 |
MA61,RA64 |
1 | ||
| 44253B - RING, O(FOR POWER STEERING RACK HOUSING) | ||||
| 90301-38001 |
MA61,RA6# |
1 | ||
| 44256 - NUT, CYLINDER END STOPPER | ||||
| 44256-24010 |
MA61,RA6# |
1 | ||
| 44267 - GUIDE, RACK END | ||||
| 44267-24010 |
MA61,RA6# |
1 | ||
| 44267A - WASHER(FOR RACK END GUIDE) | ||||
| 90206-43001 |
MA61,RA6# |
1 | ||
| 44277 - SEAT, RACK GUIDE | ||||
| 44277-24010 |
MA61,RA6# |
1 | ||
| 44418A - TUBE, STEERING RIGHT TURN PRESSURE | ||||
| 44418-14020 |
RA6# |
1 | ||
| 44418B - SEAT, UNION(FOR STEERING TURN PRESSURE TUBE) | ||||
| 90410-05004 |
MA61,RA6# |
4 | ||
| 44418B - SEAT, UNION(FOR STEERING TURN PRESSURE TUBE) | ||||
| 90410-05004 |
MA61,RA6# |
4 | ||
| 44419A - TUBE, STEERING LEFT TURN PRESSURE | ||||
| 44419-14020 |
RA6# |
1 | ||
| 44503E - END SUB-ASSY, STEERING RACK(FOR POWER STEERING) | ||||
| 45503-29015 |
MA61,RA6# |
2 | ||
| 44503E - END SUB-ASSY, STEERING RACK(FOR POWER STEERING) | ||||
| 45503-29015 |
MA61,RA6# |
2 | ||
| 44503F - WASHER, CLAW(FOR POWER STEERING RACK END) | ||||
| 90214-14003 |
MA61,RA6# |
2 | ||
| 44503F - WASHER, CLAW(FOR POWER STEERING RACK END) | ||||
| 90214-14003 |
MA61,RA6# |
2 | ||
| 44523G - GUIDE, RACK(FOR POWER STEERING) | ||||
| 45523-24010 |
MA61,RA6# |
1 | ||
| 44523H - SPRING(FOR POWER STEERING RACK GUIDE) | ||||
| 90501-23024 |
MA61,RA6# |
1 | ||
| 44524A - CAP, RACK GUIDE SPRING(FOR POWER STEERING) | ||||
| 45524-16010 |
MA61,RA6# |
1 | ||
| 44524B - NUT(FOR POWER STEERING RACK GUIDE CAP) | ||||
| 90179-36002 |
MA61,RA6# |
1 | ||
| 44535B - BOOT, STEERING RACK NO.1(FOR POWER STEERING) | ||||
| 45535-14011 |
RA6# |
1 | ||
| 44535C - CLAMP(FOR POWER STEERING RACK BOOT) | ||||
| 90461-10554 |
MA61,RA6# |
2 | ||
| 44535D - CLIP(FOR POWER STEERING RACK BOOT) | ||||
| 90467-18003 |
MA61,RA6# |
2 | ||
| 44535D - CLIP(FOR POWER STEERING RACK BOOT) | ||||
| 90467-18003 |
MA61,RA6# |
2 | ||
| 44536B - BOOT, STEERING RACK NO.2(FOR POWER STEERING) | ||||
| 45535-14011 |
RA6# |
1 | ||
| Common parts | ||||
| 90149-30004 | ||||
| 91611-60825 | ||||

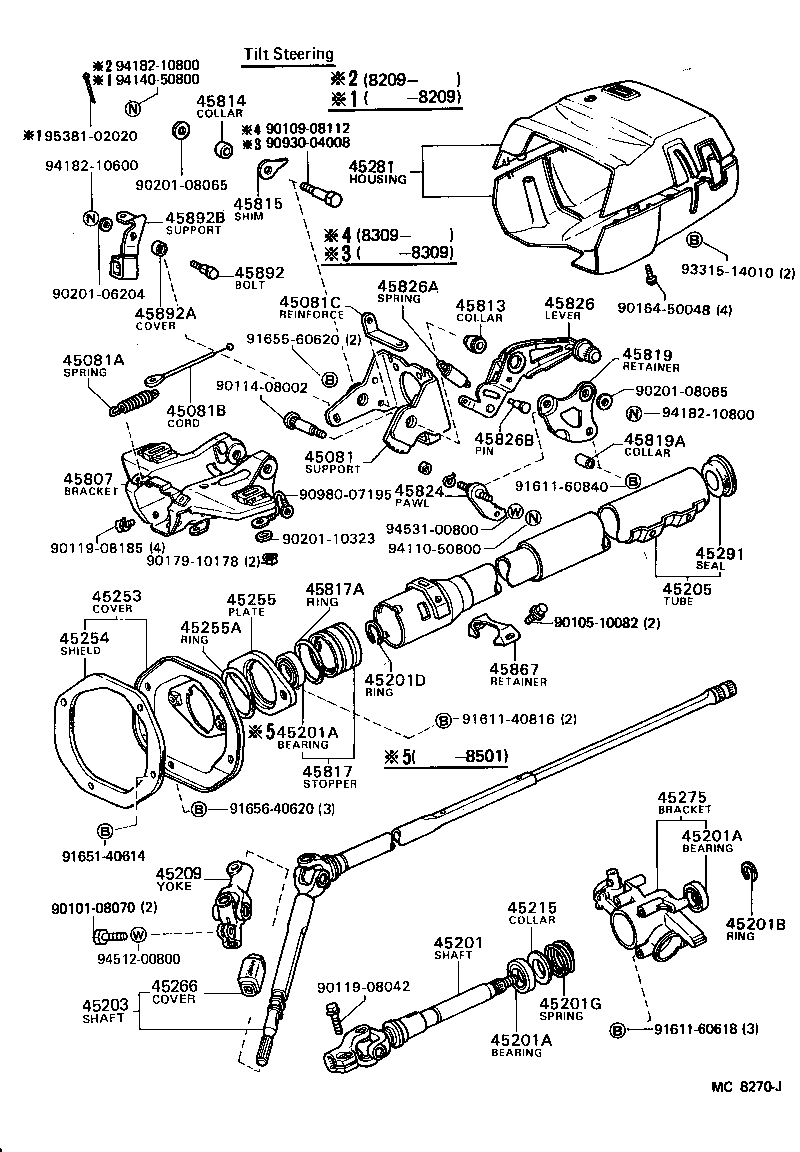

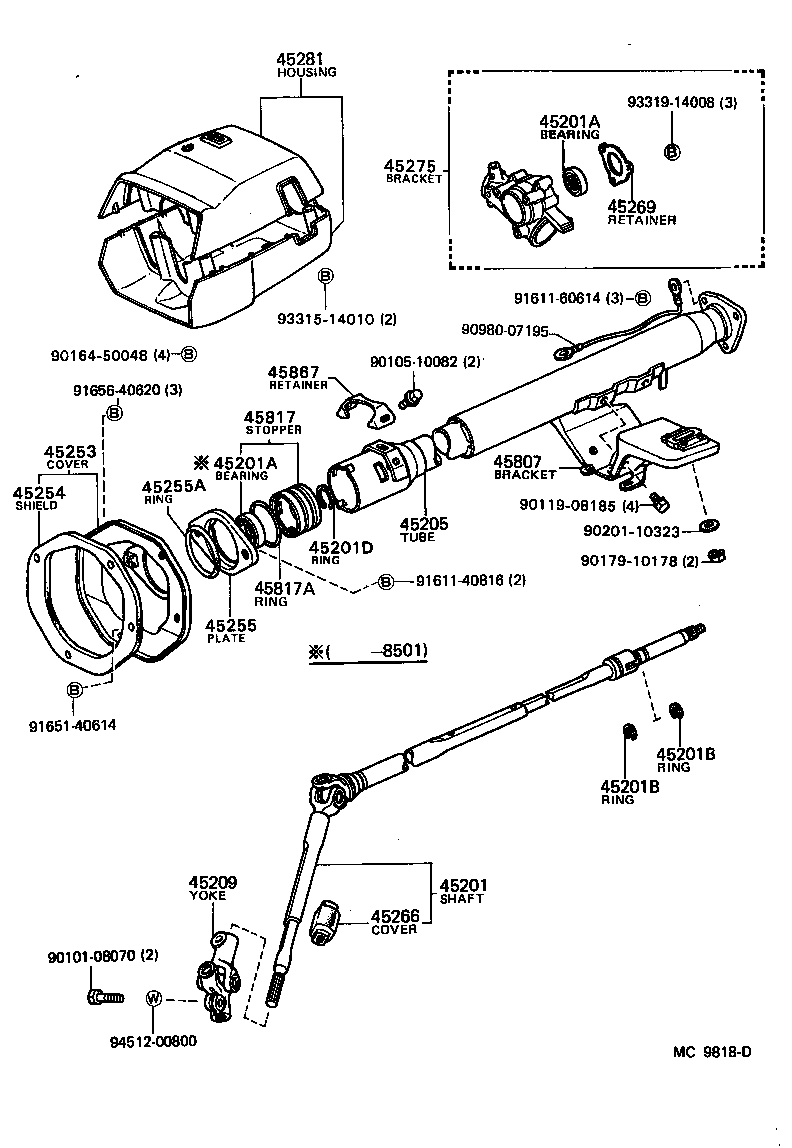

(8108-8507)GT,GTS
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 45081 - SUPPORT SUB-ASSY, TILT STEERING | ||||
| 45081-22020 |
MA61,RA6#..GT,GTS,SPR |
1 | ||
| 45081A - SPRING, TENSION(FOR TILT STEERING) | ||||
| 90506-23009 |
MA61,RA6#..GT,GTS,SPR |
2 | ||
| 45081B - CORD(FOR TILT STEERING) | ||||
| 90945-02034 |
MA61,RA6#..GT,GTS,SPR L=107.5 |
2 | ||
| 45081C - REINFORCE, TILT STEERING SUPPORT | ||||
| 45821-22010 |
MA61,RA6#..GT,GTS,SPR |
1 | ||
| 45201 - SHAFT SUB-ASSY, STEERING MAIN | ||||
| 45210-14060 |
RA64 |
1 | ||
| 45210-14070 |
RA64 W/PS |
1 | ||
| 45210-22050 |
MA61,RA6#..GT,GTS,SPR W/TILT STRG |
1 | ||
| 45201A - BEARING(FOR STEERING MAIN SHAFT) | ||||
| 90363-28001 |
MA61,RA6#..GT,GTS,SPR CTR,W/TILT STRG |
1 | ||
| 90363-18038 |
RA64 UPR |
1 | ||
| 90363-18001 |
MA61,RA6#..GT,GTS,SPR UPR,W/TILT STRG |
1 | ||
| 90363-30007 |
MA61,RA6# LWR |
1 | ||
| 45201A - BEARING(FOR STEERING MAIN SHAFT) | ||||
| 90363-28001 |
MA61,RA6#..GT,GTS,SPR CTR,W/TILT STRG |
1 | ||
| 90363-18038 |
RA64 UPR |
1 | ||
| 90363-18001 |
MA61,RA6#..GT,GTS,SPR UPR,W/TILT STRG |
1 | ||
| 90363-30007 |
MA61,RA6# LWR |
1 | ||
| 45201A - BEARING(FOR STEERING MAIN SHAFT) | ||||
| 90363-28001 |
MA61,RA6#..GT,GTS,SPR CTR,W/TILT STRG |
1 | ||
| 90363-18038 |
RA64 UPR |
1 | ||
| 90363-18001 |
MA61,RA6#..GT,GTS,SPR UPR,W/TILT STRG |
1 | ||
| 90363-30007 |
MA61,RA6# LWR |
1 | ||
| 45201B - RING, SHAFT SNAP(FOR STEERING MAIN SHAFT) | ||||
| 90520-17196 |
RA64 T=1.35-1.45,T=1.4 |
2 | ||
| 90520-17042 |
MA61,RA6# T=1.20,T=1.2 |
2 | ||
| 45201D - RING(FOR STEERING MAIN SHAFT) | ||||
| 96152-00300 |
MA61,RA6# |
1 | ||
| 45201G - SPRING, COMPRESSION(FOR STEERING MAIN SHAFT) | ||||
| 90501-45011 |
MA61,RA6#..GT,GTS,SPR |
1 | ||
| 45203 - SHAFT SUB-ASSY, STEERING INTERMEDIATE, NO.2 | ||||
| 45220-14100 |
RA64..GT W/*TIS |
1 | ||
| 45220-14110 |
RA64..GT W/*TIS & PS |
1 | ||
| 45205 - TUBE SUB-ASSY, STEERING COLUMN | ||||
| 45870-14100 |
RA64 |
1 | ||
| 45870-14110 |
RA6#..GT,GTS W/TILT STRG |
1 | ||
| 45209 - YOKE SUB-ASSY, STEERING SLIDING | ||||
| 45209-14020 |
RA6# W/PS |
1 | ||
| 45209-14010 |
RA64 |
1 | ||
| 45215 - COLLAR, MAIN SHAFT BEARING THRUST | ||||
| 45215-22011 |
MA61,RA6#..GT,GTS,SPR |
1 | ||
| 45253 - COVER, STEERING COLUMN HOLE | ||||
| 45025-14110 |
RA6# |
1 | ||
| 45254 - SHIELD, STEERING COLUMN HOLE | ||||
| 45254-24011 |
MA61,RA6# |
1 | ||
| 45255 - PLATE, STEERING COLUMN HOLE COVER | ||||
| 45255-12030 |
MA61,RA6# |
1 | ||
| 45255A - GROMMET OR RING, O(FOR STEERING COLUMN CLAMP) | ||||
| 90301-60122 |
MA61,RA64 |
1 | ||
| 45266 - COVER, STEERING INTERMEDIATE SHAFT DUST | ||||
| 45266-12020 |
MA61,RA6# |
1 | ||
| 45275 - BRACKET, STEERING COLUMN, UPPER | ||||
| 45280-14030 |
RA64 |
1 | ||
| 45280-14040 |
MA61,RA6#..GT,GTS,SPR W/TILT STRG |
1 | ||
| 45281 - HOUSING, STEERING COLUMN | ||||
| 45286-1492401 |
MA61,RA6#..GT,GTS,SPR BLACK,W/TILT STRG,BLACK |
1 | ||
| 45286-1492406 |
RA6#..GT,GTS DARK BROWN,W/TILT STRG,BROWN |
1 | ||
| 45286-1492301 |
RA64 BLACK,BLACK |
1 | ||
| 45286-1492404 |
MA61,RA6#..GT,GTS,SPR BLUE,W/TILT STRG,BLUE |
1 | ||
| 45286-1492306 |
RA64 DARK BROWN,BROWN |
1 | ||
| 45286-1492304 |
RA64 BLUE,BLUE |
1 | ||
| 45291 - SEAL, MAIN SHAFT UPPER DUST | ||||
| 45282-22010 |
MA61,RA6#..GT,GTS,SPR |
1 | ||
| 45807 - BRACKET SUB-ASSY, STEERING COLUMN UPPER SUPPORT | ||||
| 45082-14030 |
MA61,RA6#..GT,GTS,SPR W/TILT STRG |
1 | ||
| 45807-14100 |
RA64 |
1 | ||
| 45813 - COLLAR, TILT STEERING SUPPORT, NO.1 | ||||
| 45813-22010 |
MA61,RA6#..GT,GTS,SPR OD=17.996-18.003,OD=17.996-18.003 |
1 | ||
| 45813-22050 |
MA61,RA6#..GT,GTS,SPR OD=17.989-17.996,OD=17.989-17.996 |
1 | ||
| 45813-22040 |
MA61,RA6#..GT,GTS,SPR OD=18.017-18.024,OD=18.017-18.024 |
1 | ||
| 45813-22030 |
MA61,RA6#..GT,GTS,SPR OD=18.010-18.017,OD=18.010-18.017 |
1 | ||
| 45813-22020 |
MA61,RA6#..GT,GTS,SPR OD=18.003-18.010,OD=18.003-18.010 |
1 | ||
| 45814 - COLLAR, TILT STEERING SUPPORT, NO.2 | ||||
| 45814-22020 |
MA61,RA6#..GT,GTS,SPR OD=18.000-18.018,OD=18.000-18.018 |
1 | ||
| 45814-22010 |
MA61,RA6#..GT,GTS,SPR OD=17.982-18.000,OD=17.982-18.000 |
1 | ||
| 45815 - SHIM, TILT STEERING SUPPORT | ||||
| 45815-22080 |
MA61,RA6#..GT,GTS,SPR T=0.8,T=0.8 |
1 | ||
| 45815-22100 |
MA61,RA6#..GT,GTS,SPR T=1.8,T=1.8 |
1 | ||
| 45815-22070 |
MA61,RA6#..GT,GTS,SPR T=0.5,T=0.5 |
1 | ||
| 45815-22090 |
MA61,RA6#..GT,GTS,SPR T=1.4,T=1.4 |
1 | ||
| 45815-22060 |
MA61,RA6#..GT,GTS,SPR T=0.2,T=0.2 |
1 | ||
| 45817 - STOPPER, STEERING SHAFT THRUST | ||||
| 45808-12020 |
MA61,RA6# |
1 | ||
| 45817A - RING, O(FOR STEERING SHAFT THRUST STOPPER) | ||||
| 96711-24053 |
MA61,RA6# |
1 | ||
| 45819 - RETAINER, TILT LEVER | ||||
| 45819-22011 |
MA61,RA6#..GT,GTS,SPR |
1 | ||
| 45819A - COLLAR(FOR TILT LEVER RETAINER) | ||||
| 90387-08002 |
MA61,RA6#..GT,GTS,SPR |
1 | ||
| 45824 - PAWL, TILT STEERING | ||||
| 45890-22050 |
MA61,RA6#..GT,GTS,SPR |
1 | ||
| 45826 - LEVER, STEERING TILT | ||||
| 45804-22010 |
MA61,RA6#..GT,GTS,SPR |
1 | ||
| 45826A - SPRING, TENSION(FOR STEERING TILT LEVER) | ||||
| 90507-14001 |
MA61,RA6#..GT,GTS,SPR |
1 | ||
| 45826B - PIN(FOR STEERING TILT LEVER) | ||||
| 72538-12010 |
MA61,RA6#..GT,GTS,SPR |
1 | ||
| 45867 - RETAINER, STEERING MAIN SHAFT STOPPER | ||||
| 45867-12010 |
MA61,RA6# |
1 | ||
| 45892 - BOLT, TILT STEERING SUPPORT STOPPER | ||||
| 45898-22010 |
MA61,RA6#..GT,GTS,SPR |
1 | ||
| 45892A - COVER, TILT STEERING SUPPORT STOPPER | ||||
| 45899-22020 |
MA61,RA6#..GT,GTS,SPR |
1 | ||
| 45892B - SUPPORT, TILT STEERING COLUMN COVER | ||||
| 45289-22020 |
MA61,RA6#..GT,GTS,SPR |
1 | ||
| Common parts | ||||
| 90101-08070 | ||||
| 90105-10082 | ||||
| 90109-08112 | ||||
| 90114-08002 | ||||
| 90119-08042 | ||||
| 90119-08185 | ||||
| 90164-50048 | ||||
| 90179-10178 | ||||
| 90201-06204 | ||||
| 90201-08065 | ||||
| 90201-10323 | ||||
| 90930-04008 | ||||
| 90980-07195 | ||||
| 91611-40816 | ||||
| 91611-60618 | ||||
| 91611-60840 | ||||
| 91651-40614 | ||||
| 91655-60620 | ||||
| 91656-40620 | ||||
| 93315-14010 | ||||
| 94110-50800 | ||||
| 94140-50800 | ||||
| 94182-10600 | ||||
| 94182-10800 | ||||
| 94512-00800 | ||||
| 94531-00800 | ||||
| 95381-02020 | ||||
(8108- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44210K - GASKET KIT, POWER STEERING CONTROL VALVE OVERHAUL | ||||
| 04455-24010 |
MA61,RA6# |
1 | ||
| 44250 - GEAR ASSY, POWER STEERING(FOR RACK & PINION) | ||||
| 44250-14020 |
RA6# |
1 | ||
| 44250K - GASKET KIT, POWER STEERING GEAR(FOR RACK & PINION) | ||||
| 04445-24010 |
MA61,RA64 |
1 | ||
| 45514 - BRACKET, STEERING RACK HOUSING, NO.1 | ||||
| 45515-14020 |
RA6# W/POWER STEERING |
1 | ||
| 45515-14040 |
RA64 |
1 | ||
| 45515 - BRACKET, STEERING RACK HOUSING, NO.2 | ||||
| 45514-14012 |
RA64 |
1 | ||
| 45514-14020 |
RA6# W/POWER STEERING |
1 | ||
| 45516 - GROMMET, STEERING RACK HOUSING, NO.1 | ||||
| 45517-14010 |
RA6# W/POWER STEERING |
1 | ||
| 45517-14020 |
RA64 |
1 | ||
| 45517 - GROMMET, STEERING RACK HOUSING, NO.2 | ||||
| 45516-24010 |
MA61,RA6# |
1 | ||
| Common parts | ||||
| 90119-10218 | ||||
| 90119-10220 | ||||
| 90119-12027 | ||||
(8108-8308)RA64 ; (8308-8507)ST
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 45201 - SHAFT SUB-ASSY, STEERING MAIN | ||||
| 45210-14060 |
RA64 |
1 | ||
| 45210-14070 |
RA64 W/PS |
1 | ||
| 45210-22050 |
MA61,RA6#..GT,GTS,SPR W/TILT STRG |
1 | ||
| 45201A - BEARING(FOR STEERING MAIN SHAFT) | ||||
| 90363-28001 |
MA61,RA6#..GT,GTS,SPR CTR,W/TILT STRG |
1 | ||
| 90363-18038 |
RA64 UPR |
1 | ||
| 90363-18001 |
MA61,RA6#..GT,GTS,SPR UPR,W/TILT STRG |
1 | ||
| 90363-30007 |
MA61,RA6# LWR |
1 | ||
| 45201A - BEARING(FOR STEERING MAIN SHAFT) | ||||
| 90363-28001 |
MA61,RA6#..GT,GTS,SPR CTR,W/TILT STRG |
1 | ||
| 90363-18038 |
RA64 UPR |
1 | ||
| 90363-18001 |
MA61,RA6#..GT,GTS,SPR UPR,W/TILT STRG |
1 | ||
| 90363-30007 |
MA61,RA6# LWR |
1 | ||
| 45201B - RING, SHAFT SNAP(FOR STEERING MAIN SHAFT) | ||||
| 90520-17196 |
RA64 T=1.35-1.45,T=1.4 |
2 | ||
| 90520-17042 |
MA61,RA6# T=1.20,T=1.2 |
2 | ||
| 45201B - RING, SHAFT SNAP(FOR STEERING MAIN SHAFT) | ||||
| 90520-17196 |
RA64 T=1.35-1.45,T=1.4 |
2 | ||
| 90520-17042 |
MA61,RA6# T=1.20,T=1.2 |
2 | ||
| 45201D - RING(FOR STEERING MAIN SHAFT) | ||||
| 96152-00300 |
MA61,RA6# |
1 | ||
| 45205 - TUBE SUB-ASSY, STEERING COLUMN | ||||
| 45870-14100 |
RA64 |
1 | ||
| 45870-14110 |
RA6#..GT,GTS W/TILT STRG |
1 | ||
| 45209 - YOKE SUB-ASSY, STEERING SLIDING | ||||
| 45209-14020 |
RA6# W/PS |
1 | ||
| 45209-14010 |
RA64 |
1 | ||
| 45253 - COVER, STEERING COLUMN HOLE | ||||
| 45025-14110 |
RA6# |
1 | ||
| 45254 - SHIELD, STEERING COLUMN HOLE | ||||
| 45254-24011 |
MA61,RA6# |
1 | ||
| 45255 - PLATE, STEERING COLUMN HOLE COVER | ||||
| 45255-12030 |
MA61,RA6# |
1 | ||
| 45255A - GROMMET OR RING, O(FOR STEERING COLUMN CLAMP) | ||||
| 90301-60122 |
MA61,RA64 |
1 | ||
| 45266 - COVER, STEERING INTERMEDIATE SHAFT DUST | ||||
| 45266-12020 |
MA61,RA6# |
1 | ||
| 45269 - RETAINER, MAIN SHAFT BEARING | ||||
| 45269-20010 |
RA64 |
1 | ||
| 45275 - BRACKET, STEERING COLUMN, UPPER | ||||
| 45280-14030 |
RA64 |
1 | ||
| 45280-14040 |
MA61,RA6#..GT,GTS,SPR W/TILT STRG |
1 | ||
| 45281 - HOUSING, STEERING COLUMN | ||||
| 45286-1492401 |
MA61,RA6#..GT,GTS,SPR BLACK,W/TILT STRG,BLACK |
1 | ||
| 45286-1492406 |
RA6#..GT,GTS DARK BROWN,W/TILT STRG,BROWN |
1 | ||
| 45286-1492301 |
RA64 BLACK,BLACK |
1 | ||
| 45286-1492404 |
MA61,RA6#..GT,GTS,SPR BLUE,W/TILT STRG,BLUE |
1 | ||
| 45286-1492306 |
RA64 DARK BROWN,BROWN |
1 | ||
| 45286-1492304 |
RA64 BLUE,BLUE |
1 | ||
| 45807 - BRACKET SUB-ASSY, STEERING COLUMN UPPER SUPPORT | ||||
| 45082-14030 |
MA61,RA6#..GT,GTS,SPR W/TILT STRG |
1 | ||
| 45807-14100 |
RA64 |
1 | ||
| 45817 - STOPPER, STEERING SHAFT THRUST | ||||
| 45808-12020 |
MA61,RA6# |
1 | ||
| 45817A - RING, O(FOR STEERING SHAFT THRUST STOPPER) | ||||
| 96711-24053 |
MA61,RA6# |
1 | ||
| 45867 - RETAINER, STEERING MAIN SHAFT STOPPER | ||||
| 45867-12010 |
MA61,RA6# |
1 | ||
| Common parts | ||||
| 90101-08070 | ||||
| 90105-10082 | ||||
| 90119-08185 | ||||
| 90164-50048 | ||||
| 90179-10178 | ||||
| 90201-10323 | ||||
| 90980-07195 | ||||
| 91611-40816 | ||||
| 91611-60614 | ||||
| 91651-40614 | ||||
| 91656-40620 | ||||
| 93315-14010 | ||||
| 93319-14008 | ||||
| 94512-00800 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
