RA64L-BCPQSA (1981)

Toyota Celica

Production Aug 1981 - Aug 1982
Engine 22R
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8108- )4FC

Click highlighted areas on diagram

diagram 35505 35506 35506C 35506F 35506H 35556 35556E 35557 35557A 35572 35585 35595 9010106416 9411050800 9451200800 9454200600
Part # Description Qty Price
35505 - LEVER SUB-ASSY, MANUAL VALVE
35505-22010

MA61,RA64..4FC

 1
35506 - SHAFT SUB-ASSY, MANUAL VALVE LEVER
35561-20021

MA61,RA64..4FC

 1
35506C - PIN, SLOTTED SPRING (FOR MANUAL VALVE LEVER SHAFT)
90254-03004

MA61,RA64..4FC

 1
35506F - SEAL, OIL (FOR MANUAL VALVE LEVER SHAFT)
90311-11128

MA61,RA64..4FC

 2
35506H - SPACER (FOR MANUAL VALVE LEVER SHAFT)
90560-20003

MA61,RA6#..4FC

 1
35556 - SHAFT, PARKING LOCK PAWL
35556-22010

MA61,RA6#..4FC

 1
35556E - RING, E (FOR PARKING LOCK PAWL SHAFT)
90523-08021

MA61,RA6#..4FC

 1
35557 - PAWL, PARKING LOCK
35557-22010

RA64..4FC

 1
35557A - SPRING, TORSION (FOR PARKING LOCK PAWL)
90508-25001

MA61,RA6#..4FC

 1
35572 - LEVER, TRANSMISSION CONTROL SHAFT, RH
35572-22040

MA61,RA6#..4FC

 1
35585 - ROD, PARKING LOCK
35501-22020

MA61,RA6#..4FC

 1
35595 - BRACKET, PARKING LOCK PAWL
35595-16010

MA61,RA64..4FC

 1
Common parts
90101-06416
94110-50800
94512-00800
94542-00600

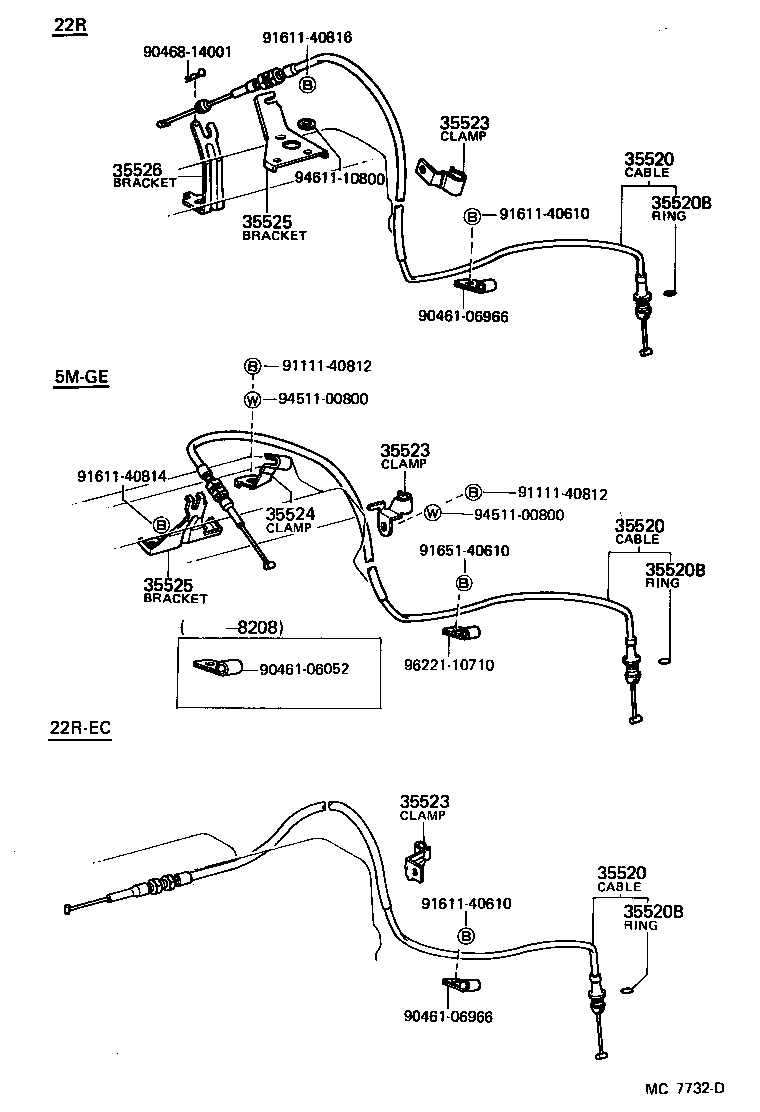

(8108- )4FC

Click highlighted areas on diagram

diagram 35520 35520 35520 35520B 35520B 35520B 35523 35523 35523 35524 35525 35525 35526 9046106052 9046106966 9046106966 9046814001 9111140812 9111140812 9161140610 9161140610 9161140814 9161140816 9165140610 9451100800 9451100800 9461110800 9622110710
Part # Description Qty Price
35520 - CABLE ASSY, THROTTLE
35520-20070

RA64..4FC

 1
35520 - CABLE ASSY, THROTTLE
35520-20070

RA64..4FC

 1
35520 - CABLE ASSY, THROTTLE
35520-20070

RA64..4FC

 1
35520B - RING, O(FOR THROTTLE CABLE)
90301-09063

MA61,RA64..4FC

 1
35520B - RING, O(FOR THROTTLE CABLE)
90301-09063

MA61,RA64..4FC

 1
35520B - RING, O(FOR THROTTLE CABLE)
90301-09063

MA61,RA64..4FC

 1
35523 - CLAMP, THROTTLE CABLE
35523-20021

RA64..4FC

 1
35523 - CLAMP, THROTTLE CABLE
35523-20021

RA64..4FC

 1
35523 - CLAMP, THROTTLE CABLE
35523-20021

RA64..4FC

 1
35525 - BRACKET, THROTTLE CABLE
35525-20042

RA64..4FC

 1
35525 - BRACKET, THROTTLE CABLE
35525-20042

RA64..4FC

 1
35526 - BRACKET, THROTTLE CABLE GUIDE
35526-20010

RA64..4FC

 1
Common parts
90461-06052
90461-06966
90468-14001
91111-40812
91611-40610
91611-40814
91611-40816
91651-40610
94511-00800
94611-10800
96221-10710
