RA64L-BCPQSA (1981)
Toyota Celica
Production
Aug 1981
-
Aug 1982
Engine
22R
Transmission
4FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(8108-8208)4FC ; (8208-8507)RA6#..4FC

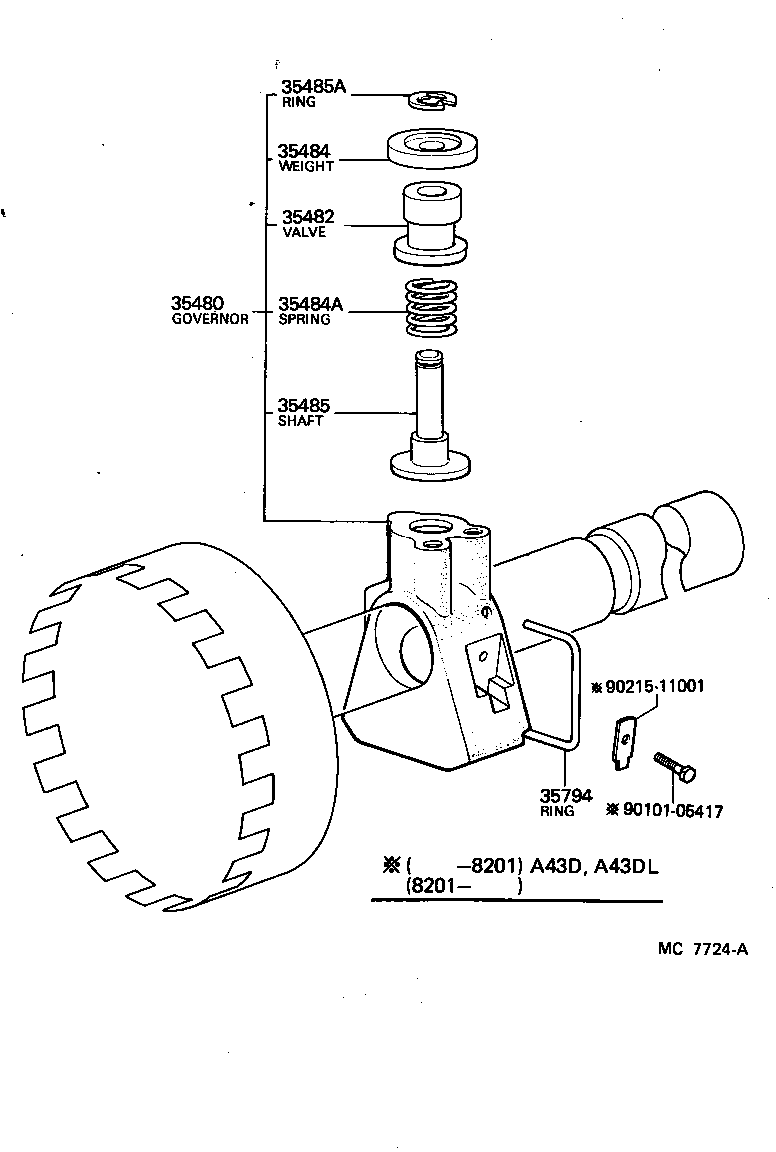

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 35480 - GOVERNOR | ||||
| 35480-30040 |
RA64..4FC |
1 | ||
| 35482 - VALVE, GOVERNOR | ||||
| 35482-22010 |
MA61,RA64..4FC |
1 | ||
| 35484 - WEIGHT, GOVERNOR, OUTER | ||||
| 35484-22010 |
MA61,RA64..4FC |
1 | ||
| 35484A - SPRING, COMPRESSION (FOR GOVERNOR WEIGHT) | ||||
| 90501-09673 |
MA61,RA64..4FC |
1 | ||
| 35485 - SHAFT, GOVERNOR VALVE | ||||
| 35485-22010 |
MA61,RA64..4FC |
1 | ||
| 35485A - RING, E (FOR GOVERNOR VALVE SHAFT) | ||||
| 90523-05020 |
MA61,RA64..4FC |
1 | ||
| 35794 - RING, GOVERNOR RETAINING | ||||
| 35794-22010 |
MA61,RA64..4FC |
1 | ||
| Common parts | ||||
| 90101-05417 | ||||
| 90215-11001 | ||||
