RA64L-BCPQSA (1981)

Toyota Celica

Production Aug 1981 - Aug 1982
Engine 22R
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8108- )4FC

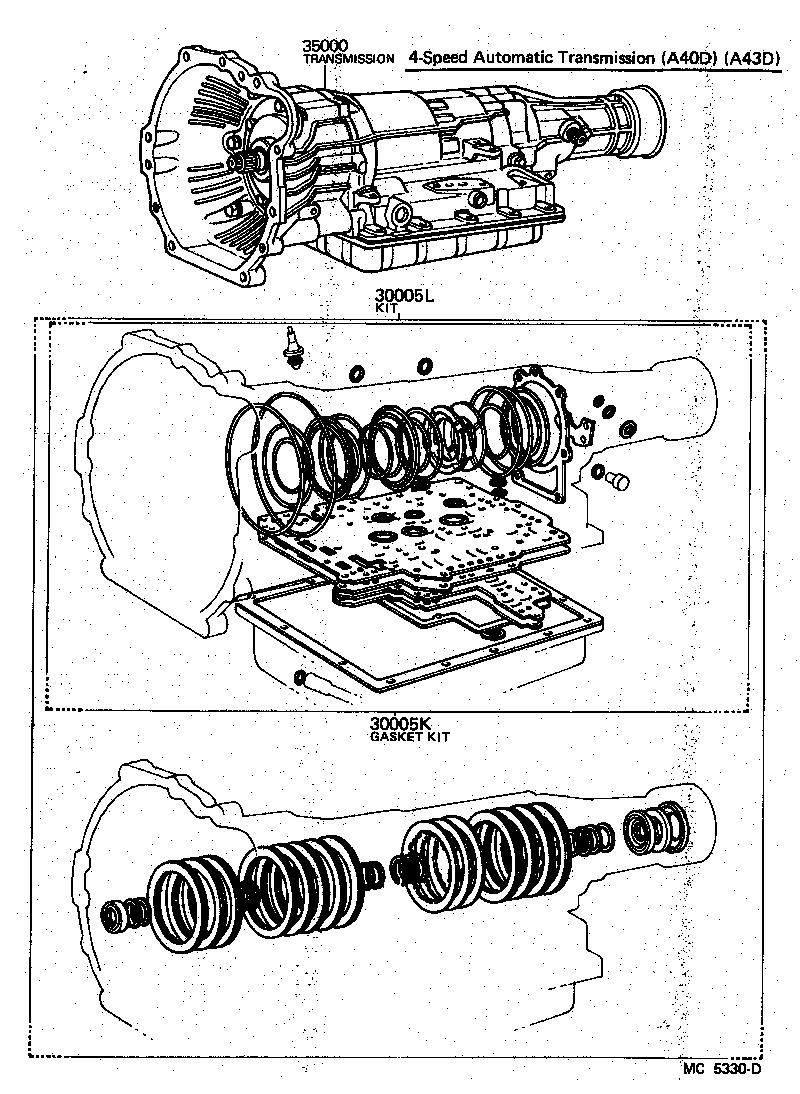

Click highlighted areas on diagram

diagram 30005K 30005L 35000
Part # Description Qty Price
30005K - GASKET KIT, AUTOMATIC TRANSMISSION OVERHAUL
04351-22032

RA6#..4FC

 1
30005L - KIT, AUTOMATIC TRANSMISSION OVERHAUL
04352-14023

RA64..4FC

 1
35000 - TRANSMISSION ASSY, AUTOMATIC
35000-14600

RA64..4FC..GT

SMG R=18:6

 1
35000-14601

RA64..4FC..GT

SMG R=18:6

 1
