RA64L-BCPQSA (1981)

Toyota Celica

Production Aug 1981 - Aug 1982
Engine 22R
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8108-8308)22R

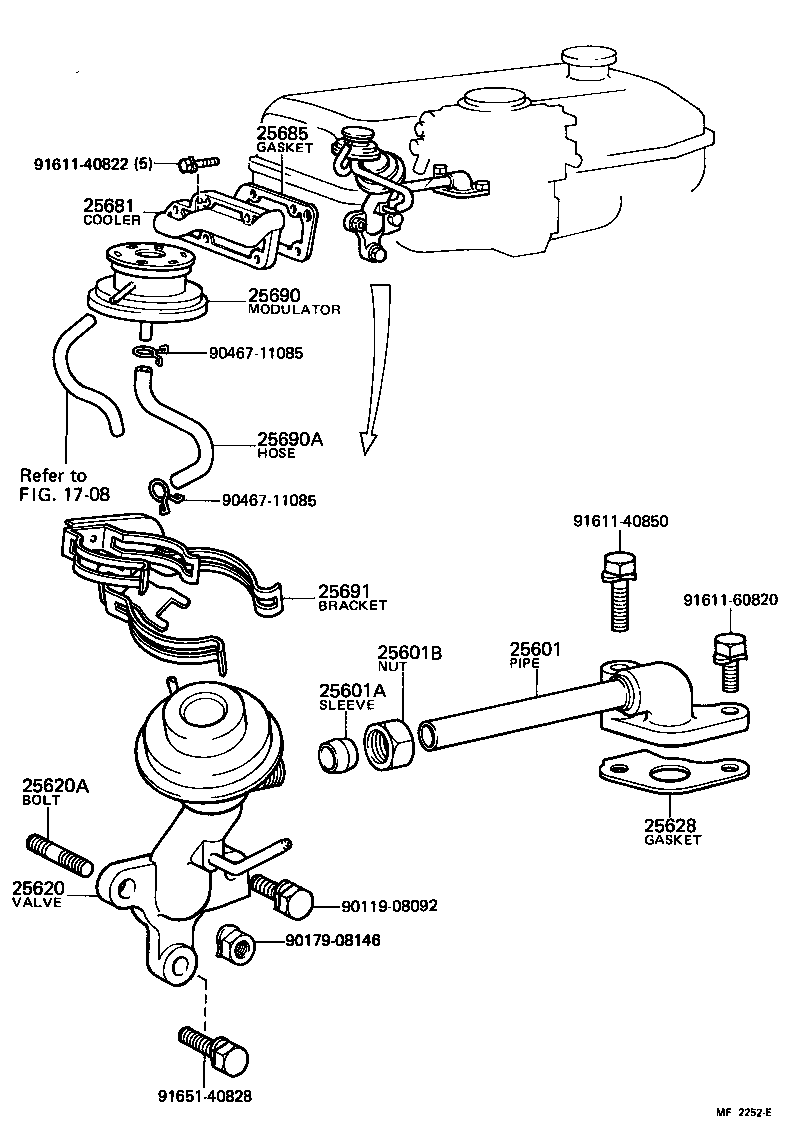

Click highlighted areas on diagram

diagram 1708 25601 25601A 25601B 25620 25620A 25628 25681 25685 25690 25690A 25691 9011908092 9017908146 9046711085 9046711085 9161140822 9161140850 9161160820 9165140828
Part # Description Qty Price
25601 - PIPE SUB-ASSY, EGR, NO.1
25601-38010

22R..RA64

 1
25601A - SLEEVE, BALL, EGR PIPE, NO.1
90410-16044

22R#..RA6#

 1
25601B - NUT, UNION, EGR PIPE, NO.1
90402-22081

22R#..RA6#

 1
25620 - VALVE ASSY, EGR
25620-35010

22R..RA64..USA

 1
25620A - BOLT, STUD(FOR EGR VALVE)
90116-08207

22R#..RA6#

 1
25628 - GASKET, EGR INLET
25628-38010

22R..RA64

 1
25681 - COOLER, EGR, NO.1
11181-35010

22R..RA64

 1
25685 - GASKET, EGR COOLER, NO.1
11182-38011

22R..RA64

 1
25690 - MODULATOR ASSY, EGR VACUUM
25690-35010

22R..RA64..USA

 1
25690A - HOSE(FOR EGR VACUUM MODULATOR)
90910-05147

22R..RA64

 1
25691 - BRACKET, EGR VACUUM MODULATOR
25691-35010

22R..RA64

 1
Common parts
90119-08092
90179-08146
90467-11085
91611-40822
91611-40850
91611-60820
91651-40828
Linked diagrams
1708
