RA64L-BCPQSA (1981)

Toyota Celica

Production Aug 1981 - Aug 1982
Engine 22R
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8108-8308)22R

Click highlighted areas on diagram

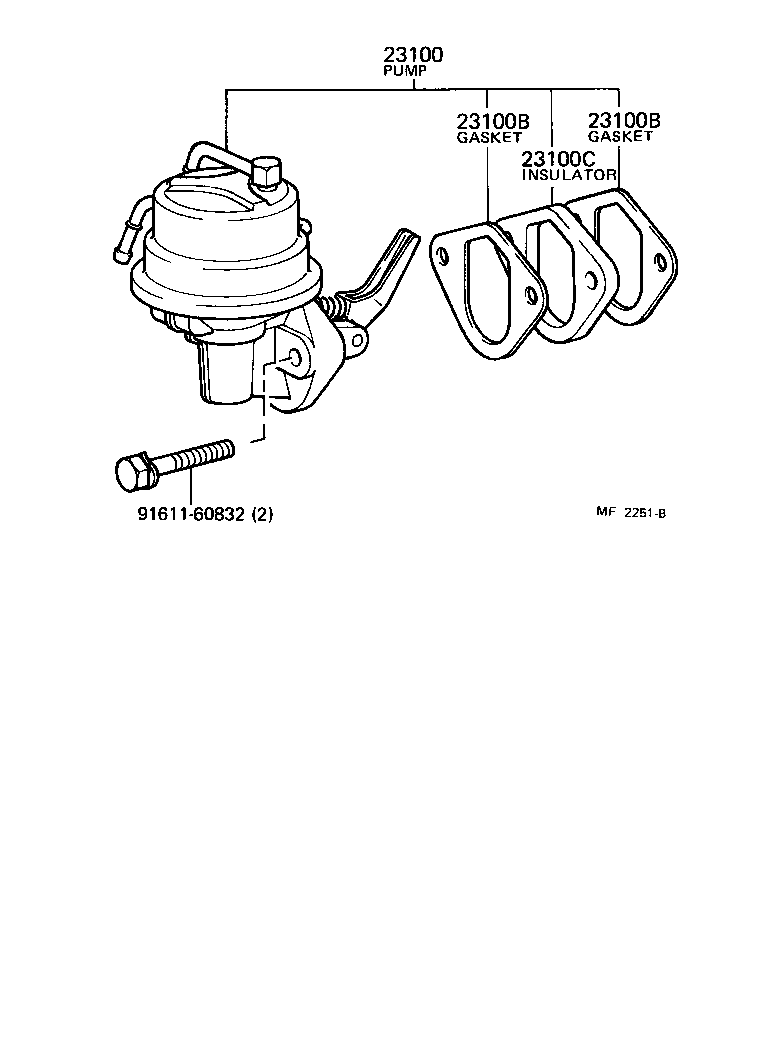

diagram 23100 23100B 23100B 23100C 9161160832
Part # Description Qty Price
23100 - PUMP ASSY, FUEL
23100-39336

22R..RA64

 1
23100B - GASKET, FUEL PUMP
90923-05005

22R..RA64

 2
23100B - GASKET, FUEL PUMP
90923-05005

22R..RA64

 2
23100C - INSULATOR, FUEL PUMP
90923-06001

22R..RA64

 1
Common parts
91611-60832
