RA64L-BCPQSA (1981)

Toyota Celica

Production Aug 1981 - Aug 1982
Engine 22R
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8108-8308)22R

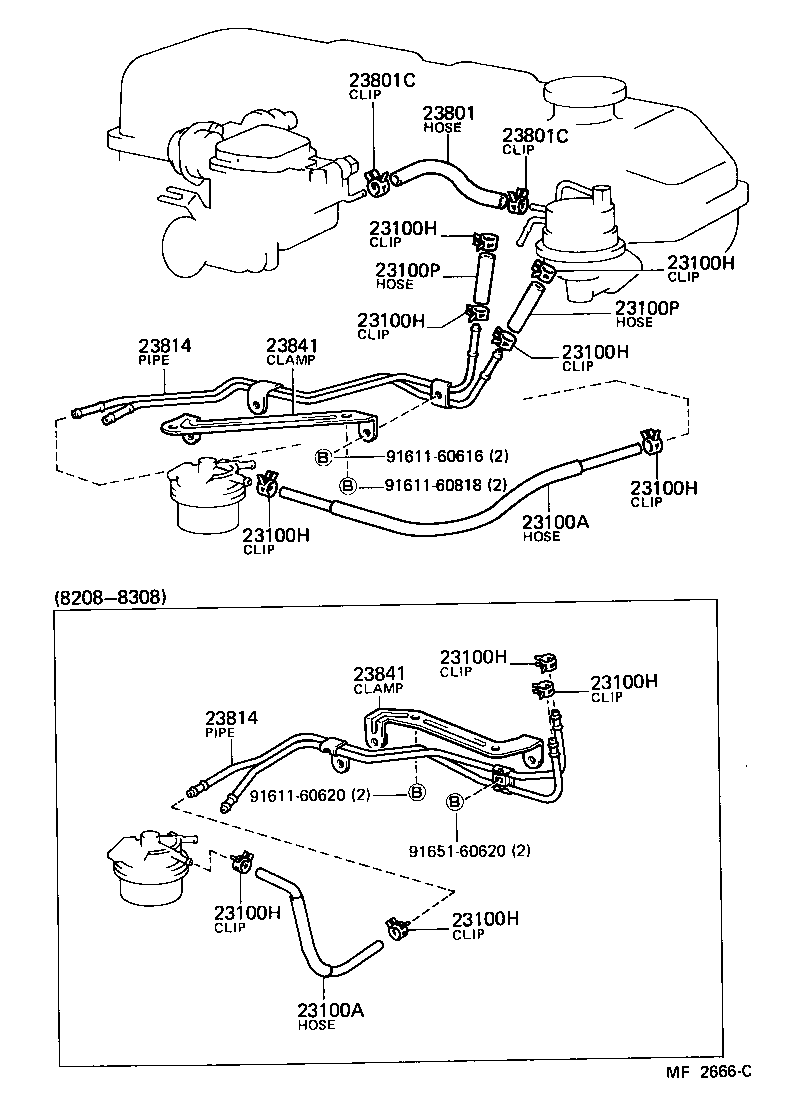

Click highlighted areas on diagram

diagram 23100A 23100A 23100H 23100H 23100H 23100H 23100H 23100H 23100H 23100H 23100H 23100H 23100P 23100P 23801 23801C 23801C 23814 23814 23841 23841 9161160616 9161160620 9161160818 9165160620
Part # Description Qty Price
23100A - HOSE, FUEL
23271-35020

22R..RA64

 1
23100A - HOSE, FUEL
23271-35020

22R..RA64

 1
23100H - CLIP(FOR FUEL HOSE)
96132-30600

22R..RA64

 6
23100H - CLIP(FOR FUEL HOSE)
96132-30600

22R..RA64

 6
23100H - CLIP(FOR FUEL HOSE)
96132-30600

22R..RA64

 6
23100H - CLIP(FOR FUEL HOSE)
96132-30600

22R..RA64

 6
23100H - CLIP(FOR FUEL HOSE)
96132-30600

22R..RA64

 6
23100H - CLIP(FOR FUEL HOSE)
96132-30600

22R..RA64

 6
23100H - CLIP(FOR FUEL HOSE)
96132-30600

22R..RA64

 6
23100H - CLIP(FOR FUEL HOSE)
96132-30600

22R..RA64

 6
23100H - CLIP(FOR FUEL HOSE)
96132-30600

22R..RA64

 6
23100H - CLIP(FOR FUEL HOSE)
96132-30600

22R..RA64

 6
23100P - HOSE(FOR FUEL PUMP TO FUEL TUBE)
95332-06020

22R..RA64

*H,L=120

 2
23100P - HOSE(FOR FUEL PUMP TO FUEL TUBE)
95332-06020

22R..RA64

*H,L=120

 2
23801 - PIPE OR HOSE SUB-ASSY, CARBURETOR FUEL, NO.1
95332-06020

22R..RA64

*H,L=190

 1
23801C - CLIP(FOR CARBURETOR FUEL HOSE)
96132-30600

22R..RA64

 2
23801C - CLIP(FOR CARBURETOR FUEL HOSE)
96132-30600

22R..RA64

 2
23814 - PIPE, FUEL DELIVERY
23814-35030

22R..RA64

 1
23814 - PIPE, FUEL DELIVERY
23814-35030

22R..RA64

 1
23841 - CLAMP, FUEL PIPE(HOSE), NO.1
23841-35010

22R..RA64

 1
23841 - CLAMP, FUEL PIPE(HOSE), NO.1
23841-35010

22R..RA64

 1
Common parts
91611-60616
91611-60620
91611-60818
91651-60620
