RA64L-BCPQSA (1981)

Toyota Celica

Production Aug 1981 - Aug 1982
Engine 22R
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8108-8408)22R#

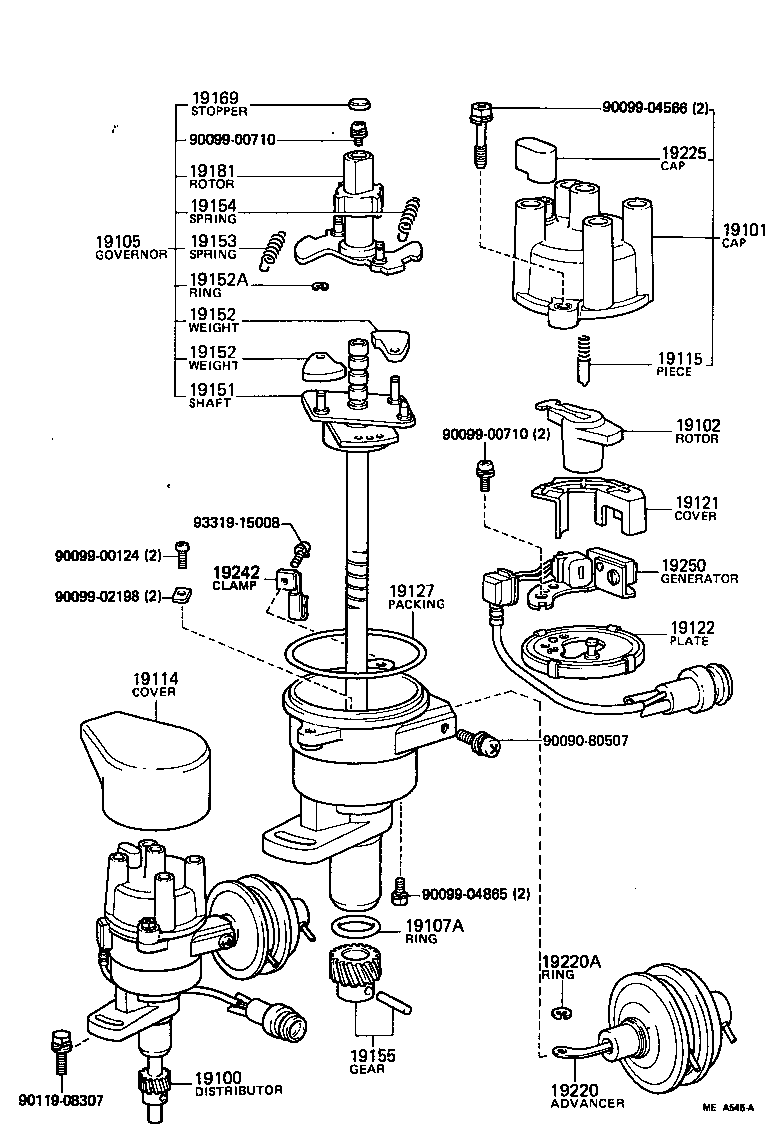

Click highlighted areas on diagram

diagram 19100 19101 19102 19105 19107A 19114 19115 19121 19122 19127 19151 19152 19152 19152A 19153 19154 19155 19169 19181 19220 19220A 19225 19242 19250 9009080507 9009900124 9009900710 9009900710 9009902198 9009904566 9009904865 9011908307 9331915008
Part # Description Qty Price
19100 - DISTRIBUTOR ASSY
19100-35030

22R..RA64

 1
19101 - CAP SUB-ASSY, DISTRIBUTOR
19101-38210

22R..RA64

 1
19102 - ROTOR SUB-ASSY, DISTRIBUTOR
19102-38210

22R#..RA6#

 1
19105 - GOVERNOR SUB-ASSY
19105-35030

22R..RA64

 1
19107A - RING, O, DISTRIBUTOR HOUSING
90099-14020

22R#..RA6#

 1
19114 - COVER, WATER PROOF(FOR DISTRIBUTOR)
19114-35010

22R..RA64..USA

COLD SPEC

 1
19115 - PIECE, DISTRIBUTOR CAP, CENTER
19115-50010

22R#..RA6#

 1
19121 - COVER, DUST PROOF
19121-38210

22R#..RA6#

 1
19122 - PLATE, STATIONARY, DISTRIBUTOR
19122-88262

22R..RA64

 1
19127 - PACKING, DUST PROOF
19127-15021

22R#..RA6#

 1
19151 - SHAFT, GOVERNOR
19151-37081

22R#..RA6#

 1
19152 - WEIGHT, GOVERNOR
19152-35030

22R#..RA6#

 2
19152 - WEIGHT, GOVERNOR
19152-35030

22R#..RA6#

 2
19152A - RING, SNAP(FOR GOVERNOR WEIGHT)
90099-07109

22R..RA64

 4
19153 - SPRING, GOVERNOR, A
19153-35011

22R..RA64

 1
19154 - SPRING, GOVERNOR, B
19154-35011

22R..RA64

 1
19155 - GEAR, SPIRAL, DISTRIBUTOR
19195-38210

22R#..RA6#

 1
19169 - STOPPER, CAM GREASE
19169-32010

22R..RA64

 1
19181 - ROTOR, DISTRIBUTOR, SIGNAL
19181-27050

22R..RA64

 1
19220 - ADVANCER ASSY, VACUUM, DISTRIBUTOR
19220-35010

22R..RA64

 1
19220A - RING, SNAP(FOR DISTRIBUTOR VACUUM ADVANCER)
90099-07109

22R..RA64

 1
19225 - CAP, RUBBER
19225-38011

22R..RA64

 1
19242 - CLAMP, CORD
19242-37080

22R#..RA6#

 1
19250 - GENERATOR ASSY, SIGNAL
19250-37080

22R#..RA6#

 1
Common parts
90090-80507
90099-00124
90099-00710
90099-02198
90099-04566
90099-04865
90119-08307
93319-15008
