RA64L-BCPQSA (1981)

Toyota Celica

Production Aug 1981 - Aug 1982
Engine 22R
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8108-8208)22R..USA

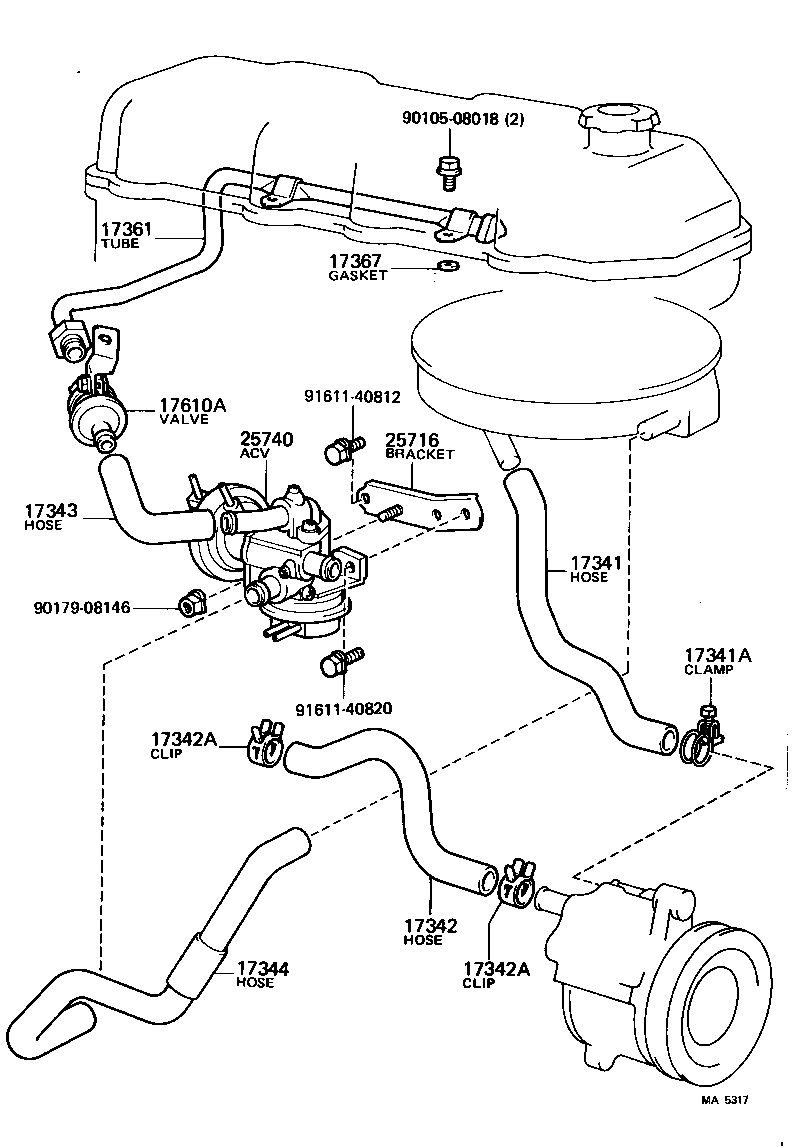

Click highlighted areas on diagram

diagram 17341 17341A 17342 17342A 17342A 17343 17344 17361 17367 17610A 25716 25740 9010508018 9017908146 9161140812 9161140820
Part # Description Qty Price
17341 - HOSE, NO.1(FOR AIR INJECTION SYSTEM)
17341-35010

22R..RA64..USA

 1
17341A - CLAMP OR CLIP, NO.1(FOR AIR INJECTION SYSTEM HOSE, NO.1
96111-10330

22R..RA64..USA

 1
17342 - HOSE, NO.2(FOR AIR INJECTION SYSTEM)
17342-35010

22R..RA64..USA

 1
17342A - CLAMP OR CLIP, NO.2(FOR AIR INJECTION SYSTEM HOSE, NO.2
90467-28003

22R..RA64..USA

 2
17342A - CLAMP OR CLIP, NO.2(FOR AIR INJECTION SYSTEM HOSE, NO.2
90467-28003

22R..RA64..USA

 2
17343 - HOSE, NO.3(FOR AIR INJECTION SYSTEM)
17343-35010

22R..RA64..USA

 1
17344 - HOSE, NO.4(FOR AIR INJECTION SYSTEM)
17344-35010

22R..RA64..USA

 1
17361 - TUBE, AIR
17360-38020

22R..RA64..USA

 1
17367 - GASKET, AIR TUBE
17376-38011

22R..RA64..USA

 2
17610A - VALVE, CHECK(FOR AIR INJECTION SYSTEM)
90917-10028

22R..RA64..USA

 1
25716 - BRACKET, AIR SWITCHING VALVE
25716-35010

22R..RA64..USA

 1
25740 - VALVE ASSY, AIR CONTROL
25740-35010

22R..RA64..USA

 1
Common parts
90105-08018
90179-08146
91611-40812
91611-40820
