RA64L-BCPQSA (1981)

Toyota Celica

Production Aug 1981 - Aug 1982
Engine 22R
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8108-8308)22R..USA

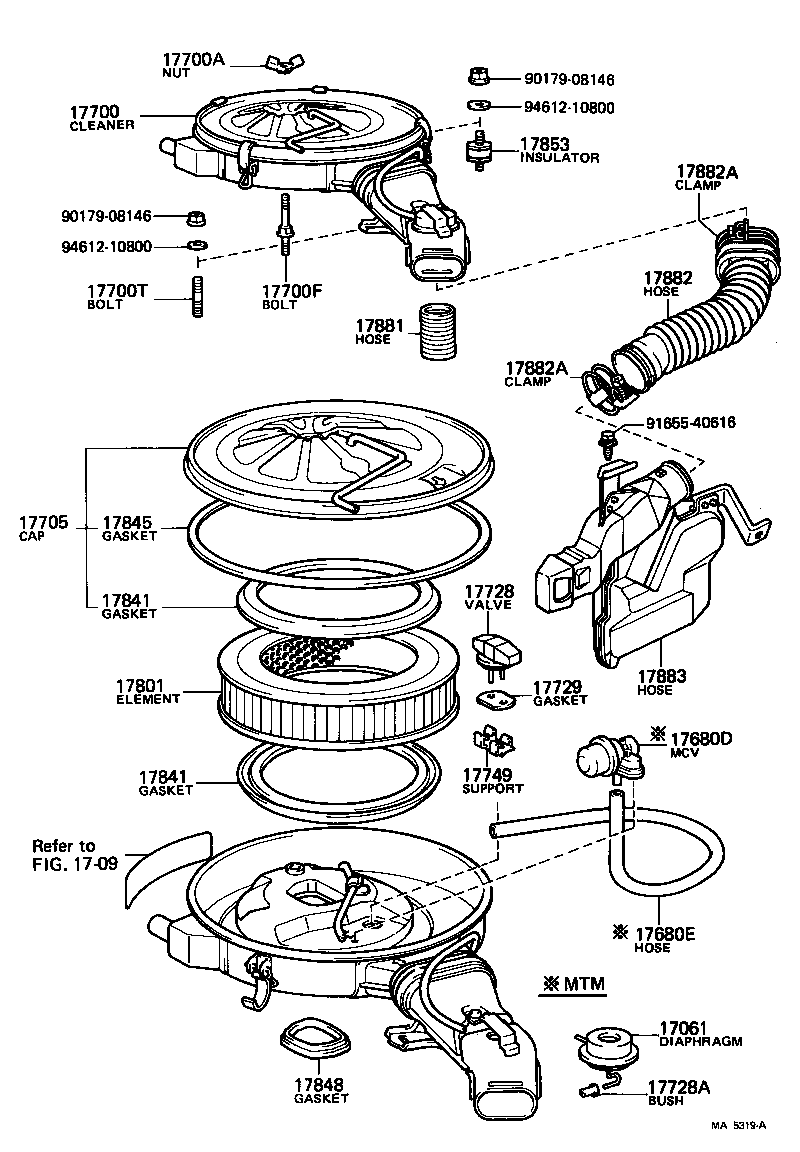

Click highlighted areas on diagram

diagram 17061 1709 17680D 17680E 17700 17700A 17700F 17700T 17705 17728 17728A 17729 17749 17801 17841 17841 17845 17848 17853 17881 17882 17882A 17882A 17883 9017908146 9017908146 9165540616 9461210800 9461210800
Part # Description Qty Price
17061 - DIAPHRAGM SUB-ASSY
17061-37010

22R..RA64

 1
17700 - CLEANER ASSY, AIR
17700-35090

22R..RA64..4FC..USA

 1
17700A - NUT, WING(FOR AIR CLEANER)
90175-06003

22R..RA64

 1
17700F - BOLT, STUD(FOR AIR CLEANER SETTING)
90116-06020

22R..RA64

 1
17700T - BOLT, STUD(FOR AIR CLEANER)
90116-08033

22R..RA64

 1
17705 - CAP SUB-ASSY, AIR CLEANER
17705-35060

22R..RA64..USA

 1
17728 - VALVE, THERMOSTATIC
17728-24010

22R..RA64

 1
17728A - BUSH
90386-03001

22R..RA64

 1
17729 - GASKET, THERMOSTAT VALVE
17729-34010

22R..RA64

 1
17749 - SUPPORT, THERMOSTAT VALVE
17749-34010

22R..RA64

 1
17801 - ELEMENT SUB-ASSY, AIR CLEANER FILTER
17801-41090

22R..RA64

 1
17841 - GASKET, FILTER ELEMENT
17841-41050

22R..RA64

 2
17841 - GASKET, FILTER ELEMENT
17841-41050

22R..RA64

 2
17845 - GASKET, AIR CLEANER CAP
17845-35010

22R..RA64

 1
17848 - GASKET, AIR CLEANER TO CARBURETOR
17848-35010

22R..RA64

 1
17853 - INSULATOR, AIR CLEANER BRACKET
17853-38010

22R..RA64

 1
17881 - HOSE, AIR CLEANER, NO.1
17881-37030

22R..RA64

 1
17882 - HOSE, AIR CLEANER, NO.2
17881-14010

22R..RA64

 1
17882A - CLAMP(FOR AIR CLEANER HOSE, NO.2)
96111-10780

22R..RA64

FENDER SIDE

 1
90460-01025

22R..RA64

AIR CLEANER SIDE

 1
17882A - CLAMP(FOR AIR CLEANER HOSE, NO.2)
96111-10780

22R..RA64

FENDER SIDE

 1
90460-01025

22R..RA64

AIR CLEANER SIDE

 1
17883 - HOSE, AIR CLEANER, NO.3
17883-14010

22R..RA64

 1
Common parts
90179-08146
91655-40616
94612-10800
Linked diagrams
1709
