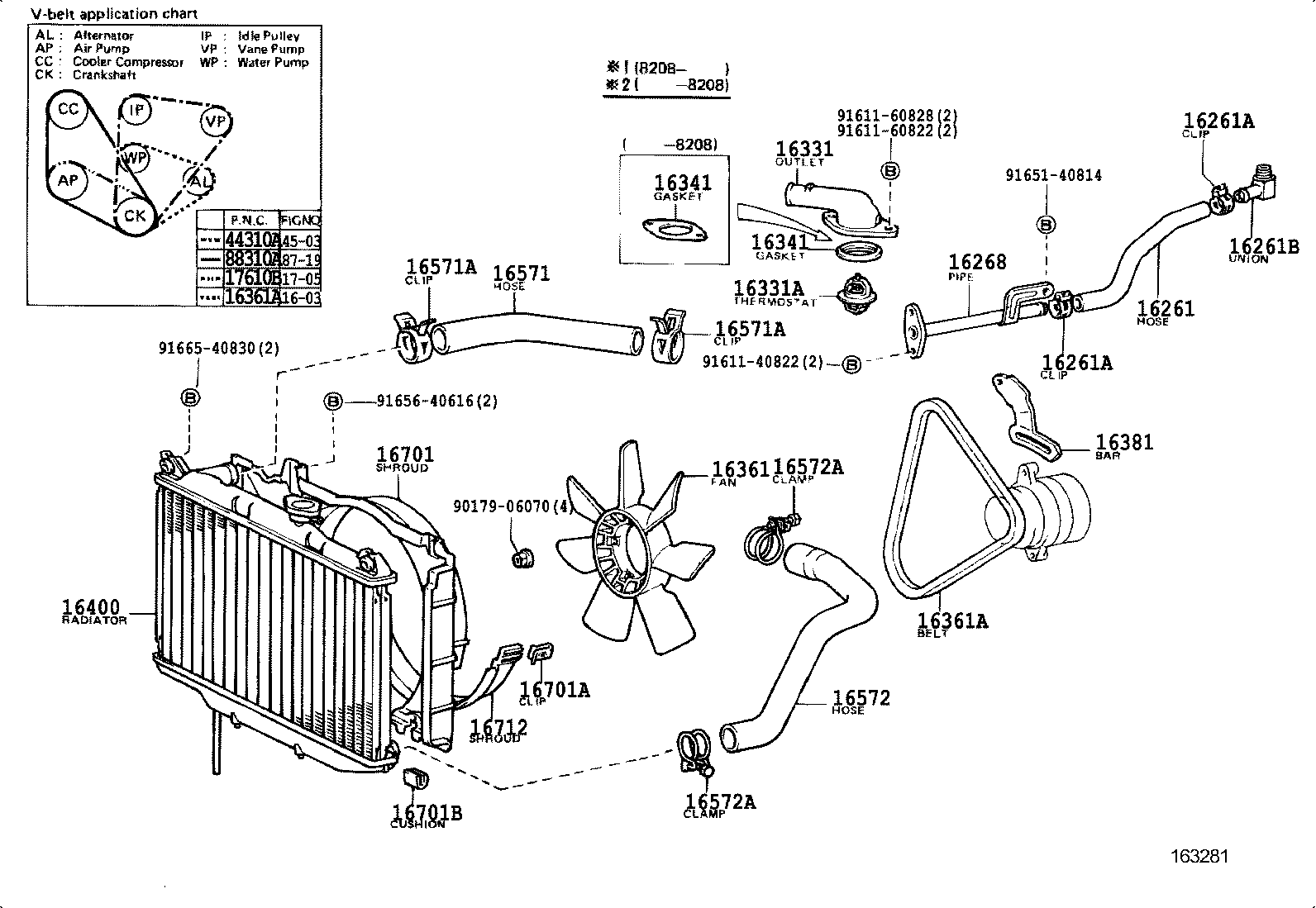

RA64L-BCPQSA (1981)
Toyota Celica
(8108-8308)22R
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16261 - HOSE, WATER BY-PASS | ||||
| 16261-35010 |
22R..RA64 |
1 | ||
| 16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE) | ||||
| 90467-20005 |
22R#..RA6# |
2 | ||
| 16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE) | ||||
| 90467-20005 |
22R#..RA6# |
2 | ||
| 16261B - UNION(FOR WATER BY-PASS HOSE) | ||||
| 90407-14002 |
22R..RA64 |
1 | ||
| 16268 - PIPE, WATER BY-PASS, NO.1 | ||||
| 16268-35010 |
22R..RA64 |
1 | ||
| 16331 - OUTLET, WATER | ||||
| 16331-35020 |
22R..RA64 |
1 | ||
| 16331A - THERMOSTAT | ||||
| 90916-03055 |
22R#..RA6# *WAX 88-100 |
1 | ||
| 90916-03036 |
22R..RA64 *WAX88-100,FUJI-THOMSON |
1 | ||
| 16341 - GASKET, WATER OUTLET | ||||
| 16341-38020 |
22R..RA64 |
1 | ||
| 16341 - GASKET, WATER OUTLET | ||||
| 16341-38020 |
22R..RA64 |
1 | ||
| 16361 - FAN | ||||
| 16361-38010 |
22R#..RA6# 7 BLADES |
1 | ||
| 16361A - BELT, V(FOR FAN & ALTERNATOR) | ||||
| 99331-10880 |
22R#..RA6# L=880 |
1 | ||
| 16361A - BELT, V(FOR FAN & ALTERNATOR) | ||||
| 99331-10880 |
22R#..RA6# L=880 |
1 | ||
| 16381 - BAR, FAN BELT ADJUSTING | ||||
| 16381-38020 |
22R#..RA6# |
1 | ||
| 16400 - RADIATOR ASSY | ||||
| 16400-35080 |
22R#..RA64..4FC W/CAP |
1 | ||
| 16571 - HOSE, RADIATOR, INLET | ||||
| 16571-35030 |
22R..RA64 |
1 | ||
| 16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET) | ||||
| 90467-37001 |
22R#..RA6# |
2 | ||
| 16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET) | ||||
| 90467-37001 |
22R#..RA6# |
2 | ||
| 16572 - HOSE, RADIATOR, OUTLET | ||||
| 16572-38070 |
22R#..RA6# |
1 | ||
| 16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1) | ||||
| 96111-10490 |
22R#..RA6# WATER PUMP SIDE |
1 | ||
| 96111-10460 |
22R#..RA6# RADIATOR SIDE |
1 | ||
| 16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1) | ||||
| 96111-10490 |
22R#..RA6# WATER PUMP SIDE |
1 | ||
| 96111-10460 |
22R#..RA6# RADIATOR SIDE |
1 | ||
| 16701 - SHROUD SUB-ASSY, FAN | ||||
| 16711-35010 |
22R#..RA6# |
1 | ||
| 16701A - CLIP(FOR FAN SHROUD) | ||||
| 90468-06013 |
22R#..RA6# W/COOLER |
2 | ||
| 16701B - CUSHION, FAN SHROUD | ||||
| 90541-11002 |
22R#..RA6# |
2 | ||
| 16712 - SHROUD, FAN, NO.2 | ||||
| 16712-54050 |
22R#..RA6# W/COOLER |
1 | ||
| 44310A - BELT, V(FOR VANE PUMP) | ||||
| 99332-11135 |
RA6# |
1 | ||
| 88310A - BELT, V (COOLER COMPRESSOR TO CRANKSHAFT PULLEY), NO.1 | ||||
| 99332-11120 |
RA64..CBR..USA |
1 | ||
| Common parts | ||||
| 90179-06070 | ||||
| 91611-40822 | ||||
| 91611-60822 | ||||
| 91611-60828 | ||||
| 91651-40814 | ||||
| 91656-40616 | ||||
| 91665-40830 | ||||
| Linked diagrams | ||||
| 1603 | ||||
| 1705 | ||||
| 4503 | ||||
| 8719 | ||||
(8108-8507)22R#
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16400 - RADIATOR ASSY | ||||
| 16400-35080 |
22R#..RA64..4FC W/CAP |
1 | ||
| 16400 - RADIATOR ASSY | ||||
| 16400-35080 |
22R#..RA64..4FC W/CAP |
1 | ||
| 16400B - PLUG, RADIATOR DRAIN COCK | ||||
| 23322-54010 |
22R#..RA6# |
1 | ||
| 16400F - PACKING(FOR RADIATOR DRAIN COCK) | ||||
| 96711-19007 |
22R#..RA6# |
1 | ||
| 16400R - BUSHING(FOR RADIATOR) | ||||
| 16444-35070 |
22R#..RA6# |
2 | ||
| 16400S - COLLAR(FOR RADIATOR) | ||||
| 16445-35070 |
22R#..RA6# |
2 | ||
| 16401 - CAP SUB-ASSY, RADIATOR | ||||
| 16401-63010 |
22R#..RA6# |
1 | ||
| 16403F - CORE SUB-ASSY, RADIATOR | ||||
| 16403-35070 |
22R#..RA6# |
1 | ||
| 16441 - TANK, RADIATOR, UPPER | ||||
| 16441-35070 |
22R#..RA6# |
1 | ||
| 16442 - RING, O(FOR RADIATOR UPPER TANK) | ||||
| 16442-35070 |
22R#..RA6# |
1 | ||
| 16443 - PLATE, RADIATOR TANK, LOCK, UPPER | ||||
| 16443-35070 |
22R#..RA6# |
2 | ||
| 16451 - PLATE, RADIATOR CORE, UPPER | ||||
| 16451-35070 |
22R#..RA6# |
1 | ||
| 16452 - PLATE, RADIATOR CORE, LOWER | ||||
| 16452-35070 |
22R#..RA6# |
1 | ||
| 16461 - TANK, RADIATOR, LOWER | ||||
| 16461-35080 |
22R#..RA6#..4FC |
1 | ||
| 16462 - RING, O(FOR RADIATOR LOWER TANK) | ||||
| 16462-35070 |
22R#..RA6# |
1 | ||
| 16463 - PLATE, RADIATOR TANK, LOCK, LOWER | ||||
| 16463-35070 |
22R#..RA6# |
2 | ||
| 16491 - COOLER, OIL(FOR ATM) | ||||
| 16491-35080 |
22R#..RA6#..4FC |
1 | ||
| 16491A - RING, O(FOR ATM OIL COOLER) | ||||
| 16492-35080 |
22R#..RA6#..4FC |
2 | ||
| 16491B - WASHER, PLATE(FOR ATM OIL COOLER) | ||||
| 16493-35080 |
22R#..RA6#..4FC |
2 | ||
| 16491C - WASHER, SPRING(FOR ATM OIL COOLER) | ||||
| 16494-35080 |
22R#..RA6#..4FC |
2 | ||
| 16491D - NUT(FOR ATM OIL COOLER) | ||||
| 16496-35080 |
22R#..RA6#..4FC |
2 | ||
| 16495 - NUT, FLARE(FOR ATM OIL COOLER) | ||||
| 16495-35080 |
22R#..RA6#..4FC |
2 | ||
