RA64L-BCPQSA (1981)

Toyota Celica

Production Aug 1981 - Aug 1982
Engine 22R
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8108-8507)22R#

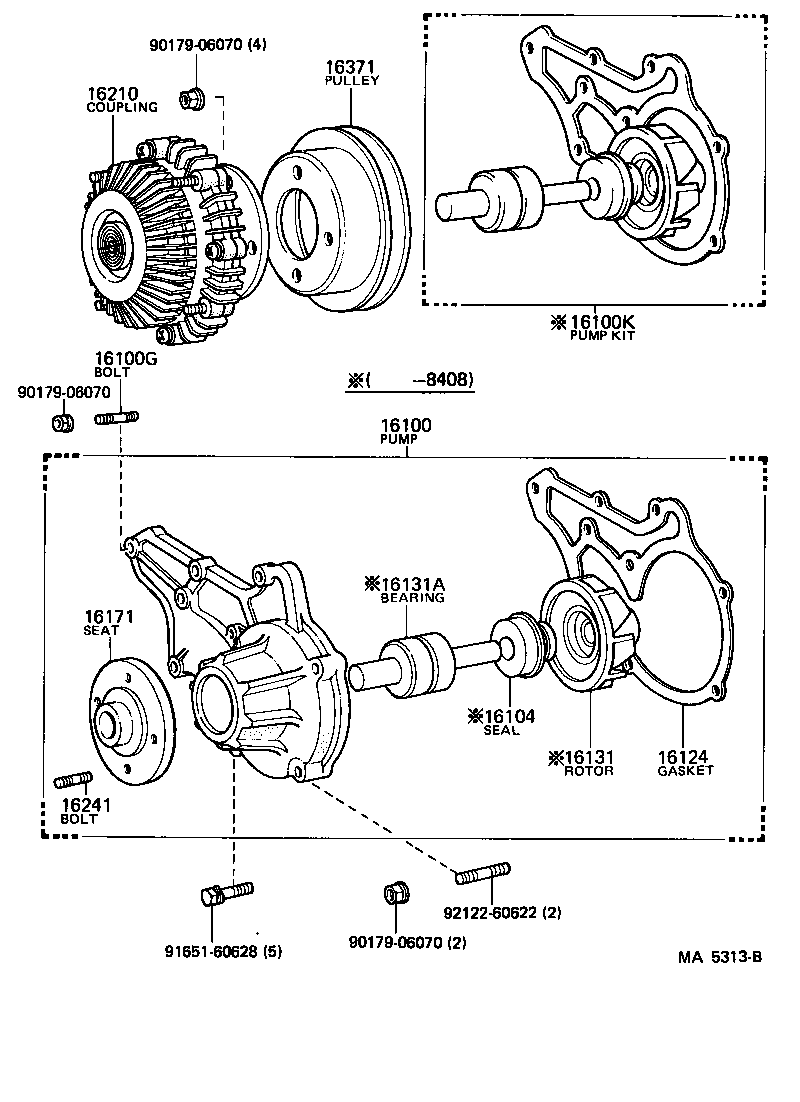

Click highlighted areas on diagram

diagram 16100 16100G 16100K 16104 16124 16131 16131A 16171 16210 16241 16371 9017906070 9017906070 9017906070 9165160628 9212260622
Part # Description Qty Price
16100 - PUMP ASSY, ENGINE WATER
16100-39315

22R..RA64

 1
16100G - BOLT, STUD(FOR WATER PUMP SET)
16193-38030

22R#..RA6#

 1
16100K - PUMP KIT, WATER
04161-35020

22R#..RA6#

 1
16104 - SEAL SET, WATER PUMP
16104-41111

22R#..RA6#

 1
16124 - GASKET, WATER PUMP COVER
16129-35010

22R..RA64

 1
16131 - ROTOR, WATER PUMP
16131-35010

22R#..RA6#

 1
16131A - BEARING, WATER PUMP
90369-30011

22R#..RA6#

 1
16171 - SEAT, WATER PUMP PULLEY
16171-38022

22R#..RA6#

 1
16210 - COUPLING ASSY, FLUID
16210-38060

22R#..RA64..4FC

 1
16241 - BOLT, STUD(FOR WATER PUMP COUPLING)
16193-33030

22R#..RA6#

 4
16371 - PULLEY, FAN
16173-38011

22R#..RA6#

 1
Common parts
90179-06070
91651-60628
92122-60622
