RA64L-BCPQSA (1981)

Toyota Celica

Production Aug 1981 - Aug 1982
Engine 22R
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8108-8408)22R#

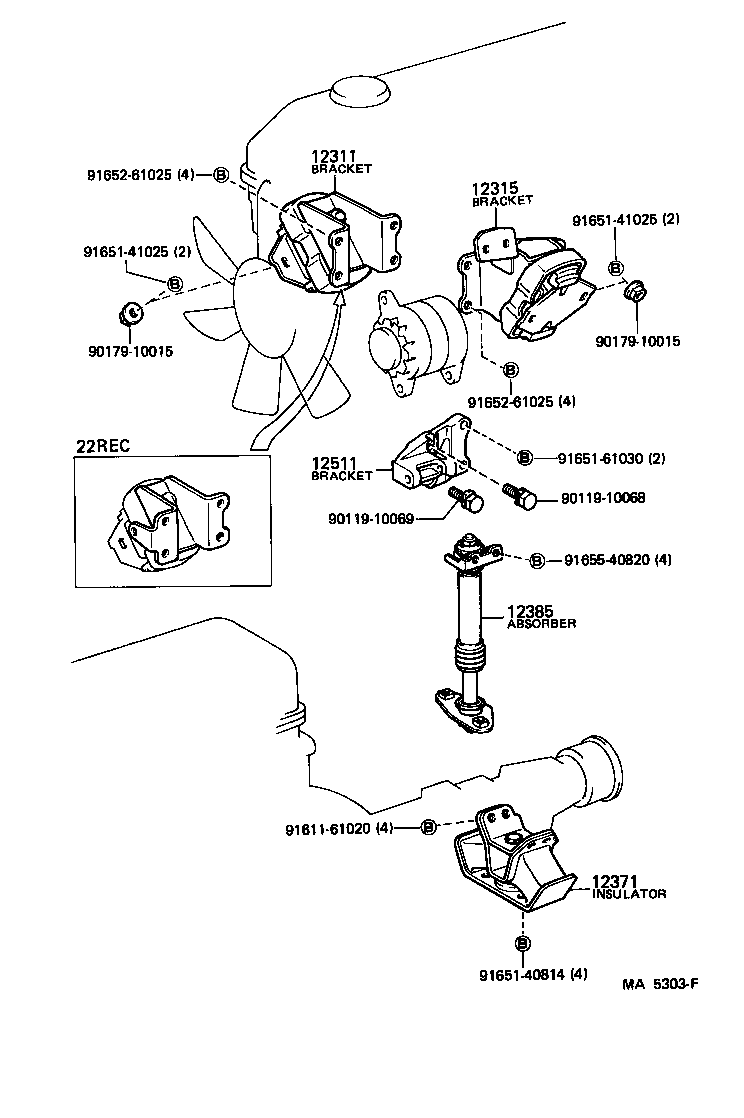

Click highlighted areas on diagram

diagram 12311 12315 12371 12385 12511 9011910068 9011910069 9017910015 9017910015 9161161020 9165140814 9165141025 9165141025 9165161030 9165261025 9165261025 9165540820
Part # Description Qty Price
12311 - BRACKET, ENGINE MOUNTING, FRONT NO.1 RH
12301-35080

22R..RA64

 1
12315 - BRACKET, ENGINE MOUNTING, FRONT NO.1 LH
12302-35020

22R#..RA6#

 1
12371 - INSULATOR, ENGINE MOUNTING, REAR NO.1
12371-34030

22R#..RA6#

 1
12385 - ABSORBER, ENGINE MOUNTING, NO.1
12308-35010

22R..RA64

 1
12511 - BRACKET, ALTERNATOR, NO.1
12511-35010

22R#..RA6#

 1
Common parts
90119-10068
90119-10069
90179-10015
91611-61020
91651-40814
91651-41025
91651-61030
91652-61025
91655-40820
