RA64L-BCPQSA (1981)

Toyota Celica

Production Aug 1981 - Aug 1982
Engine 22R
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

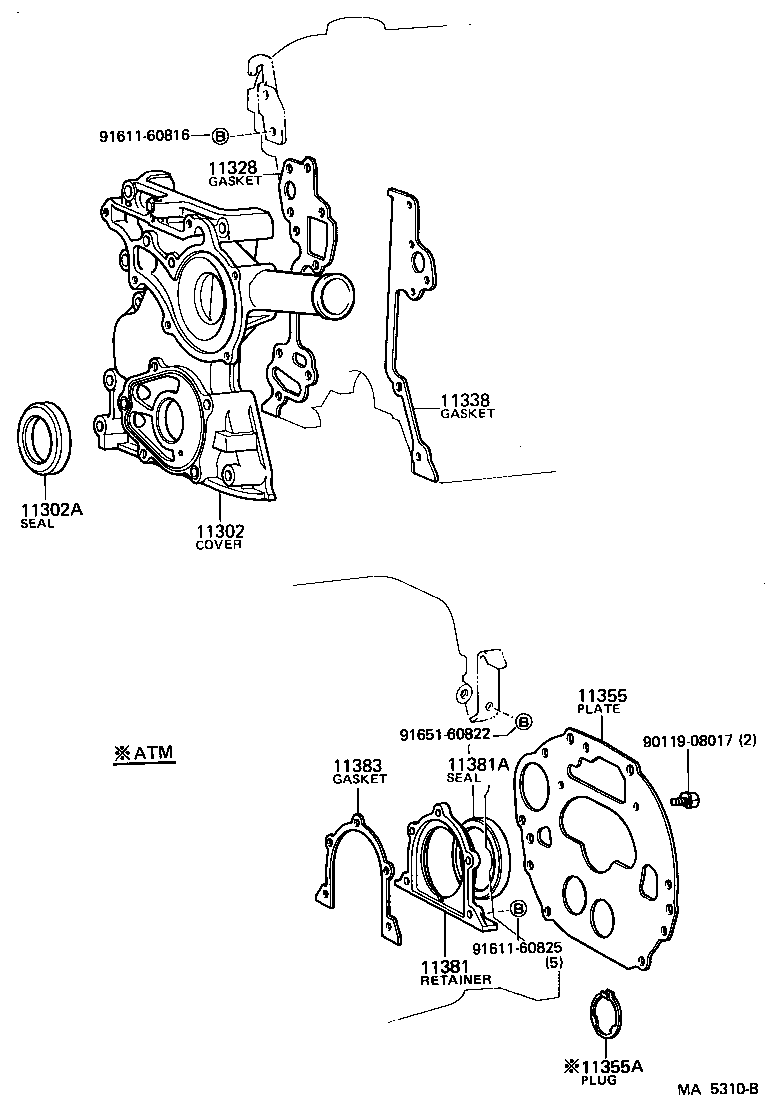

(8108-8507)22R#

Click highlighted areas on diagram

diagram 11302 11302A 11328 11338 11355 11355A 11381 11381A 11383 9011908017 9161160816 9161160825 9165160822
Part # Description Qty Price
11302 - COVER SUB-ASSY, TIMING CHAIN OR BELT
11302-38010

22R#..RA6#

 1
11302A - SEAL, OIL(FOR TIMING CHAIN OR BELT COVER)
90311-45002

22R#..RA6#

 1
11328 - GASKET, TIMING GEAR OR CHAIN COVER
11328-38020

22R#..RA6#

 1
11338 - GASKET, TIMING CHAIN COVER, NO.2
11338-38030

22R#..RA6#

 1
11355 - PLATE, REAR END
11355-38021

22R#..RA64..4FC

 1
11355A - PLUG, HOLE(FOR REAR END PLATE)
90950-01128

22R#..RA6#..4FC

 2
11381 - RETAINER, ENGINE REAR OIL SEAL
11381-38010

22R#..RA6#

 1
11381A - SEAL, ENGINE REAR OIL
90311-80001

22R#..RA6#

TC80 100 12

 1
11383 - GASKET, ENGINE REAR OIL SEAL RETAINER
11383-33010

22R#..RA6#

 1
Common parts
90119-08017
91611-60816
91611-60825
91651-60822

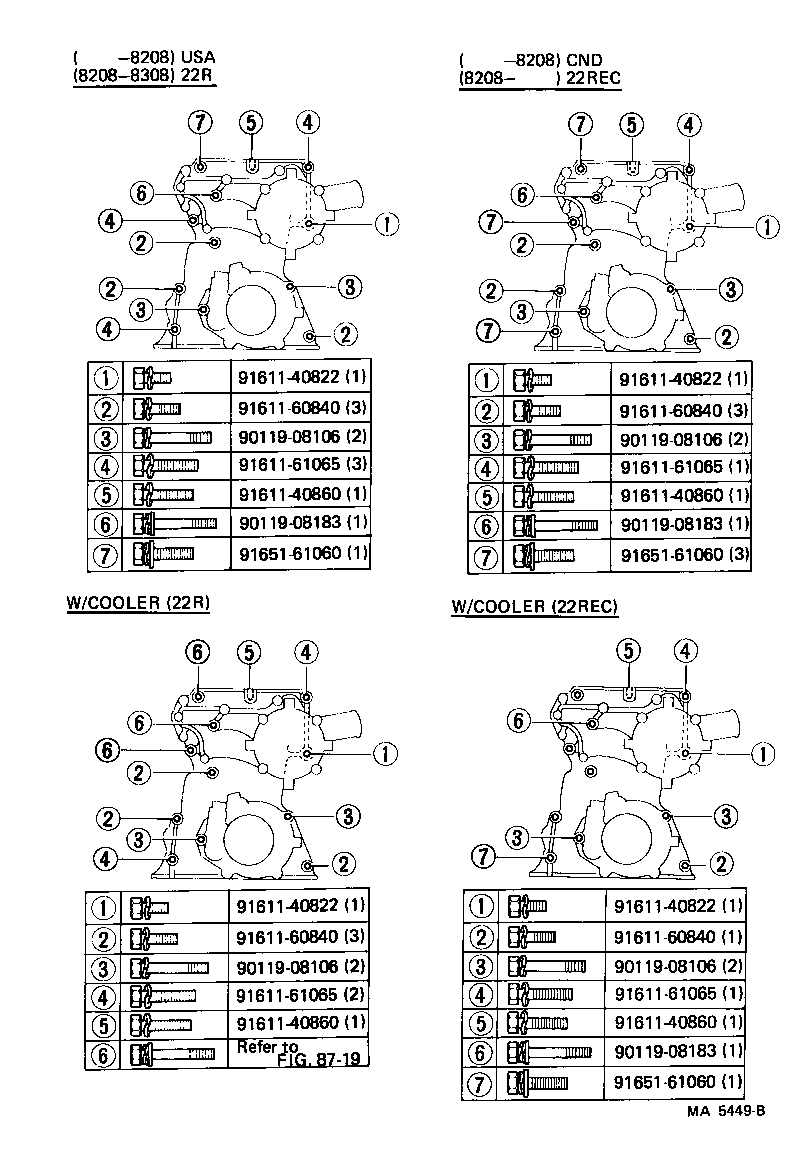

(8108-8408)22R#

Click highlighted areas on diagram

diagram 8719 9011908106 9011908106 9011908106 9011908106 9011908183 9011908183 9011908183 9161140822 9161140822 9161140822 9161140822 9161140860 9161140860 9161140860 9161140860 9161160840 9161160840 9161160840 9161160840 9161161065 9161161065 9161161065 9161161065 9165161060 9165161060 9165161060
Part # Description Qty Price
Common parts
90119-08106
90119-08183
91611-40822
91611-40860
91611-60840
91611-61065
91651-61060
Linked diagrams
8719
