RA64L-BCPQSA (1981)

Toyota Celica

Production Aug 1981 - Aug 1982
Engine 22R
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8108- )

Click highlighted areas on diagram

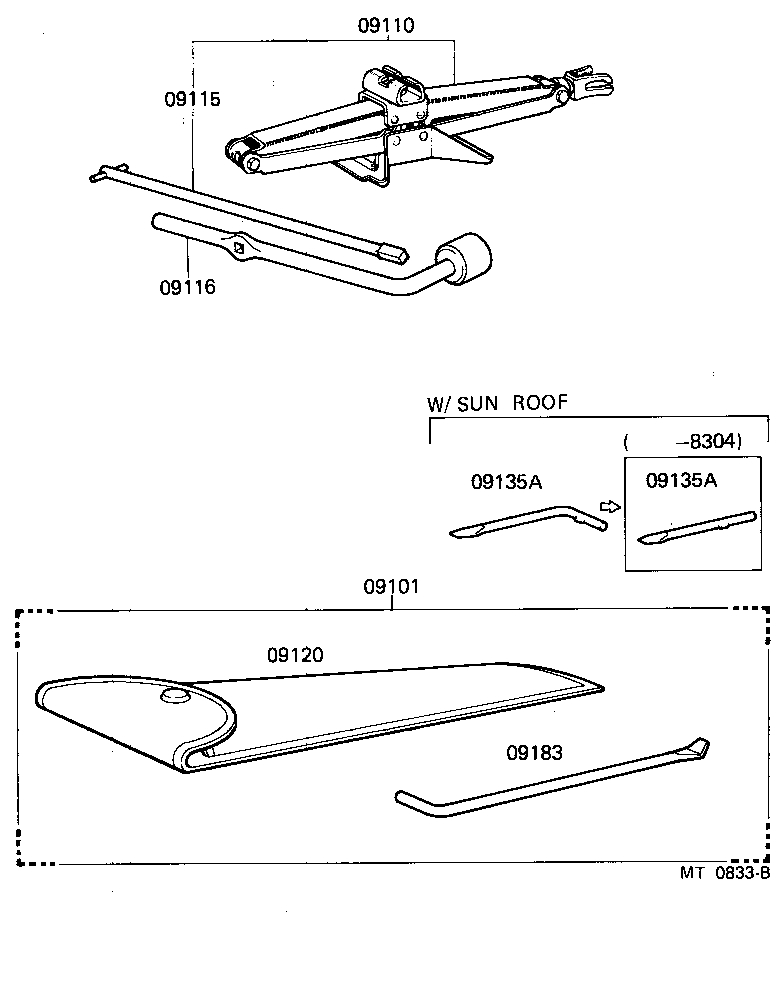

diagram 09101 09110 09115 09116 09120 09135A 09135A 09183
Part # Description Qty Price
09101 - TOOL SET, STANDARD W/O JACK
09102-14070

MA61,RA64

 1
09110 - JACK ASSY
09118-14010

MA61,RA6#

 1
09115 - ROD SUB-ASSY, JACK HANDLE
09115-16010

MA61,RA64

 1
09116 - LEVER, JACK HANDLE
09116-16010

MA61,RA6#

 1
09120 - BAG, TOOL
09120-12030

MA61,RA6#

 1
09135A - BIT, SCREW DRIVER
09135-00011

MA61,RA6#

W/SUN ROOF

 1
09135A - BIT, SCREW DRIVER
09135-00011

MA61,RA6#

W/SUN ROOF

 1
09183 - WRENCH, WHEEL CAP
09183-00010

MA61,RA6#

 1
