RA64L-BCPQEK (1982)
Toyota Celica
Production
Aug 1982
-
Jul 1985
Engine
22REC
Transmission
4FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(8108-8308)22R
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 25601 - PIPE SUB-ASSY, EGR, NO.1 | ||||
| 25601-38010 |
22R..RA64 |
1 | ||
| 25601-35010 |
22REC..RA6# |
1 | ||
| 25601A - SLEEVE, BALL, EGR PIPE, NO.1 | ||||
| 90410-16044 |
22R#..RA6# |
1 | ||
| 25601B - NUT, UNION, EGR PIPE, NO.1 | ||||
| 90402-22081 |
22R#..RA6# |
1 | ||
| 25620 - VALVE ASSY, EGR | ||||
| 25620-35100 |
22REC..RA64 |
1 | ||
| 25620-35070 |
22REC..RA6# |
1 | ||
| 25620-38221 |
22R..RA64..CND |
1 | ||
| 25620A - BOLT, STUD(FOR EGR VALVE) | ||||
| 90116-08207 |
22R#..RA6# |
1 | ||
| 25628 - GASKET, EGR INLET | ||||
| 25628-38010 |
22R..RA64 |
1 | ||
| 25628-35010 |
22REC..RA6# |
1 | ||
| 25681 - COOLER, EGR, NO.1 | ||||
| 11181-35010 |
22R..RA64 |
1 | ||
| 25685 - GASKET, EGR COOLER, NO.1 | ||||
| 11182-38011 |
22R..RA64 |
1 | ||
| 25690 - MODULATOR ASSY, EGR VACUUM | ||||
| 25870-35020 |
22R..RA64..CND |
1 | ||
| 25690-35010 |
22REC..RA6# |
1 | ||
| 25870-35040 |
22REC..RA6# |
1 | ||
| 25690A - HOSE(FOR EGR VACUUM MODULATOR) | ||||
| 25695-35010 |
22REC..RA6# |
1 | ||
| 90910-05147 |
22R..RA64 |
1 | ||
| 25691 - BRACKET, EGR VACUUM MODULATOR | ||||
| 25691-35020 |
22REC..RA6# |
1 | ||
| 25691-35010 |
22R..RA64 |
1 | ||
| 25691-35021 |
22REC..RA6# |
1 | ||
| Common parts | ||||
| 90119-08092 | ||||
| 90179-08146 | ||||
| 90467-11085 | ||||
| 91611-40822 | ||||
| 91611-40850 | ||||
| 91611-60820 | ||||
| 91651-40828 | ||||
| Linked diagrams | ||||
| 1708 | ||||

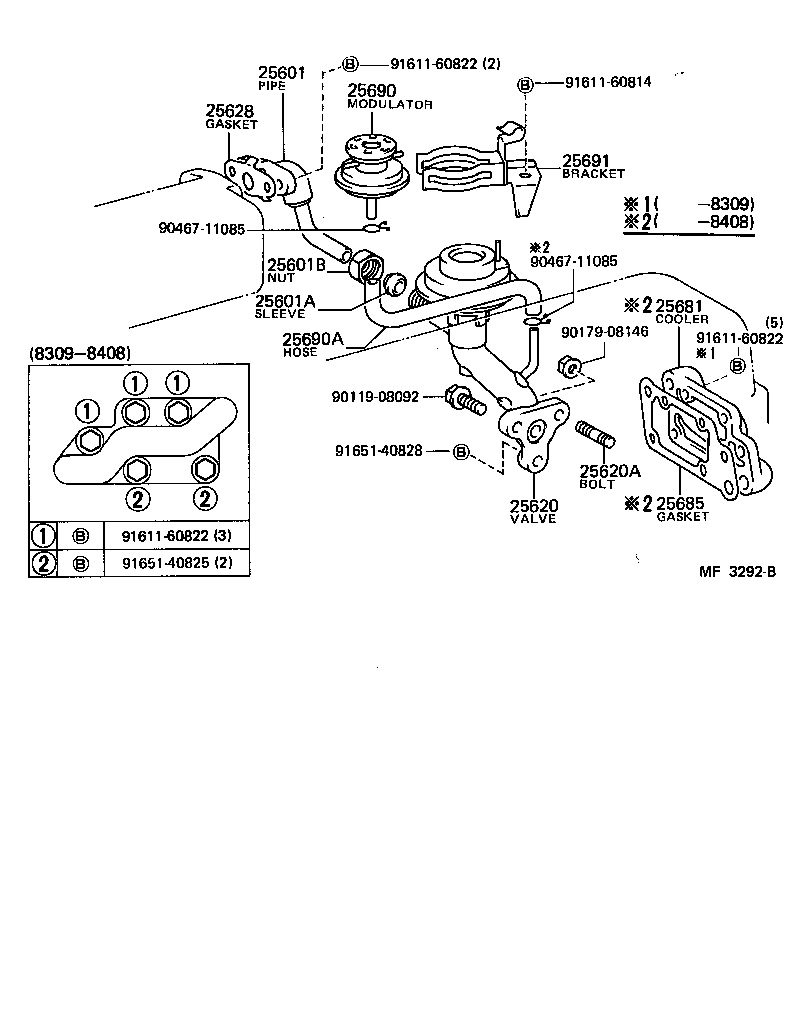

(8208-8507)22REC
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 25601 - PIPE SUB-ASSY, EGR, NO.1 | ||||
| 25601-38010 |
22R..RA64 |
1 | ||
| 25601-35010 |
22REC..RA6# |
1 | ||
| 25601A - SLEEVE, BALL, EGR PIPE, NO.1 | ||||
| 90410-16044 |
22R#..RA6# |
1 | ||
| 25601B - NUT, UNION, EGR PIPE, NO.1 | ||||
| 90402-22081 |
22R#..RA6# |
1 | ||
| 25620 - VALVE ASSY, EGR | ||||
| 25620-35100 |
22REC..RA64 |
1 | ||
| 25620-35070 |
22REC..RA6# |
1 | ||
| 25620-38221 |
22R..RA64..CND |
1 | ||
| 25620A - BOLT, STUD(FOR EGR VALVE) | ||||
| 90116-08207 |
22R#..RA6# |
1 | ||
| 25628 - GASKET, EGR INLET | ||||
| 25628-38010 |
22R..RA64 |
1 | ||
| 25628-35010 |
22REC..RA6# |
1 | ||
| 25681 - COOLER, EGR, NO.1 | ||||
| 11181-35010 |
22R..RA64 |
1 | ||
| 25685 - GASKET, EGR COOLER, NO.1 | ||||
| 11182-38011 |
22R..RA64 |
1 | ||
| 25690 - MODULATOR ASSY, EGR VACUUM | ||||
| 25870-35020 |
22R..RA64..CND |
1 | ||
| 25690-35010 |
22REC..RA6# |
1 | ||
| 25870-35040 |
22REC..RA6# |
1 | ||
| 25690A - HOSE(FOR EGR VACUUM MODULATOR) | ||||
| 25695-35010 |
22REC..RA6# |
1 | ||
| 90910-05147 |
22R..RA64 |
1 | ||
| 25691 - BRACKET, EGR VACUUM MODULATOR | ||||
| 25691-35020 |
22REC..RA6# |
1 | ||
| 25691-35010 |
22R..RA64 |
1 | ||
| 25691-35021 |
22REC..RA6# |
1 | ||
| Common parts | ||||
| 90119-08092 | ||||
| 90179-08146 | ||||
| 90467-11085 | ||||
| 91611-60814 | ||||
| 91611-60822 | ||||
| 91651-40825 | ||||
| 91651-40828 | ||||
